BU100L-PSMJS (1995)
Toyota Dyna200
ILLUST NO. 2 OF 2(9505-9908)14B..BU101..20T,30T ; (9505- )14B,15BF,3B..BU100,102,11#,14# ; (9908-
REAR SCHNORKEL TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-58440 |
14B,15BF..BU102..WT..20T..TB;14B,15BF,3B..BU100,101,112,140,141..LHD..GEN |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,212,213,222,223 |
1 | ||
| 17700K - HOSE, VACUUM(FOR AIR CLEANER WARNING SENSOR) | ||||
| 90999-92002 |
14B,15BF,3B..BU100,102..WT..20T..TB;14B,15BF,3B..BU100,101,112,140,141..LHD..GEN *H,L=100,MARK=#* |
1 | ||
| 90999-92002 |
14B..BU101..LHD..WT;14B..BU101..20T..GEN..TB;14B,15BF..BU102..WT..20T..TB;14B,15BF,3B..BU100,112,140,141..LHD..GEN *H,L=300,MARK=#*,LOWER |
1 | ||
| 17700K - HOSE, VACUUM(FOR AIR CLEANER WARNING SENSOR) | ||||
| 90999-92002 |
14B,15BF,3B..BU100,102..WT..20T..TB;14B,15BF,3B..BU100,101,112,140,141..LHD..GEN *H,L=100,MARK=#* |
1 | ||
| 90999-92002 |
14B..BU101..LHD..WT;14B..BU101..20T..GEN..TB;14B,15BF..BU102..WT..20T..TB;14B,15BF,3B..BU100,112,140,141..LHD..GEN *H,L=300,MARK=#*,LOWER |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-54260 |
14B,15BF..BU102..WT..20T..TB;14B,15BF,3B..BU100,101,112,140,141..LHD..GEN |
1 | ||
| 17709E - BRACKET, AIR CLEANER INLET, NO.2 | ||||
| 53773-95402 |
14B,3B..BU100,101..175T..GEN |
1 | ||
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17730-56020 |
14B,3B..BU100,101..175T..GEN |
1 | ||
| 17730B - CLAMP, HOSE(FOR PRECLEANER HOSE) | ||||
| 96111-10880 |
15B#..BU212..T3;3B..BU100..175T..GEN;14B..BU101..ST..IV3..TS;14B,15BF,3B..BU10#,11#,14#,211,221..(DM1,DM6,T3)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 17736 - NUT, AIR CLEANER CASE | ||||
| 90175-06003 |
14B..BU211,221..GEN;14B,15B#,3B..BU10#,11#,14#,212,213,222,223 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-58010 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF,3B..BU10#,11#,14#,212,222..ARL,GEN,SA,TAIW |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-58010 |
14B..BU211..30T..SA;14B,15BF..BU102..WT..20T..TB;14B,15BF,3B..BU100,101,112,140,141..LHD..GEN |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF,3B..BU10#,11#,14#,212,222 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF,3B..BU10#,11#,14#,212,222 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
14B..BU211..30T..SA;14B,15BF..BU102..WT..20T..TB;14B,15BF,3B..BU100,101,112,140,141..LHD..GEN |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-58140 |
3B..BU100..T2,TW2;3B..BU100,140..T3..GEN |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-58140 |
3B..BU100..T2,TW2;3B..BU100,140..T3..GEN |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
3B..BU100,140 ID=69,BROWN |
1 | ||
| 96111-10850 |
3B..BU100..20T..GEN;14B,15BF,3B..BU100,102..T2,TW2;14B,15BF,3B..BU101,112,140,141..GEN ID=85,BLACK |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
3B..BU100,140 ID=69,BROWN |
1 | ||
| 96111-10850 |
3B..BU100..20T..GEN;14B,15BF,3B..BU100,102..T2,TW2;14B,15BF,3B..BU101,112,140,141..GEN ID=85,BLACK |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
3B..BU100,140 ID=69,BROWN |
1 | ||
| 96111-10850 |
3B..BU100..20T..GEN;14B,15BF,3B..BU100,102..T2,TW2;14B,15BF,3B..BU101,112,140,141..GEN ID=85,BLACK |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
3B..BU100,140 ID=69,BROWN |
1 | ||
| 96111-10850 |
3B..BU100..20T..GEN;14B,15BF,3B..BU100,102..T2,TW2;14B,15BF,3B..BU101,112,140,141..GEN ID=85,BLACK |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-58110 |
14B,15BF..BU102..WT..20T..TB;14B,15BF,3B..BU100,101,112,140,141..LHD..GEN |
1 | ||
| 17882-58190 |
14B,15BF..BU102..WT..20T..TB;14B,15BF,3B..BU100,101,112,140,141..LHD..GEN AIR CLEANER SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-58110 |
14B,15BF..BU102..WT..20T..TB;14B,15BF,3B..BU100,101,112,140,141..LHD..GEN |
1 | ||
| 17882-58190 |
14B,15BF..BU102..WT..20T..TB;14B,15BF,3B..BU100,101,112,140,141..LHD..GEN AIR CLEANER SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10850 |
14B,15BF..BU102..WT..20T..TB;14B,15BF,3B..BU100,101,112,140,141..LHD..GEN FOR PIPE TO PIPE |
2 | ||
| 96111-10750 |
14B,15BF..BU102..WT..20T..TB;14B,15BF,3B..BU100,101,112,140,141..LHD..GEN FOR CLEANER TO PIPE |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10850 |
14B,15BF..BU102..WT..20T..TB;14B,15BF,3B..BU100,101,112,140,141..LHD..GEN FOR PIPE TO PIPE |
2 | ||
| 96111-10750 |
14B,15BF..BU102..WT..20T..TB;14B,15BF,3B..BU100,101,112,140,141..LHD..GEN FOR CLEANER TO PIPE |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10850 |
14B,15BF..BU102..WT..20T..TB;14B,15BF,3B..BU100,101,112,140,141..LHD..GEN FOR PIPE TO PIPE |
2 | ||
| 96111-10750 |
14B,15BF..BU102..WT..20T..TB;14B,15BF,3B..BU100,101,112,140,141..LHD..GEN FOR CLEANER TO PIPE |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10850 |
14B,15BF..BU102..WT..20T..TB;14B,15BF,3B..BU100,101,112,140,141..LHD..GEN FOR PIPE TO PIPE |
2 | ||
| 96111-10750 |
14B,15BF..BU102..WT..20T..TB;14B,15BF,3B..BU100,101,112,140,141..LHD..GEN FOR CLEANER TO PIPE |
2 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10800 |
3B..BU100..20T..GEN;14B,15BF,3B..BU100,102..T2,TW2;14B,15BF,3B..BU101,112,140,141..ARL,GEN ID=80,GRAY |
1 | ||
| 96111-10750 |
3B..BU100..20T..GEN;14B,15BF,3B..BU100,102..T2,TW2;14B,15BF,3B..BU101,112,140,141..ARL,GEN ID=75,BLACK |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-37100 |
BU102..WT..20T..TB;BU100,101,112,140,141..LHD..GEN |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-37100 |
BU102..WT..20T..TB;BU100,101,112,140,141..LHD..GEN |
1 | ||
| Common parts | ||||
| 90119-08471 | ||||
| 90179-06009 | ||||
| 90179-08068 | ||||
| 90179-08104 | ||||
| 90387-10107 | ||||
| 90480-16021 | ||||
| 90480-22006 | ||||
| 90560-08044 | ||||
| 91621-60825 | ||||
| 91622-61025 | ||||
| 91631-60825 | ||||
| 91632-60828 | ||||
| 91651-40825 | ||||
| 93385-15020 | ||||
| 96111-10880 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||

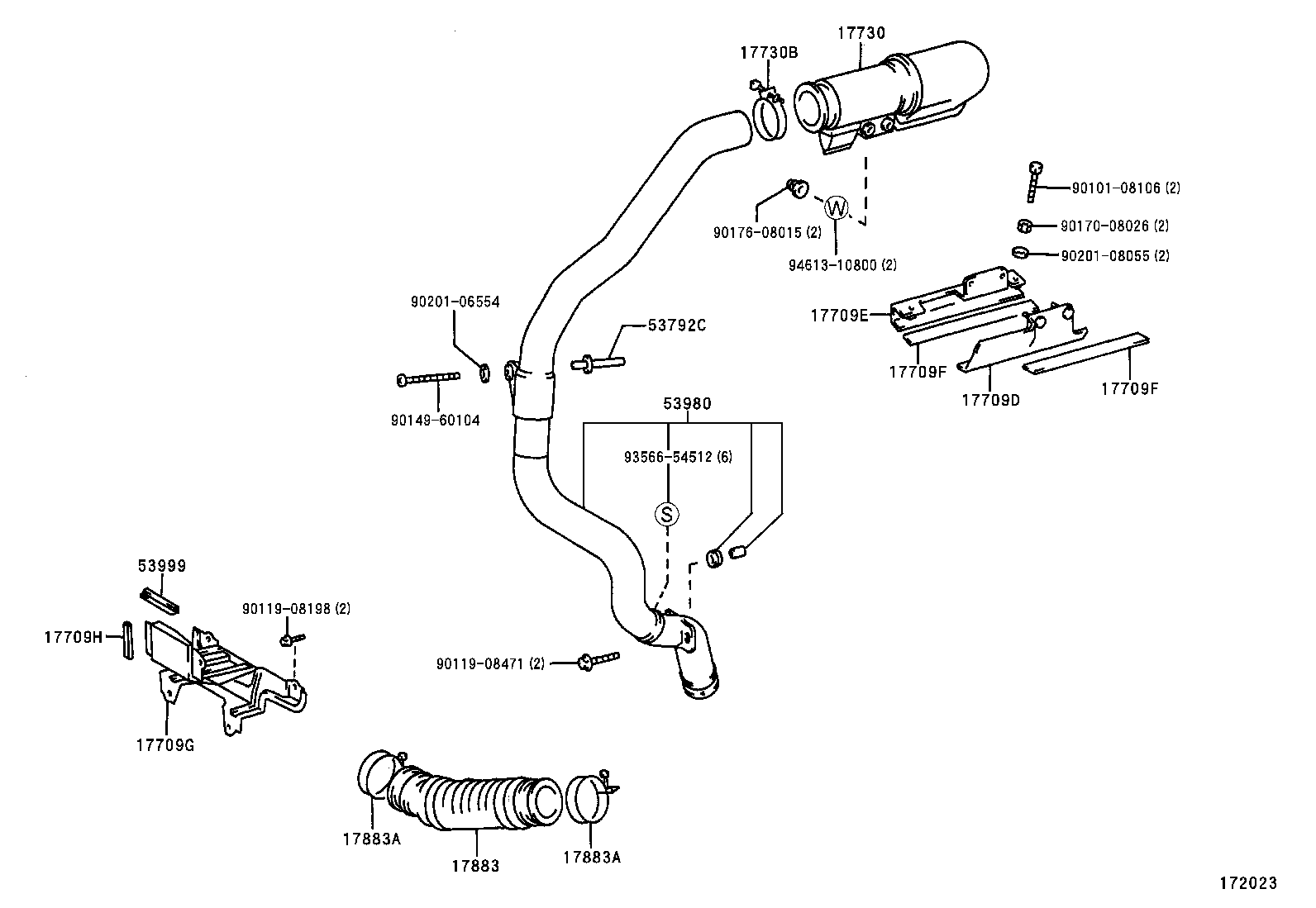

ILLUST NO. 2 OF 2(9505- )14B,3B..BU100,101..175T..GEN
FRONT SCHNORKEL TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17709D - BRACKET, AIR CLEANER INLET, NO.1 | ||||
| 53772-95401 |
14B,3B..BU100,101..175T..GEN |
1 | ||
| 17709E - BRACKET, AIR CLEANER INLET, NO.2 | ||||
| 53773-95402 |
14B,3B..BU100,101..175T..GEN |
1 | ||
| 17709F - PAD, AIR CLEANER INLET, NO.2 | ||||
| 53967-95402 |
14B,3B..BU100,101..175T..GEN |
2 | ||
| 17709F - PAD, AIR CLEANER INLET, NO.2 | ||||
| 53967-95402 |
14B,3B..BU100,101..175T..GEN |
2 | ||
| 17709G - BRACKET SUB-ASSY, AIR CLEANER INLET PIPE | ||||
| 53907-37010 |
14B,3B..BU100,101..175T..GEN |
1 | ||
| 17709H - PAD, AIR CLEANER INLET, NO.1 | ||||
| 53966-37010 |
14B,3B..BU100,101..175T..GEN |
1 | ||
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17730-56020 |
14B,3B..BU100,101..175T..GEN |
1 | ||
| 17730B - CLAMP, HOSE(FOR PRECLEANER HOSE) | ||||
| 96111-10880 |
15B#..BU212..T3;3B..BU100..175T..GEN;14B..BU101..ST..IV3..TS;14B,15BF,3B..BU10#,11#,14#,211,221..(DM1,DM6,T3)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-75020 |
3B..BU100..20T..GEN;14B,15BF,3B..BU100,102..T2,TW2;14B,15BF,3B..BU101,112,140,141..ARL,GEN |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10800 |
3B..BU100..20T..GEN;14B,15BF,3B..BU100,102..T2,TW2;14B,15BF,3B..BU101,112,140,141..ARL,GEN ID=80,GRAY |
1 | ||
| 96111-10750 |
3B..BU100..20T..GEN;14B,15BF,3B..BU100,102..T2,TW2;14B,15BF,3B..BU101,112,140,141..ARL,GEN ID=75,BLACK |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10800 |
3B..BU100..20T..GEN;14B,15BF,3B..BU100,102..T2,TW2;14B,15BF,3B..BU101,112,140,141..ARL,GEN ID=80,GRAY |
1 | ||
| 96111-10750 |
3B..BU100..20T..GEN;14B,15BF,3B..BU100,102..T2,TW2;14B,15BF,3B..BU101,112,140,141..ARL,GEN ID=75,BLACK |
1 | ||
| 53792C - PIPE, AIR CLEANER INLET | ||||
| 53792-37050 |
BU100,101..175T..GEN |
1 | ||
| 53980 - INLET ASSY, AIR CLEANER PIPE | ||||
| 53980-37010 |
BU100,101..175T..GEN |
1 | ||
| 53999 - CUSHION, AIR CLEANER INLET BRACKET | ||||
| 53999-37010 |
BU100,101..175T..GEN |
1 | ||
| Common parts | ||||
| 90101-08106 | ||||
| 90119-08198 | ||||
| 90119-08471 | ||||
| 90149-60104 | ||||
| 90170-08026 | ||||
| 90176-08015 | ||||
| 90201-06554 | ||||
| 90201-08055 | ||||
| 93566-54512 | ||||
| 94613-10800 | ||||
