BU100L-PSMJS (1995)

Toyota Dyna200

Production May 1995 - May 1999
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )14B,15BF,15BFT,3B

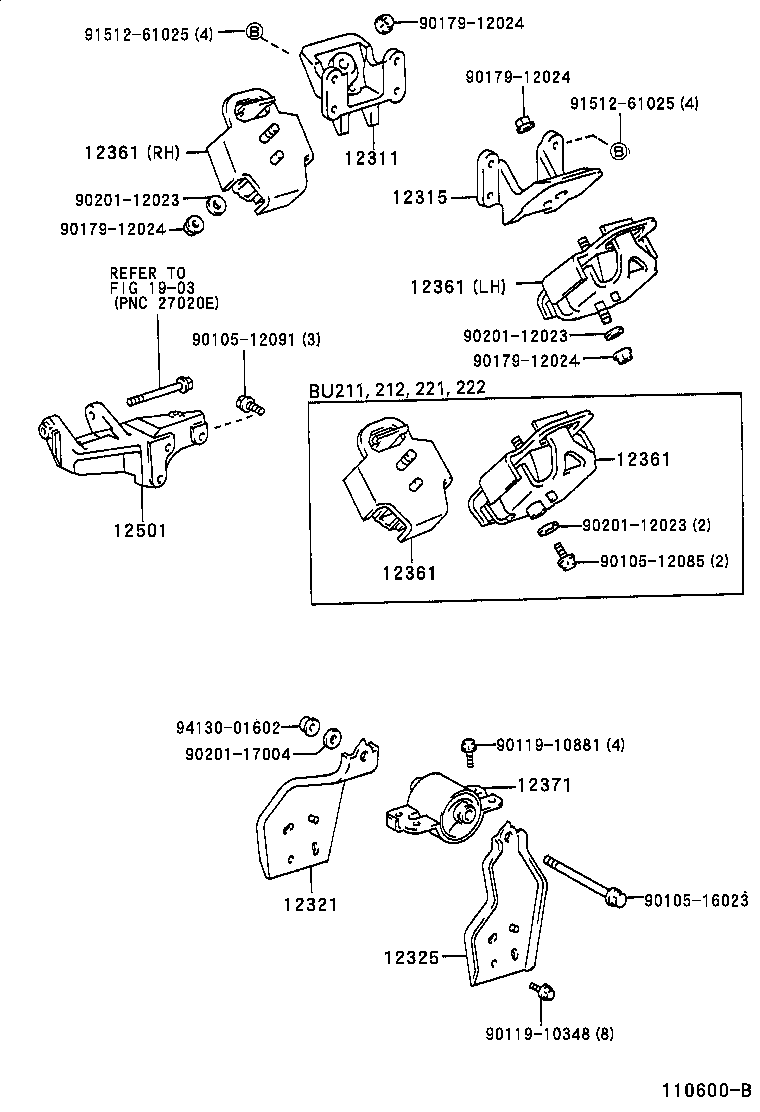

Click highlighted areas on diagram

diagram 12311 12315 12321 12325 12361 12361 12361 12361 12371 12501 1903 9010512085 9010512091 9010516023 9011910348 9011910881 9017912024 9017912024 9017912024 9017912024 9020112023 9020112023 9020112023 9020117004 9151261025 9151261025 9413001602
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-56040

14B,15BF,15BFT,3B..BU10#,11#,14#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12311-56040

14B,15BF,15BFT,3B..BU10#,11#,14#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-56080

14B,15BF,15BFT,3B..BU10#,11#,14#

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-56070

14B,15BF,15BFT,3B..BU10#,11#,14#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12362-56011

14B,15BF,3B..BU10#,11#,14#

LH

 1
12361-56071

14B,15BF,3B..BU10#,11#,14#

RH

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12362-56011

14B,15BF,3B..BU10#,11#,14#

LH

 1
12361-56071

14B,15BF,3B..BU10#,11#,14#

RH

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12362-56011

14B,15BF,3B..BU10#,11#,14#

LH

 1
12361-56071

14B,15BF,3B..BU10#,11#,14#

RH

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12362-56011

14B,15BF,3B..BU10#,11#,14#

LH

 1
12361-56071

14B,15BF,3B..BU10#,11#,14#

RH

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-56041

14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,212,213,222,223

 1
12501 - BRACKET SUB-ASSY, ALTERNATOR
12501-56010

14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222

 1
Common parts
90105-12085
90105-12091
90105-16023
90119-10348
90119-10881
90179-12024
90201-12023
90201-17004
91512-61025
94130-01602
Linked diagrams
1903
