YY61R-MDPGT (1989)

Toyota Dyna150

Production Oct 1989 - May 1995
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )3Y

Click highlighted areas on diagram

SINGAPORE SPEC

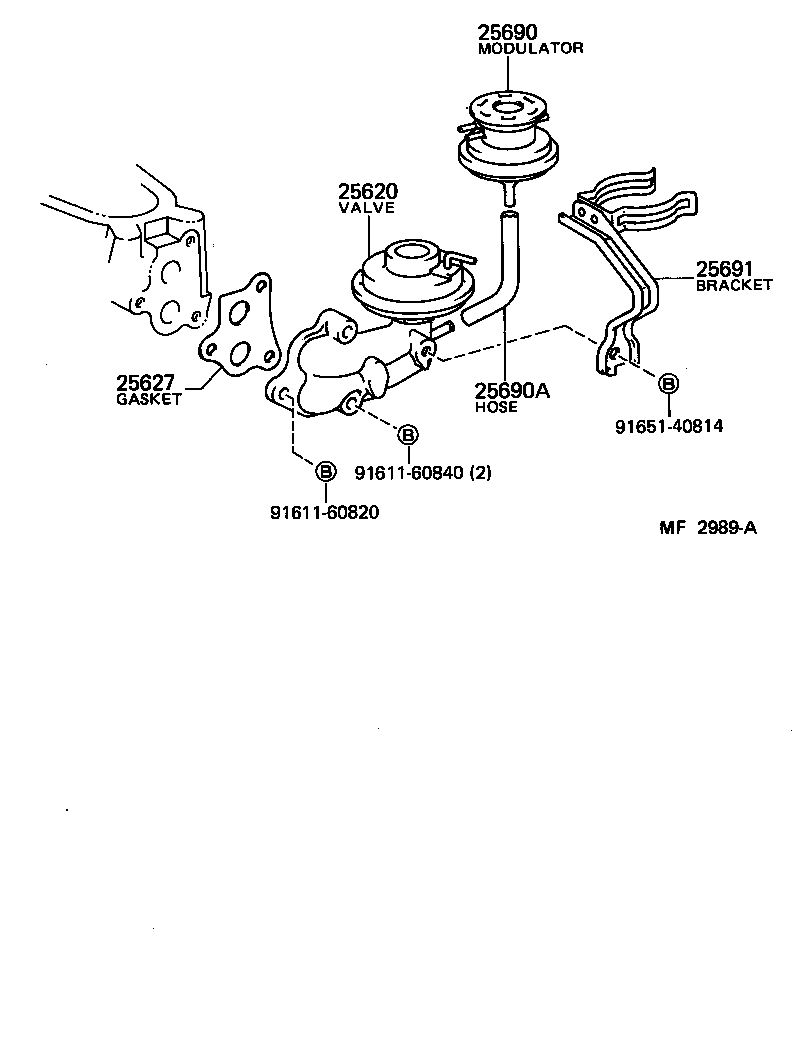

diagram 25620 25627 25690 25690A 25691 9161160820 9161160840 9165140814
Part # Description Qty Price
25620 - VALVE ASSY, EGR
25620-73110

3Y..YY61..WT

 1
25627 - GASKET, EGR VALVE
25627-71011

3Y..YY61..WT

 1
25690 - MODULATOR ASSY, EGR VACUUM
25870-71011

3Y..YY61..WT

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90445-11078

3Y..YY61..WT

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-71030

3Y..YY61..WT

 1
Common parts
91611-60820
91611-60840
91651-40814
