YY61R-MDPGT (1989)

Toyota Dyna150

Production Oct 1989 - May 1995
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )3Y

Click highlighted areas on diagram

SINGAPORE SPEC

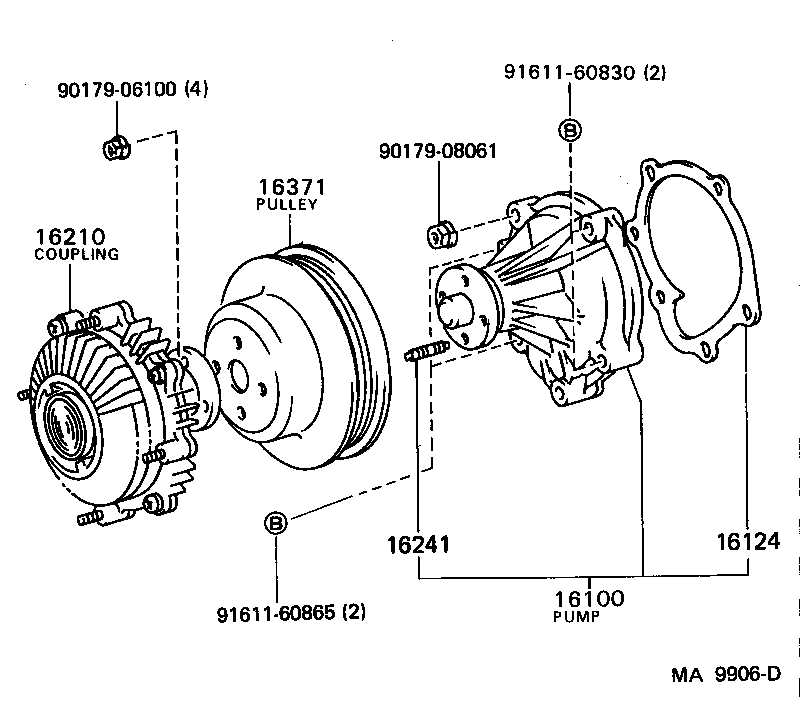

diagram 16100 16124 16210 16241 16371 9017906100 9017908061 9161160830 9161160865
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-79036

3Y..YY52,61

 1
16124 - GASKET, WATER PUMP COVER
16124-71010

3Y..YY52,61

 1
16124-71011

3Y..YY52,61

 1
16210 - COUPLING ASSY, FLUID
16210-73010

3Y..YY61..WT

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16193-71010

3Y..YY52,61

 4
16371 - PULLEY, FAN
16371-73011

3Y..YY52,61

 1
Common parts
90179-06100
90179-08061
91611-60830
91611-60865

(8708-9208)3Y ; (9208- )3Y..ST

Click highlighted areas on diagram

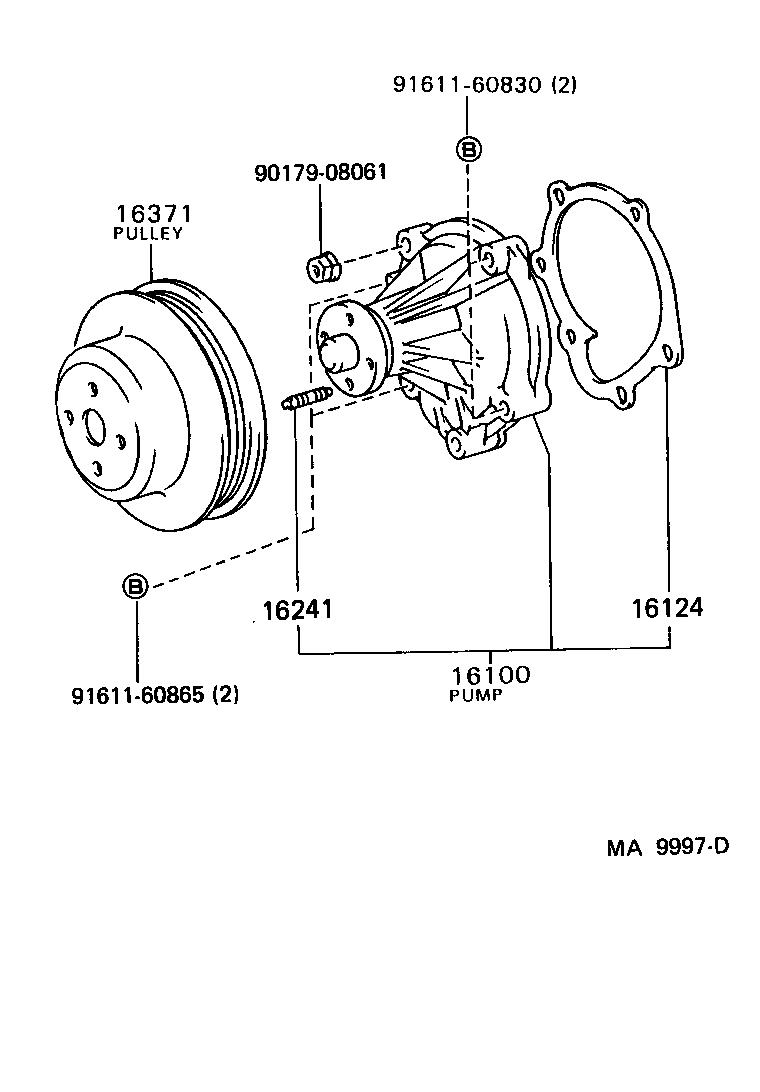

diagram 16100 16124 16241 16371 9017908061 9161160830 9161160865
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-79036

3Y..YY52,61

 1
16124 - GASKET, WATER PUMP COVER
16124-71010

3Y..YY52,61

 1
16124-71011

3Y..YY52,61

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16193-71010

3Y..YY52,61

 4
16371 - PULLEY, FAN
16371-73011

3Y..YY52,61

 1
Common parts
90179-08061
91611-60830
91611-60865
