YY61R-MDLT (1987)
Toyota Dyna150

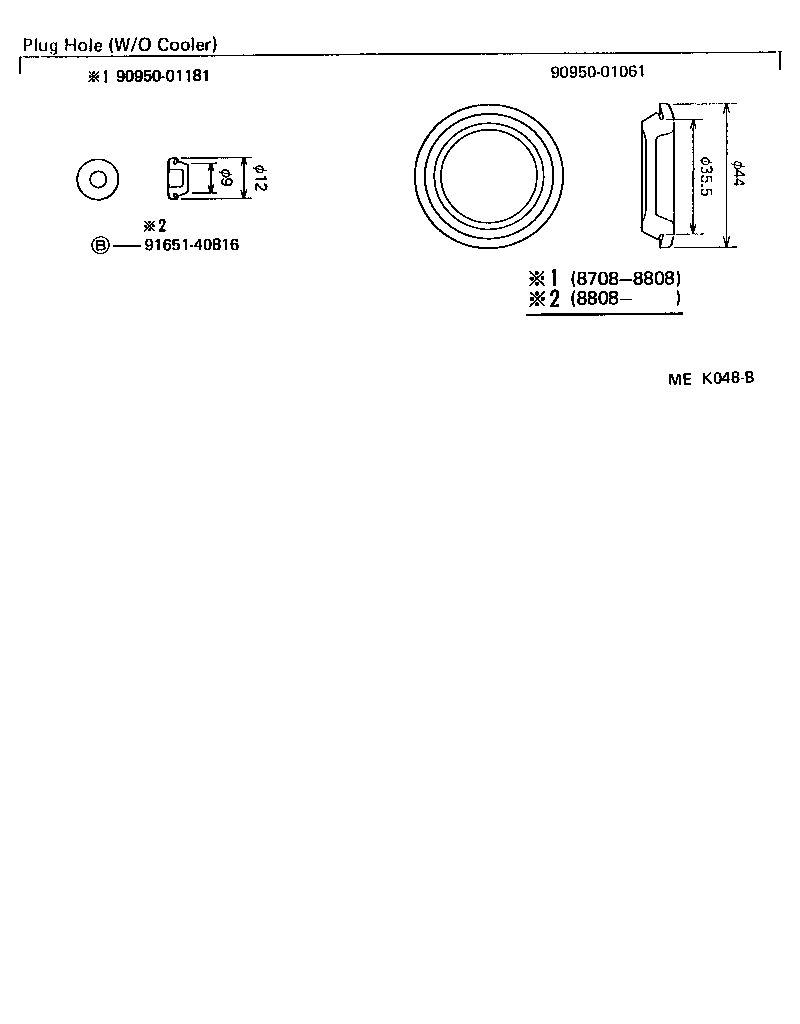

ILLUST NO. 3 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90950-01061 | ||||
| 90950-01181 | ||||
| 91651-40816 | ||||

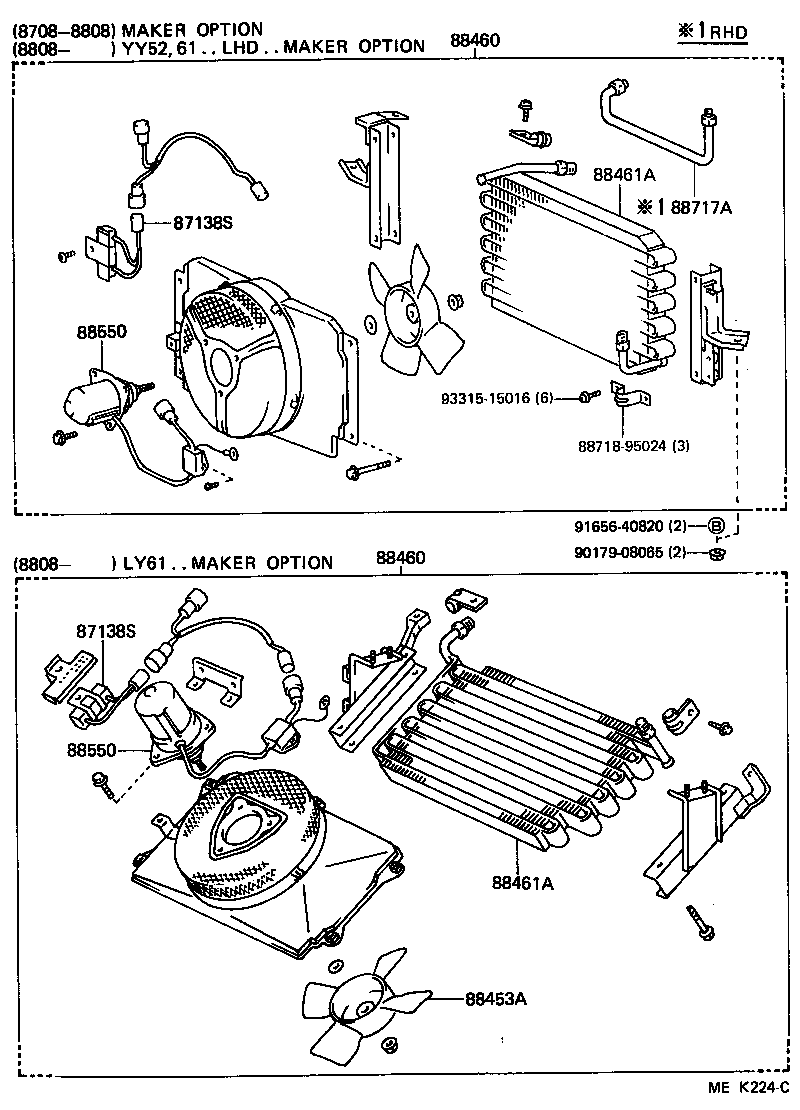

ILLUST NO. 2 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138S - RESISTOR, BLOWER | ||||
| 87138-95410 |
YY61..T2,TW;YY61..LHD..T3;LY61,YY52..ST..GEN |
1 | ||
| 87138S - RESISTOR, BLOWER | ||||
| 87138-95410 |
YY61..T2,TW;YY61..LHD..T3;LY61,YY52..ST..GEN |
1 | ||
| 88453A - FAN, COOLING | ||||
| 88453-95010 |
YY61..T2,TW;YY61..LHD..T3;LY61,YY52..ST..GEN |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95017 |
YY61..T2;LY60..RHD |
1 | ||
| 88460-25050 |
YY61..WT |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95017 |
YY61..T2;LY60..RHD |
1 | ||
| 88460-25050 |
YY61..WT |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-25010 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-25010 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 87104-95011 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 87104-95011 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-25110 |
YY61..WT |
1 | ||
| Common parts | ||||
| 88718-95024 | ||||
| 90179-08065 | ||||
| 91656-40820 | ||||
| 93315-15016 | ||||
ILLUST NO. 1 OF 3(8708-8808)RHD ; (8808-9309)YY61..RHD
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95017 |
YY61..T2;LY60..RHD |
1 | ||
| 88460-25050 |
YY61..WT |
1 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-22010 |
YY61..T2;YY61..LHD;LY61..T2,T3;LY61,YY52..TW..ST |
1 | ||
| 88467-22010 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-95700 |
LY60..ARL;LY60,YY61..T2 |
1 | ||
| 88471-20050 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95010 |
YY61..T2;LY60,YY52;YY61..LHD |
1 | ||
| 88472-25030 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
YY61..T2;YY61..LHD;LY61..T2,T3;LY61,YY52..TW..ST 250G |
2 | ||
| 90986-02004 |
LY61..ARL..IV;LY61,YY61..RHD..(T2,TW) 250G |
2 | ||
| 90986-02008 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST 200G |
2 | ||
| 90986-02001 |
LY60,YY52;YY61..T2,TW;YY61..LHD..T3 400G |
2 | ||
| 90986-02007 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST 250G |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-95010 |
YY61..T2;YY52,61..LHD |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95032 |
YY61..T2;YY52,61..LHD |
1 | ||
| 88712-95017 |
YY61..WT;LY60..RHD..GEN |
1 | ||
| 88712-25040 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-95014 |
YY61..T2 |
1 | ||
| 88721-95012 |
YY61..WT;LY60..RHD..GEN |
1 | ||
| 88721-25040 |
YY61..WT |
1 | ||
| 88715G - TUBE, DISCHARGE, G | ||||
| 88715-95011 |
YY61..T2;LY60,YY52;YY61..LHD |
1 | ||
| 88715-25060 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95014 |
YY61..T2;LY60,YY52;YY61..LHD |
1 | ||
| 88716-25040 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-95014 |
YY61..T2;LY60..RHD |
1 | ||
| 88717-25120 |
YY61..WT |
1 | ||
| Common parts | ||||
| 88688-95013 | ||||
| 88688-95018 | ||||
| 88718-95015 | ||||
| 88718-95023 | ||||
| 88718-95419 | ||||
| 88718-95420 | ||||
| 88899-95A15 | ||||
| 90099-32073 | ||||
| 90179-08123 | ||||
| 91651-60835 | ||||
| 91666-40832 | ||||
| 93381-18040 | ||||
| 93385-16016 | ||||
| 93385-18016 | ||||
| 93385-18035 | ||||
ILLUST NO. 1 OF 3(9309- )YY61..RHD
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95017 |
YY61..T2;LY60..RHD |
1 | ||
| 88460-25050 |
YY61..WT |
1 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-22010 |
YY61..T2;YY61..LHD;LY61..T2,T3;LY61,YY52..TW..ST |
1 | ||
| 88467-22010 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-95700 |
LY60..ARL;LY60,YY61..T2 |
1 | ||
| 88471-20050 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95010 |
YY61..T2;LY60,YY52;YY61..LHD |
1 | ||
| 88472-25030 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
YY61..T2;YY61..LHD;LY61..T2,T3;LY61,YY52..TW..ST 250G |
2 | ||
| 90986-02004 |
LY61..ARL..IV;LY61,YY61..RHD..(T2,TW) 250G |
2 | ||
| 90986-02008 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST 200G |
2 | ||
| 90986-02001 |
LY60,YY52;YY61..T2,TW;YY61..LHD..T3 400G |
2 | ||
| 90986-02007 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST 250G |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95012 |
YY61..T2;YY52,61..LHD |
1 | ||
| 88711-25050 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95032 |
YY61..T2;YY52,61..LHD |
1 | ||
| 88712-95017 |
YY61..WT;LY60..RHD..GEN |
1 | ||
| 88712-25040 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88712C - HOSE, SUCTION | ||||
| 88712-25070 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88712-95018 |
YY61..T2;YY52,61..LHD |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-95014 |
YY61..T2 |
1 | ||
| 88721-95012 |
YY61..WT;LY60..RHD..GEN |
1 | ||
| 88721-25040 |
YY61..WT |
1 | ||
| 88715G - TUBE, DISCHARGE, G | ||||
| 88715-95011 |
YY61..T2;LY60,YY52;YY61..LHD |
1 | ||
| 88715-25060 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-95014 |
YY61..T2;LY60,YY52;YY61..LHD |
1 | ||
| 88716-25040 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-25090 |
YY61..WT |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-95014 |
YY61..T2;LY60..RHD |
1 | ||
| 88717-25120 |
YY61..WT |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20040 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
1 | ||
| 88723-12030 |
YY61..T2;LY61..ARL..CBU;LY61..RHD..(T2,T3) |
1 | ||
| Common parts | ||||
| 88375-30280 | ||||
| 88375-30290 | ||||
| 88688-95013 | ||||
| 88688-95018 | ||||
| 88688-95019 | ||||
| 88718-1A080 | ||||
| 88718-95015 | ||||
| 88718-95023 | ||||
| 88718-95419 | ||||
| 88718-95420 | ||||
| 88899-95A15 | ||||
| 90091-20812 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-32073 | ||||
| 90119-08102 | ||||
| 90179-08123 | ||||
| 91651-40625 | ||||
| 91651-60635 | ||||
| 93385-16016 | ||||
| 93385-16020 | ||||
| 93385-18016 | ||||
| 93385-18025 | ||||
