YY61R-MDB (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )ST

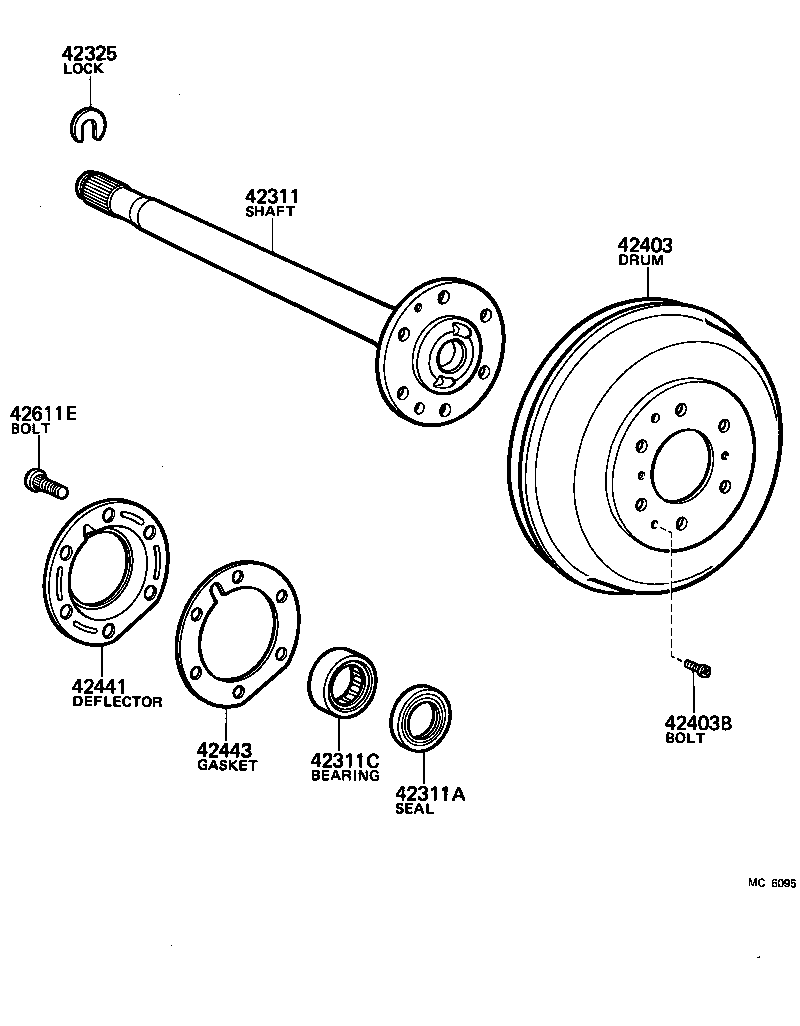

Click highlighted areas on diagram

diagram 42311 42311A 42311C 42325 42403 42403B 42441 42443 42611E
Part # Description Qty Price
42311 - SHAFT, REAR AXLE
42311-25060

LY60,YY5#,6#..ST

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90311-47001

LY60,YY5#,6#..ST

 2
42311C - BEARING (FOR REAR AXLE SHAFT)
90365-47013

LY60,YY5#,6#..ST

 2
42325 - LOCK, REAR AXLE SHAFT
42325-55010

LY60,YY5#,6#..ST

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-25040

LY60,YY5#,6#..ST

 2
42403B - BOLT, SET (FOR REAR BRAKE DRUM SETTING)
90113-10035

LY60,YY5#,6#..ST

 2
42441 - DEFLECTOR, BRAKE DRUM OIL
42441-25030

LY60,YY5#,6#..ST

 2
42443 - GASKET, BRAKE DRUM OIL DEFLECTOR
42443-25010

LY60,YY5#,6#..ST

 2
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02030

LY60,YY5#,6#..ST

 12
