YY61R-MDB (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

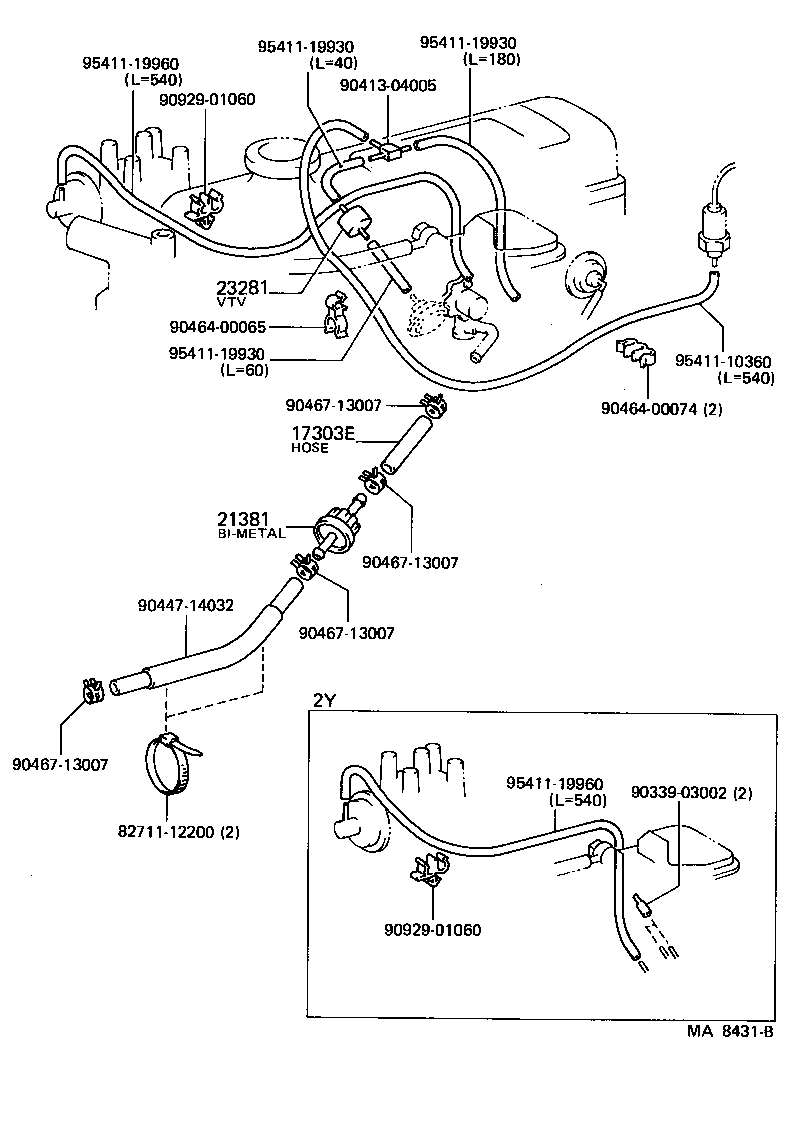

(8508- )2Y,3Y..YY6#..RHD

Click highlighted areas on diagram

diagram 17303E 21381 23281 8271112200 9033903002 9041304005 9044714032 9046400065 9046400074 9046713007 9046713007 9046713007 9046713007 9092901060 9092901060 9541110360 9541119930 9541119930 9541119930 9541119960 9541119960
Part # Description Qty Price
17303E - HOSE, NO.1(FOR AIR PIPE)
90445-14069

2Y,3Y..YY5#,6#

 1
21381 - BIMETAL, THERMOSTATIC
21381-71040

2Y,3Y..YY5#,6#

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01075

3Y..YY61..RHD

 1
Common parts
82711-12200
90339-03002
90413-04005
90447-14032
90464-00065
90464-00074
90467-13007
90929-01060
95411-10360
95411-19930
95411-19960

(8508- )2Y,3Y

Click highlighted areas on diagram

diagram 9541110030 9541110130 9541110160 9541119995
Part # Description Qty Price
Common parts
95411-10030
95411-10130
95411-10160
95411-19995

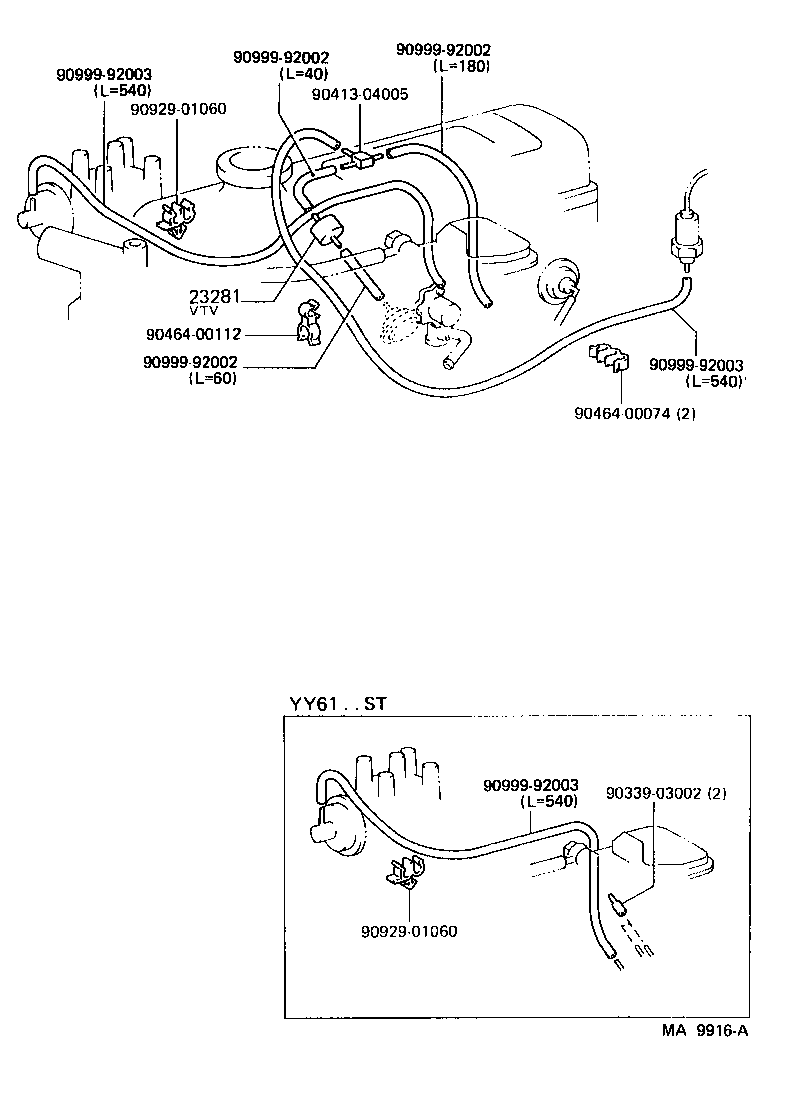

(8708-9208)3Y..YY61..RHD ; (9208- )3Y..YY61..RHD..ST

Click highlighted areas on diagram

diagram 23281 9033903002 9041304005 9046400074 9046400112 9092901060 9092901060 9099992002 9099992002 9099992002 9099992003 9099992003 9099992003
Part # Description Qty Price
Common parts
90339-03002
90413-04005
90464-00074
90464-00112
90929-01060
90999-92002
90999-92003
