YY61R-MDB (1987)

Toyota Dyna150

Production Aug 1987 - May 1995
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708-8808)

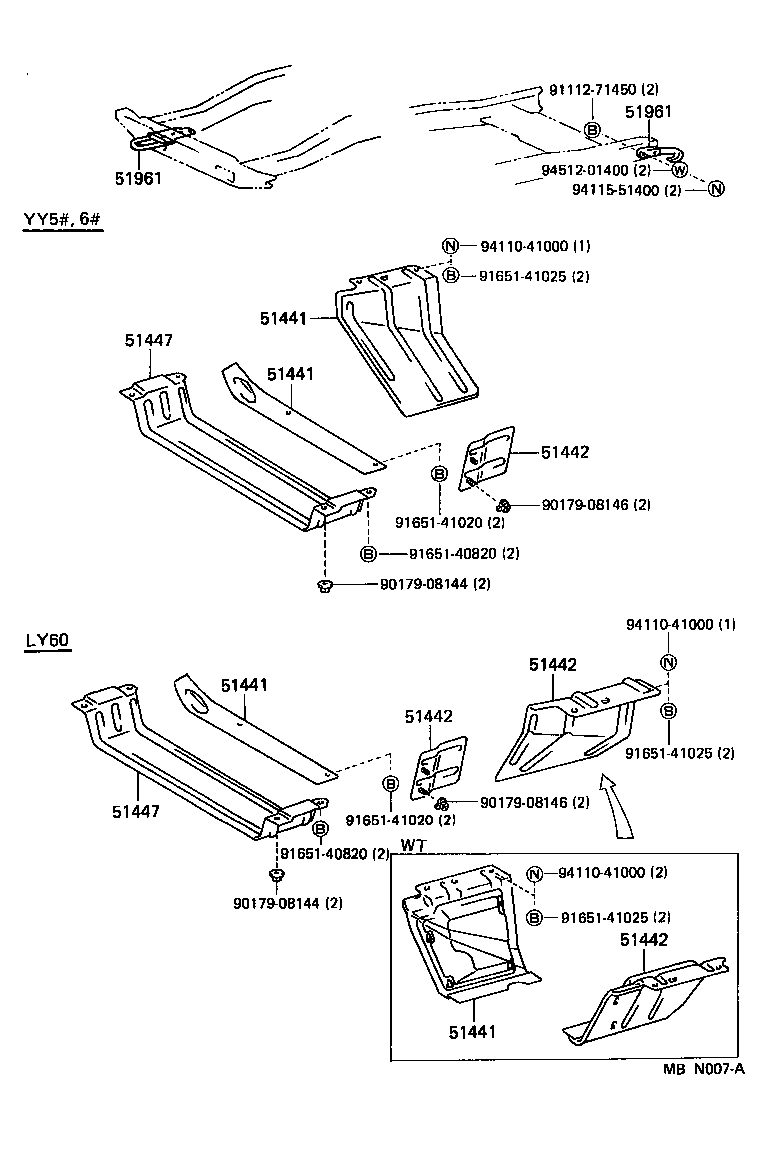

Click highlighted areas on diagram

diagram 51441 51441 51441 51441 51442 51442 51442 51442 51447 51447 51961 51961 9017908144 9017908144 9017908146 9017908146 9111271450 9165140820 9165140820 9165141020 9165141020 9165141025 9165141025 9165141025 9411041000 9411041000 9411041000 9411551400 9451201400
Part # Description Qty Price
51441 - COVER, ENGINE UNDER, NO.1
51441-25130

YY52,61

RR

 1
51441-25160

YY52,61

FR

 1
51441-25170

YY52,61

FR

 1
51441-25170

YY52,61;LY61..ARL

FR

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-25130

YY52,61

RR

 1
51441-25160

YY52,61

FR

 1
51441-25170

YY52,61

FR

 1
51441-25170

YY52,61;LY61..ARL

FR

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-25130

YY52,61

RR

 1
51441-25160

YY52,61

FR

 1
51441-25170

YY52,61

FR

 1
51441-25170

YY52,61;LY61..ARL

FR

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-25130

YY52,61

RR

 1
51441-25160

YY52,61

FR

 1
51441-25170

YY52,61

FR

 1
51441-25170

YY52,61;LY61..ARL

FR

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-25050

YY52,61

UPR

 1
51442-25050

YY52,61

 1
51442-25070

YY52,61

LWR

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-25050

YY52,61

UPR

 1
51442-25050

YY52,61

 1
51442-25070

YY52,61

LWR

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-25050

YY52,61

UPR

 1
51442-25050

YY52,61

 1
51442-25070

YY52,61

LWR

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-25050

YY52,61

UPR

 1
51442-25050

YY52,61

 1
51442-25070

YY52,61

LWR

 1
51447 - GUIDE, ENGINE UNDER COVER AIR
51447-25070

LY60,YY52,61

 1
51447 - GUIDE, ENGINE UNDER COVER AIR
51447-25070

LY60,YY52,61

 1
51961 - HOOK, NO.1
51961-25020

LY6#,YY52,61

FR

 1
51961-36010

LY6#,YY52,61

RR

 1
51961 - HOOK, NO.1
51961-25020

LY6#,YY52,61

FR

 1
51961-36010

LY6#,YY52,61

RR

 1
Common parts
90179-08144
90179-08146
91112-71450
91651-40820
91651-41020
91651-41025
94110-41000
94115-51400
94512-01400

(8808- )

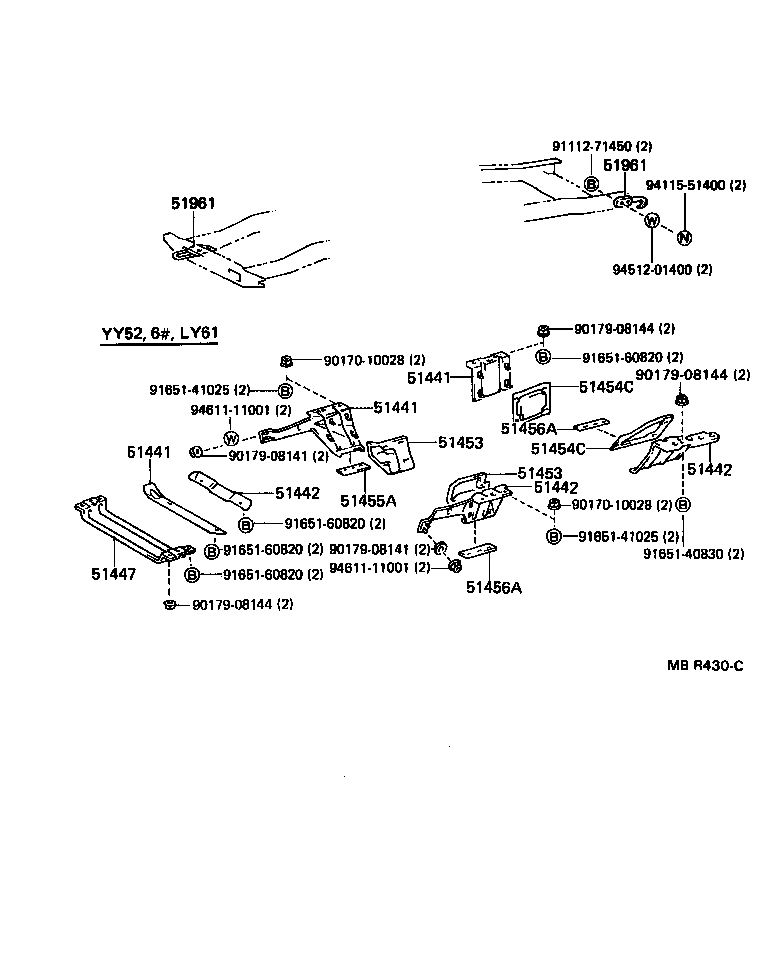

Click highlighted areas on diagram

diagram 51441 51441 51441 51442 51442 51442 51447 51453 51453 51454C 51454C 51455A 51456A 51456A 51961 51961 9017010028 9017010028 9017908141 9017908141 9017908144 9017908144 9017908144 9111271450 9165140830 9165141025 9165141025 9165160820 9165160820 9165160820 9165160820 9411551400 9451201400 9461111001 9461111001
Part # Description Qty Price
51441 - COVER, ENGINE UNDER, NO.1
51441-25130

YY52,61

RR

 1
51441-25160

YY52,61

FR

 1
51441-25170

YY52,61

FR

 1
51441-25170

YY52,61;LY61..ARL

FR

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-25130

YY52,61

RR

 1
51441-25160

YY52,61

FR

 1
51441-25170

YY52,61

FR

 1
51441-25170

YY52,61;LY61..ARL

FR

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-25130

YY52,61

RR

 1
51441-25160

YY52,61

FR

 1
51441-25170

YY52,61

FR

 1
51441-25170

YY52,61;LY61..ARL

FR

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-25050

YY52,61

UPR

 1
51442-25050

YY52,61

 1
51442-25070

YY52,61

LWR

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-25050

YY52,61

UPR

 1
51442-25050

YY52,61

 1
51442-25070

YY52,61

LWR

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-25050

YY52,61

UPR

 1
51442-25050

YY52,61

 1
51442-25070

YY52,61

LWR

 1
51447 - GUIDE, ENGINE UNDER COVER AIR
51447-25070

LY60,YY52,61

 1
51961 - HOOK, NO.1
51961-25020

LY6#,YY52,61

FR

 1
51961-36010

LY6#,YY52,61

RR

 1
51961 - HOOK, NO.1
51961-25020

LY6#,YY52,61

FR

 1
51961-36010

LY6#,YY52,61

RR

 1
Common parts
90170-10028
90179-08141
90179-08144
91112-71450
91651-40830
91651-41025
91651-60820
94115-51400
94512-01400
94611-11001
