YY61R-MDB (1987)
Toyota Dyna150
Production
Aug 1987
-
May 1995
Engine
3Y
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

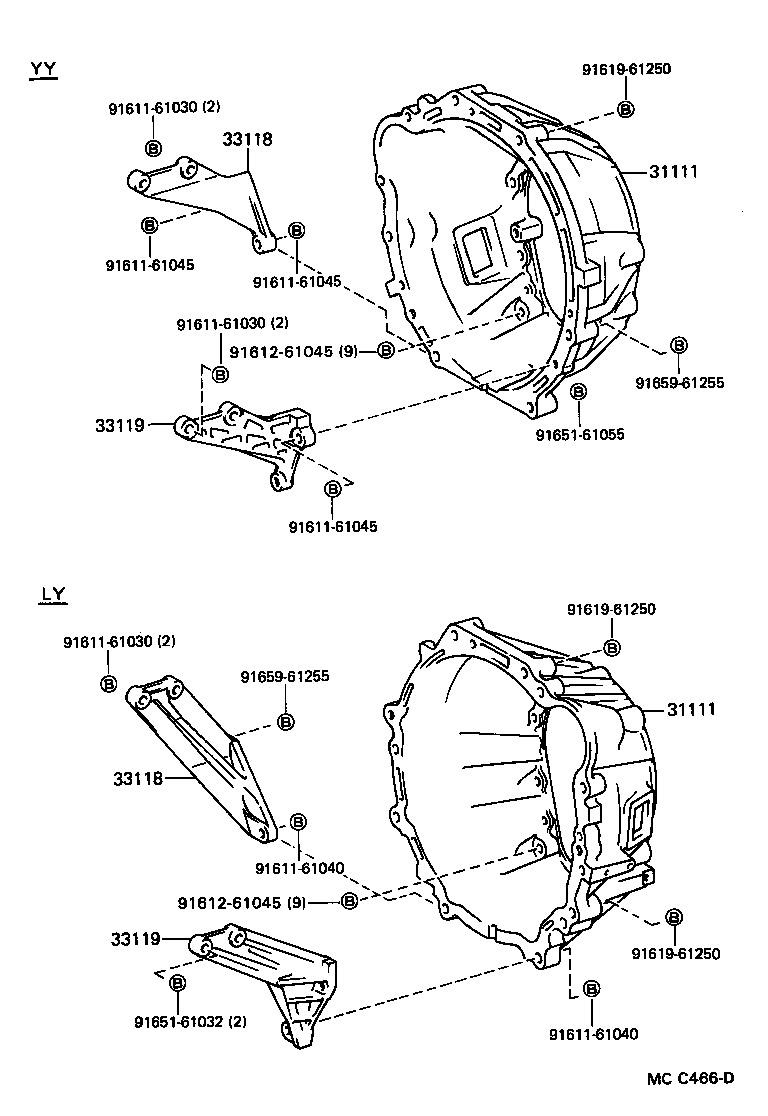

ILLUST NO. 1 OF 2(8708- )
Click highlighted areas on diagram
R45#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-25040 |
YY52,61 |
1 | ||
| 31111 - HOUSING, CLUTCH | ||||
| 31111-25040 |
YY52,61 |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-36031 |
YY52,61 |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-36031 |
YY52,61 |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-36030 |
YY52,61 |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-36030 |
YY52,61 |
1 | ||
| Common parts | ||||
| 91611-61030 | ||||
| 91611-61040 | ||||
| 91611-61045 | ||||
| 91612-61045 | ||||
| 91619-61250 | ||||
| 91651-61032 | ||||
| 91651-61055 | ||||
| 91659-61255 | ||||

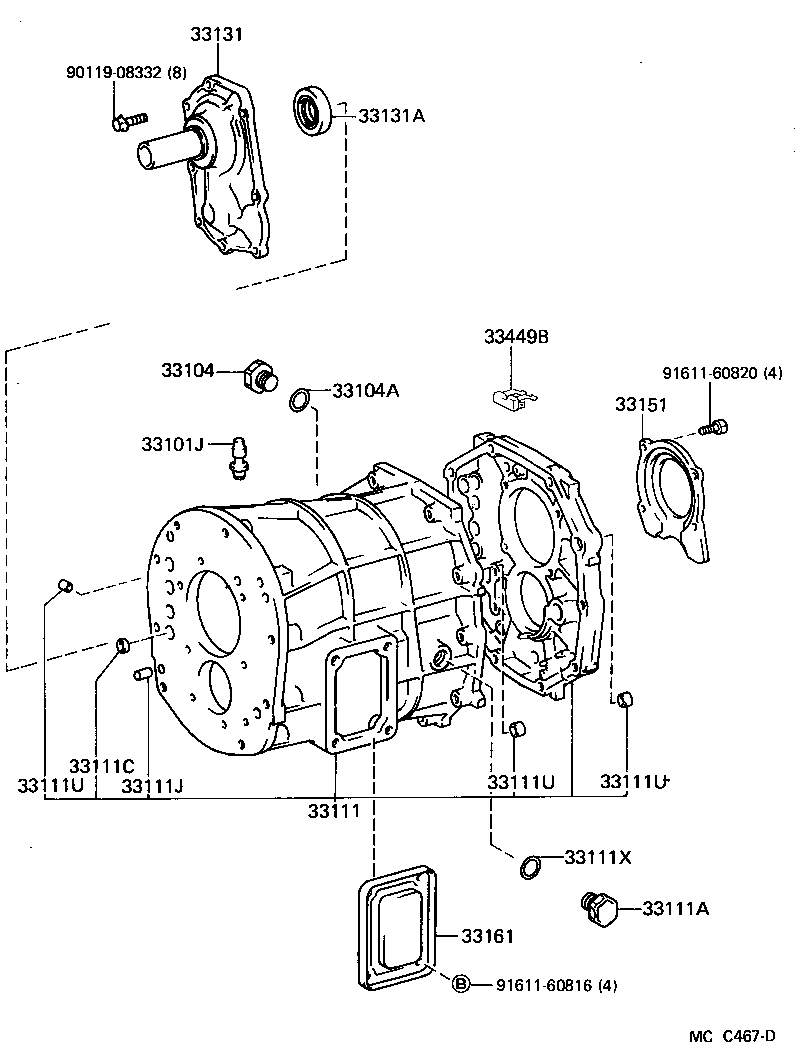

ILLUST NO. 2 OF 2(8708- )
Click highlighted areas on diagram
R45#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33101J - PLUG, BREATHER | ||||
| 90930-03085 |
LY6#,YY52,61 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
LY6#,YY52,61 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
LY6#,YY52,61 |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-25010 |
LY6#,YY52,61 |
1 | ||
| 33101-25020 |
LY61,YY52,61 |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
LY6#,YY52,61 |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
LY6#,YY52,61 OD=14 |
4 | ||
| 96411-41800 |
LY61,YY52,61 OD=18 |
3 | ||
| 90331-14004 |
LY61,YY52,61 OD=14 |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
LY6#,YY52,61 L=16,OD=12 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
LY6#,YY52,61 L=11,OD=11 |
2 | ||
| 90253-15001 |
LY6#,YY52,61 L=14,OD=15 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
LY6#,YY52,61 L=11,OD=11 |
2 | ||
| 90253-15001 |
LY6#,YY52,61 L=14,OD=15 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
LY6#,YY52,61 L=11,OD=11 |
2 | ||
| 90253-15001 |
LY6#,YY52,61 L=14,OD=15 |
4 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18008 |
LY6#,YY52,61 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-35030 |
LY6#,YY52,61 |
1 | ||
| 33131-35031 |
LY61,YY52,61 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-32012 |
LY6#,YY52,61 |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-35020 |
LY6#,YY52,61 |
1 | ||
| 33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF | ||||
| 33161-25010 |
LY6#,YY52,61 |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-35010 |
LY6#,YY52,61 |
1 | ||
| 33449-35030 |
LY61,YY52,61 |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
