YY61L-MDBTW3 (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

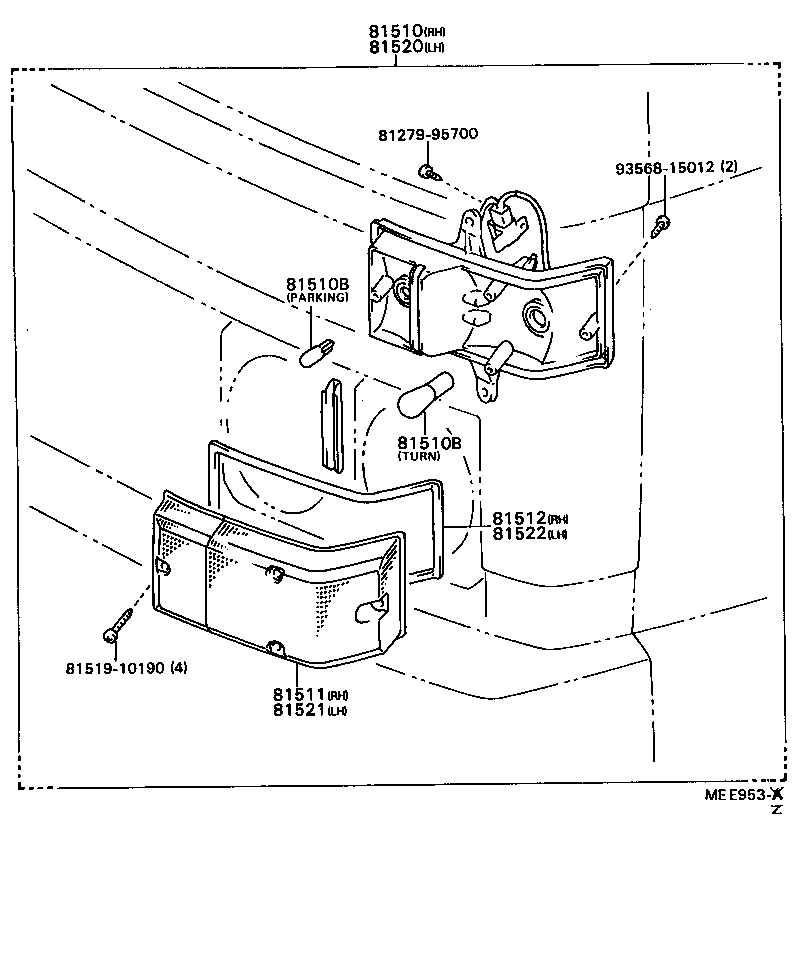

Click highlighted areas on diagram

diagram 8127995700 81510 81510B 81510B 81511 81512 8151910190 81520 81521 81522 9356815012
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-39565

LY60,YY61..ARL,EUR

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-12050

LY60,YY5#,6#

12V 5W,12V 5W(PARKING)

 2
99132-11210

LY60,YY61..ARL,EUR

12V 21W,12V 21W(TURN)

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-12050

LY60,YY5#,6#

12V 5W,12V 5W(PARKING)

 2
99132-11210

LY60,YY61..ARL,EUR

12V 21W,12V 21W(TURN)

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-95408

LY60,YY5#,6#

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-95406

LY60,YY5#,6#

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-39565

LY60,YY61..ARL,EUR

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81511-95408

LY60,YY5#,6#

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-95406

LY60,YY5#,6#

 1
Common parts
81279-95700
81519-10190
93568-15012
