YY61L-MDBTW (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

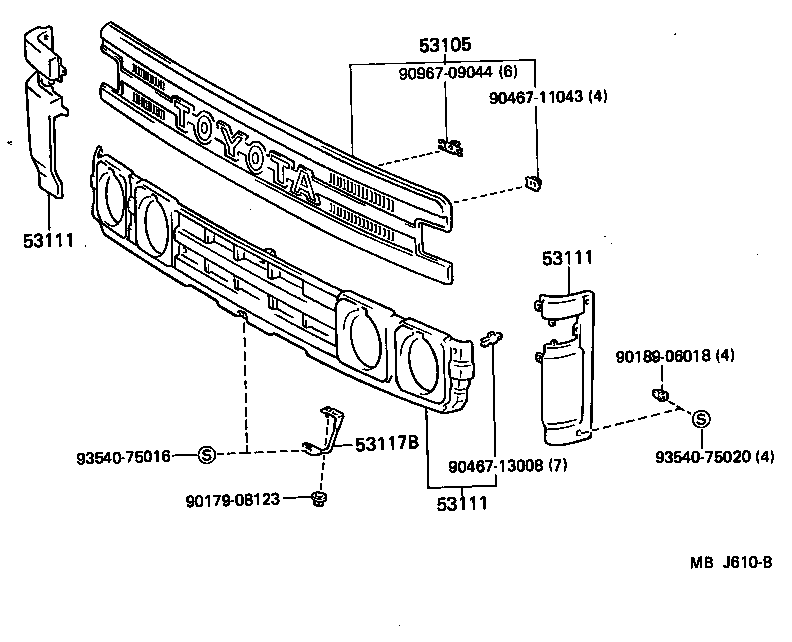

Click highlighted areas on diagram

diagram 53105 53111 53111 53111 53117B 9017908123 9018906018 9046711043 9046713008 9096709044 9354075016 9354075020
Part # Description Qty Price
53105 - STAY, RADIATOR GRILLE, CENTER
53105-95400

LY60,YY5#,6#

 1
53111 - GRILLE, RADIATOR
53113-95403

LY60,YY5#,6#

LH

 1
53111-95416

LY60,YY5#,6#

CTR

 1
53112-95401

LY60,YY5#,6#

RH

 1
53111-95419

LY60,YY52,6#

CTR,W/*STAC

 1
53111 - GRILLE, RADIATOR
53113-95403

LY60,YY5#,6#

LH

 1
53111-95416

LY60,YY5#,6#

CTR

 1
53112-95401

LY60,YY5#,6#

RH

 1
53111-95419

LY60,YY52,6#

CTR,W/*STAC

 1
53111 - GRILLE, RADIATOR
53113-95403

LY60,YY5#,6#

LH

 1
53111-95416

LY60,YY5#,6#

CTR

 1
53112-95401

LY60,YY5#,6#

RH

 1
53111-95419

LY60,YY52,6#

CTR,W/*STAC

 1
53117B - BRACKET, RADIATOR GRILLE, LOWER
53117-95401

LY60,YY5#,6#..LHD

 1
Common parts
90179-08123
90189-06018
90467-11043
90467-13008
90967-09044
93540-75016
93540-75020
