YY61L-MDB (1987)
Toyota Dyna150
(8708- )

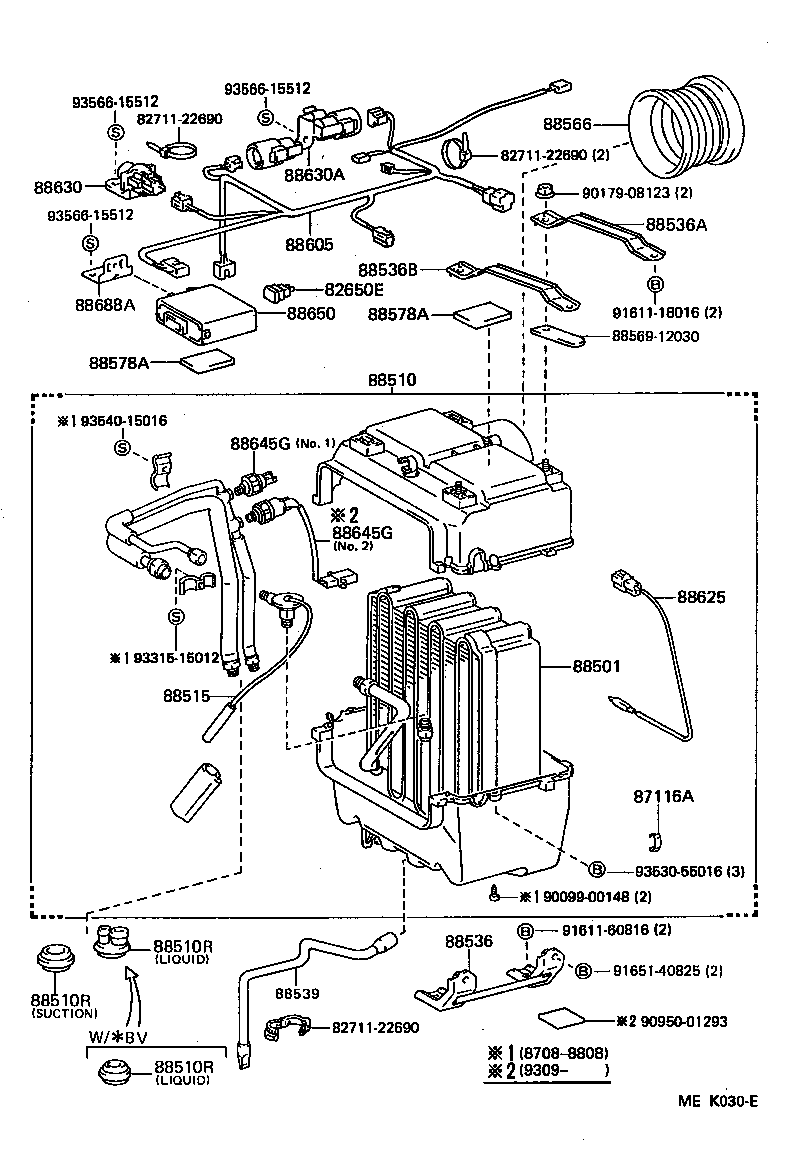

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
LY60,YY52,61..LHD |
4 | ||
| 87116-12190 |
LY61,YY52,61..LHD |
6 | ||
| 87116-14010 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
6 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-95403 |
LY60..RHD;YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88501-37030 |
LY61,YY52,61..LHD |
1 | ||
| 88501-95404 |
LY61,YY52,61..LHD |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-95402 |
LY60,YY52,61..LHD |
1 | ||
| 88510-95406 |
LY61,YY52,61..LHD |
1 | ||
| 88510-25030 |
LY61,YY52,61..LHD |
1 | ||
| 88510R - GROMMET (FOR COOLER UNIT) | ||||
| 90099-21010 |
YY52,61..LHD LIQUID PIPE |
1 | ||
| 90099-32098 |
YY52,61..LHD LIQUID PIPE |
1 | ||
| 90480-36010 |
YY52,61..LHD SUCTION PIPE |
1 | ||
| 88510R - GROMMET (FOR COOLER UNIT) | ||||
| 90099-21010 |
YY52,61..LHD LIQUID PIPE |
1 | ||
| 90099-32098 |
YY52,61..LHD LIQUID PIPE |
1 | ||
| 90480-36010 |
YY52,61..LHD SUCTION PIPE |
1 | ||
| 88510R - GROMMET (FOR COOLER UNIT) | ||||
| 90099-21010 |
YY52,61..LHD LIQUID PIPE |
1 | ||
| 90099-32098 |
YY52,61..LHD LIQUID PIPE |
1 | ||
| 90480-36010 |
YY52,61..LHD SUCTION PIPE |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-16030 |
LY60,YY52,61..LHD |
1 | ||
| 88515-16031 |
YY61..T2;YY61..LHD;LY61..T2,T3;LY61,YY52..TW..ST |
1 | ||
| 88515-28090 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-95403 |
YY52,61..LHD MAKER OPTION |
1 | ||
| 88536-95403 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
1 | ||
| 88536-95402 |
YY52,61..LHD DEALER OPTION |
1 | ||
| 88536-95403 |
YY61..T2;YY61..LHD;LY61..T2,T3;LY61,YY52..TW..ST |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95404 |
YY61..T2;LY60,YY52;YY61..LHD;LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88536-95404 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
1 | ||
| 88536B - BRACKET, COOLING UNIT, NO.3 | ||||
| 88536-95406 |
LY6#,YY52,61..LHD |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-95410 |
LY6#,YY52,61..LHD |
1 | ||
| 88566 - DUCT, COOLER AIR, NO.1 | ||||
| 88566-95407 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
1 | ||
| 88566-95407 |
YY61..T2;LY60,YY52;YY61..LHD;LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88578A - PACKING, COOLER STABILIZER AMPLIFIER | ||||
| 88578-95400 |
YY61..T2;LY60..RHD;YY52,61..LHD;LY61..ARL..CBU;LY61..RHD..(T2,T3) |
1 | ||
| 88578-95400 |
YY61..LHD..T3;YY52,61..T2,TW;LY61..RHD..(T2,T3) |
1 | ||
| 88578-95400 |
YY52,61..LHD;LY6#..ST..GEN |
2 | ||
| 88578A - PACKING, COOLER STABILIZER AMPLIFIER | ||||
| 88578-95400 |
YY61..T2;LY60..RHD;YY52,61..LHD;LY61..ARL..CBU;LY61..RHD..(T2,T3) |
1 | ||
| 88578-95400 |
YY61..LHD..T3;YY52,61..T2,TW;LY61..RHD..(T2,T3) |
1 | ||
| 88578-95400 |
YY52,61..LHD;LY6#..ST..GEN |
2 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95404 |
YY52,61..LHD |
1 | ||
| 88605-95404 |
YY61..T2;YY52,61..LHD |
1 | ||
| 88605-26550 |
YY52,61..LHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-95A00 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
1 | ||
| 88625-95A00 |
YY61..T2;LY60,YY52;YY61..LHD;LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-60020 |
YY61..T2;LY60,YY52;YY61..LHD;LY61..T2,T3;LY61..TW..ST |
1 | ||
| 88630-60020 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 88630-95403 |
LY6#,YY52,61..LHD |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-95J00 |
LY60,YY52;YY61..T2,TW;YY61..LHD..T3 NO.1 |
1 | ||
| 88645-95J00 |
YY52,61..LHD NO.1 |
1 | ||
| 88645-17010 |
LY60,YY52;YY61..T2,TW;YY61..LHD..T3 NO.2 |
1 | ||
| 88645-20050 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST NO.1 |
1 | ||
| 88645-17010 |
YY52,61..LHD NO.1 |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-95J00 |
LY60,YY52;YY61..T2,TW;YY61..LHD..T3 NO.1 |
1 | ||
| 88645-95J00 |
YY52,61..LHD NO.1 |
1 | ||
| 88645-17010 |
LY60,YY52;YY61..T2,TW;YY61..LHD..T3 NO.2 |
1 | ||
| 88645-20050 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST NO.1 |
1 | ||
| 88645-17010 |
YY52,61..LHD NO.1 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-14030 |
YY52,61..LHD DEALER OPTION |
1 | ||
| 88650-87101 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88650-87101 |
YY52,61..LHD MAKER OPTION |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-95425 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
1 | ||
| 88688-95425 |
YY61..T2;LY60,YY52;YY61..LHD;LY61..T2,T3;LY61..TW..ST |
1 | ||
| Common parts | ||||
| 82711-22690 | ||||
| 88569-12030 | ||||
| 90099-00148 | ||||
| 90179-08123 | ||||
| 90950-01293 | ||||
| 91611-18016 | ||||
| 91611-60816 | ||||
| 91651-40825 | ||||
| 93315-15012 | ||||
| 93530-55016 | ||||
| 93540-15016 | ||||
| 93566-15512 | ||||
