YY61L-MDB (1987)

Toyota Dyna150

Production Aug 1987 - May 1995
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

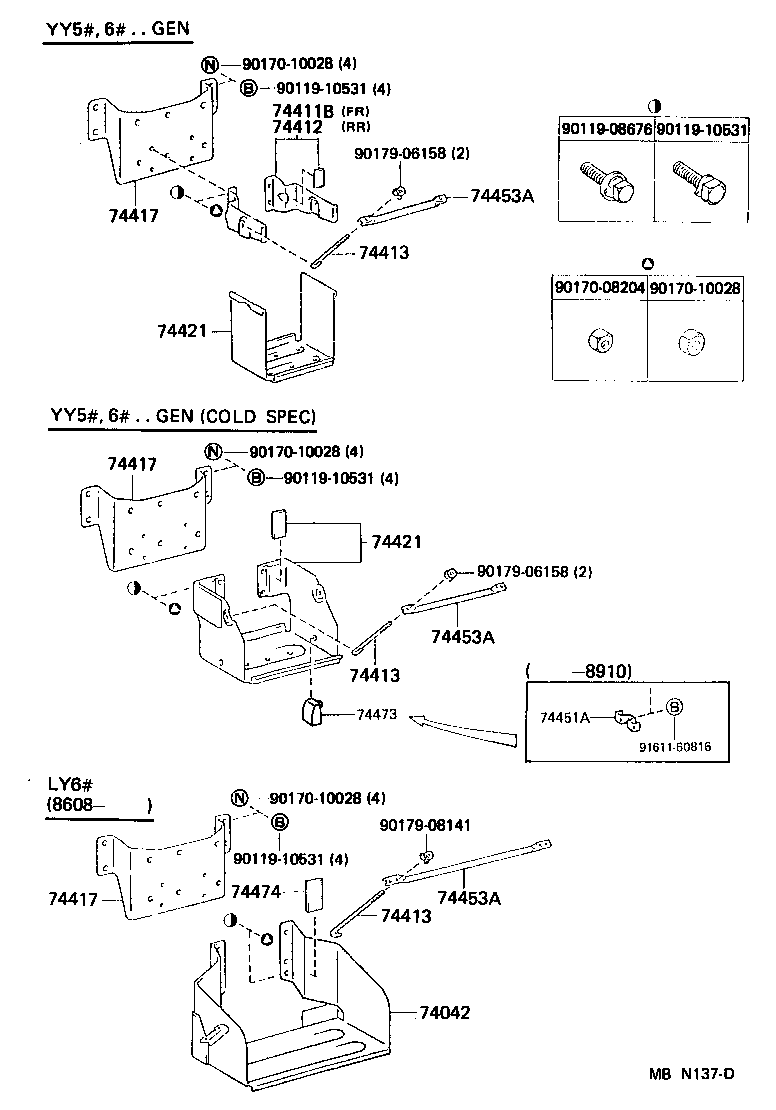

Click highlighted areas on diagram

diagram 74042 74411B 74412 74413 74413 74413 74417 74417 74417 74421 74421 74451A 74453A 74453A 74453A 74473 74474 9011908676 9011910531 9011910531 9011910531 9011910531 9017008204 9017010028 9017010028 9017010028 9017010028 9017906158 9017906158 9017908141 9161160816
Part # Description Qty Price
74411B - BRACKET, BATTERY, FRONT
74411-25011

YY52,61

 1
74412 - BRACKET, BATTERY, REAR
74412-25011

YY52,61

 1
74413 - BOLT, BATTERY CLAMP
74451-25020

YY52,61

 2
74413 - BOLT, BATTERY CLAMP
74451-25020

YY52,61

 2
74413 - BOLT, BATTERY CLAMP
74451-25020

YY52,61

 2
74417 - BRACKET, BATTERY CARRIER
74417-25020

YY61..T2,T3

 1
74417 - BRACKET, BATTERY CARRIER
74417-25020

YY61..T2,T3

 1
74417 - BRACKET, BATTERY CARRIER
74417-25020

YY61..T2,T3

 1
74421 - HANGER, BATTERY
74421-26010

YY52,61

 1
74421-26020

YY52,61

W(BATTERY=50D20R)

 1
74421-25020

YY52,61

W(BATTERY=50D20R)

 1
74421 - HANGER, BATTERY
74421-26010

YY52,61

 1
74421-26020

YY52,61

W(BATTERY=50D20R)

 1
74421-25020

YY52,61

W(BATTERY=50D20R)

 1
74451A - PLATE, BATTERY SET
74451-25050

YY52,61

 2
74453A - BAR, BATTERY SET PLATE
74453-25090

YY52,61

W(BATTERY=50D20R)

 1
74453-25080

YY52,61

 1
74453A - BAR, BATTERY SET PLATE
74453-25090

YY52,61

W(BATTERY=50D20R)

 1
74453-25080

YY52,61

 1
74453A - BAR, BATTERY SET PLATE
74453-25090

YY52,61

W(BATTERY=50D20R)

 1
74453-25080

YY52,61

 1
74473 - SPACER, BATTERY
74473-36040

YY52,61

 2
Common parts
90119-08676
90119-10531
90170-08204
90170-10028
90179-06158
90179-08141
91611-60816
