YY61L-MDB (1987)

Toyota Dyna150

Production Aug 1987 - May 1995
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )T2,T3

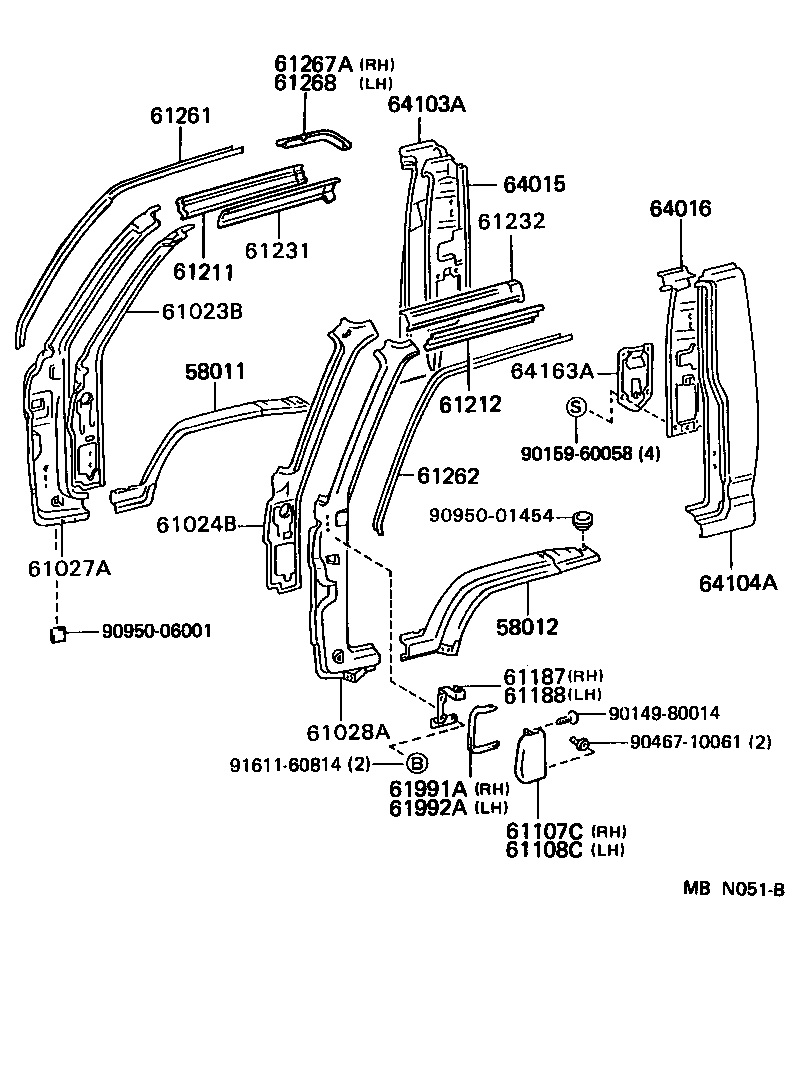

Click highlighted areas on diagram

diagram 58011 58012 61023B 61024B 61027A 61028A 61107C 61108C 61187 61188 61211 61212 61231 61232 61261 61262 61267A 61268 61991A 61992A 64015 64016 64103A 64104A 64163A 9014980014 9015960058 9046710061 9095001454 9095006001 9161160814
Part # Description Qty Price
58011 - PANEL SUB-ASSY, FRONT FLOOR SIDE, RH
58011-95011

LY6#,YY61..T2,T3

 1
58012 - PANEL SUB-ASSY, FRONT FLOOR SIDE, LH
58012-95012

LY6#,YY61..T2,T3

 1
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-95401

LY6#,YY52,61..LHD

 1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-95401

LY6#,YY52,61..LHD

 1
61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH
61027-37020

LY61,YY52,61

 1
61027-95401

LY6#,YY52,61

 1
61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH
61028-95401

YY52,61..LHD

W(RADIO)

 1
61028-37030

LY61,YY52,61

 1
61028-95401

YY61..LHD

W(RADIO)

 1
61028-37040

YY61..LHD

W(RADIO)

 1
61028-95400

LY6#,YY52,61

 1
61108C - COVER SUB-ASSY, FRONT PILLAR DOOR HINGE, LH
61108-95416

LY6#..ARL..IV;LY6#,YY52,61..LHD

 1
61188 - BRACKET, FRONT PILLAR DOOR HINGE COVER, LH
61188-95400

LY6#..ARL..IV;LY6#,YY52,61..LHD

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-95403

LY6#,YY61..T2,T3

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-95403

LY6#,YY61..T2,T3

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-95406

LY6#,YY61..LHD..T3

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-95405

LY6#,YY61..LHD..T3

 1
61261 - CHANNEL, ROOF DRIP, RH
61261-95407

LY6#,YY52,61

 1
61261-95406

LY60,YY61..T2,T3

 1
61262 - CHANNEL, ROOF DRIP, LH
61262-95406

LY60,YY61..T2,T3

 1
61262-95407

LY6#,YY52,61

 1
61267A - CHANNEL, ROOF DRIP SIDE, REAR RH
61267-95400

LY61,YY61..T2,T3

 1
61268 - CHANNEL, ROOF DRIP SIDE, REAR LH
61268-95400

LY61,YY61..T2,T3

 1
61992A - PROTECTOR, FRONT PILLAR DOOR HINGE COVER, LH
61992-37010

LY61..ARL..IV;LY61,YY52,61..LHD

 1
61992-95400

LY6#..ARL..IV;LY6#,YY52,61..LHD

 1
64015 - PANEL SUB-ASSY, BACK CORNER, INNER RH
64015-95400

LY6#,YY61..(T2,T3)..GEN

 1
64016 - PANEL SUB-ASSY, BACK CORNER, INNER LH
64016-95400

LY6#,YY61..(T2,T3)..GEN

 1
64103A - PANEL SUB-ASSY, BACK CORNER, OUTER RH
64103-95406

LY60,YY61..(T2,T3)..GEN

 1
64103-95401

LY61,YY61..(T2,T3)..GEN

 1
64104A - PANEL SUB-ASSY, BACK CORNER, OUTER LH
64104-95407

LY60,YY61..(T2,T3)..GEN

 1
64104-95401

LY61,YY61..(T2,T3)..GEN

 1
64163A - COVER, BACK CORNER, INNER
64163-95403

LY60,YY52,61..GEN

 2
64163-95411B0

LY61,YY52,61..GEN

GRAY,TRIM1#

 2
64163-9541106

LY61,YY52,61..GEN

BROWN,TRIM4#

 2
Common parts
90149-80014
90159-60058
90467-10061
90950-01454
90950-06001
91611-60814
