YY61L-MDB (1987)
Toyota Dyna150
Production
Aug 1987
-
May 1995
Engine
3Y
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

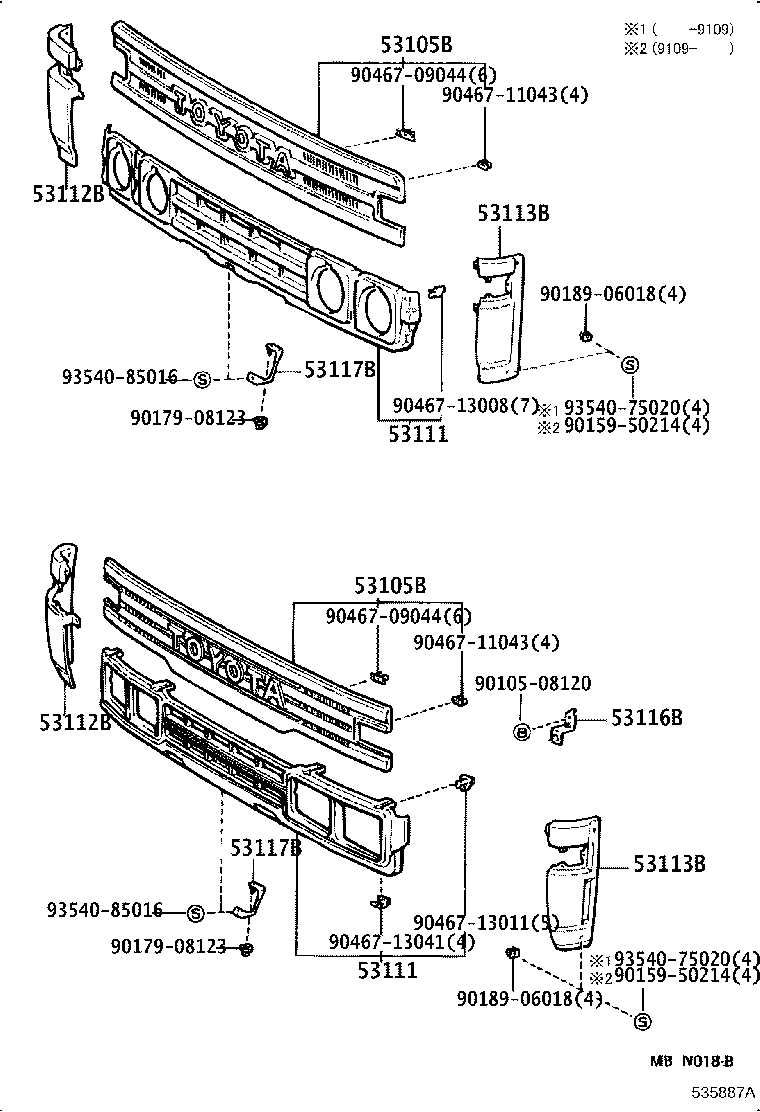

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53105B - GARNISH SUB-ASSY, RADIATOR GRILLE | ||||
| 53105-95400 |
LY6#,YY52,61..GEN |
1 | ||
| 53105B - GARNISH SUB-ASSY, RADIATOR GRILLE | ||||
| 53105-95400 |
LY6#,YY52,61..GEN |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53111-95416 |
LY6#,YY52,61..GEN |
1 | ||
| 53111-95419 |
YY52,61..LHD W(SCHNORKEL AIR CLEANER) |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53111-95416 |
LY6#,YY52,61..GEN |
1 | ||
| 53111-95419 |
YY52,61..LHD W(SCHNORKEL AIR CLEANER) |
1 | ||
| 53112B - GRILLE, RADIATOR SIDE, RH | ||||
| 53112-95401 |
LY6#,YY52,61..GEN |
1 | ||
| 53112B - GRILLE, RADIATOR SIDE, RH | ||||
| 53112-95401 |
LY6#,YY52,61..GEN |
1 | ||
| 53113B - GRILLE, RADIATOR SIDE, LH | ||||
| 53113-95403 |
LY6#,YY52,61..GEN |
1 | ||
| 53113B - GRILLE, RADIATOR SIDE, LH | ||||
| 53113-95403 |
LY6#,YY52,61..GEN |
1 | ||
| 53117B - BRACKET, RADIATOR GRILLE, LOWER | ||||
| 53117-95401 |
LY6#,YY52,61..LHD |
1 | ||
| 53117B - BRACKET, RADIATOR GRILLE, LOWER | ||||
| 53117-95401 |
LY6#,YY52,61..LHD |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90159-50214 | ||||
| 90179-08123 | ||||
| 90189-06018 | ||||
| 90467-09044 | ||||
| 90467-11043 | ||||
| 90467-13008 | ||||
| 90467-13011 | ||||
| 90467-13041 | ||||
| 93540-75020 | ||||
| 93540-85016 | ||||
