YY61L-MDB (1987)
Toyota Dyna150
(8708- )

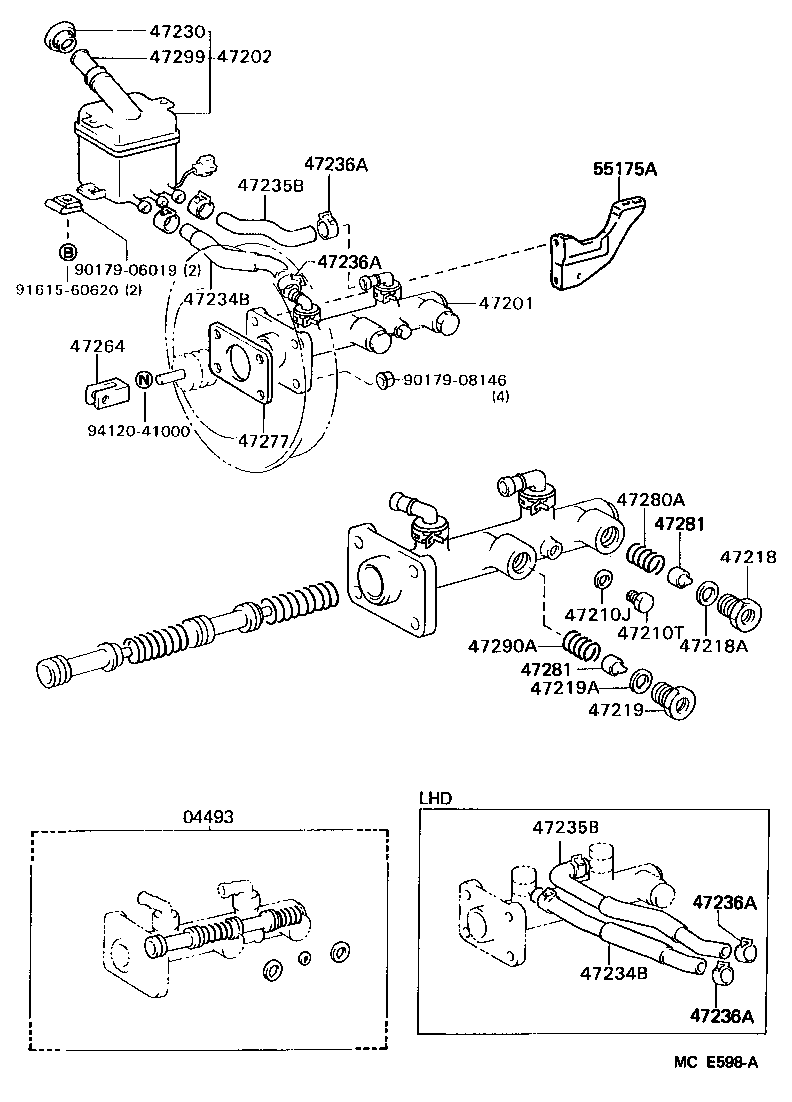

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-25050 |
LY61,YY61..ST..GEN |
1 | ||
| 04493-25050 |
LY6#,YY52,61..ST..GEN |
1 | ||
| 04493-25040 |
LY6#,YY52,61..ST..GEN W(FR DISC BRAKE) |
1 | ||
| 04493-25040 |
LY61,YY61..ST..GEN W(FR DISC BRAKE) |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-25140 |
LY6#,YY52,61..LHD W(FR DISC BRAKE) |
1 | ||
| 47201-25150 |
LY6#,YY52,61..LHD |
1 | ||
| 47201-25140 |
LY61,YY61..LHD W(FR DISC BRAKE) |
1 | ||
| 47201-25150 |
LY61,YY61..LHD |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-36040 |
LY6#,YY52,61 |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
LY6#,YY52,61 |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
LY6#,YY52,61 |
1 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-25020 |
LY61,YY61..ST..GEN W(FR DISC BRAKE) |
1 | ||
| 47218-30030 |
LY6#,YY52,61..ST..GEN |
1 | ||
| 47218-30030 |
LY61,YY61..ST..GEN |
1 | ||
| 47218-25020 |
LY6#,YY52,61..ST..GEN W(FR DISC BRAKE) |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
LY6#,YY52,61 |
1 | ||
| 47219 - PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE) | ||||
| 47218-30030 |
LY6#,YY52,61 |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-11001 |
LY6#,YY52,61 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-28010 |
LY6#,YY52,61 |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-36110 |
LY6#,YY52,61..LHD |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-36110 |
LY6#,YY52,61..LHD |
1 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-36110 |
LY6#,YY52,61..LHD |
1 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-36110 |
LY6#,YY52,61..LHD |
1 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16002 |
LY6#,YY52,61 |
4 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16002 |
LY6#,YY52,61 |
4 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16002 |
LY6#,YY52,61 |
4 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16002 |
LY6#,YY52,61 |
4 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-22020 |
LY6#,YY52,61 |
1 | ||
| 47277 - SPACER, MASTER CYLINDER | ||||
| 47277-36010 |
LY6#,YY52,61..ST |
1 | ||
| 47280A - SPRING, COMPRESSION | ||||
| 90504-05003 |
LY6#,YY52,61..ST..GEN |
1 | ||
| 90504-05003 |
LY61,YY61..ST..GEN |
1 | ||
| 47281 - VALVE, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-30020 |
LY6#,YY52,61..ST..GEN |
2 | ||
| 47281-30020 |
LY6#,YY52,61..ST..GEN W(FR DISC BRAKE) |
1 | ||
| 47281-30020 |
LY61,YY61..ST..GEN |
2 | ||
| 47281-30020 |
LY61,YY61..ST..GEN W(FR DISC BRAKE) |
1 | ||
| 47281 - VALVE, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-30020 |
LY6#,YY52,61..ST..GEN |
2 | ||
| 47281-30020 |
LY6#,YY52,61..ST..GEN W(FR DISC BRAKE) |
1 | ||
| 47281-30020 |
LY61,YY61..ST..GEN |
2 | ||
| 47281-30020 |
LY61,YY61..ST..GEN W(FR DISC BRAKE) |
1 | ||
| 47290A - SPRING, COMPRESSION(FOR FLUID OUTLET REAR SIDE) | ||||
| 90504-05003 |
LY6#,YY52,61 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-26020 |
LY6#,YY52,61 |
1 | ||
| 55175A - SUPPORT SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 55175-95401 |
LY6#,YY52,61..GEN |
1 | ||
| 55175-95402 |
LY6#,YY52,61..ST..GEN W(FR DISC BRAKE) |
1 | ||
| 55175-95401 |
LY61,YY61..GEN |
1 | ||
| 55175-95402 |
LY61,YY61..ST..GEN W(FR DISC BRAKE) |
1 | ||
| Common parts | ||||
| 90179-06019 | ||||
| 90179-08146 | ||||
| 91615-60620 | ||||
| 94120-41000 | ||||
