YY61L-MDB (1987)

Toyota Dyna150

Production Aug 1987 - May 1995
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

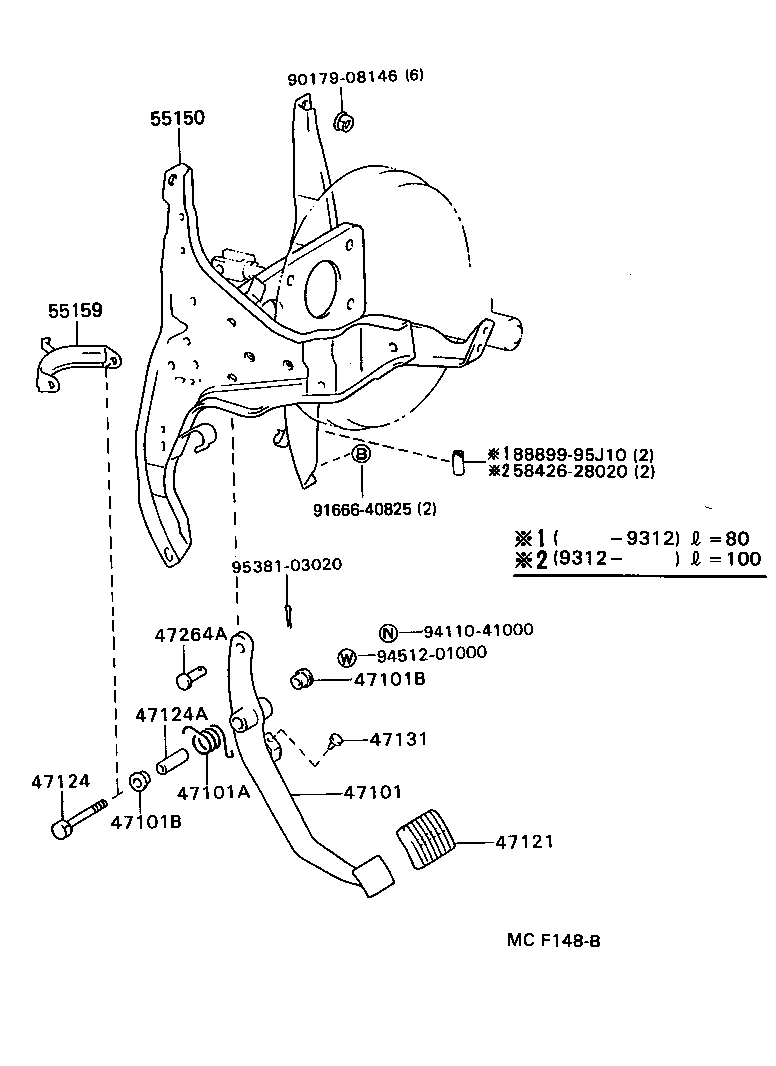

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124 47124A 47131 47264A 55150 55159 5842628020 8889995J10 9017908146 9166640825 9411041000 9451201000 9538103020
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-26060

LY6#,YY52,61

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90508-35324

LY6#,YY52,61

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

LY6#,YY52,61

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

LY6#,YY52,61

 2
47121 - PAD, BRAKE PEDAL
31321-14020

LY6#,YY52,61

 1
47124 - SHAFT, BRAKE PEDAL
91121-51070

LY6#,YY52,61

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10004

LY6#,YY52,61

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06008

LY6#,YY52,61

 1
90541-06036

LY61,YY52,61

 1
47264A - PIN(FOR PUSH ROD)
90240-10015

LY6#,YY52,61

 1
55150 - BRACKET ASSY, PEDAL
55150-95401

LY6#,YY52,61..LHD

 1
55159 - STAY, PEDAL BRACKET
55159-95401

LY6#,YY52,61

 1
Common parts
58426-28020
88899-95J10
90179-08146
91666-40825
94110-41000
94512-01000
95381-03020
