YY60R-MDB3 (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 2Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

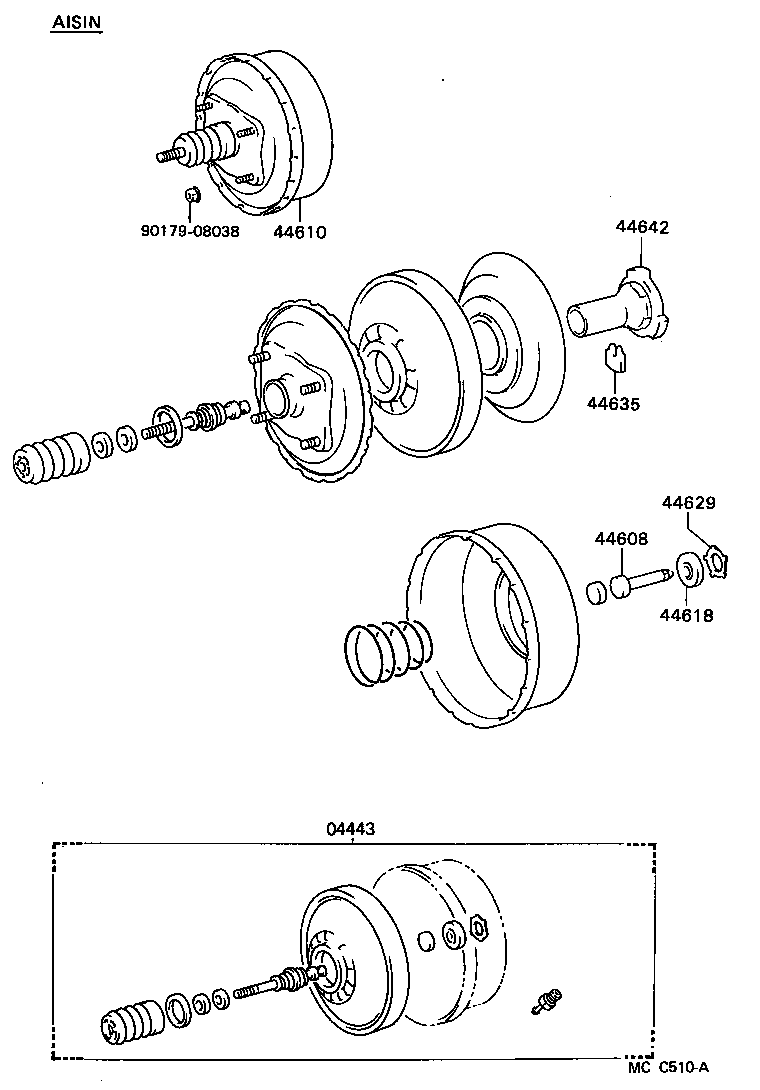

(8508- )GEN

Click highlighted areas on diagram

diagram 04443 44608 44610 44618 44629 44635 44642 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-25160

YY5#,6#..ST

9INCHES BOOSTER

 1
04443-25130

YY51,6#..GEN

10.5INCHES BOOSTER

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-36240

LY60,YY5#,6#..GEN

 1
44608-25150

LY60,YY5#,6#..T3,TW

10.5INCHES BOOSTER

 1
44610 - BOOSTER ASSY, BRAKE
44610-25180

LY60,YY6#..RHD..ST..GEN

9INCHES BOOSTER

 1
44610-25150

LY60,YY6#..RHD..ST

10.5INCHES BOOSTER

 1
44618 - SEAL, BOOSTER BODY
44621-28120

LY60,YY5#,6#..GEN

 1
44629 - RING, CIRCULAR INTERNAL
44628-28120

LY60,YY5#,6#..GEN

 1
44635 - RETAINER, HYDRAULIC VALVE
44635-36240

LY60,YY5#,6#..GEN

 1
44642 - PISTON, BRAKE BOOSTER
44642-36240

LY60,YY5#,6#..ARL,GEN

 1
Common parts
90179-08038

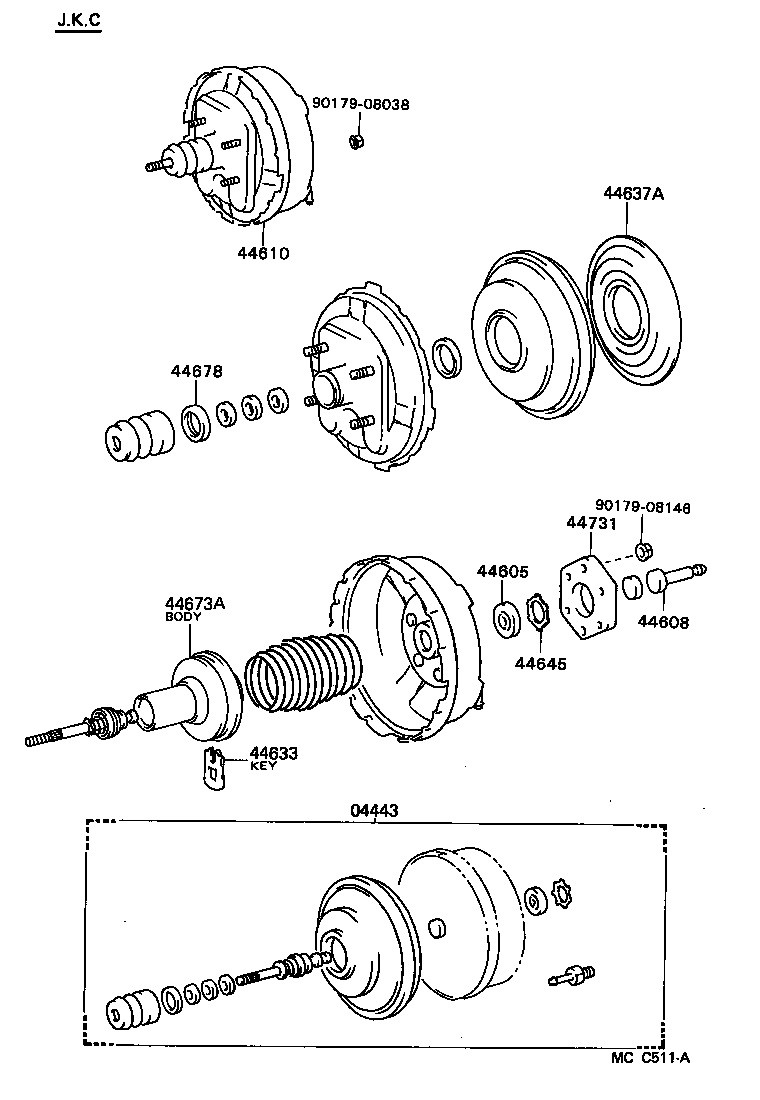

(8508- )T3,TW

Click highlighted areas on diagram

diagram 04443 44605 44608 44610 44633 44637A 44645 44673A 44678 44731 9017908038 9017908146
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-25160

YY5#,6#..ST

9INCHES BOOSTER

 1
04443-25130

YY51,6#..GEN

10.5INCHES BOOSTER

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-36220

LY60,YY5#,6#..T3,TW

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-36240

LY60,YY5#,6#..GEN

 1
44608-25150

LY60,YY5#,6#..T3,TW

10.5INCHES BOOSTER

 1
44610 - BOOSTER ASSY, BRAKE
44610-25180

LY60,YY6#..RHD..ST..GEN

9INCHES BOOSTER

 1
44610-25150

LY60,YY6#..RHD..ST

10.5INCHES BOOSTER

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-28130

LY60,YY5#,6#..T3,TW

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-25150

LY60,YY5#,6#..T3,TW

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-36220

LY60,YY5#,6#..T3,TW

 1
44673A - BODY, BOOSTER VALVE
44673-25150

LY60,YY5#,6#..T3,TW

 1
44678 - RETAINER, BOOSTER AIR CLEANER
44678-28130

LY60,YY5#,6#..T3,TW

 1
44731 - BRACKET, BRAKE BOOSTER, FRONT
44647-25150

LY60,YY5#,6#..T3,TW

 1
Common parts
90179-08038
90179-08146

(8508- )

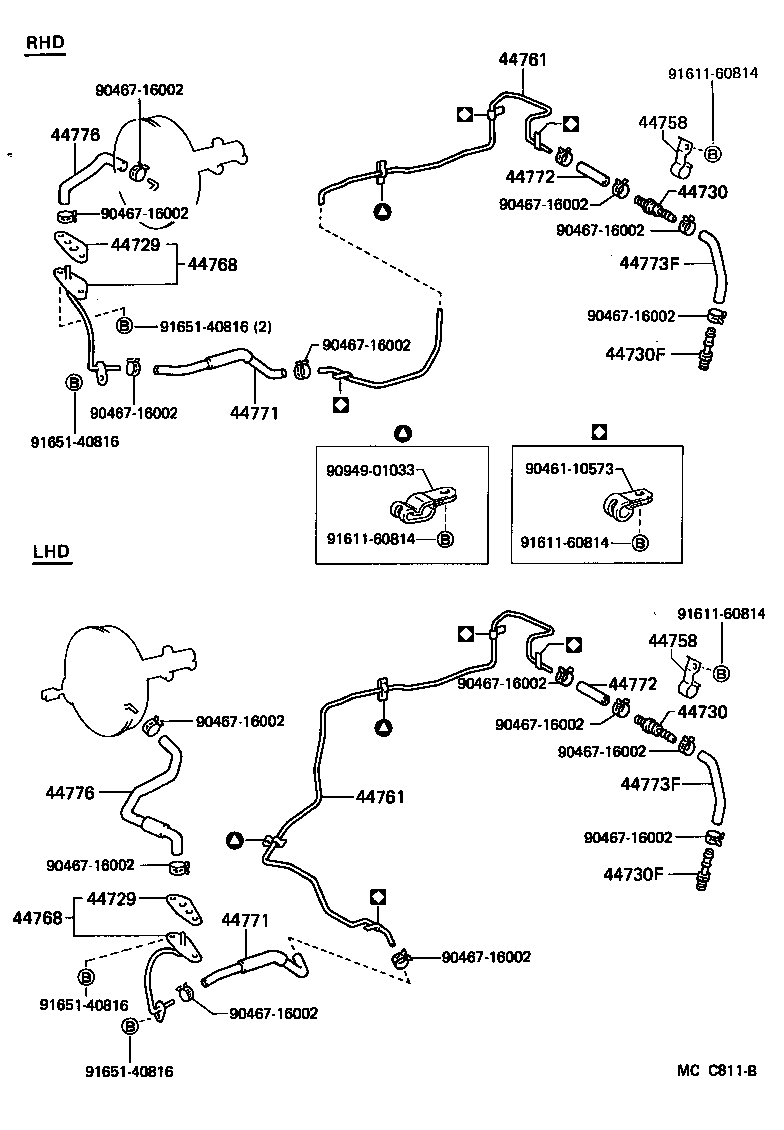

Click highlighted areas on diagram

diagram 44729 44729 44730 44730 44730F 44730F 44758 44758 44761 44761 44768 44768 44771 44771 44772 44772 44773F 44773F 44776 44776 9046110573 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9094901033 9161160814 9161160814 9161160814 9161160814 9165140816 9165140816 9165140816 9165140816
Part # Description Qty Price
44729 - GASKET, VACUUM TUBE
44729-36020

LY60,YY5#,6#

 1
44729 - GASKET, VACUUM TUBE
44729-36020

LY60,YY5#,6#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-24020

YY5#,6#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-24020

YY5#,6#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

YY5#,6#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

YY5#,6#

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-26030

YY5#,6#

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-26030

YY5#,6#

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-25080

YY6#..RHD

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-25080

YY6#..RHD

 1
44768 - TUBE, BOOSTER VACUUM
44768-36020

LY60,YY6#..RHD

 1
44768 - TUBE, BOOSTER VACUUM
44768-36020

LY60,YY6#..RHD

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-25020

YY6#..RHD

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-25020

YY6#..RHD

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
90445-17039

YY5#,6#

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
90445-17039

YY5#,6#

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-25010

YY5#,6#

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-25010

YY5#,6#

 1
44776 - HOSE, BRAKE BOOSTER
44776-36030

LY60,YY6#..RHD

 1
44776 - HOSE, BRAKE BOOSTER
44776-36030

LY60,YY6#..RHD

 1
Common parts
90461-10573
90467-16002
90949-01033
91611-60814
91651-40816
