YY60R-MDB (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 2Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

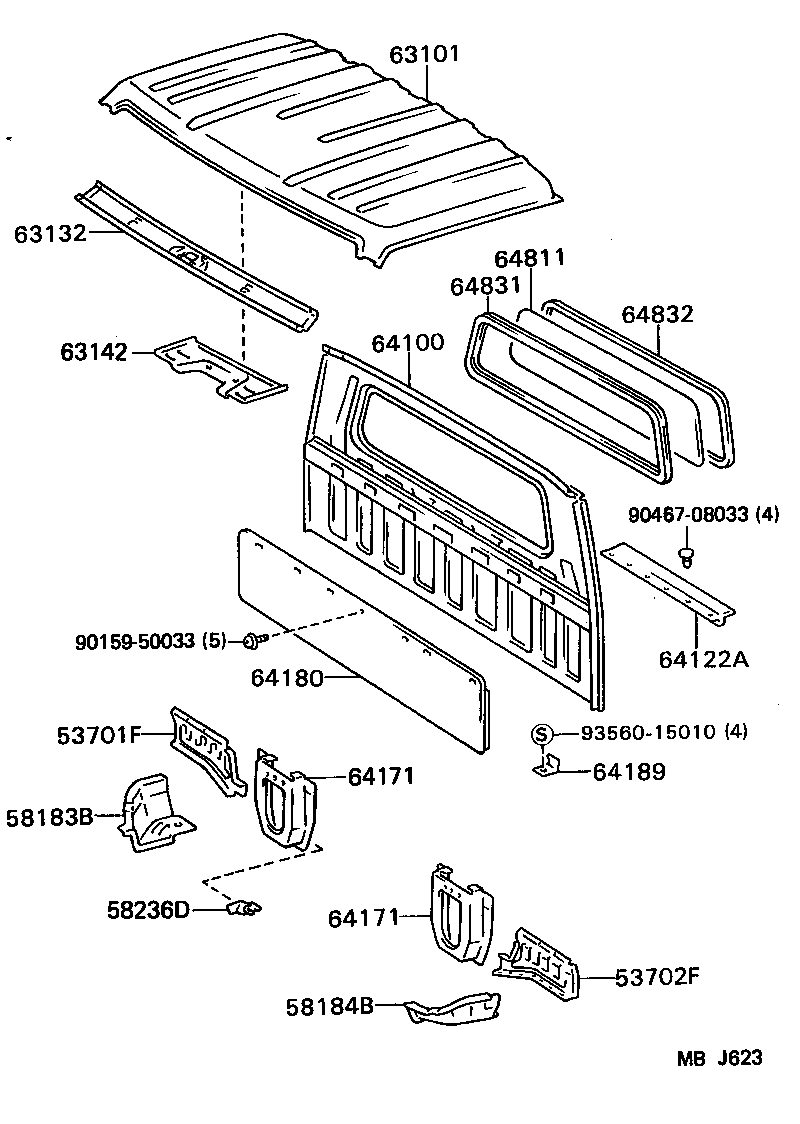

Click highlighted areas on diagram

diagram 53701F 53702F 58183B 58184B 58236D 63101 63132 63142 64100 64122A 64171 64171 64180 64189 64811 64831 64832 9015950033 9046708033 9356015010
Part # Description Qty Price
53701F - APRON SUB-ASSY, FRONT FENDER, NO.2 RH
53717-95A03

LY60,YY6#..T2,T3

 1
53702F - APRON SUB-ASSY, FRONT FENDER, NO.2 LH
53718-95A02

LY60,YY6#..T2,T3

 1
58183B - REINFORCEMENT, REAR MOUNTING, RH
58183-95402

LY60,YY5#,6#

 1
58184B - REINFORCEMENT, REAR MOUNTING, LH
58184-95401

LY60,YY5#,6#

 1
58236D - BRACKET, CLUTCH TUBE
58236-95A00

LY60,YY6#..RHD..(T2,T3)

 1
63101 - PANEL SUB-ASSY, ROOF
63111-95410

LY60,YY6#..T2,T3

W/ROOF VENTILATOR

 1
63111-95409

LY60,YY6#..T2,T3

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-95419

LY60,YY6#..RHD..GEN

W/*RV

 1
63132-95417

LY60,YY6#..RHD..GEN

 1
63132-95420

LY60,YY5#,6#

W/SUN VISOR=ASSISTANT,W/*RV

 1
63132-95418

LY60,YY5#,6#

W/SUN VISOR=ASSISTANT

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-95400

LY60,YY6#..T2,T3

W/ROOF VENTILATOR

 1
64100 - PANEL ASSY, BACK, OUTER
64100-95A00

LY60,YY6#..RHD..(T2,T3)

W/HEADREST

 1
64100-95A01

LY60,YY6#..RHD..(T2,T3)

 1
64122A - BAFFLE, DUST REAR BODY
64122-95A03

LY60,YY6#..T3

 1
64171 - BRACKET, CAB REAR MOUNTING
64171-95408

LY60,YY6#..T2,T3

 2
64171 - BRACKET, CAB REAR MOUNTING
64171-95408

LY60,YY6#..T2,T3

 2
64811 - GLASS, BACK WINDOW
64811-95409

LY60,YY6#..T2,T3

*TEM,T=3.5,*TEM,T=3.5

 1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64831-95015

LY60,YY6#..T2,T3

 1
64832 - KEY, BACK WINDOW WEATHERSTRIP
64832-95010

LY60,YY6#..T2,T3

 1
Common parts
90159-50033
90467-08033
93560-15010
