YY60R-MDB (1985)
Toyota Dyna150

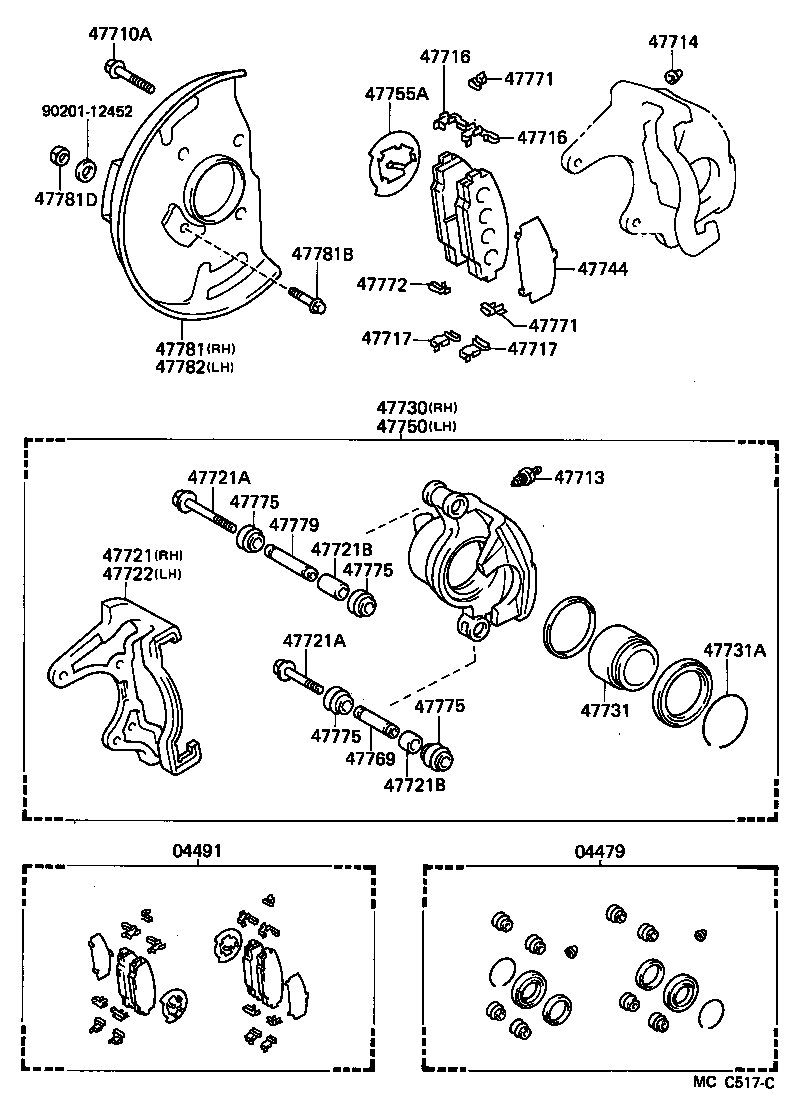

ILLUST NO. 1 OF 2(8508- )ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-25010 |
LY60,YY52,6# |
1 | ||
| 04479-25010 |
YY51,6#..GEN |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-25010 |
LY60,YY5#,6#..ARL,GEN |
1 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90119-12096 |
LY60,YY5#,6#..ARL,GEN *12-1.25PX42.5-32 |
6 | ||
| 47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12010 |
LY60,YY51,6#..ARL,GEN |
2 | ||
| 47547-12010 |
LY60,YY52,6# |
2 | ||
| 47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
LY60,YY52,6# |
2 | ||
| 31478-30010 |
LY60,YY51,6#..ARL,GEN |
2 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-25010 |
LY60,YY52,6# |
4 | ||
| 47716-25011 |
LY60,YY52,6# |
4 | ||
| 47716-25010 |
LY60,YY51,6#..ARL,GEN |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-25010 |
LY60,YY52,6# |
4 | ||
| 47716-25011 |
LY60,YY52,6# |
4 | ||
| 47716-25010 |
LY60,YY51,6#..ARL,GEN |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-25011 |
LY60,YY52,6# |
4 | ||
| 47717-25010 |
LY60,YY52,6# |
4 | ||
| 47717-25010 |
LY60,YY51,6#..ARL,GEN |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-25011 |
LY60,YY52,6# |
4 | ||
| 47717-25010 |
LY60,YY52,6# |
4 | ||
| 47717-25010 |
LY60,YY51,6#..ARL,GEN |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-25010 |
LY60,YY5#,6#..ARL,GEN |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-10389 |
LY60,YY5#,6#..ARL,GEN *10-1.25PX95.5-30,*10-1.25PX95.5-30 |
2 | ||
| 90119-10388 |
LY60,YY5#,6#..ARL,GEN *10-1.25PX65.5-30,*10-1.25PX65.5-30 |
2 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-10389 |
LY60,YY5#,6#..ARL,GEN *10-1.25PX95.5-30,*10-1.25PX95.5-30 |
2 | ||
| 90119-10388 |
LY60,YY5#,6#..ARL,GEN *10-1.25PX65.5-30,*10-1.25PX65.5-30 |
2 | ||
| 47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90387-16004 |
LY60,YY51,6#..ARL,GEN L=6 |
2 | ||
| 90387-16005 |
LY60,YY51,6#..ARL,GEN L=36 |
2 | ||
| 90387-16004 |
LY60,YY52,6# L=6 |
2 | ||
| 90387-16005 |
LY60,YY52,6# L=36 |
2 | ||
| 47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90387-16004 |
LY60,YY51,6#..ARL,GEN L=6 |
2 | ||
| 90387-16005 |
LY60,YY51,6#..ARL,GEN L=36 |
2 | ||
| 90387-16004 |
LY60,YY52,6# L=6 |
2 | ||
| 90387-16005 |
LY60,YY52,6# L=36 |
2 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-25010 |
LY60,YY5#,6#..ARL,GEN |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-25010 |
LY60,YY5#,6#..ARL,GEN |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-25010 |
LY60,YY52,6# |
2 | ||
| 47731-25010 |
LY60,YY51,6#..ARL,GEN |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-76001 |
LY60,YY52,6# |
2 | ||
| 90522-76001 |
LY60,YY51,6#..ARL,GEN |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-25010 |
LY60,YY5#,6#..ARL,GEN |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-25010 |
LY60,YY5#,6#..ARL,GEN |
1 | ||
| 47755A - INSULATOR, DISC BRAKE HEAT | ||||
| 47755-25010 |
LY60,YY52,6# |
2 | ||
| 47755-25010 |
LY60,YY51,6#..ARL,GEN |
2 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-40010 |
LY60,YY52,6# |
2 | ||
| 47769-40010 |
LY60,YY51,6#..ARL,GEN |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-25010 |
LY60,YY52,6# |
4 | ||
| 47771-25010 |
LY60,YY51,6#..ARL,GEN |
4 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-25010 |
LY60,YY52,6# |
4 | ||
| 47771-25010 |
LY60,YY51,6#..ARL,GEN |
4 | ||
| 47772 - PLATE, PAD WEAR INDICATOR, NO.2 | ||||
| 47772-25010 |
LY60,YY52,6# |
2 | ||
| 47772-25010 |
LY60,YY51,6#..ARL,GEN |
2 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-40010 |
LY60,YY52,6# |
8 | ||
| 47775-40010 |
LY60,YY51,6#..ARL,GEN |
8 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-40010 |
LY60,YY52,6# |
8 | ||
| 47775-40010 |
LY60,YY51,6#..ARL,GEN |
8 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-40010 |
LY60,YY52,6# |
8 | ||
| 47775-40010 |
LY60,YY51,6#..ARL,GEN |
8 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-40010 |
LY60,YY52,6# |
8 | ||
| 47775-40010 |
LY60,YY51,6#..ARL,GEN |
8 | ||
| 47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47779-40010 |
LY60,YY51,6#..ARL,GEN |
2 | ||
| 47779-40010 |
LY60,YY52,6# |
2 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47703-25010 |
LY60,YY5#,6#..ARL,GEN |
1 | ||
| 47781B - BOLT(FOR DUST COVER SETTING) | ||||
| 90119-12096 |
LY60,YY5#,6#..ARL,GEN *12-1.25PX42.5-32 |
2 | ||
| 47781D - NUT(FOR DUST COVER SETTING) | ||||
| 94115-71200 |
LY60,YY51,6#..ARL,GEN |
2 | ||
| 94115-71200 |
LY60,YY52,6# |
2 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47704-25010 |
LY60,YY5#,6#..ARL,GEN |
1 | ||
| Common parts | ||||
| 90201-12452 | ||||
ILLUST NO. 2 OF 2(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-25010 |
LY60,YY5#,6#..ARL,GEN MARK AISIN T535 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-25020 |
LY60,YY5#,6#..ARL,GEN |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-25010 |
LY60,YY5#,6#..ARL,GEN |
1 | ||
