YY60R-MDB (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 2Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )2Y,3Y

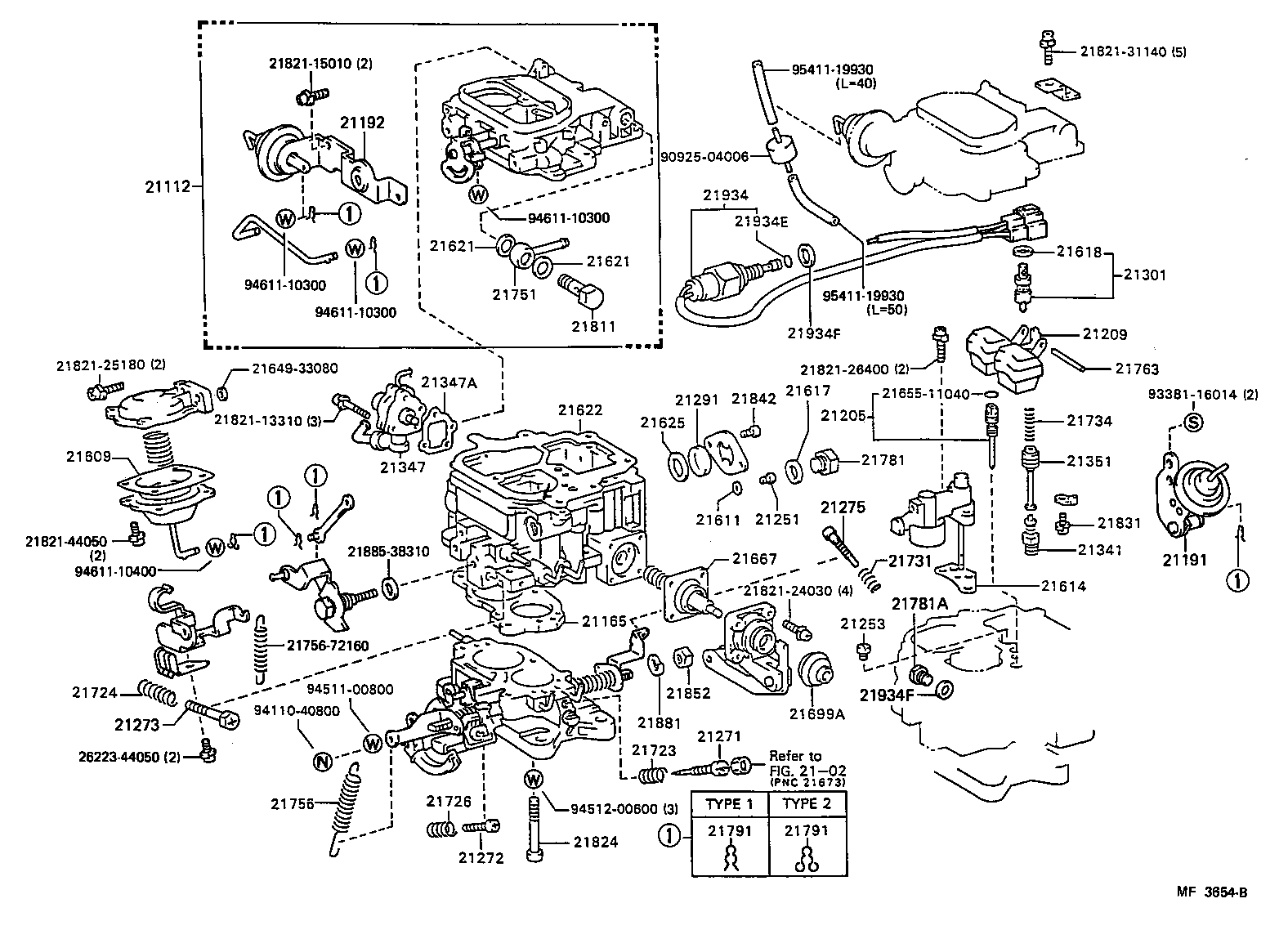

Click highlighted areas on diagram

diagram 2102 21112 21165 21191 21192 21205 21209 21251 21253 21271 21272 21273 21275 21291 21301 21341 21347 21347A 21351 21609 21611 21614 21617 21618 21621 21621 21622 21625 2164933080 2165511040 21667 21699A 21723 21724 21726 21731 21734 21751 21756 2175672160 21763 21781 21781A 21791 21791 21811 2182113310 2182115010 2182124030 2182125180 2182126400 2182131140 2182144050 21824 21831 21842 21852 21881 2188538310 21934 21934E 21934F 21934F 2622344050 9092504006 9338116014 9411040800 9451100800 9451200600 9461110300 9461110300 9461110300 9461110400 9541119930 9541119930
Part # Description Qty Price
21112 - HORN, AIR
21112-71110

2Y,3Y..YY5#,6#

 1
21165 - INSULATOR
21165-72160

2Y,3Y..YY5#,6#

 1
21192 - BREAKER
21192-71110

2Y,3Y..YY5#,6#

 1
21192-71111

2Y,3Y..YY52,6#

 1
21205 - JET SUB-ASSY, SLOW
21205-35240

2Y,3Y..YY5#,6#

 1
21209 - FLOAT SUB-ASSY
21209-72160

2Y,3Y..YY5#,6#

 1
21251 - JET, 1ST MAIN
90999-41101

2Y,3Y..YY5#,6#

 1
21253 - JET, 2ND MAIN
21253-71110

2Y,3Y..YY5#,6#

 1
21271 - SCREW, IDLE ADJUSTING
21271-15230

2Y..YY51,60

 1
21272 - SCREW, 1ST IDLE ADJUSTING
21272-71010

2Y,3Y..YY5#,6#

 1
21273 - SCREW, THROTTLE ADJUSTING
21273-72160

2Y,3Y..YY5#,6#

 1
21291 - GLASS, LEVEL GAGE
21291-34320

2Y,3Y..YY5#,6#

 1
21301 - VALVE SUB-ASSY, NEEDLE
21301-35010

2Y,3Y..YY5#,6#

 1
21341 - VALVE, POWER
21304-30010

2Y,3Y..YY5#,6#

 1
21347 - VALVE, SOLENOID
21347-71110

2Y,3Y..YY5#,6#

 1
21347A - GASKET(FOR VALVE, SOLENOID)
21641-35010

2Y,3Y..YY5#,6#

 1
21351 - PISTON, POWER
21351-37040

2Y,3Y..YY5#,6#

 1
21609 - DIAPHRAGM SUB-ASSY
21667-72170

2Y,3Y..YY5#,6#

 1
21611 - GASKET, MAIN JET
21611-22010

2Y,3Y..YY5#,6#

 1
21614 - GASKET, VENTURI
21614-72160

2Y,3Y..YY5#,6#

 1
21617 - GASKET, MAIN PASSAGE PLUG
21617-30010

2Y,3Y..YY5#,6#

 1
21618 - GASKET, NEEDLE VALVE SEAT
21618-14010

2Y,3Y..YY5#,6#

 1
21621 - GASKET, UNION NIPPLE
21633-24030

2Y,3Y..YY5#,6#

 2
21621 - GASKET, UNION NIPPLE
21633-24030

2Y,3Y..YY5#,6#

 2
21622 - GASKET, AIR HORN
21622-72160

2Y,3Y..YY5#,6#

 1
21625 - GASKET, LEVEL GAGE
21655-60200

2Y,3Y..YY5#,6#

 1
21667 - DIAPHRAGM
21667-72050

2Y,3Y..YY5#,6#

 1
21699A - BOOT(FOR ACCELERATION PUMP)
21699-37040

2Y,3Y..YY5#,6#

 1
21723 - SPRING, IDLE ADJUSTING
21723-21030

2Y,3Y..YY5#,6#

 1
21724 - SPRING, THROTTLE ADJUSTING
21723-38330

2Y,3Y..YY5#,6#

 1
21726 - SPRING, 1ST IDLE ADJUSTING
21726-38310

2Y,3Y..YY5#,6#

 1
21734 - SPRING, POWER PISTON
21734-33080

2Y..YY51,60

 1
21734-33081

2Y..YY60

 1
21751 - UNION, NIPPLE
21894-71010

2Y,3Y..YY5#,6#

 1
21756 - SPRING, BACK(FOR THROTTLE SHAFT)
21869-71110

2Y,3Y..YY51,6#

 1
21763 - PIN, FLOAT LEVER
21763-34320

2Y,3Y..YY5#,6#

 1
21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21781-15230

2Y,3Y..YY5#,6#

 1
21781A - PLUG, MAIN PASSAGE, NO.2(FOR CARBURETOR JET)
21781-72151

2Y,3Y..YY5#,6#

 1
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-13010

2Y,3Y..YY5#,6#

TYPE2

 4
21791-60010

2Y,3Y..YY5#,6#

TYPE1

 2
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-13010

2Y,3Y..YY5#,6#

TYPE2

 4
21791-60010

2Y,3Y..YY5#,6#

TYPE1

 2
21811 - BOLT, UNION NIPPLE
21811-11060

2Y,3Y..YY5#,6#

 1
21824 - SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET)
21844-26400

2Y,3Y..YY5#,6#

 3
21831 - SCREW, POWER PISTON STOP
21821-15060

2Y,3Y..YY5#,6#

 1
21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21842-33010

2Y,3Y..YY5#,6#

 2
21852 - NUT, THROTTLE LEVER SET
21852-30010

2Y,3Y..YY5#,6#

 1
21881 - WASHER, LOCK(FOR THROTTLE SHAFT)
21881-60010

2Y,3Y..YY5#,6#

 1
21934 - SOLENOID, THROTTLE VALVE
21062-71110

2Y,3Y..YY5#,6#

 1
21934E - RING, O(FOR SOLENOID VALVE)
21655-44101

2Y,3Y..YY5#,6#

 1
21934F - GASKET
21617-10010

2Y,3Y..YY5#,6#

 2
21934F - GASKET
21617-10010

2Y,3Y..YY5#,6#

 2
Common parts
21649-33080
21655-11040
21756-72160
21821-13310
21821-15010
21821-24030
21821-25180
21821-26400
21821-31140
21821-44050
21885-38310
26223-44050
90925-04006
93381-16014
94110-40800
94511-00800
94512-00600
94611-10300
94611-10400
95411-19930
Linked diagrams
2102
