YY60L-MDB (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 2Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )2Y,3Y

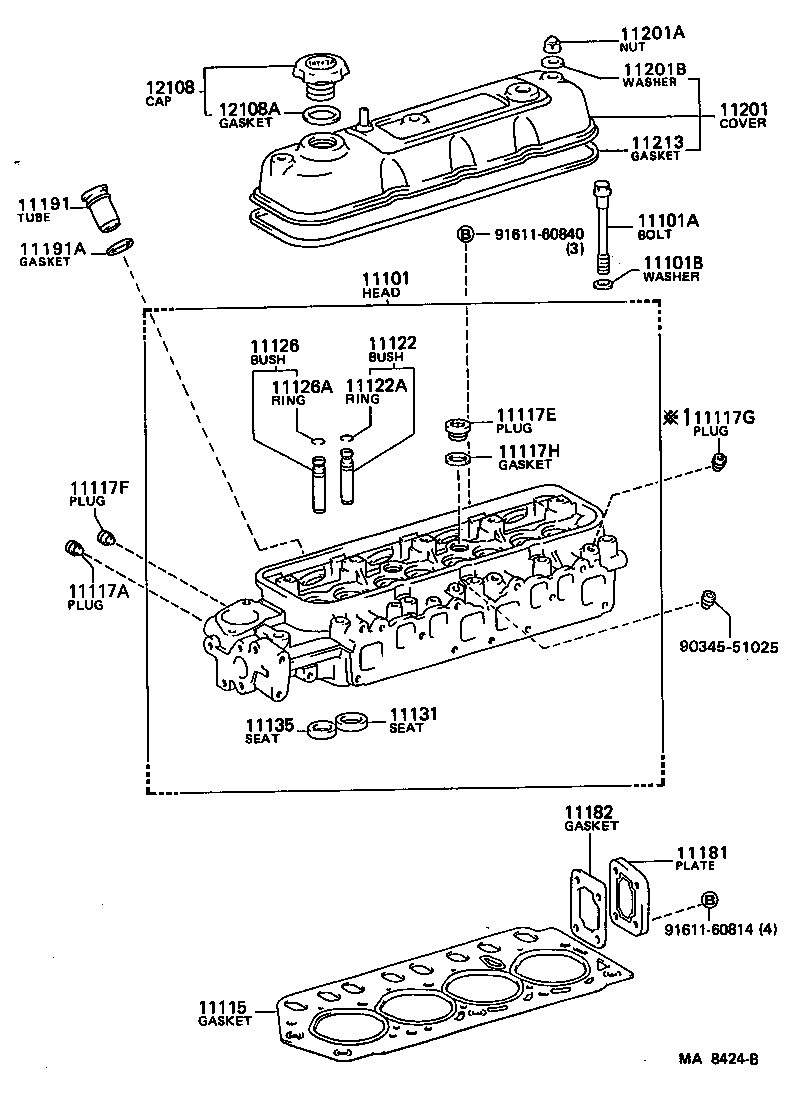

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11115 11117A 11117E 11117F 11117G 11117H 11122 11122A 11126 11126A 11131 11135 11181 11182 11191 11191A 11201 11201A 11201B 11213 12108 12108A 9034551025 9161160814 9161160840
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-71010

2Y..YY51,60

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90105-12056

2Y,3Y..YY5#,6#

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-13021

2Y,3Y..YY5#,6#

 10
11115 - GASKET, CYLINDER HEAD
11115-71011

2Y,3Y..YY5#,6#

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90344-53011

2Y,3Y..YY5#,6#

 2
11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1
90341-20002

2Y,3Y..YY5#,6#

 2
11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2
90340-16002

2Y,3Y..YY5#,6#

 1
11117G - PLUG, W/HEAD STRAIGHT SCREW, NO.3
90340-18003

2Y..YY51,60

 3
11117H - GASKET(FOR WATER HOLE)
90430-20004

2Y,3Y..YY5#,6#

 2
11122 - BUSH, INTAKE VALVE GUIDE
11122-71020

2Y,3Y..YY5#,6#

STD,STD

 4
11123-71020

2Y,3Y..YY5#,6#

O/S 0.05,O/S 0.05

 4
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

2Y,3Y..YY5#,6#

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11126-71020

2Y,3Y..YY5#,6#

STD,STD

 4
11127-71020

2Y,3Y..YY5#,6#

O/S 0.05,O/S 0.05

 4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

2Y,3Y..YY5#,6#

 4
11131 - SEAT, INTAKE VALVE
11131-63010

2Y,3Y..YY5#,6#

STD,STD

 4
11132-63010

2Y,3Y..YY5#,6#

O/S 0.03,O/S 0.03

 4
11135 - SEAT, EXHAUST VALVE
11136-71010

2Y,3Y..YY5#,6#

O/S 0.03,O/S 0.03

 4
11135-71010

2Y,3Y..YY5#,6#

STD,STD

 4
11181 - PLATE, CYLINDER HEAD, REAR
11181-71010

2Y,3Y..YY5#,6#

 1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-71010

2Y,3Y..YY5#,6#

 1
11191 - TUBE, SPARK PLUG
11191-22010

2Y,3Y..YY5#,6#

 4
11191A - GASKET(FOR SPARK PLUG TUBE)
90430-31141

2Y,3Y..YY5#,6#

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-79035

2Y,3Y..YY5#,6#

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08007

2Y,3Y..YY5#,6#

 3
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-09001

2Y,3Y..YY5#,6#

 3
11213 - GASKET, CYLINDER HEAD COVER
11213-71020

2Y,3Y..YY5#,6#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-71011

2Y,3Y..YY5#,6#

 1
12180-61010

2Y,3Y..YY52,6#

 1
12108A - GASKET(FOR OIL FILLER CAP)
12195-71020

2Y,3Y..YY5#,6#

 1
Common parts
90345-51025
91611-60814
91611-60840
