YY52L-MDP (1987)
Toyota Dyna150

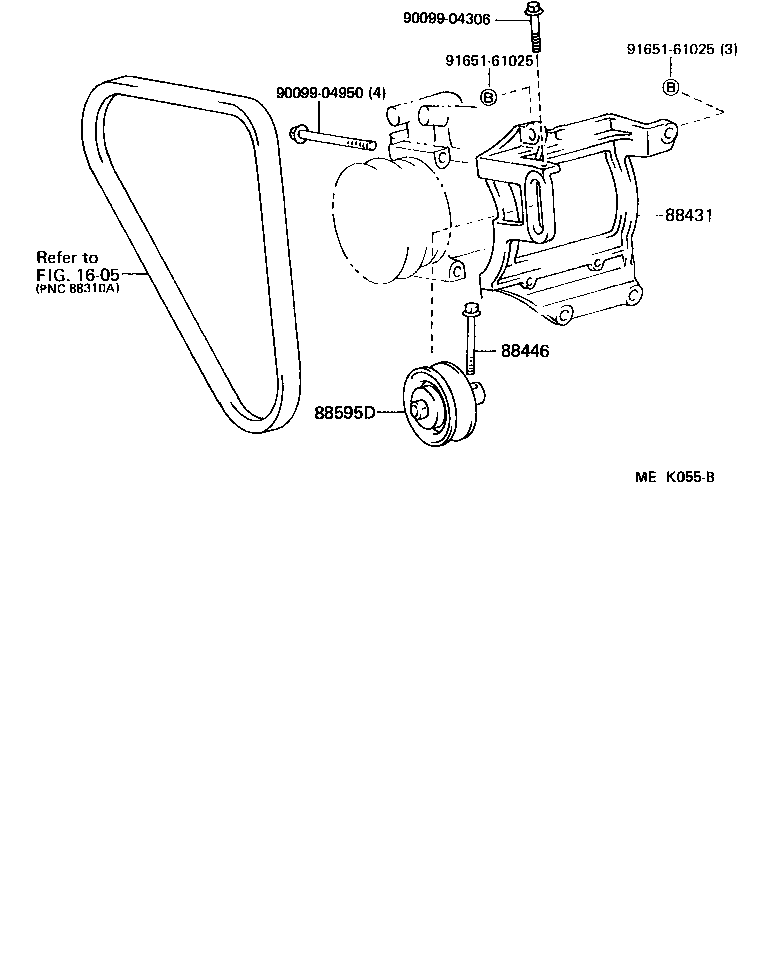

ILLUST NO. 1 OF 3(8708- )YY52,61
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-28070 |
YY61..T2;YY52,61..LHD |
1 | ||
| 88431-28070 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-35010 |
LY61..T2,T3;YY52,61..LHD;LY61..TW..ST |
1 | ||
| 88446-35010 |
YY52,61..LHD;LY6#..ST..GEN |
1 | ||
| 88595D - PULLEY ASSY, IDLE | ||||
| 88440-35020 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88440-35020 |
YY61..T2;YY52,61..LHD |
1 | ||
| Common parts | ||||
| 90099-04306 | ||||
| 90099-04950 | ||||
| 91651-61025 | ||||
| Linked diagrams | ||||
| 1605 | ||||
ILLUST NO. 2 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-22030 |
YY61..T2;LY60,YY52;YY61..LHD;LY61..ST..GEN |
1 | ||
| 88412-22030 |
YY52,61..LHD;LY61..ST..GEN |
1 | ||
| 88301A - BEARING (FOR MAGNET CLUTCH) | ||||
| 90099-10133 |
YY52,61..LHD;LY60..RHD..ST..GEN MAKER OPTION |
1 | ||
| 90099-10133 |
YY52,61..LHD;LY61..ST..GEN |
1 | ||
| 90099-10162 |
YY52,61..LHD DEALER OPTION |
1 | ||
| 90099-10133 |
YY61..T2;YY61..LHD;LY61,YY52..ST..GEN |
1 | ||
| 88301B - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07094 |
YY61..T2;LY60,YY52;YY61..LHD;LY61..ST..GEN |
1 | ||
| 90099-07094 |
YY52,61..LHD;LY61..ST..GEN |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-14050 |
YY52,61..LHD DEALER OPTION |
1 | ||
| 88411-60040 |
YY52,61..LHD MAKER OPTION |
1 | ||
| 88411-60040 |
YY52,61..LHD |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-26210 |
YY61..T2;YY52,61..LHD |
1 | ||
| 88320-26210 |
YY52,61..LHD MAKER OPTION |
1 | ||
| 88320-26470 |
YY52,61..LHD DEALER OPTION |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-36390 |
YY52,61..LHD DEALER OPTION |
1 | ||
| 88410-60140 |
YY52,61..LHD MAKER OPTION |
1 | ||
| 88410-22080 |
YY52,61..LHD DEALER OPTION |
1 | ||
| 88410-60140 |
YY61..T2;YY52,61..LHD |
1 | ||
| 88410-60140 |
YY52,61..LHD MAKER OPTION |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-12030 |
YY61..T2;LY60,YY52;YY61..LHD;LY61..ST..GEN |
1 | ||
| 88403-12030 |
YY52,61..LHD;LY61..ST..GEN |
1 | ||
| Common parts | ||||
| 88335-12050 | ||||
| 90099-07087 | ||||
| 90099-07114 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

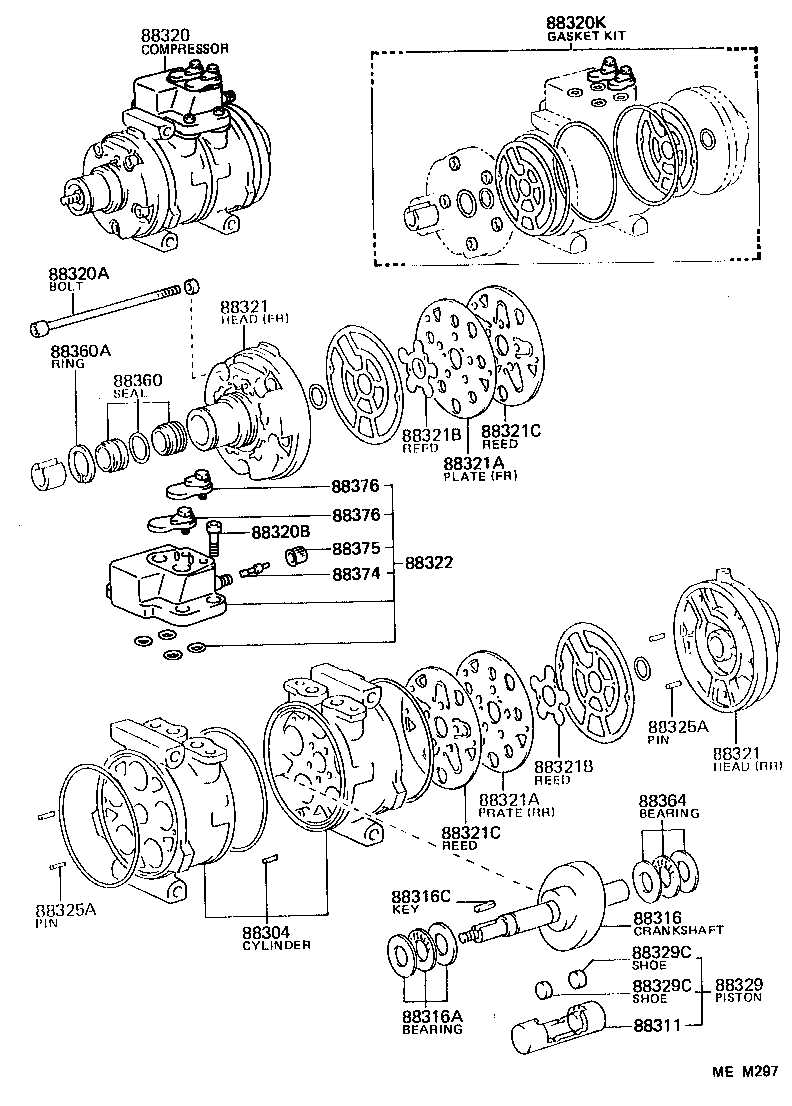

ILLUST NO. 3 OF 3(8708- )YY52,61
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-14021 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88304-14021 |
YY52,61..LHD |
1 | ||
| 88311 - PISTON | ||||
| 88311-14010 |
YY52,61..LHD |
5 | ||
| 88311-14010 |
YY61..LHD..T3;YY52,61..T2,TW |
5 | ||
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-14011 |
YY52,61..LHD |
1 | ||
| 88316-14011 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 88366-14010 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88366-14010 |
YY52,61..LHD |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90099-13024 |
LY60,YY52;YY61..T2,TW;YY61..LHD..T3 |
1 | ||
| 90099-13024 |
YY61..T2,TW;YY61..LHD..T3;LY61,YY52..ST..GEN |
1 | ||
| 90099-13024 |
YY52,61..LHD;LY61..ST..GEN |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-26210 |
YY61..T2;YY52,61..LHD |
1 | ||
| 88320-26210 |
YY52,61..LHD MAKER OPTION |
1 | ||
| 88320-26470 |
YY52,61..LHD DEALER OPTION |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04958 |
YY61..LHD..T3;YY52,61..T2,TW |
5 | ||
| 90099-04958 |
YY61..LHD..T3;YY52,61..T2,TW |
5 | ||
| 90099-04958 |
YY52,61..LHD |
5 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04307 |
YY61..LHD..T3;YY52,61..T2,TW |
4 | ||
| 90099-04307 |
YY61..LHD..T3;YY52,61..T2,TW |
4 | ||
| 90099-04307 |
YY52,61..LHD |
4 | ||
| 88320K - GASKET KIT, COOLER COMPRESSOR OVERHAUL | ||||
| 88335-12030 |
YY52,61..LHD;LY61..ST..GEN |
1 | ||
| 88335-28020 |
YY52,61..LHD |
1 | ||
| 88335-12030 |
LY61,YY52,61..LHD |
1 | ||
| 88335-12030 |
LY60,YY52;YY61..T2,TW;YY61..LHD..T3 |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14011 |
LY60..RHD;YY61..LHD..T3;YY52,61..T2,TW FR |
1 | ||
| 88322-14011 |
LY60..RHD;YY61..LHD..T3;YY52,61..T2,TW RR |
1 | ||
| 88322-14011 |
YY52,61..LHD;LY6#..ST..GEN REAR |
1 | ||
| 88321-14011 |
YY52,61..LHD;LY6#..ST..GEN FRONT |
1 | ||
| 88321-30300 |
YY52,61..LHD DEALER OPTION,FR |
1 | ||
| 88321-14011 |
YY52,61..LHD;LY61..RHD..ST..GEN MAKER OPTION,FRONT |
1 | ||
| 88322-14011 |
YY52,61..LHD RR |
1 | ||
| 88322-14011 |
YY52,61..LHD DEALER OPTION,RR |
1 | ||
| 88322-14011 |
YY52,61..LHD;LY61..RHD..ST..GEN MAKER OPTION,REAR |
1 | ||
| 88321-14011 |
YY52,61..LHD FR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14011 |
LY60..RHD;YY61..LHD..T3;YY52,61..T2,TW FR |
1 | ||
| 88322-14011 |
LY60..RHD;YY61..LHD..T3;YY52,61..T2,TW RR |
1 | ||
| 88322-14011 |
YY52,61..LHD;LY6#..ST..GEN REAR |
1 | ||
| 88321-14011 |
YY52,61..LHD;LY6#..ST..GEN FRONT |
1 | ||
| 88321-30300 |
YY52,61..LHD DEALER OPTION,FR |
1 | ||
| 88321-14011 |
YY52,61..LHD;LY61..RHD..ST..GEN MAKER OPTION,FRONT |
1 | ||
| 88322-14011 |
YY52,61..LHD RR |
1 | ||
| 88322-14011 |
YY52,61..LHD DEALER OPTION,RR |
1 | ||
| 88322-14011 |
YY52,61..LHD;LY61..RHD..ST..GEN MAKER OPTION,REAR |
1 | ||
| 88321-14011 |
YY52,61..LHD FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14010 |
LY60..RHD;YY61..LHD..T3;YY52,61..T2,TW FR |
1 | ||
| 88342-14010 |
YY52,61..LHD;LY6#..ST..GEN REAR |
1 | ||
| 88341-14010 |
YY52,61..LHD;LY6#..ST..GEN FRONT |
1 | ||
| 88341-14010 |
YY52,61..LHD FR |
1 | ||
| 88341-14010 |
YY52,61..LHD;LY61..RHD..ST..GEN MAKER OPTION,FRONT |
1 | ||
| 88341-28260 |
YY52,61..LHD DEALER OPTION,FR |
1 | ||
| 88342-14010 |
LY60..RHD;YY61..LHD..T3;YY52,61..T2,TW RR |
1 | ||
| 88342-14010 |
YY52,61..LHD RR |
1 | ||
| 88342-28260 |
YY52,61..LHD DEALER OPTION,RR |
1 | ||
| 88342-14010 |
YY52,61..LHD;LY61..RHD..ST..GEN MAKER OPTION,REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14010 |
LY60..RHD;YY61..LHD..T3;YY52,61..T2,TW FR |
1 | ||
| 88342-14010 |
YY52,61..LHD;LY6#..ST..GEN REAR |
1 | ||
| 88341-14010 |
YY52,61..LHD;LY6#..ST..GEN FRONT |
1 | ||
| 88341-14010 |
YY52,61..LHD FR |
1 | ||
| 88341-14010 |
YY52,61..LHD;LY61..RHD..ST..GEN MAKER OPTION,FRONT |
1 | ||
| 88341-28260 |
YY52,61..LHD DEALER OPTION,FR |
1 | ||
| 88342-14010 |
LY60..RHD;YY61..LHD..T3;YY52,61..T2,TW RR |
1 | ||
| 88342-14010 |
YY52,61..LHD RR |
1 | ||
| 88342-28260 |
YY52,61..LHD DEALER OPTION,RR |
1 | ||
| 88342-14010 |
YY52,61..LHD;LY61..RHD..ST..GEN MAKER OPTION,REAR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14011 |
LY60..RHD;YY61..LHD..T3;YY52,61..T2,TW |
2 | ||
| 88344-14011 |
YY52,61..LHD |
2 | ||
| 88344-14011 |
YY61..LHD..T3;YY52,61..T2,TW |
2 | ||
| 88344-14011 |
LY6#,YY52,61..LHD |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14011 |
LY60..RHD;YY61..LHD..T3;YY52,61..T2,TW |
2 | ||
| 88344-14011 |
YY52,61..LHD |
2 | ||
| 88344-14011 |
YY61..LHD..T3;YY52,61..T2,TW |
2 | ||
| 88344-14011 |
LY6#,YY52,61..LHD |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14011 |
LY60..RHD;YY61..LHD..T3;YY52,61..T2,TW |
2 | ||
| 88343-14011 |
YY61..LHD..T3;YY52,61..T2,TW |
2 | ||
| 88343-14011 |
YY52,61..LHD |
2 | ||
| 88343-14011 |
LY6#,YY52,61..LHD |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14011 |
LY60..RHD;YY61..LHD..T3;YY52,61..T2,TW |
2 | ||
| 88343-14011 |
YY61..LHD..T3;YY52,61..T2,TW |
2 | ||
| 88343-14011 |
YY52,61..LHD |
2 | ||
| 88343-14011 |
LY6#,YY52,61..LHD |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-26110 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88371-26220 |
YY52,61..LHD |
1 | ||
| 88371-26110 |
YY52,61..LHD |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
4 | ||
| 90099-08058 |
YY52,61..LHD;LY61..ST..GEN |
4 | ||
| 90099-08058 |
LY60,YY52;YY61..T2,TW;YY61..LHD..T3 |
4 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
4 | ||
| 90099-08058 |
YY52,61..LHD;LY61..ST..GEN |
4 | ||
| 90099-08058 |
LY60,YY52;YY61..T2,TW;YY61..LHD..T3 |
4 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-12050 |
YY61..LHD..T3;YY52,61..T2,TW |
5 | ||
| 88301-12050 |
YY52,61..LHD |
5 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-14010 |
YY52,61..LHD |
10 | ||
| 88313-14010 |
YY61..LHD..T3;YY52,61..T2,TW |
10 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-14010 |
YY52,61..LHD |
10 | ||
| 88313-14010 |
YY61..LHD..T3;YY52,61..T2,TW |
10 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-40010 |
LY60,YY52;YY61..T2,TW;YY61..LHD..T3 |
1 | ||
| 88360-40010 |
YY52,61..LHD;LY61..ST..GEN |
1 | ||
| 88360-40010 |
LY61,YY52,61..LHD |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST |
1 | ||
| 90096-90022 |
YY52,61..LHD;LY61..ST..GEN |
1 | ||
| 90096-90022 |
LY60,YY52;YY61..T2,TW;YY61..LHD..T3 |
1 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 88366-14010 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88366-14010 |
YY52,61..LHD |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
YY52,61..LHD |
1 | ||
| 88374-12020 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88374-12020 |
YY52,61..LHD |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
YY52,61..LHD |
1 | ||
| 88375-30270 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22020 |
YY52,61..LHD;LY61..ST..GEN DISCHARGE |
1 | ||
| 88376-22020 |
LY60,YY52;YY61..T2,TW;YY61..LHD..T3 DISCHARGE |
1 | ||
| 88376-22010 |
YY61..LHD..T3;YY52,61..T2,TW SUCTION |
1 | ||
| 88376-22010 |
YY52,61..LHD SUCTION |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22020 |
YY52,61..LHD;LY61..ST..GEN DISCHARGE |
1 | ||
| 88376-22020 |
LY60,YY52;YY61..T2,TW;YY61..LHD..T3 DISCHARGE |
1 | ||
| 88376-22010 |
YY61..LHD..T3;YY52,61..T2,TW SUCTION |
1 | ||
| 88376-22010 |
YY52,61..LHD SUCTION |
1 | ||
