Toyota Dyna150 YY52 HEATING & AIR CONDITIONING - WATER PIPING

Manufacturers Home
Toyota
GR
DYNA150
YY52L-MDP (1987)
8716 - HEATING & AIR CONDITIONING - WATER PIPING

YY52L-MDP (1987)

Toyota Dyna150

Production Aug 1987 - May 1995

Engine 3Y

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8708- )YY52,61

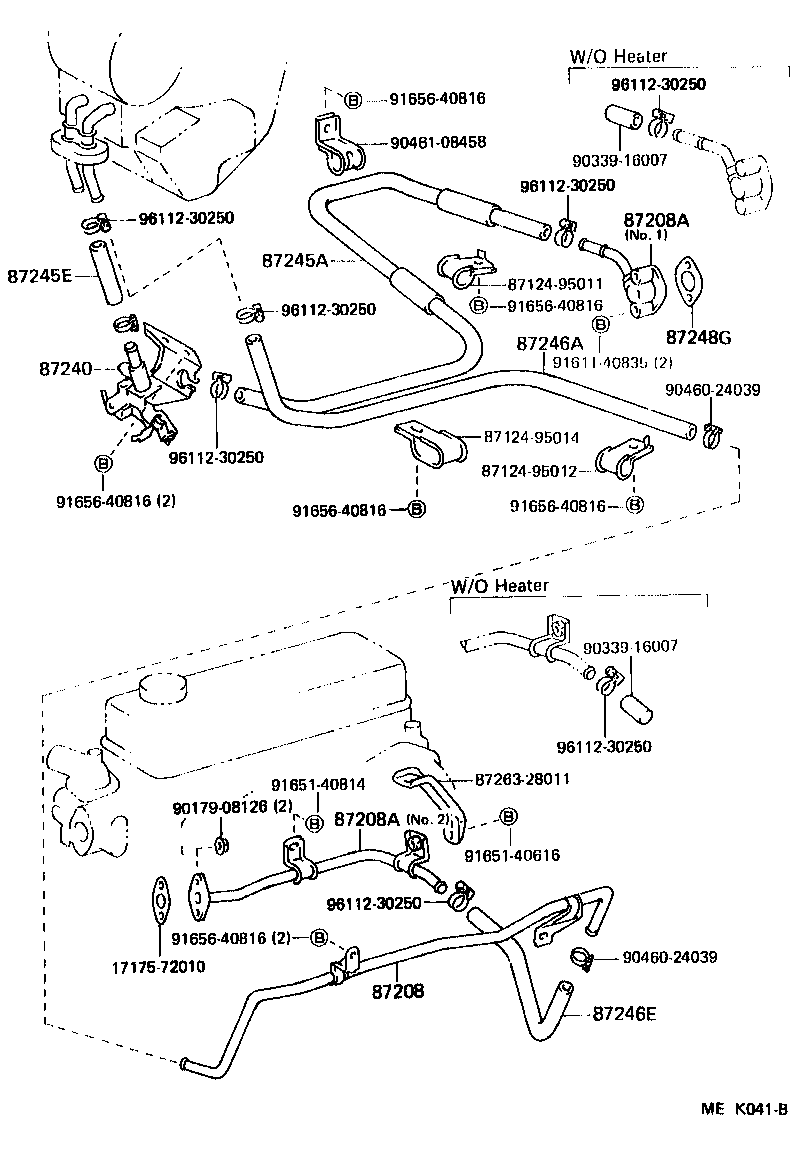

Click highlighted areas on diagram

Part #	Description	Period	Qty
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95018	YY52,61..TW..ST W(FR HEATER)	08/1987 - 05/1995	1
87208-95017	YY52,61..TW..ST	08/1987 - 05/1995	1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-28500	YY61..T2,T3;YY52,61..TW..ST NO.1	01/1992 - 05/1995	1
87208-28010	YY61..T2,T3;YY52,61..TW..ST NO.1	08/1987 - 01/1992	1
87208-28021	YY61..T2,T3;YY52,61..TW..ST NO.2	08/1987 - 05/1995	1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-28500	YY61..T2,T3;YY52,61..TW..ST NO.1	01/1992 - 05/1995	1
87208-28010	YY61..T2,T3;YY52,61..TW..ST NO.1	08/1987 - 01/1992	1
87208-28021	YY61..T2,T3;YY52,61..TW..ST NO.2	08/1987 - 05/1995	1
87240 - VALVE ASSY, HEATER WATER
87240-95408	LY60,YY52,61..LHD	08/1987 - 08/1988	1
87240-95410	LY61,YY52,61..LHD	08/1988 - 05/1995	1
87245A - HOSE, HEATER WATER, INLET A
87245-95045	YY52,61..TW..ST	08/1987 - 05/1995	1
99556-30980	YY52,61..TW..ST *H,L=980	08/1987 - 05/1995	1
87245E - HOSE, HEATER WATER, INLET E
99556-30135	YY61..LHD;LY61,YY52..ST *H,L=135	08/1988 - 05/1995	1
99556-30500	YY52,61..TW L=500	08/1987 - 08/1988	1
99556-30100	YY61..LHD;LY60,YY52..ST *H,L=60	08/1987 - 08/1988	1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30980	LY61,YY52,61..LHD *H,L=980	08/1988 - 05/1995	1
99556-30980	LY60,YY52,61..LHD *H,L=980	08/1987 - 08/1988	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95051	YY52,61..LHD	08/1987 - 05/1995	1
87248G - GASKET, WATER INLET PIPE
11493-71010	YY52,61	08/1987 - 12/1989	1
11493-71011	YY52,61	12/1989 - 05/1995	1
Common parts
17175-72010
87124-95011
87124-95012
87124-95014
87263-28011
90179-08126
90339-16007
90460-24039
90461-08458
91611-40835
91651-40616
91651-40814
91656-40816
96112-30250

(8708- )YY52,61..TW

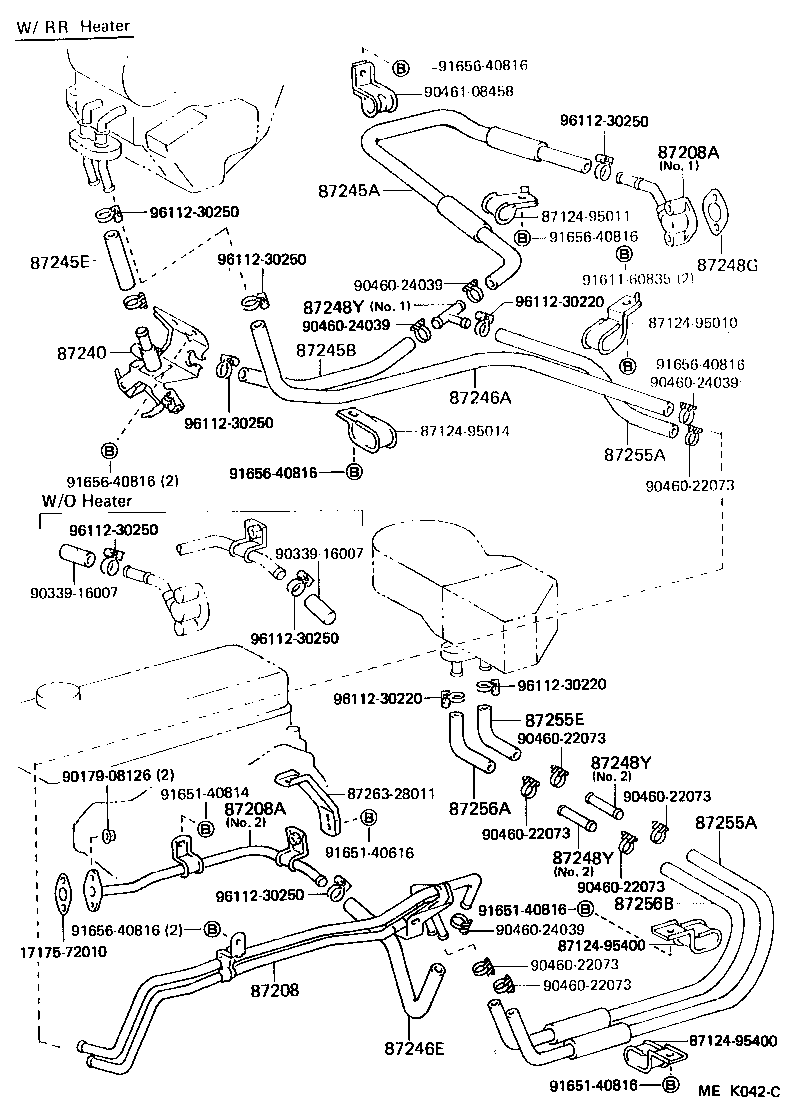

Click highlighted areas on diagram

Part #	Description	Period	Qty
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95018	YY52,61..TW..ST W(FR HEATER)	08/1987 - 05/1995	1
87208-95017	YY52,61..TW..ST	08/1987 - 05/1995	1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-28500	YY61..T2,T3;YY52,61..TW..ST NO.1	01/1992 - 05/1995	1
87208-28010	YY61..T2,T3;YY52,61..TW..ST NO.1	08/1987 - 01/1992	1
87208-28021	YY61..T2,T3;YY52,61..TW..ST NO.2	08/1987 - 05/1995	1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-28500	YY61..T2,T3;YY52,61..TW..ST NO.1	01/1992 - 05/1995	1
87208-28010	YY61..T2,T3;YY52,61..TW..ST NO.1	08/1987 - 01/1992	1
87208-28021	YY61..T2,T3;YY52,61..TW..ST NO.2	08/1987 - 05/1995	1
87240 - VALVE ASSY, HEATER WATER
87240-95408	LY60,YY52,61..LHD	08/1987 - 08/1988	1
87240-95410	LY61,YY52,61..LHD	08/1988 - 05/1995	1
87245A - HOSE, HEATER WATER, INLET A
87245-95045	YY52,61..TW..ST	08/1987 - 05/1995	1
99556-30980	YY52,61..TW..ST *H,L=980	08/1987 - 05/1995	1
87245B - HOSE, HEATER WATER, INLET B
99556-30500	YY52,61..TW..ST L=500	08/1988 - 05/1995	1
87245E - HOSE, HEATER WATER, INLET E
99556-30135	YY61..LHD;LY61,YY52..ST *H,L=135	08/1988 - 05/1995	1
99556-30500	YY52,61..TW L=500	08/1987 - 08/1988	1
99556-30100	YY61..LHD;LY60,YY52..ST *H,L=60	08/1987 - 08/1988	1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30980	LY61,YY52,61..LHD *H,L=980	08/1988 - 05/1995	1
99556-30980	LY60,YY52,61..LHD *H,L=980	08/1987 - 08/1988	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95051	YY52,61..LHD	08/1987 - 05/1995	1
87248G - GASKET, WATER INLET PIPE
11493-71010	YY52,61	08/1987 - 12/1989	1
11493-71011	YY52,61	12/1989 - 05/1995	1
87248Y - PIPE, HEATER WATER, NO.2
87248-95401	YY52,61..TW..ST NO.2	08/1987 - 05/1995	2
87248-95400	YY52,61..TW..ST NO.1	08/1987 - 05/1995	1
87248Y - PIPE, HEATER WATER, NO.2
87248-95401	YY52,61..TW..ST NO.2	08/1987 - 05/1995	2
87248-95400	YY52,61..TW..ST NO.1	08/1987 - 05/1995	1
87248Y - PIPE, HEATER WATER, NO.2
87248-95401	YY52,61..TW..ST NO.2	08/1987 - 05/1995	2
87248-95400	YY52,61..TW..ST NO.1	08/1987 - 05/1995	1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-20490	YY52,61..TW..ST *H,L=490	08/1987 - 05/1995	1
87245-95044	LY61..TW..ST..GEN;LY60,YY52,61..TW..ST L=1080	08/1987 - 05/1995	1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-20490	YY52,61..TW..ST *H,L=490	08/1987 - 05/1995	1
87245-95044	LY61..TW..ST..GEN;LY60,YY52,61..TW..ST L=1080	08/1987 - 05/1995	1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-92600	LY6#,YY52,61..TW..ST	08/1987 - 05/1995	1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-92600	LY6#,YY52,61..TW..ST	08/1987 - 05/1995	1
87256B - HOSE, REAR HEATER WATER OUTLET, B
87245-95043	LY6#,YY52,61..TW..ST L=1060	08/1987 - 05/1995	1
Common parts
17175-72010
87124-95010
87124-95011
87124-95014
87124-95400
87263-28011
90179-08126
90339-16007
90460-22073
90460-24039
90461-08458
91611-60835
91651-40616
91651-40814
91651-40816
91656-40816
96112-30220
96112-30250

YY52L-MDP (1987)

(8708- )YY52,61

(8708- )YY52,61..TW

Part Price Details
