Toyota Dyna150 YY52 HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

Manufacturers Home
Toyota
GR
DYNA150
YY52L-MDP (1987)
8715 - HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

YY52L-MDP (1987)

Toyota Dyna150

Production Aug 1987 - May 1995

Engine 3Y

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8708-9110)

Click highlighted areas on diagram

Part #	Description	Period	Qty
55519 - PLATE, HEATER CONTROL NAME
55519-95404	LY60,YY52..GEN;LY61,YY61..TW..ST..GEN;LY61,YY61..(T2,T3)..GEN W(FOOT VENTILATOR)	08/1987 - 09/1993	1
55519-95403	LY60,YY52..GEN;LY61,YY61..TW..ST..GEN;LY61,YY61..(T2,T3)..GEN W(BOOST VENTILATOR)	08/1987 - 09/1993	1
55519-95406	LY6#,YY52,61..LHD W(FR HEATER=STD TYPE) OR W(FR HEATER=HEAVY DU	08/1987 - 05/1995	1
55519-95403	YY52,61..LHD;LY61..ST..GEN W(BOOST VENTILATOR)	09/1993 - 05/1995	1
55905A - KNOB, HEATER CONTROL
55905-10110	LY60,YY52,61..GEN;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN	08/1987 - 09/1993	1
55905-10110	LY60,YY52..GEN;LY61,YY61..TW..ST..GEN;LY61,YY61..(T2,T3)..GEN	08/1987 - 05/1995	2
55905-10110	YY61..LHD;LY6#,YY52..ST	08/1987 - 05/1995	3
55905A - KNOB, HEATER CONTROL
55905-10110	LY60,YY52,61..GEN;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN	08/1987 - 09/1993	1
55905-10110	LY60,YY52..GEN;LY61,YY61..TW..ST..GEN;LY61,YY61..(T2,T3)..GEN	08/1987 - 05/1995	2
55905-10110	YY61..LHD;LY6#,YY52..ST	08/1987 - 05/1995	3
55905B - KNOB, HEATER CONTROL, NO.2
55905-95707	YY61..T2;LY60,YY52;YY61..LHD;LY61..T2,T3;LY61..TW..ST	08/1987 - 09/1993	1
55905-95707	YY52,61..LHD;LY6#..ST..GEN	08/1987 - 05/1995	2
55905-95707	LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST	09/1993 - 05/1995	1
55905B - KNOB, HEATER CONTROL, NO.2
55905-95707	YY61..T2;LY60,YY52;YY61..LHD;LY61..T2,T3;LY61..TW..ST	08/1987 - 09/1993	1
55905-95707	YY52,61..LHD;LY6#..ST..GEN	08/1987 - 05/1995	2
55905-95707	LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST	09/1993 - 05/1995	1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-95406	LY6#,YY52,61..LHD	08/1987 - 10/1991	1
55906-36050	LY61,YY52,61..LHD	10/1991 - 05/1995	1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-95406	LY6#,YY52,61..LHD	08/1987 - 10/1991	1
55907-36030	LY61,YY52,61..LHD	10/1991 - 05/1995	1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-95404	YY61..T2,T3;YY61..TW..ST;LY6#,YY52..GEN W(FOOT VENTILATOR)	08/1987 - 11/1991	1
55906-36090	LY61,YY61..(T2,T3)..GEN;LY61,YY52,61..TW..ST..GEN W(FOOT VENTILATOR)	11/1991 - 09/1993	1
55908-95402	LY61,YY61..T2,T3;LY61,YY52,61..TW..ST	09/1993 - 05/1995	1
55908-95402	LY6#,YY52,61..LHD W(BOOST VENTILATOR) OR W(FR HEATER=STD TYPE) OR W(FR HEATER=HEAVY DU)	08/1987 - 09/1993	1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-95406	LY6#,YY52,61..LHD	08/1987 - 05/1995	1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-95410	YY61..T2,T3;YY61..TW..ST;LY6#,YY52..GEN W(BOOST VENTILATOR)	08/1987 - 10/1991	1
55910-36100	YY52,61..LHD;LY61..ST..GEN W(BOOST VENTILATOR)	09/1993 - 05/1995	1
55910-36100	LY61,YY61..(T2,T3)..GEN;LY61,YY52,61..TW..ST..GEN W(BOOST VENTILATOR)	10/1991 - 09/1993	1
55910-95409	LY6#,YY52,61..LHD W(FR HEATER=STD TYPE) OR W(FR HEATER=HEAVY DU	08/1987 - 10/1991	1
55910-36090	LY61,YY52,61..LHD W(FR HEATER=STD TYPE) OR W(FR HEATER=HEAVY DU	10/1991 - 05/1995	1
55910-36110	LY61,YY61..(T2,T3)..GEN;LY61,YY52,61..TW..ST..GEN W(FOOT VENTILATOR)	10/1991 - 09/1993	1
55910-95411	YY61..T2,T3;YY61..TW..ST;LY6#,YY52..GEN W(FOOT VENTILATOR)	08/1987 - 10/1991	1
55910C - GROMMET(FOR HEATER CONTROL CABLE)
90480-24215	LY6#,YY52,61..LHD W(FR HEATER=STD TYPE) OR W(FR HEATER=HEAVY DUTY TYPE)	08/1987 - 05/1995	1
90950-01127	YY52,61..LHD;LY6#..ST..GEN W(BOOST VENTILATOR)	08/1987 - 05/1995	1
55912A - HOUSING, HEATER CONTROL
55912-95404	LY61,YY52,61..GEN	09/1993 - 05/1995	1
87284 - RESISTOR SUB-ASSY, VARIABLE
88032-95400	LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST	09/1993 - 05/1995	1
88032-95400	YY61..T2;LY60,YY52;YY61..LHD;LY61..T2,T3;LY61..TW..ST	08/1987 - 09/1993	1
Common parts
90183-05103
90950-01127
93540-14008
93560-15016
Linked diagrams
8401

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

FOOT VENTILATOR

Part #	Description	Period	Qty
55519 - PLATE, HEATER CONTROL NAME
55519-95404	LY60,YY52..GEN;LY61,YY61..TW..ST..GEN;LY61,YY61..(T2,T3)..GEN W(FOOT VENTILATOR)	08/1987 - 09/1993	1
55519-95403	LY60,YY52..GEN;LY61,YY61..TW..ST..GEN;LY61,YY61..(T2,T3)..GEN W(BOOST VENTILATOR)	08/1987 - 09/1993	1
55519-95406	LY6#,YY52,61..LHD W(FR HEATER=STD TYPE) OR W(FR HEATER=HEAVY DU	08/1987 - 05/1995	1
55519-95403	YY52,61..LHD;LY61..ST..GEN W(BOOST VENTILATOR)	09/1993 - 05/1995	1
55905A - KNOB, HEATER CONTROL
55905-10110	LY60,YY52,61..GEN;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN	08/1987 - 09/1993	1
55905-10110	LY60,YY52..GEN;LY61,YY61..TW..ST..GEN;LY61,YY61..(T2,T3)..GEN	08/1987 - 05/1995	2
55905-10110	YY61..LHD;LY6#,YY52..ST	08/1987 - 05/1995	3
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-95404	YY61..T2,T3;YY61..TW..ST;LY6#,YY52..GEN W(FOOT VENTILATOR)	08/1987 - 11/1991	1
55906-36090	LY61,YY61..(T2,T3)..GEN;LY61,YY52,61..TW..ST..GEN W(FOOT VENTILATOR)	11/1991 - 09/1993	1
55908-95402	LY61,YY61..T2,T3;LY61,YY52,61..TW..ST	09/1993 - 05/1995	1
55908-95402	LY6#,YY52,61..LHD W(BOOST VENTILATOR) OR W(FR HEATER=STD TYPE) OR W(FR HEATER=HEAVY DU)	08/1987 - 09/1993	1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-95410	YY61..T2,T3;YY61..TW..ST;LY6#,YY52..GEN W(BOOST VENTILATOR)	08/1987 - 10/1991	1
55910-36100	YY52,61..LHD;LY61..ST..GEN W(BOOST VENTILATOR)	09/1993 - 05/1995	1
55910-36100	LY61,YY61..(T2,T3)..GEN;LY61,YY52,61..TW..ST..GEN W(BOOST VENTILATOR)	10/1991 - 09/1993	1
55910-95409	LY6#,YY52,61..LHD W(FR HEATER=STD TYPE) OR W(FR HEATER=HEAVY DU	08/1987 - 10/1991	1
55910-36090	LY61,YY52,61..LHD W(FR HEATER=STD TYPE) OR W(FR HEATER=HEAVY DU	10/1991 - 05/1995	1
55910-36110	LY61,YY61..(T2,T3)..GEN;LY61,YY52,61..TW..ST..GEN W(FOOT VENTILATOR)	10/1991 - 09/1993	1
55910-95411	YY61..T2,T3;YY61..TW..ST;LY6#,YY52..GEN W(FOOT VENTILATOR)	08/1987 - 10/1991	1
55910C - GROMMET(FOR HEATER CONTROL CABLE)
90480-24215	LY6#,YY52,61..LHD W(FR HEATER=STD TYPE) OR W(FR HEATER=HEAVY DUTY TYPE)	08/1987 - 05/1995	1
90950-01127	YY52,61..LHD;LY6#..ST..GEN W(BOOST VENTILATOR)	08/1987 - 05/1995	1
Common parts
82711-22690
90183-05103
93560-15016

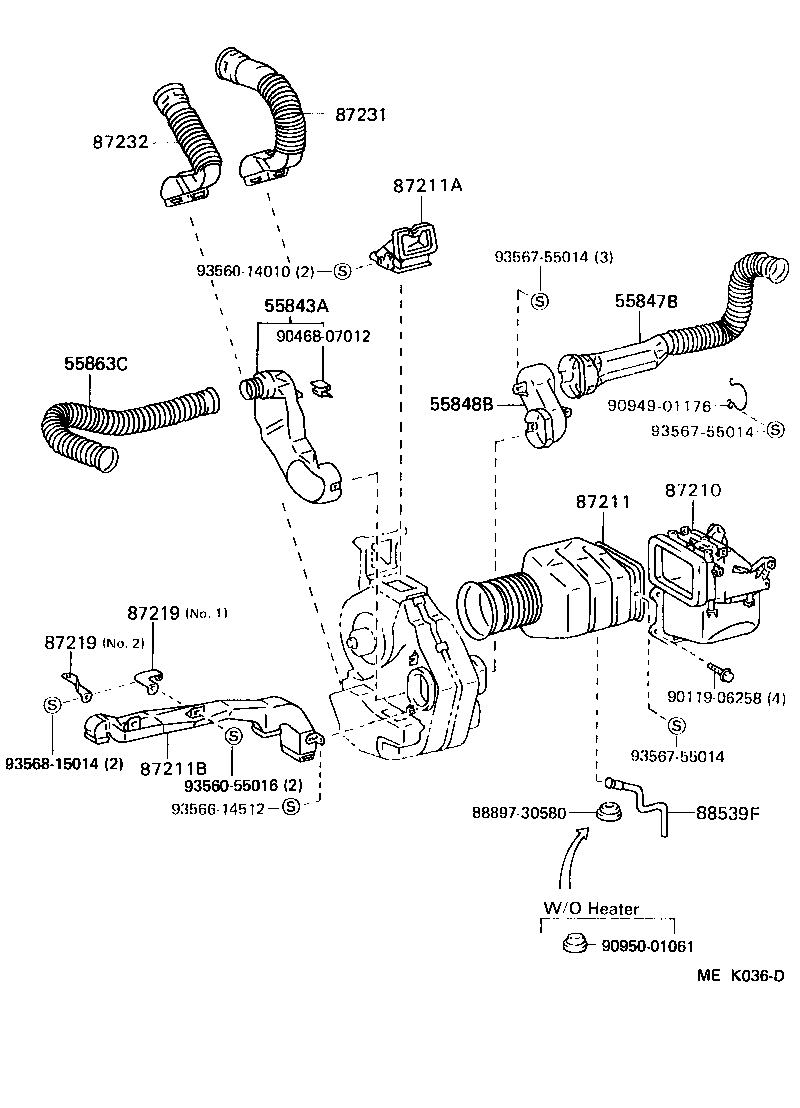

ILLUST NO. 2 OF 2(8708- )LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-95406	LY6#,YY52,61..LHD	08/1987 - 05/1995	1
55847B - DUCT, HEATER TO REGISTER, NO.5
55847-95400	LY61..T2,T3;LY60,YY52,61;LY61..TW..ST	08/1987 - 05/1995	1
55848B - DUCT, HEATER TO REGISTER, NO.6
55848-95401	LY6#,YY52,61..LHD	08/1987 - 05/1995	1
55863C - BOOT, SIDE VENTILATOR DUCT
55863-95405	LY61..T2,T3;LY60,YY52,61;LY61..TW..ST	08/1987 - 05/1995	1
87210 - DAMPER ASSY, AIR
87210-95404	LY6#,YY52,61..LHD	08/1987 - 05/1995	1
87211 - DUCT, AIR, NO.1
87211-95405	LY6#,YY52,61..LHD	08/1987 - 05/1995	1
87211A - DUCT, AIR, NO.2
87201-95403	LY6#,YY52,61..LHD	08/1987 - 05/1995	1
87211B - DUCT, AIR, NO.3
87211-95409	LY6#,YY52,61..LHD	08/1987 - 05/1995	1
87219 - BRACKET, FRONT AIR DUCT
87214-95402	YY61..LHD;LY6#,YY52..ST NO.1	08/1987 - 05/1995	1
87214-95403	YY61..LHD;LY6#,YY52..ST NO.2	08/1987 - 05/1995	1
87219 - BRACKET, FRONT AIR DUCT
87214-95402	YY61..LHD;LY6#,YY52..ST NO.1	08/1987 - 05/1995	1
87214-95403	YY61..LHD;LY6#,YY52..ST NO.2	08/1987 - 05/1995	1
87231 - HOSE, HEATER DEFROSTER, RH
87231-95408	LY6#,YY52,61..LHD	08/1987 - 05/1995	1
87232 - HOSE, HEATER DEFROSTER, LH
87231-95407	LY6#,YY52,61..LHD	08/1987 - 05/1995	1
88539F - HOSE, DRAIN
88539-95403	LY60,YY52;LY61,YY61..T2,T3;LY61,YY61..TW..ST	08/1987 - 05/1995	1
Common parts
88897-30580
90119-06258
90468-07012
90949-01176
90950-01061
93560-14010
93560-55016
93566-14512
93567-55014
93568-15014

ILLUST NO. 1 OF 2(9110- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
55519 - PLATE, HEATER CONTROL NAME
55519-95404	LY60,YY52..GEN;LY61,YY61..TW..ST..GEN;LY61,YY61..(T2,T3)..GEN W(FOOT VENTILATOR)	08/1987 - 09/1993	1
55519-95403	LY60,YY52..GEN;LY61,YY61..TW..ST..GEN;LY61,YY61..(T2,T3)..GEN W(BOOST VENTILATOR)	08/1987 - 09/1993	1
55519-95406	LY6#,YY52,61..LHD W(FR HEATER=STD TYPE) OR W(FR HEATER=HEAVY DU	08/1987 - 05/1995	1
55519-95403	YY52,61..LHD;LY61..ST..GEN W(BOOST VENTILATOR)	09/1993 - 05/1995	1
55905A - KNOB, HEATER CONTROL
55905-10110	LY60,YY52,61..GEN;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN	08/1987 - 09/1993	1
55905-10110	LY60,YY52..GEN;LY61,YY61..TW..ST..GEN;LY61,YY61..(T2,T3)..GEN	08/1987 - 05/1995	2
55905-10110	YY61..LHD;LY6#,YY52..ST	08/1987 - 05/1995	3
55905A - KNOB, HEATER CONTROL
55905-10110	LY60,YY52,61..GEN;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN	08/1987 - 09/1993	1
55905-10110	LY60,YY52..GEN;LY61,YY61..TW..ST..GEN;LY61,YY61..(T2,T3)..GEN	08/1987 - 05/1995	2
55905-10110	YY61..LHD;LY6#,YY52..ST	08/1987 - 05/1995	3
55905B - KNOB, HEATER CONTROL, NO.2
55905-95707	YY61..T2;LY60,YY52;YY61..LHD;LY61..T2,T3;LY61..TW..ST	08/1987 - 09/1993	1
55905-95707	YY52,61..LHD;LY6#..ST..GEN	08/1987 - 05/1995	2
55905-95707	LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST	09/1993 - 05/1995	1
55905B - KNOB, HEATER CONTROL, NO.2
55905-95707	YY61..T2;LY60,YY52;YY61..LHD;LY61..T2,T3;LY61..TW..ST	08/1987 - 09/1993	1
55905-95707	YY52,61..LHD;LY6#..ST..GEN	08/1987 - 05/1995	2
55905-95707	LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST	09/1993 - 05/1995	1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-95406	LY6#,YY52,61..LHD	08/1987 - 10/1991	1
55906-36050	LY61,YY52,61..LHD	10/1991 - 05/1995	1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-95406	LY6#,YY52,61..LHD	08/1987 - 10/1991	1
55907-36030	LY61,YY52,61..LHD	10/1991 - 05/1995	1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-95404	YY61..T2,T3;YY61..TW..ST;LY6#,YY52..GEN W(FOOT VENTILATOR)	08/1987 - 11/1991	1
55906-36090	LY61,YY61..(T2,T3)..GEN;LY61,YY52,61..TW..ST..GEN W(FOOT VENTILATOR)	11/1991 - 09/1993	1
55908-95402	LY61,YY61..T2,T3;LY61,YY52,61..TW..ST	09/1993 - 05/1995	1
55908-95402	LY6#,YY52,61..LHD W(BOOST VENTILATOR) OR W(FR HEATER=STD TYPE) OR W(FR HEATER=HEAVY DU)	08/1987 - 09/1993	1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-95406	LY6#,YY52,61..LHD	08/1987 - 05/1995	1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-95410	YY61..T2,T3;YY61..TW..ST;LY6#,YY52..GEN W(BOOST VENTILATOR)	08/1987 - 10/1991	1
55910-36100	YY52,61..LHD;LY61..ST..GEN W(BOOST VENTILATOR)	09/1993 - 05/1995	1
55910-36100	LY61,YY61..(T2,T3)..GEN;LY61,YY52,61..TW..ST..GEN W(BOOST VENTILATOR)	10/1991 - 09/1993	1
55910-95409	LY6#,YY52,61..LHD W(FR HEATER=STD TYPE) OR W(FR HEATER=HEAVY DU	08/1987 - 10/1991	1
55910-36090	LY61,YY52,61..LHD W(FR HEATER=STD TYPE) OR W(FR HEATER=HEAVY DU	10/1991 - 05/1995	1
55910-36110	LY61,YY61..(T2,T3)..GEN;LY61,YY52,61..TW..ST..GEN W(FOOT VENTILATOR)	10/1991 - 09/1993	1
55910-95411	YY61..T2,T3;YY61..TW..ST;LY6#,YY52..GEN W(FOOT VENTILATOR)	08/1987 - 10/1991	1
55910C - GROMMET(FOR HEATER CONTROL CABLE)
90480-24215	LY6#,YY52,61..LHD W(FR HEATER=STD TYPE) OR W(FR HEATER=HEAVY DUTY TYPE)	08/1987 - 05/1995	1
90950-01127	YY52,61..LHD;LY6#..ST..GEN W(BOOST VENTILATOR)	08/1987 - 05/1995	1
55912A - HOUSING, HEATER CONTROL
55912-95404	LY61,YY52,61..GEN	09/1993 - 05/1995	1
87284 - RESISTOR SUB-ASSY, VARIABLE
88032-95400	LY61..T2,T3;YY61..T2,TW;YY61..LHD..T3;LY61,YY52..TW..ST	09/1993 - 05/1995	1
88032-95400	YY61..T2;LY60,YY52;YY61..LHD;LY61..T2,T3;LY61..TW..ST	08/1987 - 09/1993	1
Common parts
90183-05103
90950-01127
93540-14008
93560-15016
Linked diagrams
8401
