YY52L-MDP (1987)

Toyota Dyna150

Production Aug 1987 - May 1995
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

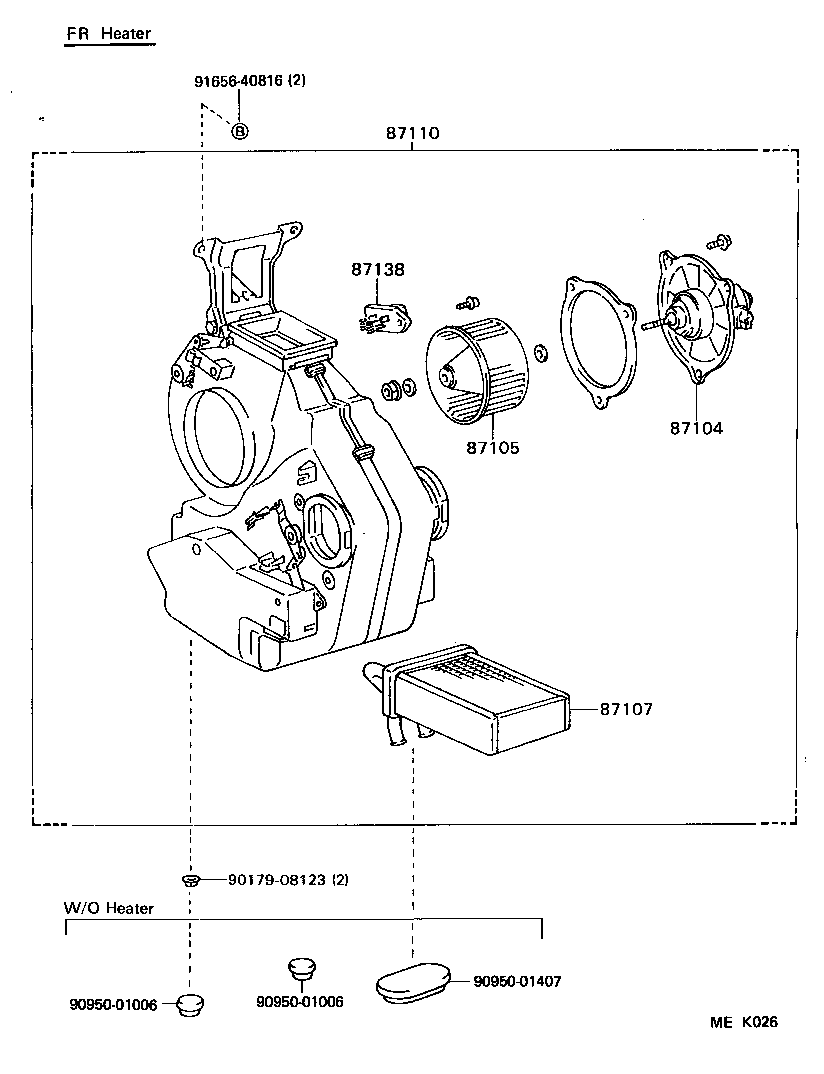

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 87104 87105 87107 87110 87138 9017908123 9095001006 9095001006 9095001407 9165640816
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-95404

LY60,YY52;LY61,YY61..T2,T3;LY61,YY61..TW..ST

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-12060

LY60..ARL;LY60,YY52,61..LHD

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-95407

LY6#,YY52,61..LHD

W(FR HEATER)

 1
87107-95406

LY6#,YY52,61..LHD

W(FR HEATER=STD TYPE)

 1
87110 - HEATER ASSY
87110-95437

LY6#,YY52,61..LHD

W(FR HEATER=STD TYPE)

 1
87110-95442

LY6#,YY52,61..LHD

W(FR HEATER=HEAVY DUTY TYPE)

 1
87138 - RESISTOR, HEATER BLOWER
87138-95409

LY6#,YY52;YY61..T2,T3;YY61..TW..ST

 1
87138-26020

LY61,YY61..T2,T3;LY61,YY52,61..TW..ST

 1
Common parts
90179-08123
90950-01006
90950-01407
91656-40816

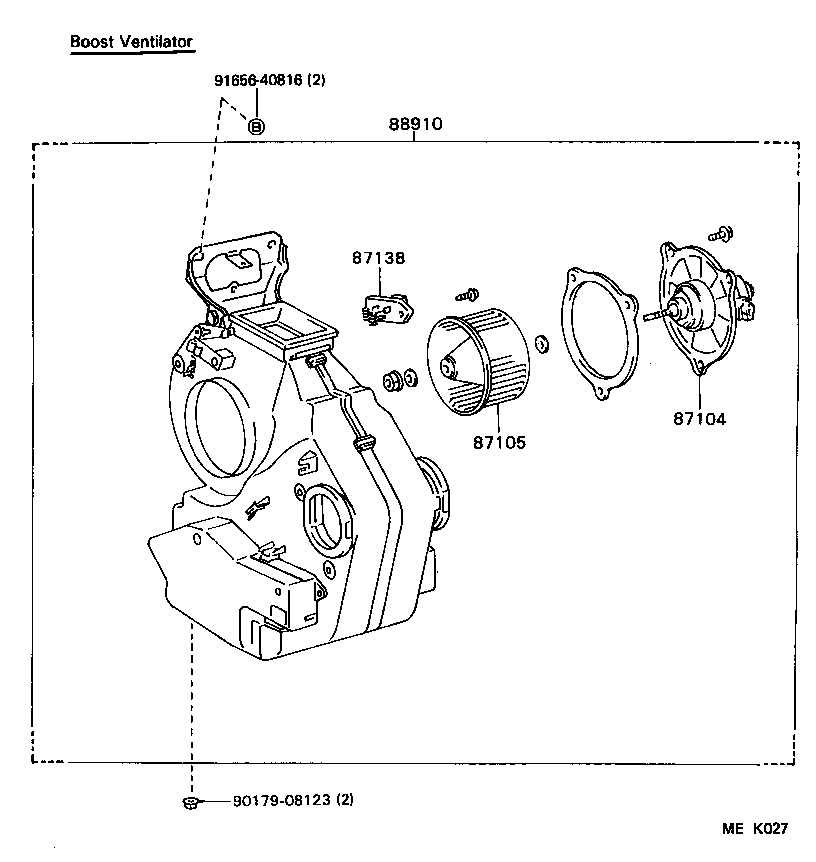

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 87104 87105 87138 88910 9017908123 9165640816
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-95404

LY60,YY52;LY61,YY61..T2,T3;LY61,YY61..TW..ST

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-12060

LY60..ARL;LY60,YY52,61..LHD

 1
87138 - RESISTOR, HEATER BLOWER
87138-95409

LY6#,YY52;YY61..T2,T3;YY61..TW..ST

 1
87138-26020

LY61,YY61..T2,T3;LY61,YY52,61..TW..ST

 1
88910 - VENTILATOR ASSY, BOOST
88910-95401

LY6#,YY52,61..LHD

 1
Common parts
90179-08123
91656-40816

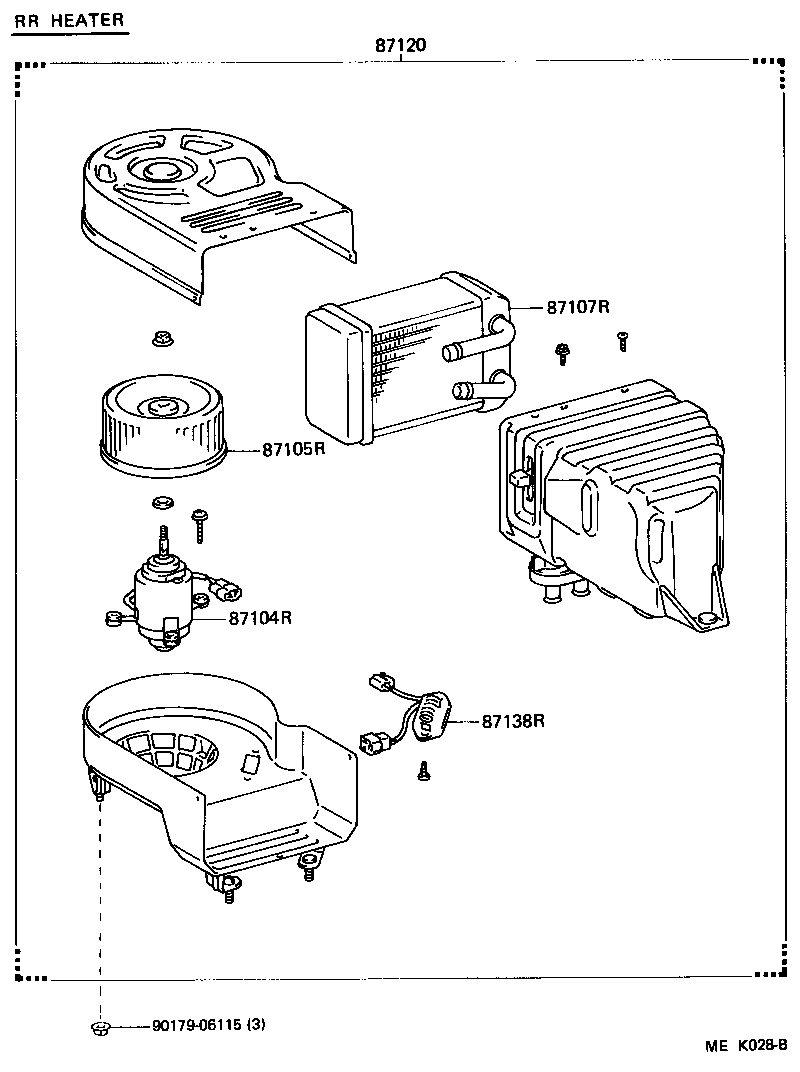

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 87104R 87105R 87107R 87120 87138R 9017906115
Part # Description Qty Price
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-87003

LY6#,YY52,61..TW..ST

 1
87105R - FAN SUB-ASSY, REAR HEATER BLOWER
87105-87002

LY6#,YY52,61..TW..ST

 1
87107R - UNIT SUB-ASSY, REAR HEATER
87107-60100

LY6#,YY52,61..TW..ST

 1
87120 - HEATER ASSY, REAR
87110-95448

LY6#,YY52,61..TW..ST

 1
87138R - RESISTOR, REAR HEATER BLOWER
87138-95012

LY6#,YY52,61..TW..ST

 1
Common parts
90179-06115
