YY52L-MDP (1987)

Toyota Dyna150

Production Aug 1987 - May 1995
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

Click highlighted areas on diagram

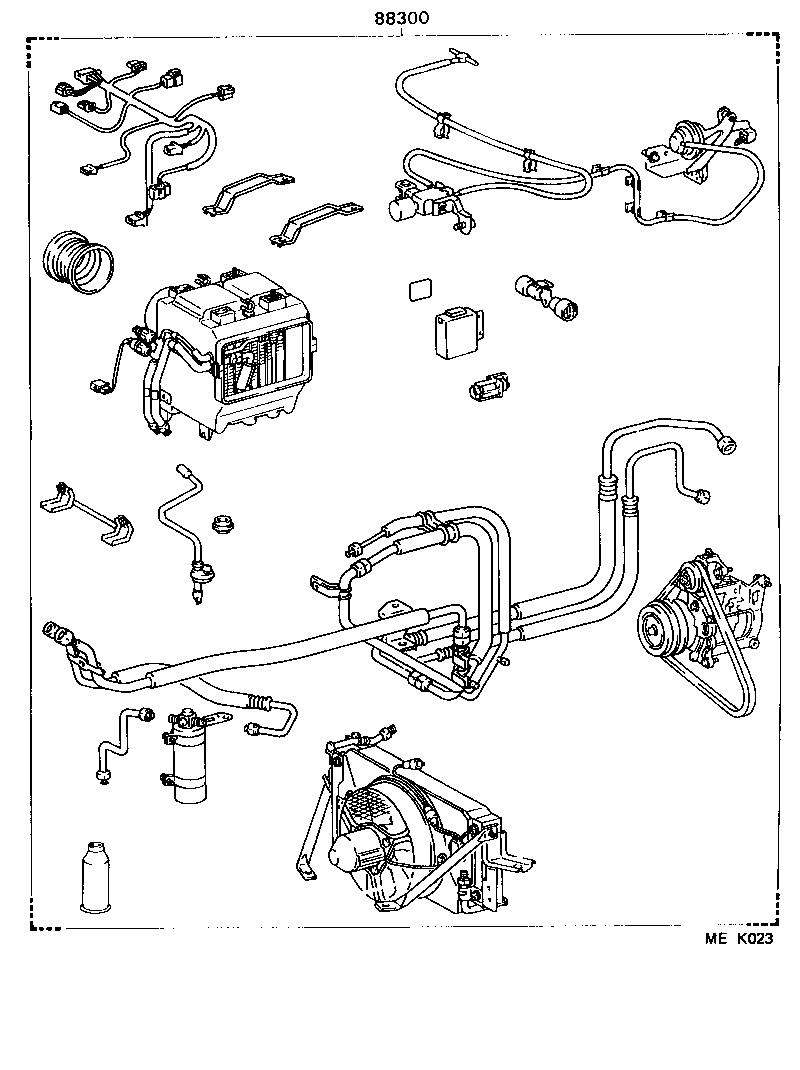

diagram 88300
Part # Description Qty Price
88300 - COOLER & ACCESSORY ASSY
88300-95063

YY52,61..LHD

W(HEATER)

 1
88300-95078

YY52,61..LHD

 1
88300-25110

YY52,61..LHD

DEALER OPTION

 1
88300-25120

YY52,61..LHD

W(HEATER) & MAKER OPTI0N

 1
88300-95064

YY52,61..LHD

W(BOOST VENTILATOR)

 1
