YY52L-MDP (1987)

Toyota Dyna150

Production Aug 1987 - May 1995
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 87810 87810B 87827 87834 9015260008
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-9541801

LY61,YY52,61

BLACK,TRIM1#

 1
87810-9541801

LY6#,YY52,61

BLACK,TRIM4#

 1
87810B - BULB, INNER REAR VIEW MIRROR LAMP
90981-11027

LY6#,YY52,61

12V 10W

 1
87827 - ABSORBER, INNER REAR VIEW MIRROR
87828-30010

LY6#,YY52,61

L=43.5

 1
87828-23010

LY6#,YY52,61

L=38.5

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
81243-95701

LY6#,YY52,61

 1
Common parts
90152-60008

ILLUST NO. 2 OF 2(8708-8808)

Click highlighted areas on diagram

diagram 87093 87094 87901B 87906B 87910 87940 9014980007 9014980007 9015460016 9015460016
Part # Description Qty Price
87093 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER RH
87093-95A00

LY6#,YY52,61..LHD

 1
87093-26020

LY61,YY52,61..LHD

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87901-95A00

LY6#,YY52,61..LHD

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-95A10

LY61,YY52,61..LHD

 1
87940-95A06

LY60,YY52,61..LHD

 1
Common parts
90149-80007
90154-60016

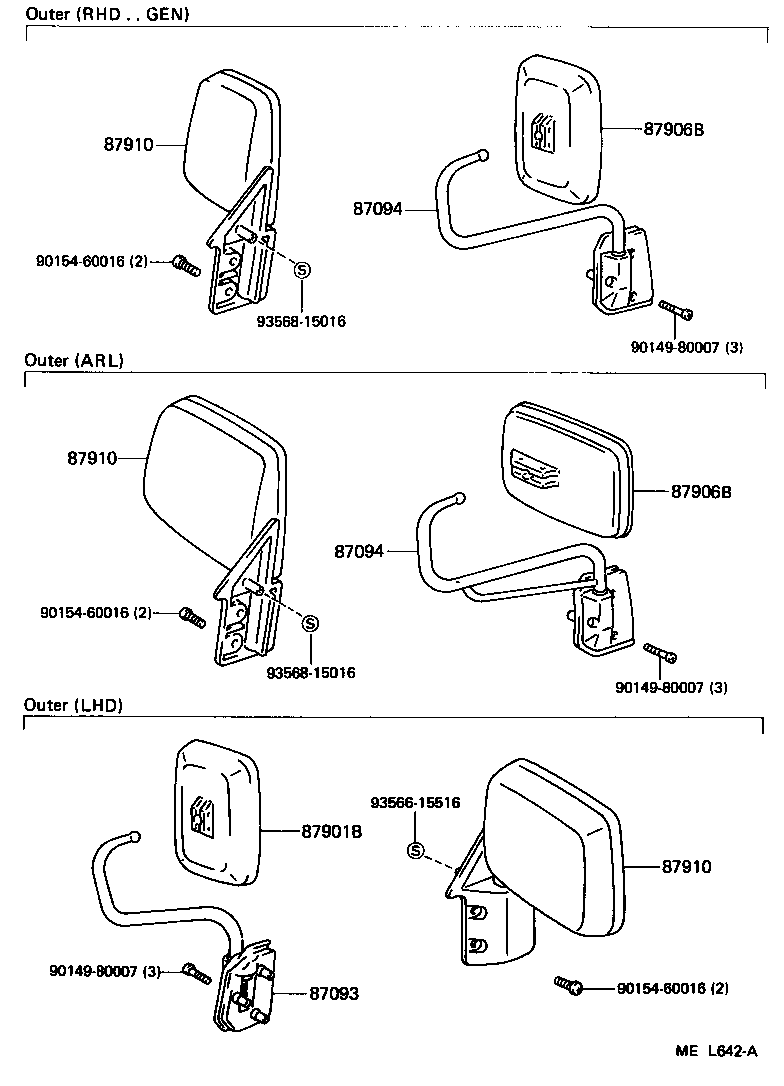

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 87093 87094 87094 87901B 87906B 87906B 87910 87910 87910 9014980007 9014980007 9014980007 9015460016 9015460016 9015460016 9356615516 9356815016 9356815016
Part # Description Qty Price
87093 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER RH
87093-95A00

LY6#,YY52,61..LHD

 1
87093-26020

LY61,YY52,61..LHD

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87901-95A00

LY6#,YY52,61..LHD

 1
Common parts
90149-80007
90154-60016
93566-15516
93568-15016
