YY52L-MDP (1987)
Toyota Dyna150

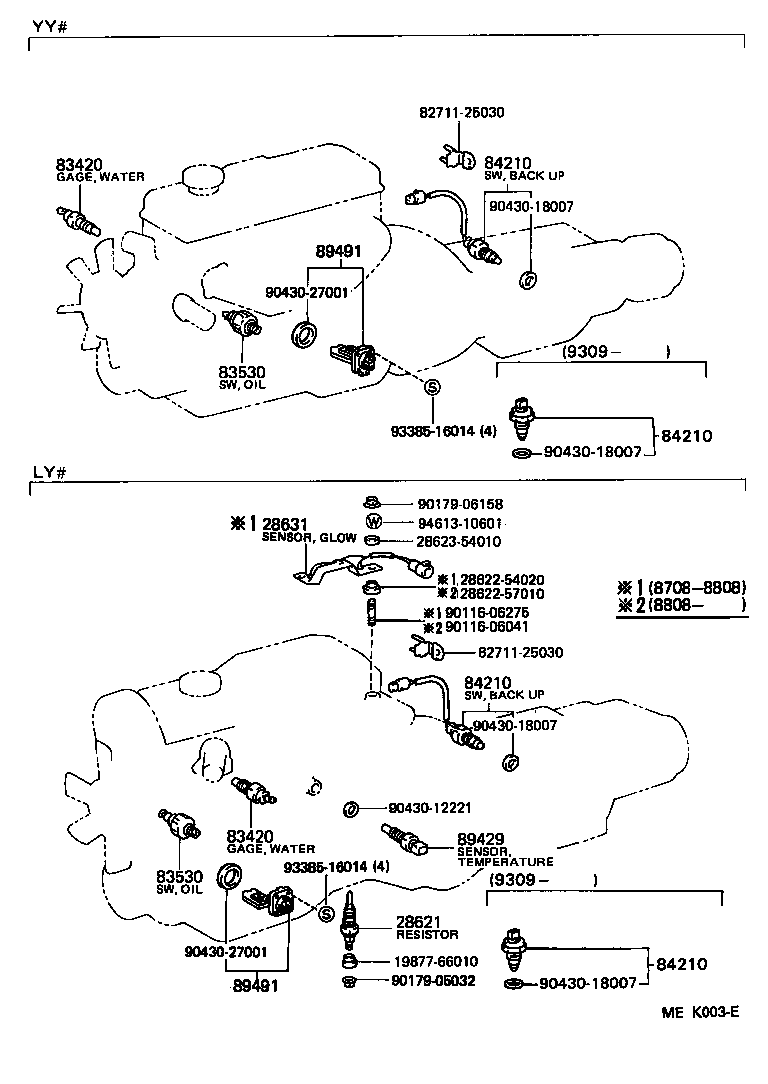

ILLUST NO. 1 OF 4(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
LY6#,YY52;YY61..T2,T3;YY61..TW..ST |
1 | ||
| 83420-20020 |
LY61,YY52,61 |
1 | ||
| 83420-20020 |
YY52,61 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
LY6#,YY52;YY61..T2,T3;YY61..TW..ST |
1 | ||
| 83420-20020 |
LY61,YY52,61 |
1 | ||
| 83420-20020 |
YY52,61 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14030 |
YY61..T2,T3;YY52,61..TW..ST |
1 | ||
| 83530-14030 |
YY52,61 |
1 | ||
| 83530-14070 |
YY52,61 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14030 |
YY61..T2,T3;YY52,61..TW..ST |
1 | ||
| 83530-14030 |
YY52,61 |
1 | ||
| 83530-14070 |
YY52,61 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
LY61,YY52,61 |
1 | ||
| 84210-60021 |
LY6#,YY52,61 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
LY61,YY52,61 |
1 | ||
| 84210-60021 |
LY6#,YY52,61 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
LY61,YY52,61 |
1 | ||
| 84210-60021 |
LY6#,YY52,61 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
LY61,YY52,61 |
1 | ||
| 84210-60021 |
LY6#,YY52,61 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-26090 |
LY61,YY52,61 |
1 | ||
| 89491-26090 |
YY52,61 |
1 | ||
| 89491-36060 |
YY61..T2,T3;YY52,61..TW..ST |
1 | ||
| 89491-26090 |
LY61,YY52;YY61..T2,T3;YY61..TW..ST |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-26090 |
LY61,YY52,61 |
1 | ||
| 89491-26090 |
YY52,61 |
1 | ||
| 89491-36060 |
YY61..T2,T3;YY52,61..TW..ST |
1 | ||
| 89491-26090 |
LY61,YY52;YY61..T2,T3;YY61..TW..ST |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-54020 | ||||
| 28622-57010 | ||||
| 28623-54010 | ||||
| 82711-25030 | ||||
| 90116-06041 | ||||
| 90116-06275 | ||||
| 90179-05032 | ||||
| 90179-06158 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 90430-27001 | ||||
| 93385-16014 | ||||
| 94613-10601 | ||||

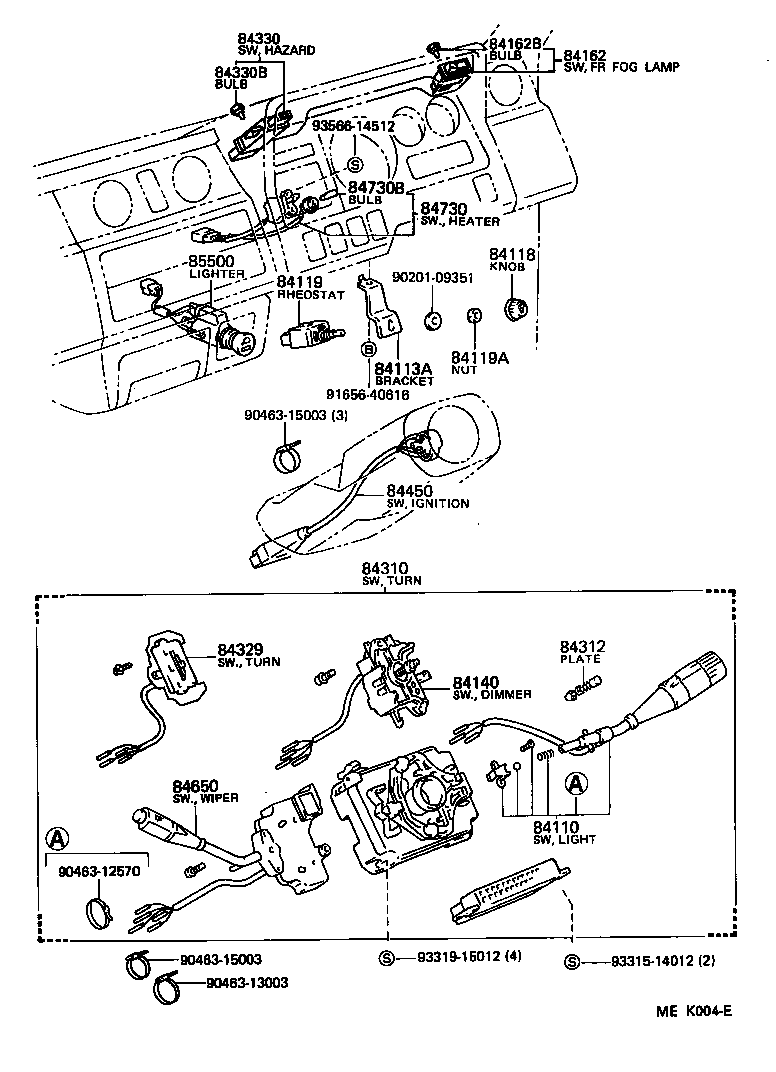

ILLUST NO. 2 OF 4(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39285 |
LY6#,YY52,61..LHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-36070 |
LY6#,YY52,61..LHD |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84162-95402 |
LY60,YY52..GEN;LY61,YY61..TW..ST..GEN;LY61,YY61..(T2,T3)..GEN |
1 | ||
| 84162B - BULB, FOG LAMP SWITCH | ||||
| 84999-10170 |
LY60,YY52..GEN;LY61,YY61..TW..ST..GEN;LY61,YY61..(T2,T3)..GEN 12V 1.12W |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-36440 |
LY6#,YY52,61..LHD W(INTERMITTENT WIPER) |
1 | ||
| 84310-25150 |
LY6#,YY52,61..LHD |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
LY6#,YY52,61 |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-36030 |
LY6#,YY52,61..LHD |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-95401 |
LY6#,YY52;YY61..T2,T3;YY61..TW..ST |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10170 |
LY6#,YY52;YY61..T2,T3;YY61..TW..ST 12V 1.12W |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-36030 |
YY52,61;LY6#..ARL |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-36350 |
LY6#,YY52,61..LHD W(INTERMITTENT WIPER) |
1 | ||
| 84652-25050 |
LY6#,YY52,61..LHD |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-95406 |
LY60,YY52;LY61,YY61..T2,T3;LY61,YY61..TW..ST |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
LY60,YY52;LY61,YY61..T2,T3;LY61,YY61..TW..ST 14V 1.4W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-95A04 |
LY6#,YY52,61 |
1 | ||
| Common parts | ||||
| 90201-09351 | ||||
| 90463-12570 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 91656-40616 | ||||
| 93315-14012 | ||||
| 93319-15012 | ||||
| 93566-14512 | ||||
ILLUST NO. 3 OF 4(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
LY6#,YY52,61 |
1 | ||
| 81980-37040 |
LY61,YY52,61 |
1 | ||
| 81980-37020 |
LY61,YY52,61..LHD |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
LY6#,YY52,61 20A,YELLOW |
2 | ||
| 90982-09002 |
LY6#,YY52,61 10A |
2 | ||
| 90982-09005 |
YY52,61;LY6#..ARL 7.5A |
3 | ||
| 90982-09003 |
LY6#,YY52,61 15A |
8 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-95012 |
LY60,YY52,61 |
1 | ||
| 82611-95011 |
LY60,YY52,61 |
1 | ||
| 82611-95013 |
LY61,YY52,61 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
LY6#,YY52,61 |
1 | ||
| 85909C - BRACKET SUB-ASSY, RELAY, NO.1 | ||||
| 85909-95011 |
LY6#,YY52,61..LHD |
1 | ||
| 85909D - BRACKET SUB-ASSY, RELAY, NO.2 | ||||
| 85907-95401 |
LY6#,YY52,61..LHD |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
LY61..T2,T3;LY61,YY52..TW..ST |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
LY6#,YY52,61 NO.2 |
1 | ||
| 90987-02006 |
LY6#,YY52,61 NO.1 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
LY6#,YY52,61 NO.2 |
1 | ||
| 90987-02006 |
LY6#,YY52,61 NO.1 |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-27040 |
YY52,61 |
1 | ||
| 89550-27040 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 89550-27040 |
YY52;YY61..WT |
1 | ||
| 89550-26250 |
YY52;YY61..WT |
1 | ||
| 89550-26250 |
YY52,61 |
1 | ||
| 89550-26250 |
YY52 |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-27040 |
YY52,61 |
1 | ||
| 89550-27040 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 89550-27040 |
YY52;YY61..WT |
1 | ||
| 89550-26250 |
YY52;YY61..WT |
1 | ||
| 89550-26250 |
YY52,61 |
1 | ||
| 89550-26250 |
YY52 |
1 | ||
| 89590 - COMPUTER ASSY, CONDITION INDICATOR | ||||
| 89590-36140 |
LY61,YY52;YY61..T2,T3;YY61..TW..ST |
1 | ||
| 89590-36140 |
LY61,YY52,61 |
1 | ||
| Common parts | ||||
| 82711-14620 | ||||
| 90179-06158 | ||||
| 90179-08123 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91656-40316 | ||||
| 91656-40616 | ||||
| 91656-40816 | ||||
| 91656-40818 | ||||
| 94180-40600 | ||||

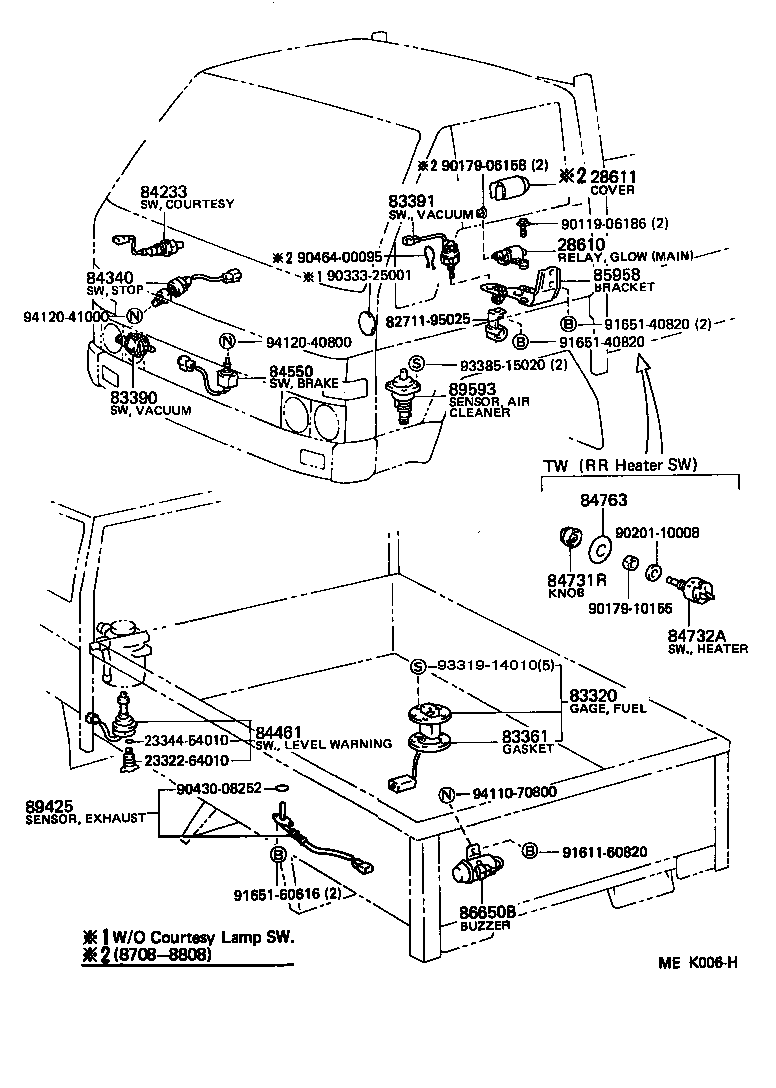

ILLUST NO. 4 OF 4(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39555 |
LY61,YY52,61..TW..ST |
1 | ||
| 83320-39555 |
LY61..TW..GEN;LY60,YY52,61..TW..ST |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
LY6#,YY52;YY61..T2,T3;YY61..TW..ST |
1 | ||
| 83361-20030 |
LY61,YY52,61 |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-60010 |
YY52,61 |
1 | ||
| 83391-60010 |
YY52,61 |
1 | ||
| 83391-60010 |
YY52;YY61..WT |
1 | ||
| 83391-60010 |
YY52;YY61..WT |
1 | ||
| 83391-60010 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20080 |
LY60,YY52,61 |
1 | ||
| 84231-28020 |
LY6#,YY52;YY61..T2,T3;YY61..TW..ST |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-36050 |
LY61,YY52,61 MATSUSHITA |
1 | ||
| 84340-22072 |
LY6#,YY52,61 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84380-35010 |
LY6#,YY52,61 |
1 | ||
| 84731R - KNOB, REAR HEATER BLOWER SWITCH | ||||
| 84731-12010 |
LY6#,YY52,61..TW..ST |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84732-87001 |
LY6#,YY52,61..TW..ST |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-95010 |
LY6#,YY52,61..TW..ST |
1 | ||
| 85958 - BRACKET, MAIN RELAY | ||||
| 85958-95011 |
LY6#,YY52,61..TW |
1 | ||
| 85958-25020 |
LY61..ARL;LY61,YY52,61..TW |
1 | ||
| 86650B - BUZZER ASSY, REVERSE WARNING | ||||
| 86650-95A04 |
LY61..T2,T3;LY60,YY52,61;LY61..TW..ST |
1 | ||
| Common parts | ||||
| 23322-64010 | ||||
| 23344-54010 | ||||
| 82711-95025 | ||||
| 90119-06186 | ||||
| 90179-06158 | ||||
| 90179-10155 | ||||
| 90201-10008 | ||||
| 90333-25001 | ||||
| 90430-08252 | ||||
| 90464-00095 | ||||
| 91611-60820 | ||||
| 91651-40820 | ||||
| 91651-60616 | ||||
| 93319-14010 | ||||
| 93385-15020 | ||||
| 94110-70800 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||
