YY52L-MDP (1987)
Toyota Dyna150

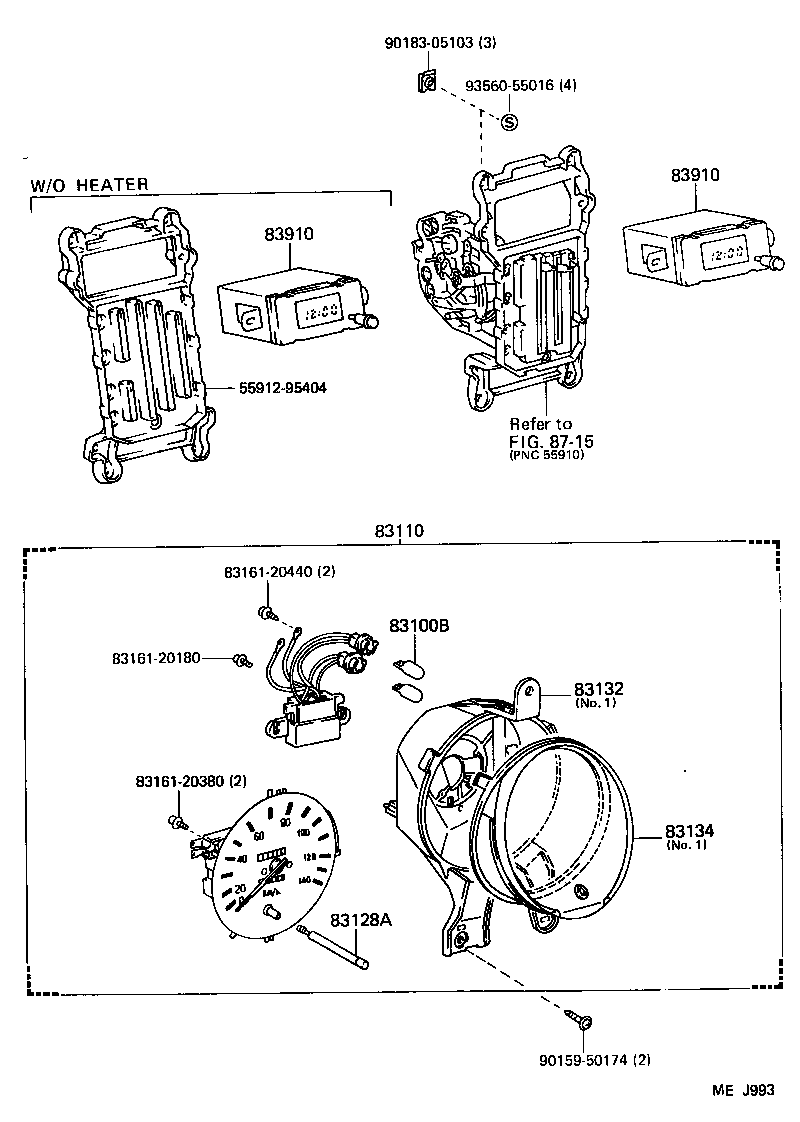

ILLUST NO. 1 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
YY61..T2,T3;YY52,61..TW..ST 12V 3.4W |
8 | ||
| 99132-12034 |
LY6#,YY52;YY61..T2,T3;YY61..TW..ST 12V 3.4W |
2 | ||
| 99132-12034 |
YY52,61 12V 3.4W |
8 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-95453 |
YY61..T2,T3;YY52,61..TW..ST |
1 | ||
| 83110-95455 |
YY61..T2,T3;YY52,61..TW..ST |
1 | ||
| 83110-95454 |
YY61..T2,T3;YY52,61..TW..ST KM & MILE |
1 | ||
| 83128A - KNOB, METER | ||||
| 83128-89300 |
LY6#,YY52;YY61..T2,T3;YY61..TW..ST |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95404 |
LY6#,YY52;YY61..T2,T3;YY61..TW..ST |
1 | ||
| 83132-95B00 |
YY61..T2,T3;YY61..TW..ST;LY61..ST..GEN;LY60,YY52..LHD W(TACHOMETER) |
1 | ||
| 83132-95B01 |
LY6#,YY52;YY61..T2,T3;YY61..TW..ST |
1 | ||
| 83132-95B00 |
YY61..T2,T3;YY61..TW..ST;LY61,YY52..ST W(TACHOMETER) |
1 | ||
| 83132-95B00 |
YY61..LHD;LY61,YY52..ST W(TACHOMETER) |
1 | ||
| 83132-95B01 |
YY61..ST;LY61,YY52 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95B00 |
YY61..T2,T3;YY61..TW..ST;LY61..ST..GEN;LY60,YY52..LHD W(TACHOMETER) |
1 | ||
| 83134-95B01 |
LY6#,YY52;YY61..T2,T3;YY61..TW..ST |
1 | ||
| 83134-95408 |
LY6#,YY52;YY61..T2,T3;YY61..TW..ST |
1 | ||
| 83134-95B01 |
YY61..ST;LY61,YY52 |
1 | ||
| 83134-95B00 |
YY61..T2,T3;YY61..TW..ST;LY61,YY52..ST W(TACHOMETER) |
1 | ||
| 83134-95B00 |
YY61..LHD;LY61,YY52..ST W(TACHOMETER) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95403 |
LY6#,YY52;YY61..T2,T3;YY61..TW..ST |
1 | ||
| 83910-37030 |
LY61,YY52,61 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95403 |
LY6#,YY52;YY61..T2,T3;YY61..TW..ST |
1 | ||
| 83910-37030 |
LY61,YY52,61 |
1 | ||
| Common parts | ||||
| 55912-95404 | ||||
| 83161-20180 | ||||
| 83161-20380 | ||||
| 83161-20440 | ||||
| 90159-50174 | ||||
| 90183-05103 | ||||
| 93560-55016 | ||||
| Linked diagrams | ||||
| 8715 | ||||

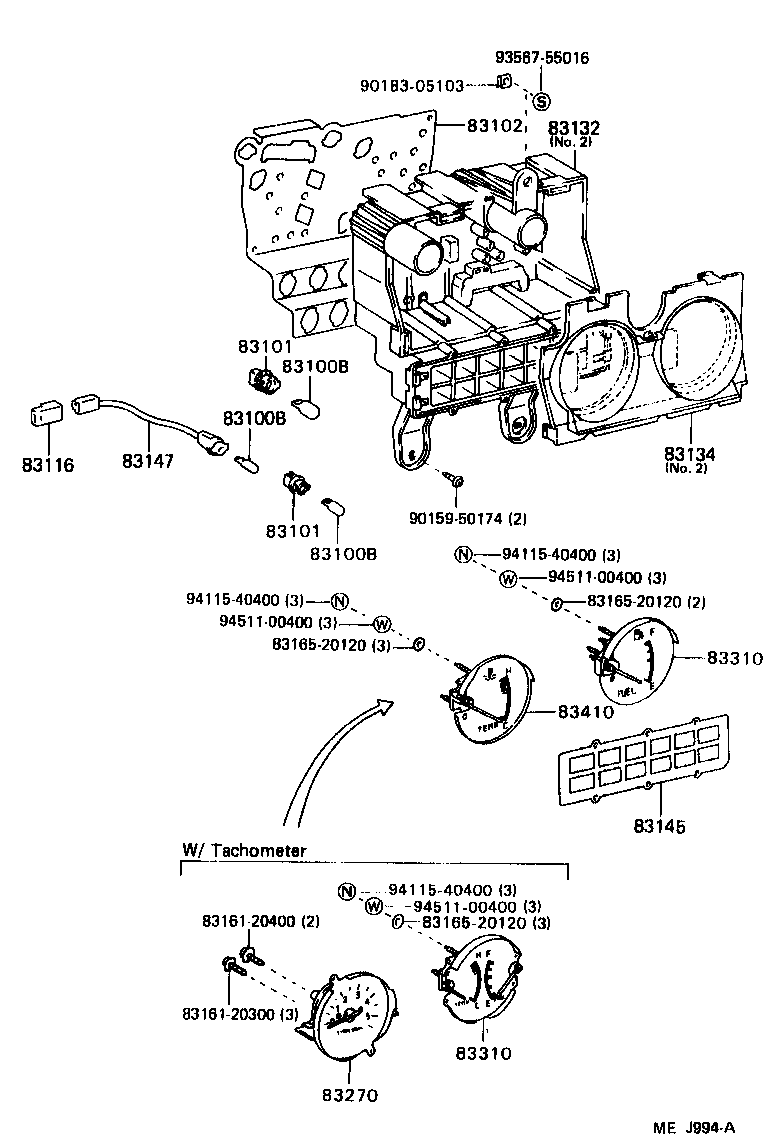

ILLUST NO. 2 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
YY61..T2,T3;YY52,61..TW..ST 12V 3.4W |
8 | ||
| 99132-12034 |
LY6#,YY52;YY61..T2,T3;YY61..TW..ST 12V 3.4W |
2 | ||
| 99132-12034 |
YY52,61 12V 3.4W |
8 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
YY61..T2,T3;YY52,61..TW..ST 12V 3.4W |
8 | ||
| 99132-12034 |
LY6#,YY52;YY61..T2,T3;YY61..TW..ST 12V 3.4W |
2 | ||
| 99132-12034 |
YY52,61 12V 3.4W |
8 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
YY61..T2,T3;YY52,61..TW..ST 12V 3.4W |
8 | ||
| 99132-12034 |
LY6#,YY52;YY61..T2,T3;YY61..TW..ST 12V 3.4W |
2 | ||
| 99132-12034 |
YY52,61 12V 3.4W |
8 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
YY61..T2,T3;YY52,61..TW..ST 12V 3.4W |
8 | ||
| 83101-20040 |
YY52,61..ST 12V 3.4W |
8 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
YY61..T2,T3;YY52,61..TW..ST 12V 3.4W |
8 | ||
| 83101-20040 |
YY52,61..ST 12V 3.4W |
8 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95K00 |
YY61..T2,T3;YY52,61..TW..ST |
1 | ||
| 83247-95K01 |
YY61..T2,T3;YY52,61..TW..ST W(TACHOMETER) |
1 | ||
| 83247-95K01 |
YY52,61..LHD W(TACHOMETER) |
1 | ||
| 83247-95K00 |
YY52,61..ST |
1 | ||
| 83116 - BRACKET, SPEEDOMETER | ||||
| 83116-95M00 |
LY61,YY52,61 |
1 | ||
| 83116-95M00 |
LY61,YY52;YY61..T2,T3;YY61..TW..ST |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95404 |
LY6#,YY52;YY61..T2,T3;YY61..TW..ST |
1 | ||
| 83132-95B00 |
YY61..T2,T3;YY61..TW..ST;LY61..ST..GEN;LY60,YY52..LHD W(TACHOMETER) |
1 | ||
| 83132-95B01 |
LY6#,YY52;YY61..T2,T3;YY61..TW..ST |
1 | ||
| 83132-95B00 |
YY61..T2,T3;YY61..TW..ST;LY61,YY52..ST W(TACHOMETER) |
1 | ||
| 83132-95B00 |
YY61..LHD;LY61,YY52..ST W(TACHOMETER) |
1 | ||
| 83132-95B01 |
YY61..ST;LY61,YY52 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95B00 |
YY61..T2,T3;YY61..TW..ST;LY61..ST..GEN;LY60,YY52..LHD W(TACHOMETER) |
1 | ||
| 83134-95B01 |
LY6#,YY52;YY61..T2,T3;YY61..TW..ST |
1 | ||
| 83134-95408 |
LY6#,YY52;YY61..T2,T3;YY61..TW..ST |
1 | ||
| 83134-95B01 |
YY61..ST;LY61,YY52 |
1 | ||
| 83134-95B00 |
YY61..T2,T3;YY61..TW..ST;LY61,YY52..ST W(TACHOMETER) |
1 | ||
| 83134-95B00 |
YY61..LHD;LY61,YY52..ST W(TACHOMETER) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95035 |
YY52,61 |
1 | ||
| 83145-95L06 |
YY61..T2,T3;YY52,61..TW..ST |
1 | ||
| 83145-95L06 |
YY52,61..ST |
1 | ||
| 83147 - LAMP, METER NO.1 | ||||
| 83147-95M02 |
LY61,YY52;YY61..T2,T3;YY61..TW..ST |
1 | ||
| 83147-95M02 |
LY61,YY52,61 |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-95B04 |
YY61..T2,T3;YY52,61..TW..ST |
1 | ||
| 83242-95B04 |
YY61..LHD..T3;YY52,61..T2,TW |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95B03 |
YY61;LY61..ST..GEN;LY60,YY52..LHD W(TACHOMETER) |
1 | ||
| 83243-95B01 |
YY61..T2,T3;YY61..TW..ST;LY6#,YY52..GEN |
1 | ||
| 83243-95M01 |
YY52,61..LHD;LY61..ST..GEN W(TACHOMETER) |
1 | ||
| 83243-95B01 |
YY61..ST;LY61,YY52..GEN |
1 | ||
| 83243-95M01 |
YY61..T2,T3;YY61..TW..ST;LY61,YY52..ST..GEN W(TACHOMETER) |
1 | ||
| 83243-95B04 |
YY52,61..LHD;LY61..ST..GEN W(TACHOMETER & WATER TEMP.GAUGE=*ME) |
1 | ||
| 83243-95B04 |
YY61..T2,T3;YY61..TW..ST;LY61..ST..GEN;LY60,YY52..LHD W(TACHOMETER & WATER TEMP.GAUGE=*ME) |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95B03 |
YY61;LY61..ST..GEN;LY60,YY52..LHD W(TACHOMETER) |
1 | ||
| 83243-95B01 |
YY61..T2,T3;YY61..TW..ST;LY6#,YY52..GEN |
1 | ||
| 83243-95M01 |
YY52,61..LHD;LY61..ST..GEN W(TACHOMETER) |
1 | ||
| 83243-95B01 |
YY61..ST;LY61,YY52..GEN |
1 | ||
| 83243-95M01 |
YY61..T2,T3;YY61..TW..ST;LY61,YY52..ST..GEN W(TACHOMETER) |
1 | ||
| 83243-95B04 |
YY52,61..LHD;LY61..ST..GEN W(TACHOMETER & WATER TEMP.GAUGE=*ME) |
1 | ||
| 83243-95B04 |
YY61..T2,T3;YY61..TW..ST;LY61..ST..GEN;LY60,YY52..LHD W(TACHOMETER & WATER TEMP.GAUGE=*ME) |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-95B01 |
LY6#,YY52,61..GEN |
1 | ||
| 83244-95M01 |
YY61..T2,T3;YY61..TW..ST;LY61,YY52..GEN |
1 | ||
| 83244-95B02 |
YY52,61..ST;LY61..TW..ST;LY61..(T2,T3)..GEN W(WATER TEMP.GAUGE=*ME) |
1 | ||
| 83244-95B02 |
LY60,YY52..GEN;LY61,YY61..TW..ST..GEN;LY61,YY61..(T2,T3)..GEN W(WATER TEMP.GAUGE=*ME) |
1 | ||
| 83244-95M01 |
YY61..ST;LY61,YY52..GEN |
1 | ||
| Common parts | ||||
| 83161-20300 | ||||
| 83161-20400 | ||||
| 83165-20120 | ||||
| 90159-50174 | ||||
| 90183-05103 | ||||
| 93567-55016 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||

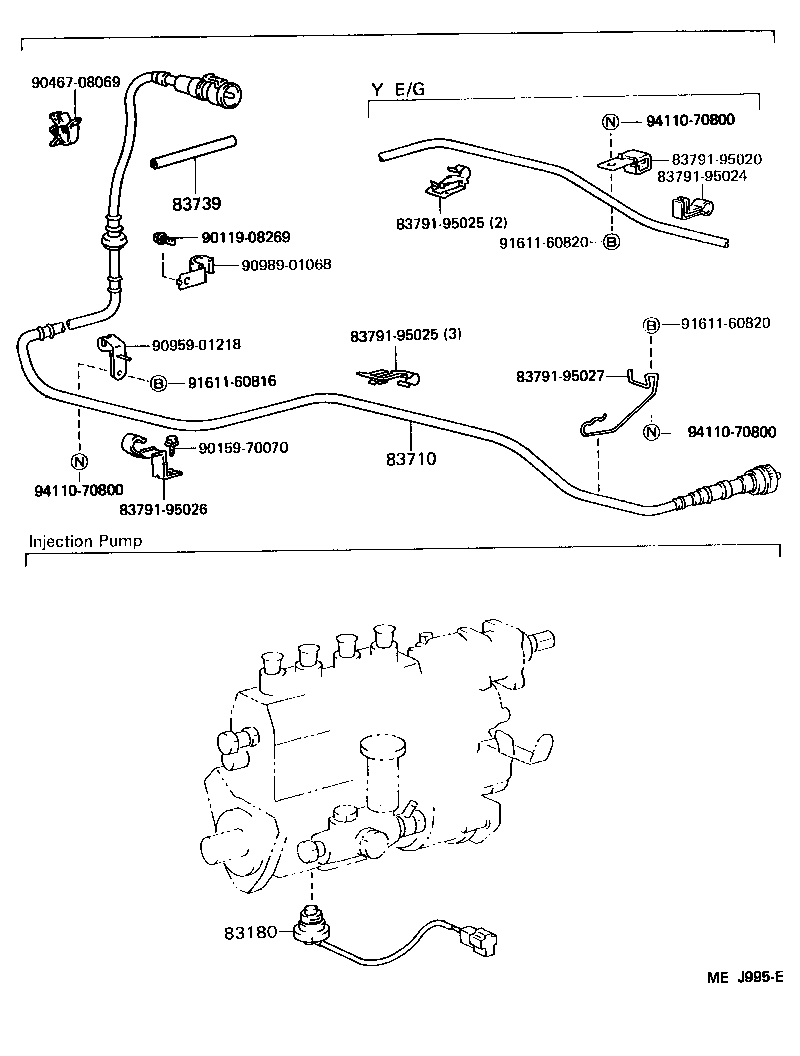

ILLUST NO. 3 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-95021 |
YY52,61..LHD |
1 | ||
| 83739 - PROTECTOR, SPEED CONTROL CABLE | ||||
| 83739-95400 |
LY6#,YY52,61 |
1 | ||
| 83739-95401 |
LY61,YY52;YY61..T2,T3;YY61..TW..ST |
1 | ||
| Common parts | ||||
| 83791-95020 | ||||
| 83791-95024 | ||||
| 83791-95025 | ||||
| 83791-95026 | ||||
| 83791-95027 | ||||
| 90119-08269 | ||||
| 90159-70070 | ||||
| 90467-08069 | ||||
| 90959-01218 | ||||
| 90989-01068 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 94110-70800 | ||||
