YY52L-MDP (1987)
Toyota Dyna150
(8708- )TW

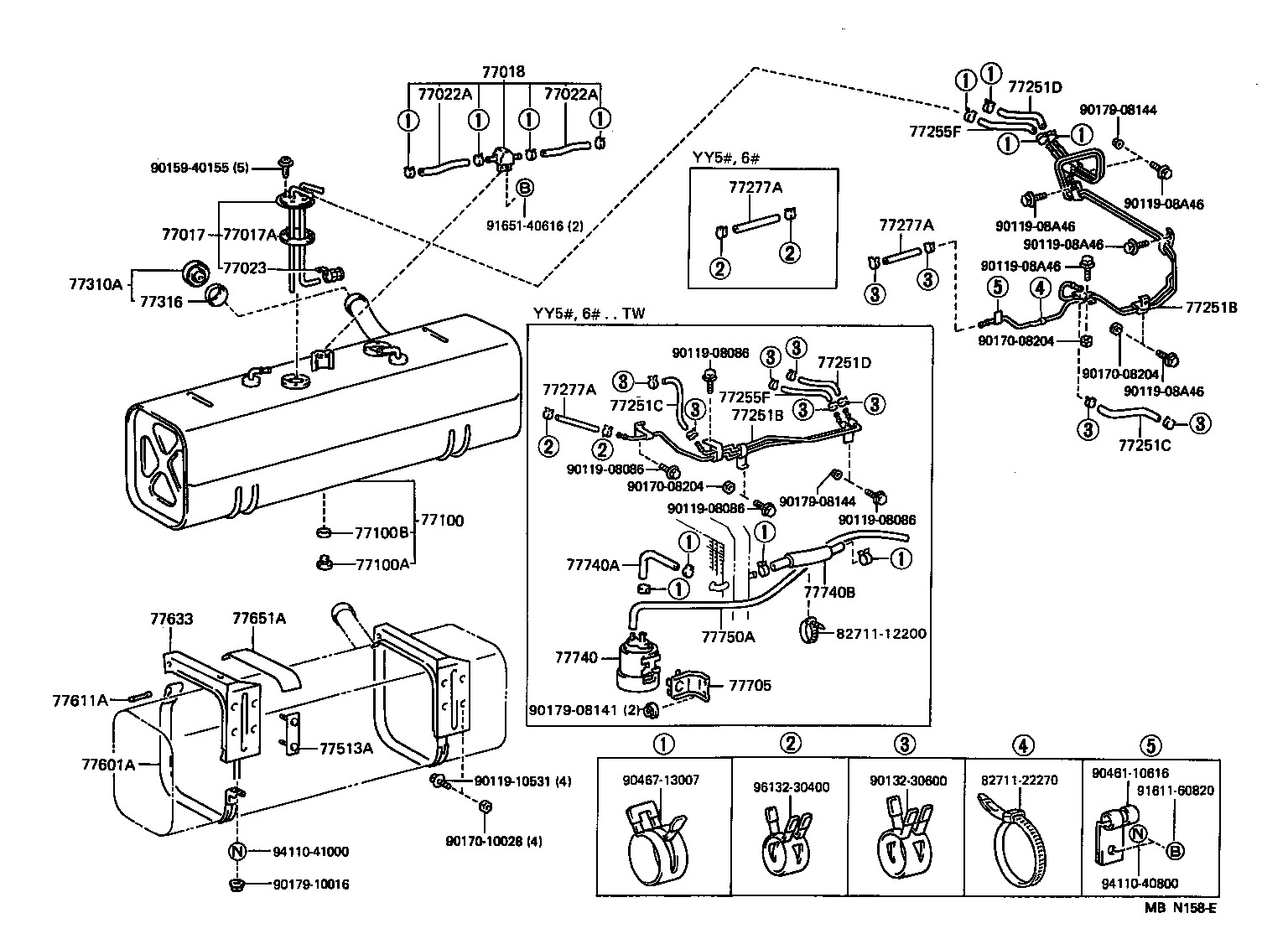

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-25070 |
YY52 |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77169-14020 |
LY61,YY52,61 |
1 | ||
| 77169-14020 |
LY6#,YY52,61 |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-25110 |
LY6#,YY52,61 |
1 | ||
| 77018-25110 |
YY61..ST;LY61,YY52 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08020 |
LY6#,YY52,61 L=200,ID=8 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08020 |
LY6#,YY52,61 L=200,ID=8 |
2 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-14030 |
YY52,61 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-25241 |
YY52 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
LY6#,YY52,61..TW |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
LY6#,YY52,61..TW |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77205-25050 |
YY52,61 |
1 | ||
| 77205-25050 |
YY52,61..ST |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77205-25050 |
YY52,61 |
1 | ||
| 77205-25050 |
YY52,61..ST |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 77259-25040 |
YY52,61 |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 77259-25040 |
YY52,61 |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95333-04020 |
YY52,61 L=200 |
1 | ||
| 95333-06020 |
YY52,61 *H,L=200 |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95333-04020 |
YY52,61 L=200 |
1 | ||
| 95333-06020 |
YY52,61 *H,L=200 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-04020 |
YY52,61 L=200 |
1 | ||
| 95333-06020 |
YY52,61 *H,L=200 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-04020 |
YY52,61 L=200 |
1 | ||
| 95333-06020 |
YY52,61 *H,L=200 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-11004 |
YY52,61 L=280 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-11004 |
YY52,61 L=280 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-11004 |
YY52,61 L=280 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-60051 |
YY52,61 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-27010 |
LY61..T2,T3;LY60,YY52,61;LY61..TW..ST |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-27011 |
LY6#,YY52,61..TW |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-25010 |
LY6#,YY52,61..TW |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-25062 |
YY52 FR |
1 | ||
| 77501-25061 |
YY52 FR |
1 | ||
| 77501-25071 |
YY52 RR |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-27111 |
LY61,YY52,61..TW |
2 | ||
| 77651-27110 |
LY6#,YY52,61..TW |
2 | ||
| 77705 - BRACKET SUB-ASSY, CHARCOAL CANISTER | ||||
| 77705-26021 |
YY52,61 |
1 | ||
| 77705-26021 |
YY52,61..ST |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-26060 |
YY52,61 |
1 | ||
| 77740-26060 |
YY52,61..ST |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90445-14136 |
YY52,61 L=150 |
1 | ||
| 77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER) | ||||
| 90447-14046 |
YY52,61 L=470 |
1 | ||
| 77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER) | ||||
| 90445-08169 |
YY52,61 L=1050 |
1 | ||
| 90445-08169 |
YY52,61..ST L=1050 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-22270 | ||||
| 90119-08086 | ||||
| 90119-08A46 | ||||
| 90119-10531 | ||||
| 90132-30600 | ||||
| 90159-40155 | ||||
| 90170-08204 | ||||
| 90170-10028 | ||||
| 90179-08141 | ||||
| 90179-08144 | ||||
| 90179-10016 | ||||
| 90461-10616 | ||||
| 90467-13007 | ||||
| 91611-60820 | ||||
| 91651-40616 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 96132-30400 | ||||
