YY52L-MDP (1987)

Toyota Dyna150

Production Aug 1987 - May 1995
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

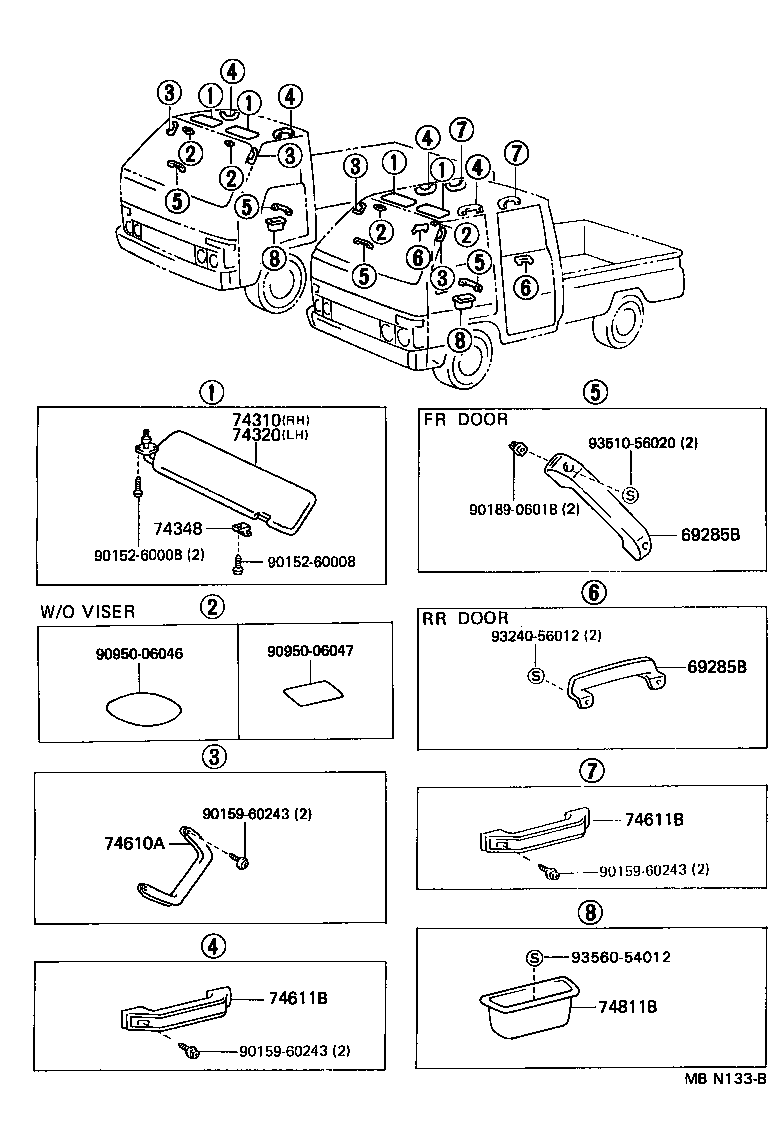

Click highlighted areas on diagram

diagram 69285B 69285B 74310 74320 74348 74610A 74611B 74611B 74811B 9015260008 9015260008 9015960243 9015960243 9015960243 9018906018 9095006046 9095006047 9324056012 9351056020 9356054012
Part # Description Qty Price
69285B - HANDLE, PULL
69285-9540401

LY61..CBU;LY61..GEN..IV;LY60..ARL..CBU;LY60,YY52,61..GEN

BLACK,TRIM4#

 2
69285-95700B0

LY61..GEN..IV;LY61,YY52,61..CBU

GRAY,TRIM1#

 2
69285B - HANDLE, PULL
69285-9540401

LY61..CBU;LY61..GEN..IV;LY60..ARL..CBU;LY60,YY52,61..GEN

BLACK,TRIM4#

 2
69285-95700B0

LY61..GEN..IV;LY61,YY52,61..CBU

GRAY,TRIM1#

 2
74310 - VISOR ASSY, RH
74310-9543006

LY6#,YY52,61..LHD

W(ROOF VENTILATOR & SUNVISOR),BROWN,TRIM4#

 1
74310-9543003

LY61,YY52,61..LHD

W(ROOF VENTILATOR & SUNVISOR),GRAY,TRIM1#

 1
74310-9543903

LY61,YY52,61..LHD

W(SUNVISOR),GRAY,TRIM1#

 1
74310-9543906

LY6#,YY52,61..LHD

W(SUNVISOR),BROWN,TRIM4#

 1
74320 - VISOR ASSY, LH
74320-9541806

LY6#,YY52,61..LHD

W(ROOF VENTILATOR),BROWN,TRIM4#

 1
74320-9542506

LY6#,YY52,61..LHD

BROWN,TRIM4#

 1
74320-9542503

YY52,61..LHD;LY61..TW..GEN;LY61..LHD..T3

GRAY,TRIM1#

 1
74320-9541803

LY61,YY52,61..LHD

W(ROOF VENTILATOR),GRAY,TRIM1#

 1
74348 - HOLDER, VISOR
74348-1201023

YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN

GRAY,TRIM1#

 1
74348-1201025

LY6#,YY52,61..GEN

BEIGE,TRIM4#

 1
74348-1201023

YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN

GRAY,TRIM1#

 2
74348-1201025

LY6#,YY52,61..GEN

BEIGE,TRIM4#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-9540306

LY6#,YY52,61

BROWN,TRIM4#

 2
74620-87001B0

LY61,YY52,61

GRAY,TRIM1#

 2
74611B - GRIP, ASSIST
74611-92601B0

LY61,YY52,61..TW

GRAY,TRIM1#

 3
74611-9260106

LY6#,YY52,61..TW

BROWN,TRIM4#

 3
74611B - GRIP, ASSIST
74611-92601B0

LY61,YY52,61..TW

GRAY,TRIM1#

 3
74611-9260106

LY6#,YY52,61..TW

BROWN,TRIM4#

 3
74811B - HANDLE, DOOR PULL
74811-8700116

LY61,YY52,61

BROWN,TRIM4#

 2
74811-87001B0

LY61,YY52,61

GRAY,TRIM1#

 2
Common parts
90152-60008
90159-60243
90189-06018
90950-06046
90950-06047
93240-56012
93510-56020
93560-54012
