YY52L-MDP (1987)

Toyota Dyna150

Production Aug 1987 - May 1995
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

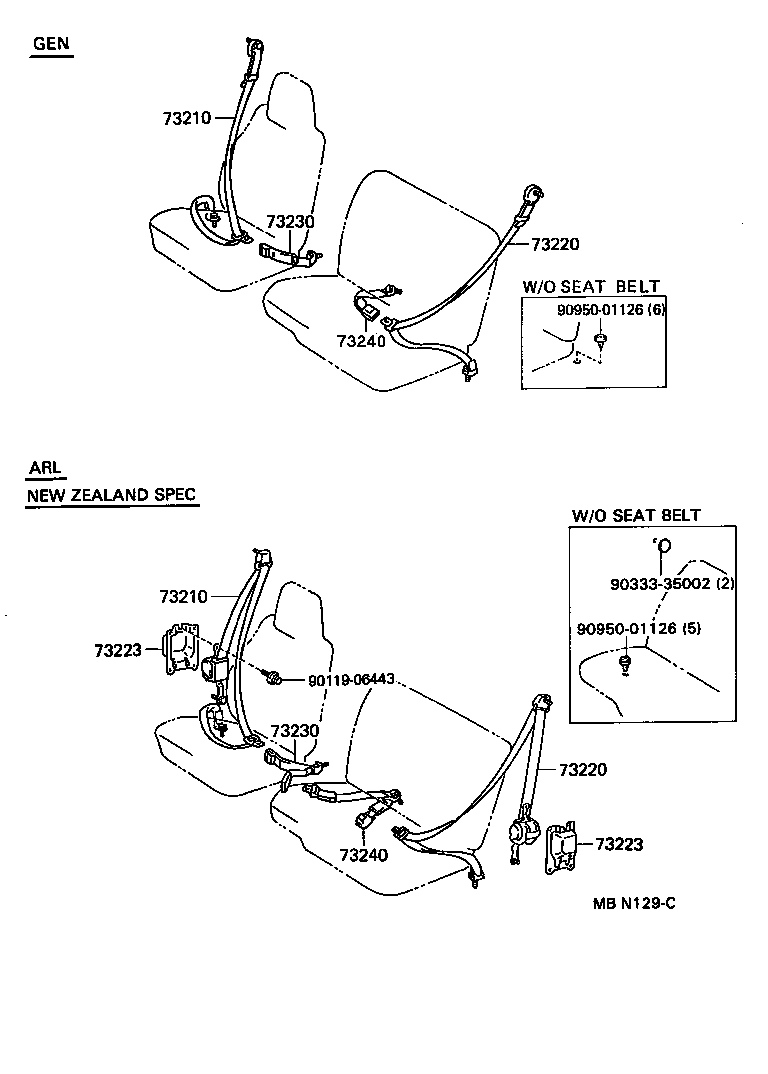

(8708- )

Click highlighted areas on diagram

diagram 73210 73210 73220 73220 73223 73223 73230 73230 73240 73240 9011906443 9033335002 9095001126 9095001126
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-95A0006

YY61..T2,T3;YY61..TW..ST;LY60..LHD..IV;LY6#,YY52..GEN..CBU

BROWN,TRIM4#

 1
73210-95A00B1

YY61..T2,T3;YY61..TW..ST;LY61,YY52..GEN..CBU

GRAY,TRIM1#

 1
73210-95A00B1

LY61,YY52,61..GEN

GRAY,TRIM1#

 1
73210-95A00B1

LY61,YY52,61..CBU

GRAY,TRIM1#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-95A0006

YY61..T2,T3;YY61..TW..ST;LY60..LHD..IV;LY6#,YY52..GEN..CBU

BROWN,TRIM4#

 1
73210-95A00B1

YY61..T2,T3;YY61..TW..ST;LY61,YY52..GEN..CBU

GRAY,TRIM1#

 1
73210-95A00B1

LY61,YY52,61..GEN

GRAY,TRIM1#

 1
73210-95A00B1

LY61,YY52,61..CBU

GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-95A00B1

YY61..T2,T3;YY61..TW..ST;LY61,YY52..GEN..CBU

GRAY,TRIM1#

 1
73210-95A0006

YY61..T2,T3;YY61..TW..ST;LY60..LHD..IV;LY6#,YY52..GEN..CBU

BROWN,TRIM4#

 1
73210-95A00B1

LY61,YY52,61..CBU

GRAY,TRIM1#

 1
73210-95A00B1

LY61,YY52,61..GEN

GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-95A00B1

YY61..T2,T3;YY61..TW..ST;LY61,YY52..GEN..CBU

GRAY,TRIM1#

 1
73210-95A0006

YY61..T2,T3;YY61..TW..ST;LY60..LHD..IV;LY6#,YY52..GEN..CBU

BROWN,TRIM4#

 1
73210-95A00B1

LY61,YY52,61..CBU

GRAY,TRIM1#

 1
73210-95A00B1

LY61,YY52,61..GEN

GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-95A0006

LY6#,YY52,61..LHD

BROWN,TRIM4#

 1
73230-95A00B1

LY61,YY52,61..LHD

GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-95A0006

LY6#,YY52,61..LHD

BROWN,TRIM4#

 1
73230-95A00B1

LY61,YY52,61..LHD

GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-95425B1

YY61..T2,T3;YY61..TW..ST;LY61,YY52..GEN..CBU

GRAY,TRIM1#

 1
73240-9542506

YY61..T2,T3;YY61..TW..ST;LY60..LHD..IV;LY6#,YY52..GEN..CBU

BROWN,TRIM4#

 1
73240-95425B1

LY61,YY52,61..CBU

GRAY,TRIM1#

 1
73240-95425B1

LY61,YY52,61..GEN

GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-95425B1

YY61..T2,T3;YY61..TW..ST;LY61,YY52..GEN..CBU

GRAY,TRIM1#

 1
73240-9542506

YY61..T2,T3;YY61..TW..ST;LY60..LHD..IV;LY6#,YY52..GEN..CBU

BROWN,TRIM4#

 1
73240-95425B1

LY61,YY52,61..CBU

GRAY,TRIM1#

 1
73240-95425B1

LY61,YY52,61..GEN

GRAY,TRIM1#

 1
Common parts
90119-06443
90333-35002
90950-01126

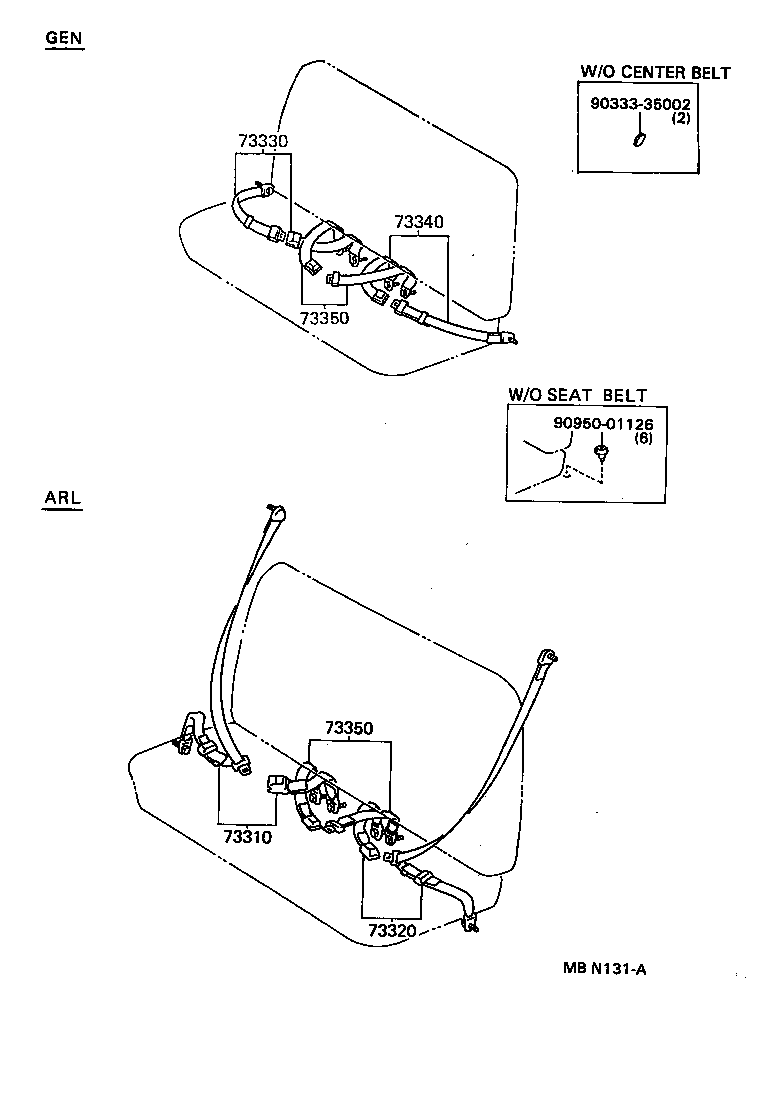

(8708-9309)

Click highlighted areas on diagram

REAR

diagram 73310 73320 73330 73340 73350 73350 9033335002 9095001126
Part # Description Qty Price
73330 - BELT ASSY, REAR SEAT LAP TYPE, RH
73330-9540106

LY6#,YY52,61..TW..GEN

BROWN,TRIM4#

 1
73330-95401B1

LY61,YY52,61..TW..GEN

GRAY,TRIM1#

 1
73330-37050B0

LY61,YY52,61..TW

GRAY,TRIM1#

 1
73340 - BELT ASSY, REAR SEAT LAP TYPE, LH
73330-95401B1

LY61,YY52,61..TW..GEN

GRAY,TRIM1#

 1
73330-37050B0

LY61,YY52,61..TW

GRAY,TRIM1#

 1
73330-9540106

LY6#,YY52,61..TW..GEN

BROWN,TRIM4#

 1
Common parts
90333-35002
90950-01126

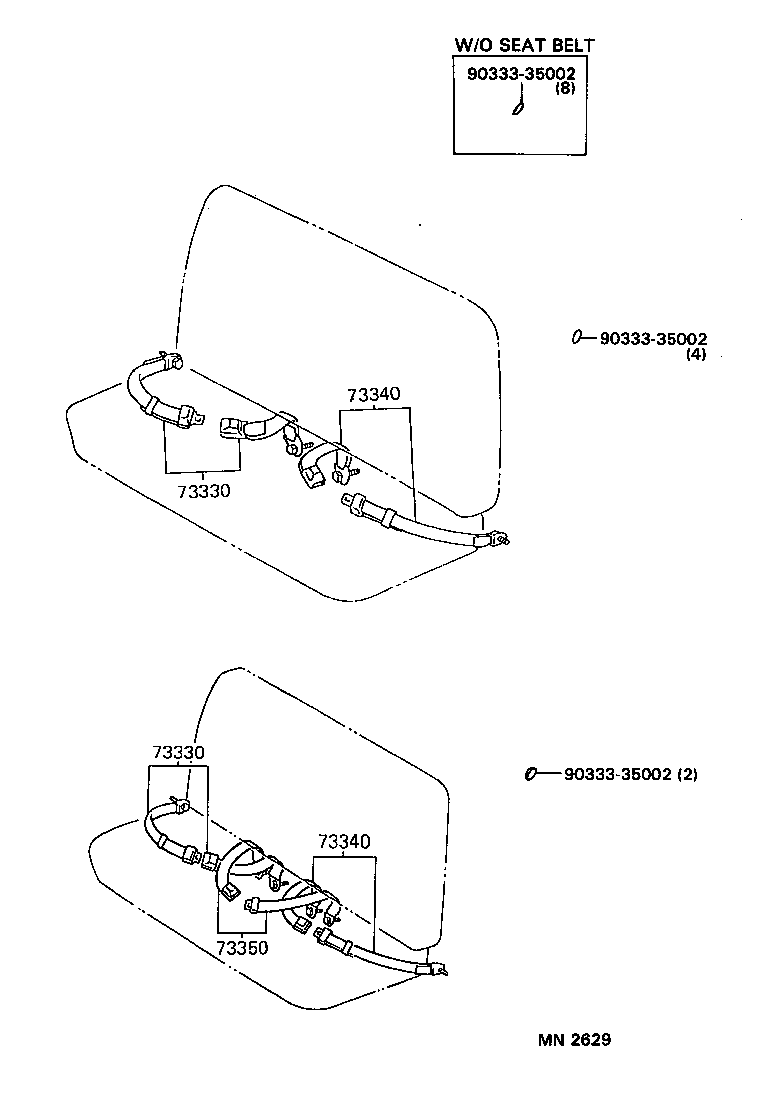

(9309- )

Click highlighted areas on diagram

diagram 73330 73330 73340 73340 73350 9033335002 9033335002 9033335002
Part # Description Qty Price
73330 - BELT ASSY, REAR SEAT LAP TYPE, RH
73330-9540106

LY6#,YY52,61..TW..GEN

BROWN,TRIM4#

 1
73330-95401B1

LY61,YY52,61..TW..GEN

GRAY,TRIM1#

 1
73330-37050B0

LY61,YY52,61..TW

GRAY,TRIM1#

 1
73330 - BELT ASSY, REAR SEAT LAP TYPE, RH
73330-9540106

LY6#,YY52,61..TW..GEN

BROWN,TRIM4#

 1
73330-95401B1

LY61,YY52,61..TW..GEN

GRAY,TRIM1#

 1
73330-37050B0

LY61,YY52,61..TW

GRAY,TRIM1#

 1
73340 - BELT ASSY, REAR SEAT LAP TYPE, LH
73330-95401B1

LY61,YY52,61..TW..GEN

GRAY,TRIM1#

 1
73330-37050B0

LY61,YY52,61..TW

GRAY,TRIM1#

 1
73330-9540106

LY6#,YY52,61..TW..GEN

BROWN,TRIM4#

 1
73340 - BELT ASSY, REAR SEAT LAP TYPE, LH
73330-95401B1

LY61,YY52,61..TW..GEN

GRAY,TRIM1#

 1
73330-37050B0

LY61,YY52,61..TW

GRAY,TRIM1#

 1
73330-9540106

LY6#,YY52,61..TW..GEN

BROWN,TRIM4#

 1
Common parts
90333-35002
