YY52L-MDP (1987)

Toyota Dyna150

Production Aug 1987 - May 1995
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

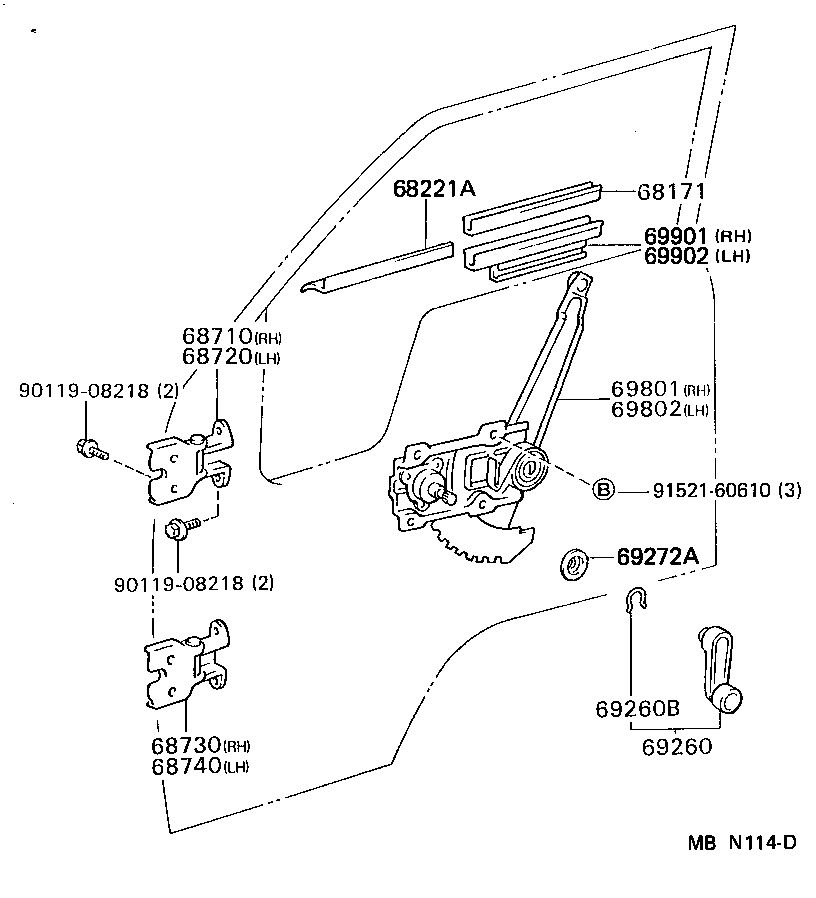

Click highlighted areas on diagram

diagram 68171 68221A 68710 68720 68730 68740 69260 69260B 69272A 69801 69802 69901 69902 9011908218 9011908218 9152160610
Part # Description Qty Price
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
68173-22010

LY61,YY52,61

 2
68219-95400

YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN

W(DIVISION BAR)

 2
68219-95400

LY60,YY52,61

 2
68221A - WEATHERSTRIP, FRONT DOOR GLASS DRAIN
68221-95401

LY60,YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-95702

LY6#,YY52,61

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68710-95702

LY6#,YY52,61

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68710-95702

LY6#,YY52,61

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-95702

LY6#,YY52,61

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1004006

LY6#,YY52,61

BROWN,TRIM4#

 2
69260-10040B1

LY61,YY52,61

BLUISH GRAY,TRIM1#

 2
69260-1004008

LY61,YY52,61

BLUISH GRAY,TRIM1#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

LY6#,YY52,61

 2
69272A - PLATE, DOOR WINDOW REGULATOR HANDLE
69272-3001008

LY61,YY52,61

NATURAL WHITE,TRIM1#

 2
69272-3001008

LY6#,YY52,61

NATURAL WHITE,TRIM4#

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-95407

LY61,YY52,61

 1
69810-95404

YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN

W(DIVISION BAR)

 1
69810-95404

LY60,YY52,61..GEN

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-95406

LY60,YY52,61..GEN

 1
69820-95409

LY61,YY52,61

 1
69820-95406

YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN

W(DIVISION BAR)

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-95403

LY60,YY52,61

 1
69901-95404

LY61,YY52,61

 1
69901-95403

YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN

W(DIVISION BAR)

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-95403

LY60,YY52,61

 1
69901-95404

LY61,YY52,61

 1
69901-95403

YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN

W(DIVISION BAR)

 1
Common parts
90119-08218
91521-60610

(8808- )

Click highlighted areas on diagram

diagram 68171 68710 68720 68730 68740 69260 69260B 69272A 69801 69802 69901 69902 9011908218 9011908218 9152140610
Part # Description Qty Price
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
68173-22010

LY61,YY52,61

 2
68219-95400

YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN

W(DIVISION BAR)

 2
68219-95400

LY60,YY52,61

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-95702

LY6#,YY52,61

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68710-95702

LY6#,YY52,61

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68710-95702

LY6#,YY52,61

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-95702

LY6#,YY52,61

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1004006

LY6#,YY52,61

BROWN,TRIM4#

 2
69260-10040B1

LY61,YY52,61

BLUISH GRAY,TRIM1#

 2
69260-1004008

LY61,YY52,61

BLUISH GRAY,TRIM1#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

LY6#,YY52,61

 2
69272A - PLATE, DOOR WINDOW REGULATOR HANDLE
69272-3001008

LY61,YY52,61

NATURAL WHITE,TRIM1#

 2
69272-3001008

LY6#,YY52,61

NATURAL WHITE,TRIM4#

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-95407

LY61,YY52,61

 1
69810-95404

YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN

W(DIVISION BAR)

 1
69810-95404

LY60,YY52,61..GEN

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-95406

LY60,YY52,61..GEN

 1
69820-95409

LY61,YY52,61

 1
69820-95406

YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN

W(DIVISION BAR)

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-95403

LY60,YY52,61

 1
69901-95404

LY61,YY52,61

 1
69901-95403

YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN

W(DIVISION BAR)

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-95403

LY60,YY52,61

 1
69901-95404

LY61,YY52,61

 1
69901-95403

YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN

W(DIVISION BAR)

 1
Common parts
90119-08218
91521-40610
