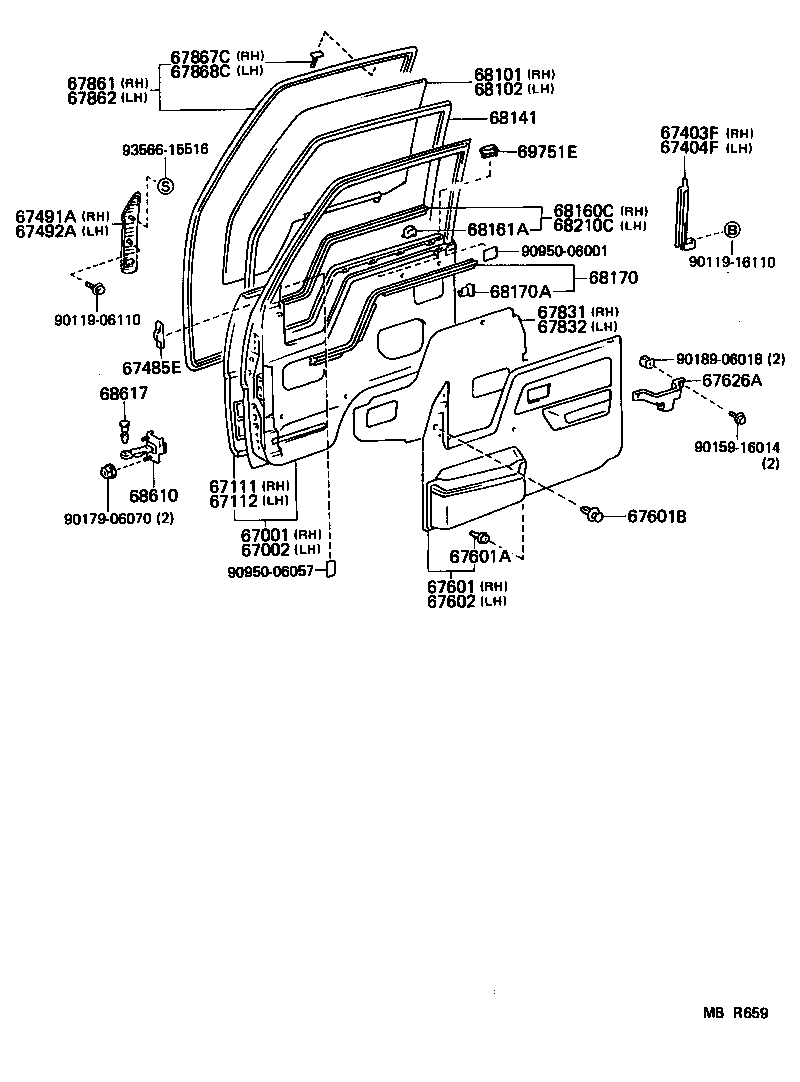

YY52L-MDP (1987)
Toyota Dyna150
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-95429 |
LY60..ARL..IV;LY60,YY52,61..LHD |
1 | ||
| 67001-37020 |
LY61,YY52,61..LHD W(DIVISION BAR) |
1 | ||
| 67001-95432 |
LY60..ARL..IV;LY60,YY52,61..LHD |
1 | ||
| 67001-95430 |
LY61..ARL..IV;LY61,YY52,61..LHD |
1 | ||
| 67001-95432 |
LY61,YY52,61..LHD W(DIVISION BAR) |
1 | ||
| 67001-37040 |
LY61..ARL;LY61,YY52,61..LHD |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-95A27 |
LY61,YY52,61..LHD W(DIVISION BAR) |
1 | ||
| 67002-37040 |
LY61,YY52,61..LHD |
1 | ||
| 67002-95A27 |
LY60,YY52,61..LHD |
1 | ||
| 67002-37010 |
LY61,YY52,61..LHD W(DIVISION BAR) |
1 | ||
| 67002-95024 |
LY61,YY52,61..LHD |
1 | ||
| 67002-95022 |
LY60,YY52,61..LHD |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-37030 |
LY61,YY52,61 |
1 | ||
| 67111-95407 |
LY61,YY52,61..LHD W(DIVISION BAR) |
1 | ||
| 67111-95406 |
LY60..ARL..IV;LY60,YY52,61..LHD |
1 | ||
| 67111-95408 |
LY61,YY52,61 |
1 | ||
| 67111-37020 |
LY61,YY52,61..LHD W(DIVISION BAR) |
1 | ||
| 67111-95407 |
LY60..ARL..IV;LY60,YY52,61..LHD |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-37010 |
LY61,YY52,61..LHD W(DIVISION BAR) |
1 | ||
| 67112-95A11 |
LY61,YY52,61..LHD W(DIVISION BAR) |
1 | ||
| 67112-37040 |
LY61,YY52,61 |
1 | ||
| 67112-95408 |
LY61,YY52,61 |
1 | ||
| 67112-95A11 |
LY60,YY52,61..LHD |
1 | ||
| 67503A - BAR SUB-ASSY, FRONT DOOR DIVISION, RH | ||||
| 67503-95400 |
YY61..TW..WT;LY61..(T2,T3)..GEN;LY61,YY52..TW..ST..GEN |
1 | ||
| 67503-95400 |
LY60,YY52,61 |
1 | ||
| 67504A - BAR SUB-ASSY, FRONT DOOR DIVISION, LH | ||||
| 67504-95400 |
YY61..TW..WT;LY61..(T2,T3)..GEN;LY61,YY52..TW..ST..GEN |
1 | ||
| 67504-95400 |
LY60,YY52,61 |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-9501906 |
LY60,YY52,61..GEN BROWN,TRIM4# |
1 | ||
| 67610-9541606 |
LY61,YY52,61 BROWN,TRIM4# |
1 | ||
| 67610-95416B0 |
LY61,YY52,61 GRAY,TRIM1# |
1 | ||
| 67610-95019B0 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN W(DIVISION BAR),GRAY,TRIM1# |
1 | ||
| 67610-9501906 |
LY61,YY52,61..GEN W(DIVISION BAR),BROWN,TRIM4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-9501906 |
LY60,YY52,61..GEN BROWN,TRIM4# |
1 | ||
| 67610-9541606 |
LY61,YY52,61 BROWN,TRIM4# |
1 | ||
| 67610-95416B0 |
LY61,YY52,61 GRAY,TRIM1# |
1 | ||
| 67610-95019B0 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN W(DIVISION BAR),GRAY,TRIM1# |
1 | ||
| 67610-9501906 |
LY61,YY52,61..GEN W(DIVISION BAR),BROWN,TRIM4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-9501906 |
LY60,YY52,61..GEN BROWN,TRIM4# |
1 | ||
| 67610-9541606 |
LY61,YY52,61 BROWN,TRIM4# |
1 | ||
| 67610-95416B0 |
LY61,YY52,61 GRAY,TRIM1# |
1 | ||
| 67610-95019B0 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN W(DIVISION BAR),GRAY,TRIM1# |
1 | ||
| 67610-9501906 |
LY61,YY52,61..GEN W(DIVISION BAR),BROWN,TRIM4# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12020 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN W(DIVISION BAR) |
26 | ||
| 67771-12020 |
LY60,YY52,61..GEN |
26 | ||
| 67771-30060 |
LY61,YY52,61 |
20 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12020 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN W(DIVISION BAR) |
26 | ||
| 67771-12020 |
LY60,YY52,61..GEN |
26 | ||
| 67771-30060 |
LY61,YY52,61 |
20 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12020 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN W(DIVISION BAR) |
26 | ||
| 67771-12020 |
LY60,YY52,61..GEN |
26 | ||
| 67771-30060 |
LY61,YY52,61 |
20 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0604603 |
LY61,YY52,61 GRAY,TRIM1# |
4 | ||
| 90467-0604606 |
LY61,YY52,61 BROWN,TRIM4# |
4 | ||
| 90467-06017B0 |
LY61,YY52,61 GRAY,TRIM1# |
4 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-01324B0 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN GRAY,TRIM1#,TYPE A |
2 | ||
| 90950-0132406 |
LY6#,YY52,61..GEN BROWN,TRIM4#,TYPE A |
2 | ||
| 90950-01607B0 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN GRAY,TRIM1#,TYPE B |
2 | ||
| 90950-0160706 |
LY6#,YY52,61..GEN BROWN,TRIM4#,TYPE B |
2 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-01324B0 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN GRAY,TRIM1#,TYPE A |
2 | ||
| 90950-0132406 |
LY6#,YY52,61..GEN BROWN,TRIM4#,TYPE A |
2 | ||
| 90950-01607B0 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN GRAY,TRIM1#,TYPE B |
2 | ||
| 90950-0160706 |
LY6#,YY52,61..GEN BROWN,TRIM4#,TYPE B |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-9502206 |
LY61,YY52,61..GEN W(DIVISION BAR),BROWN,TRIM4# |
1 | ||
| 67620-95022B0 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN W(DIVISION BAR),GRAY,TRIM1# |
1 | ||
| 67620-9502206 |
LY60,YY52,61..GEN BROWN,TRIM4# |
1 | ||
| 67620-9502606 |
LY60,YY52,61..LHD W(DOOR POCKET),BROWN,TRIM4# |
1 | ||
| 67620-9542206 |
LY61,YY52,61 BROWN,TRIM4# |
1 | ||
| 67620-95422B0 |
LY61,YY52,61 GRAY,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-9502206 |
LY61,YY52,61..GEN W(DIVISION BAR),BROWN,TRIM4# |
1 | ||
| 67620-95022B0 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN W(DIVISION BAR),GRAY,TRIM1# |
1 | ||
| 67620-9502206 |
LY60,YY52,61..GEN BROWN,TRIM4# |
1 | ||
| 67620-9502606 |
LY60,YY52,61..LHD W(DOOR POCKET),BROWN,TRIM4# |
1 | ||
| 67620-9542206 |
LY61,YY52,61 BROWN,TRIM4# |
1 | ||
| 67620-95422B0 |
LY61,YY52,61 GRAY,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-9502206 |
LY61,YY52,61..GEN W(DIVISION BAR),BROWN,TRIM4# |
1 | ||
| 67620-95022B0 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN W(DIVISION BAR),GRAY,TRIM1# |
1 | ||
| 67620-9502206 |
LY60,YY52,61..GEN BROWN,TRIM4# |
1 | ||
| 67620-9502606 |
LY60,YY52,61..LHD W(DOOR POCKET),BROWN,TRIM4# |
1 | ||
| 67620-9542206 |
LY61,YY52,61 BROWN,TRIM4# |
1 | ||
| 67620-95422B0 |
LY61,YY52,61 GRAY,TRIM1# |
1 | ||
| 67626A - BRACKET, DOOR TRIM, NO.2 | ||||
| 67626-95400 |
LY61,YY52,61 |
2 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-2204001 |
LY60,YY52,61..LHD BLACK,TRIM4# |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-95406 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN W(DIVISION BAR) |
1 | ||
| 67831-95406 |
LY60,YY52,61 |
1 | ||
| 67831-95408 |
LY61,YY52,61 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-95409 |
LY61,YY52,61 |
1 | ||
| 67832-95407 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN W(DIVISION BAR) |
1 | ||
| 67832-95407 |
LY60,YY52,61 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-37010 |
LY61,YY52,61 |
1 | ||
| 67861-95406 |
LY61,YY52,61 |
1 | ||
| 67861-95406 |
LY60,YY52,61 |
1 | ||
| 67861-95406 |
LY6#,YY52,61 |
2 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-95406 |
LY60,YY52,61 |
1 | ||
| 67862-37010 |
LY61,YY52,61 |
1 | ||
| 67862-95406 |
LY61,YY52,61 |
1 | ||
| 67862-95406 |
LY61,YY52,61 |
2 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-89101 |
LY60,YY52,61 |
28 | ||
| 67867-95403 |
LY61,YY52,61 |
28 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-95402 |
LY61,YY52,61 |
28 | ||
| 67867-89103 |
LY60,YY52,61 |
28 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-95406 |
LY60,YY52,61 *TEM,T=4.0 |
1 | ||
| 68111-95406 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN *TEM,T=4.0,W(DIVISION BAR) |
1 | ||
| 68111-95407 |
LY61,YY52,61 *TEM,T=4.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-95406 |
LY60,YY52,61 *TEM,T=4.0 |
1 | ||
| 68112-95406 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN *TEM,T=4.0,W(DIVISION BAR) |
1 | ||
| 68112-95407 |
LY61,YY52,61 *TEM,T=4.0 |
1 | ||
| 68125 - GLASS, FRONT DOOR FIX WINDOW, RH | ||||
| 68125-95400 |
LY60,YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN *TEM,T=3.5 |
1 | ||
| 68126 - GLASS, FRONT DOOR FIX WINDOW, LH | ||||
| 68126-95400 |
LY60,YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN *TEM,T=3.5 |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68141-95407 |
LY60,YY52,61 |
2 | ||
| 68141-95407 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN W(DIVISION BAR) |
2 | ||
| 68141-95408 |
LY61,YY52,61 |
2 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68160-95402 |
LY60,YY52,61 |
1 | ||
| 68160-95402 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN W(DIVISION BAR) |
1 | ||
| 68161-95403 |
LY61,YY52,61 |
1 | ||
| 68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68211-30080 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN W(DIVISION BAR) |
8 | ||
| 68211-30080 |
LY60,YY52,61 |
8 | ||
| 68211-12080 |
LY61,YY52,61 1ST,3RD,4TH,5TH |
10 | ||
| 68212-95400 |
LY61,YY52,61 LH,2ND |
1 | ||
| 68211-95402 |
LY61,YY52,61 RH,2ND |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-95405 |
LY60,YY52,61..GEN LH |
1 | ||
| 68171-95408 |
LY60,YY52,61..GEN RH |
1 | ||
| 68171-95406 |
LY60,YY52,61..GEN RH |
1 | ||
| 68172-95407 |
LY60,YY52,61..GEN LH |
1 | ||
| 68172-95402 |
LY60,YY52,61..GEN LH |
1 | ||
| 68171-95409 |
LY61,YY52,61 RH |
1 | ||
| 68172-95407 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN W(DIVISION BAR),LH |
1 | ||
| 68172-95406 |
LY61,YY52,61 LH |
1 | ||
| 68171-95410 |
LY60,YY52,61..GEN RH |
1 | ||
| 68171-95410 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN W(DIVISION BAR),RH |
1 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-12080 |
LY60,YY52,61..GEN |
8 | ||
| 68211-95401 |
LY61,YY52,61 YELLOW |
1 | ||
| 68211-12080 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN W(DIVISION BAR) |
8 | ||
| 68212-95400 |
LY61,YY52,61 RH,YELLOWISH GREEN |
2 | ||
| 68211-95402 |
LY61,YY52,61 LH,BROWN |
2 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68160-95402 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN W(DOOR WINDOW GLASS=DIVISION BAR |
1 | ||
| 68160-95402 |
LY60,YY52,61 |
1 | ||
| 68162-95402 |
LY61,YY52,61 |
1 | ||
| 68215 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH | ||||
| 68215-95402 |
LY60,YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN |
1 | ||
| 68216 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH | ||||
| 68216-95402 |
LY60,YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-95401 |
LY61,YY52,61 |
2 | ||
| 68610-95400 |
LY60,YY52,61 |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-90A00 |
LY6#,YY52,61 |
2 | ||
| 68617-20011 |
LY61,YY52,61 |
2 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-9540001 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN BLACK,TRIM1# |
2 | ||
| 69751-2003101 |
LY60,YY52,61..GEN BLACK,TRIM4# |
2 | ||
| 69751-9540001 |
LY6#,YY52,61..GEN BLACK,TRIM4# |
2 | ||
| Common parts | ||||
| 67772-95J02 | ||||
| 90168-40025 | ||||
| 90179-06070 | ||||
| 90189-06018 | ||||
| 90333-05001 | ||||
| 90950-06001 | ||||
| 91521-60610 | ||||
| 93229-15008 | ||||
| 93560-16014 | ||||
| Linked diagrams | ||||
| 7451 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-95429 |
LY60..ARL..IV;LY60,YY52,61..LHD |
1 | ||
| 67001-37020 |
LY61,YY52,61..LHD W(DIVISION BAR) |
1 | ||
| 67001-95432 |
LY60..ARL..IV;LY60,YY52,61..LHD |
1 | ||
| 67001-95430 |
LY61..ARL..IV;LY61,YY52,61..LHD |
1 | ||
| 67001-95432 |
LY61,YY52,61..LHD W(DIVISION BAR) |
1 | ||
| 67001-37040 |
LY61..ARL;LY61,YY52,61..LHD |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-95A27 |
LY61,YY52,61..LHD W(DIVISION BAR) |
1 | ||
| 67002-37040 |
LY61,YY52,61..LHD |
1 | ||
| 67002-95A27 |
LY60,YY52,61..LHD |
1 | ||
| 67002-37010 |
LY61,YY52,61..LHD W(DIVISION BAR) |
1 | ||
| 67002-95024 |
LY61,YY52,61..LHD |
1 | ||
| 67002-95022 |
LY60,YY52,61..LHD |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-37030 |
LY61,YY52,61 |
1 | ||
| 67111-95407 |
LY61,YY52,61..LHD W(DIVISION BAR) |
1 | ||
| 67111-95406 |
LY60..ARL..IV;LY60,YY52,61..LHD |
1 | ||
| 67111-95408 |
LY61,YY52,61 |
1 | ||
| 67111-37020 |
LY61,YY52,61..LHD W(DIVISION BAR) |
1 | ||
| 67111-95407 |
LY60..ARL..IV;LY60,YY52,61..LHD |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-37010 |
LY61,YY52,61..LHD W(DIVISION BAR) |
1 | ||
| 67112-95A11 |
LY61,YY52,61..LHD W(DIVISION BAR) |
1 | ||
| 67112-37040 |
LY61,YY52,61 |
1 | ||
| 67112-95408 |
LY61,YY52,61 |
1 | ||
| 67112-95A11 |
LY60,YY52,61..LHD |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-95400 |
LY61,YY52,61 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-95400 |
LY61,YY52,61 |
1 | ||
| 67485E - SEAL, FRONT DOOR BRACKET | ||||
| 67485-95701 |
LY61,YY52,61 |
2 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-95400 |
LY61..ARL..IV;LY61,YY52,61..LHD |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-95010 |
LY61,YY52,61..LHD |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-9501906 |
LY60,YY52,61..GEN BROWN,TRIM4# |
1 | ||
| 67610-9541606 |
LY61,YY52,61 BROWN,TRIM4# |
1 | ||
| 67610-95416B0 |
LY61,YY52,61 GRAY,TRIM1# |
1 | ||
| 67610-95019B0 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN W(DIVISION BAR),GRAY,TRIM1# |
1 | ||
| 67610-9501906 |
LY61,YY52,61..GEN W(DIVISION BAR),BROWN,TRIM4# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12020 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN W(DIVISION BAR) |
26 | ||
| 67771-12020 |
LY60,YY52,61..GEN |
26 | ||
| 67771-30060 |
LY61,YY52,61 |
20 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0604603 |
LY61,YY52,61 GRAY,TRIM1# |
4 | ||
| 90467-0604606 |
LY61,YY52,61 BROWN,TRIM4# |
4 | ||
| 90467-06017B0 |
LY61,YY52,61 GRAY,TRIM1# |
4 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-9502206 |
LY61,YY52,61..GEN W(DIVISION BAR),BROWN,TRIM4# |
1 | ||
| 67620-95022B0 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN W(DIVISION BAR),GRAY,TRIM1# |
1 | ||
| 67620-9502206 |
LY60,YY52,61..GEN BROWN,TRIM4# |
1 | ||
| 67620-9502606 |
LY60,YY52,61..LHD W(DOOR POCKET),BROWN,TRIM4# |
1 | ||
| 67620-9542206 |
LY61,YY52,61 BROWN,TRIM4# |
1 | ||
| 67620-95422B0 |
LY61,YY52,61 GRAY,TRIM1# |
1 | ||
| 67626A - BRACKET, DOOR TRIM, NO.2 | ||||
| 67626-95400 |
LY61,YY52,61 |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-95406 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN W(DIVISION BAR) |
1 | ||
| 67831-95406 |
LY60,YY52,61 |
1 | ||
| 67831-95408 |
LY61,YY52,61 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-95409 |
LY61,YY52,61 |
1 | ||
| 67832-95407 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN W(DIVISION BAR) |
1 | ||
| 67832-95407 |
LY60,YY52,61 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-37010 |
LY61,YY52,61 |
1 | ||
| 67861-95406 |
LY61,YY52,61 |
1 | ||
| 67861-95406 |
LY60,YY52,61 |
1 | ||
| 67861-95406 |
LY6#,YY52,61 |
2 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-95406 |
LY60,YY52,61 |
1 | ||
| 67862-37010 |
LY61,YY52,61 |
1 | ||
| 67862-95406 |
LY61,YY52,61 |
1 | ||
| 67862-95406 |
LY61,YY52,61 |
2 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-89101 |
LY60,YY52,61 |
28 | ||
| 67867-95403 |
LY61,YY52,61 |
28 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-95402 |
LY61,YY52,61 |
28 | ||
| 67867-89103 |
LY60,YY52,61 |
28 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-95406 |
LY60,YY52,61 *TEM,T=4.0 |
1 | ||
| 68111-95406 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN *TEM,T=4.0,W(DIVISION BAR) |
1 | ||
| 68111-95407 |
LY61,YY52,61 *TEM,T=4.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-95406 |
LY60,YY52,61 *TEM,T=4.0 |
1 | ||
| 68112-95406 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN *TEM,T=4.0,W(DIVISION BAR) |
1 | ||
| 68112-95407 |
LY61,YY52,61 *TEM,T=4.0 |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68141-95407 |
LY60,YY52,61 |
2 | ||
| 68141-95407 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN W(DIVISION BAR) |
2 | ||
| 68141-95408 |
LY61,YY52,61 |
2 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68160-95402 |
LY60,YY52,61 |
1 | ||
| 68160-95402 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN W(DIVISION BAR) |
1 | ||
| 68161-95403 |
LY61,YY52,61 |
1 | ||
| 68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68211-30080 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN W(DIVISION BAR) |
8 | ||
| 68211-30080 |
LY60,YY52,61 |
8 | ||
| 68211-12080 |
LY61,YY52,61 1ST,3RD,4TH,5TH |
10 | ||
| 68212-95400 |
LY61,YY52,61 LH,2ND |
1 | ||
| 68211-95402 |
LY61,YY52,61 RH,2ND |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-95405 |
LY60,YY52,61..GEN LH |
1 | ||
| 68171-95408 |
LY60,YY52,61..GEN RH |
1 | ||
| 68171-95406 |
LY60,YY52,61..GEN RH |
1 | ||
| 68172-95407 |
LY60,YY52,61..GEN LH |
1 | ||
| 68172-95402 |
LY60,YY52,61..GEN LH |
1 | ||
| 68171-95409 |
LY61,YY52,61 RH |
1 | ||
| 68172-95407 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN W(DIVISION BAR),LH |
1 | ||
| 68172-95406 |
LY61,YY52,61 LH |
1 | ||
| 68171-95410 |
LY60,YY52,61..GEN RH |
1 | ||
| 68171-95410 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN W(DIVISION BAR),RH |
1 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-12080 |
LY60,YY52,61..GEN |
8 | ||
| 68211-95401 |
LY61,YY52,61 YELLOW |
1 | ||
| 68211-12080 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN W(DIVISION BAR) |
8 | ||
| 68212-95400 |
LY61,YY52,61 RH,YELLOWISH GREEN |
2 | ||
| 68211-95402 |
LY61,YY52,61 LH,BROWN |
2 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68160-95402 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN W(DOOR WINDOW GLASS=DIVISION BAR |
1 | ||
| 68160-95402 |
LY60,YY52,61 |
1 | ||
| 68162-95402 |
LY61,YY52,61 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-95401 |
LY61,YY52,61 |
2 | ||
| 68610-95400 |
LY60,YY52,61 |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-90A00 |
LY6#,YY52,61 |
2 | ||
| 68617-20011 |
LY61,YY52,61 |
2 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-9540001 |
YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN BLACK,TRIM1# |
2 | ||
| 69751-2003101 |
LY60,YY52,61..GEN BLACK,TRIM4# |
2 | ||
| 69751-9540001 |
LY6#,YY52,61..GEN BLACK,TRIM4# |
2 | ||
| Common parts | ||||
| 90119-06110 | ||||
| 90119-16110 | ||||
| 90159-16014 | ||||
| 90179-06070 | ||||
| 90189-06018 | ||||
| 90950-06001 | ||||
| 90950-06057 | ||||
| 93566-15516 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
