YY52L-MDP (1987)
Toyota Dyna150
Production
Aug 1987
-
May 1995
Engine
3Y
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )TW..ST

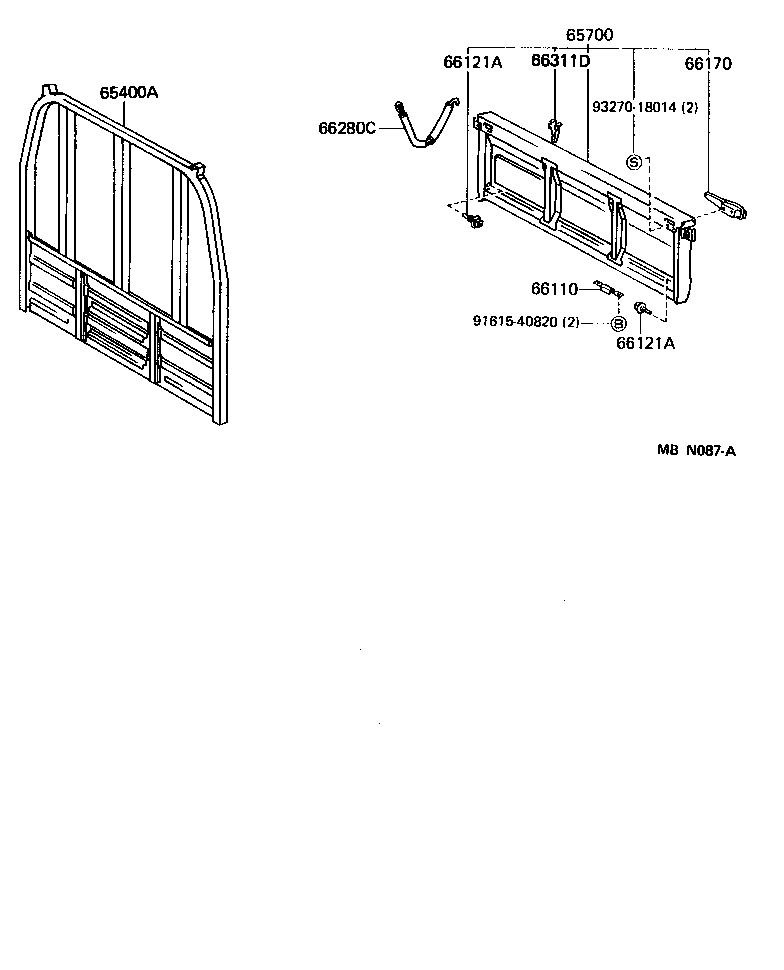

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65400A - GUARD ASSY, REAR BODY | ||||
| 65400-95063 |
YY52 |
1 | ||
| 65400-25140 |
YY52 |
1 | ||
| 65700 - GATE ASSY, REAR BODY TAIL | ||||
| 65700-95415 |
LY6#,YY52,61..TW..ST |
1 | ||
| 65700-25010 |
LY61,YY52,61..TW..ST |
1 | ||
| 66110 - HINGE ASSY, TAIL GATE | ||||
| 66110-95014 |
LY6#,YY52,61..TW..ST |
2 | ||
| 66121A - BOLT, TAIL GATE MALE | ||||
| 66121-95012 |
LY6#,YY52,61..TW..ST |
1 | ||
| 66121A - BOLT, TAIL GATE MALE | ||||
| 66121-95012 |
LY6#,YY52,61..TW..ST |
1 | ||
| 66170 - LATCH ASSY, REAR BODY TAIL GATE | ||||
| 66170-95402 |
LY6#,YY52,61..TW..ST |
2 | ||
| 66280C - CHAIN ASSY, TAIL GATE | ||||
| 66280-95403 |
LY6#,YY52,61..TW |
2 | ||
| 66280-37010 |
LY61,YY52,61..TW..ST |
2 | ||
| 66311D - HOOK, ROPE | ||||
| 66311-95010 |
LY6#,YY52,61..TW..ST |
3 | ||
| 66311-90K00 |
LY61,YY52,61..TW..ST |
3 | ||
| Common parts | ||||
| 91615-40820 | ||||
| 93270-18014 | ||||
