YY52L-MDP (1987)

Toyota Dyna150

Production Aug 1987 - May 1995
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )TW

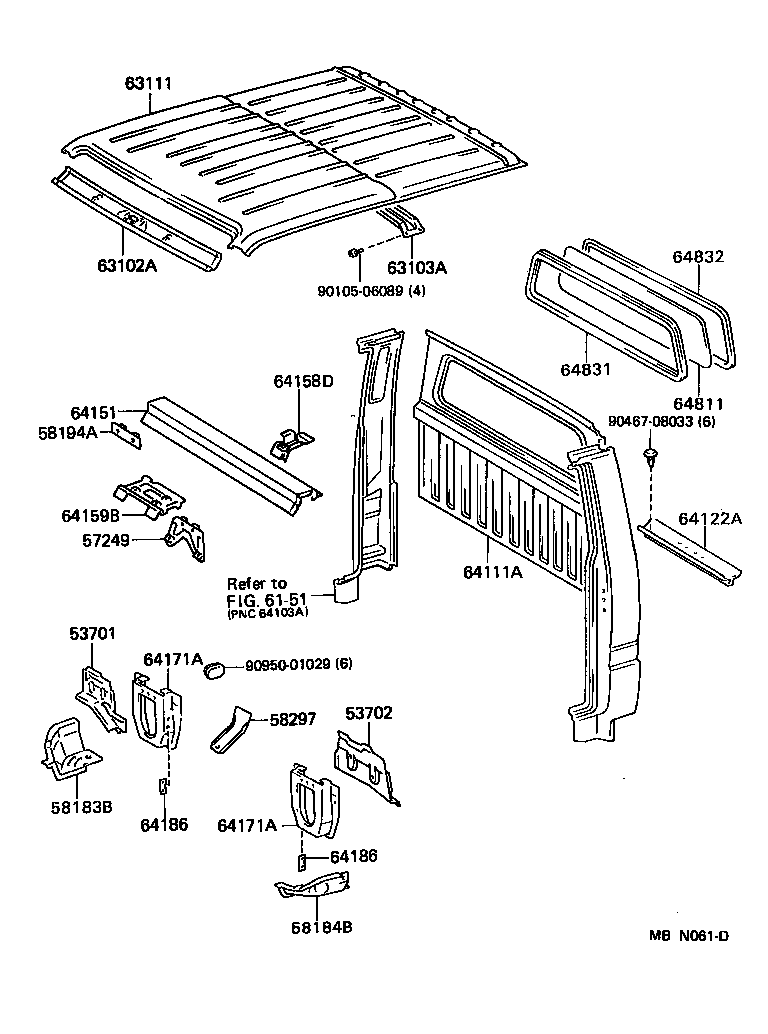

Click highlighted areas on diagram

diagram 53701 53702 57249 58183B 58184B 58194A 58297 6151 63102A 63103A 63111 64111A 64122A 64151 64158D 64159B 64171A 64171A 64186 64186 64811 64831 64832 9010506089 9046708033 9095001029
Part # Description Qty Price
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53717-95411

LY60,YY52,61..TW

 1
53717-95413

LY61,YY52,61..TW..ST

 1
53717-95411

LY61,YY52,61..TW..ST

 1
53717-95411

LY61,YY52,61..TW

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53718-95414

LY61,YY52,61..TW..ST

 1
53718-95412

LY60,YY52,61..TW

 1
53718-95412

LY61,YY52,61..TW..ST

 1
53718-95412

LY61,YY52,61..TW

 1
57249 - BRACKET, FLEXIBLE HOSE, NO.1
57249-95A00

YY52,61

 1
58183B - REINFORCEMENT, REAR MOUNTING, RH
58183-95405

LY60,YY52,61

 1
58183-95406

LY61,YY52;YY61..T2,T3;YY61..TW..ST

 1
58183-95405

LY61,YY52,61

 1
58184B - REINFORCEMENT, REAR MOUNTING, LH
58184-95404

LY60,YY52,61

 1
58184-95405

LY61,YY52;YY61..T2,T3;YY61..TW..ST

 1
58184-95404

LY61,YY52;YY61..T2,T3;YY61..TW..ST

 1
58184-95404

LY61,YY52,61

 1
58194A - RETAINER, ENGINE COVER HINGE
58194-95400

YY52,61

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63132-95418

LY6#,YY52,61

 1
63132-95420

LY61..T2,T3;LY60,YY52,61;LY61..TW..ST

W(ROOF VENTILATOR)

 1
63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL
63103-95412

LY61,YY52,61..TW

 1
63103-95412

LY6#,YY52,61..TW

 1
63111 - PANEL, ROOF
63111-95416

LY61..TW..ST;LY60,YY52,61..TW

W(ROOF VENTILATOR)

 1
63111-95417

LY6#,YY52,61..TW

 1
64111A - PANEL, BACK
64100-95450

LY6#,YY52,61..TW

 1
64122A - BAFFLE, DUST REAR BODY
64122-95A06

LY6#,YY52,61..TW

 1
64122-37060

LY61,YY52,61..TW

 1
64151 - FRAME, BACK
64151-95408

LY61,YY52,61..TW..ST..GEN

 1
64151-37050

LY61,YY52,61..TW..ST..GEN

 1
64158D - BRACKET, BACK FRAME SHIFT CONTROL LINK, NO.1
64158-95A01

LY61,YY52,61..TW..ST..GEN

 1
64159B - BRACKET, BACK FRAME SHIFT CONTROL LINK
64159-95A01

LY61,YY52,61..TW

 1
64171A - BRACKET SUB-ASSY, REAR MOUNTING
64025-25020

LY61,YY52,61..TW

 2
64171-95410

LY6#,YY52,61..TW

 2
64171A - BRACKET SUB-ASSY, REAR MOUNTING
64025-25020

LY61,YY52,61..TW

 2
64171-95410

LY6#,YY52,61..TW

 2
64811 - GLASS, BACK WINDOW
64811-95410

LY61..TW..ST;LY60,YY52,61..TW

*TEM,T=3.5

 1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64831-95406

LY6#,YY52,61

 1
64832 - KEY, BACK WINDOW WEATHERSTRIP
64832-95013

LY61..TW..ST;LY60,YY52,61..TW

 1
Common parts
90105-06089
90467-08033
90950-01029
Linked diagrams
6151
