YY52L-MDP (1987)
Toyota Dyna150
Production
Aug 1987
-
May 1995
Engine
3Y
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

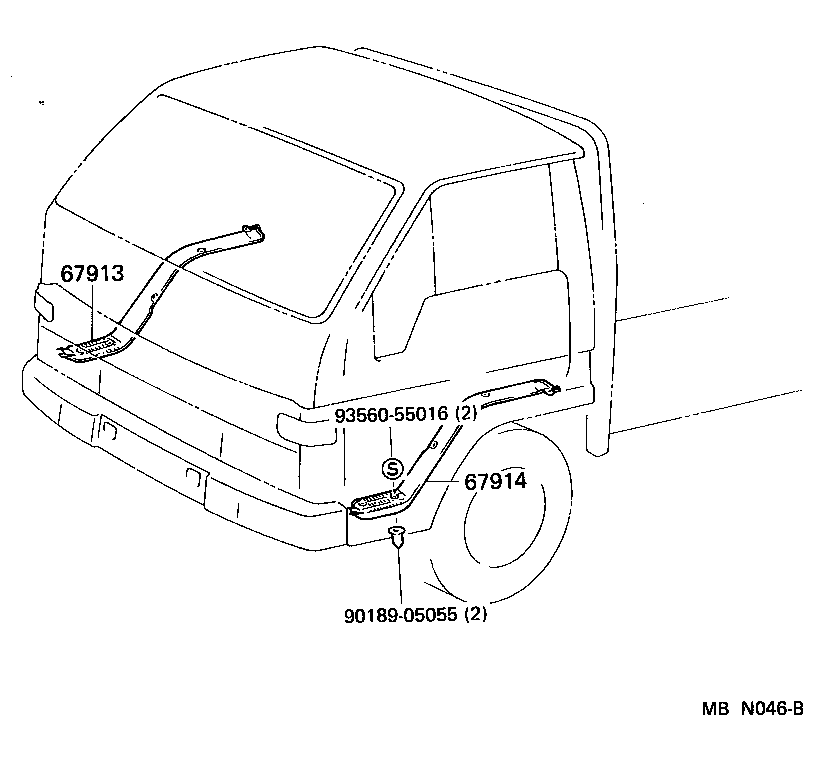

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-9540306 |
LY6#,YY52,61 BROWN,TRIM4# |
1 | ||
| 67913-95403B0 |
LY61,YY52,61 GRAY,TRIM1# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-9540306 |
LY6#,YY52,61 BROWN,TRIM4# |
1 | ||
| 67914-95403B0 |
LY61,YY52,61 GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90189-05055 | ||||
| 93560-55016 | ||||
(8708- )

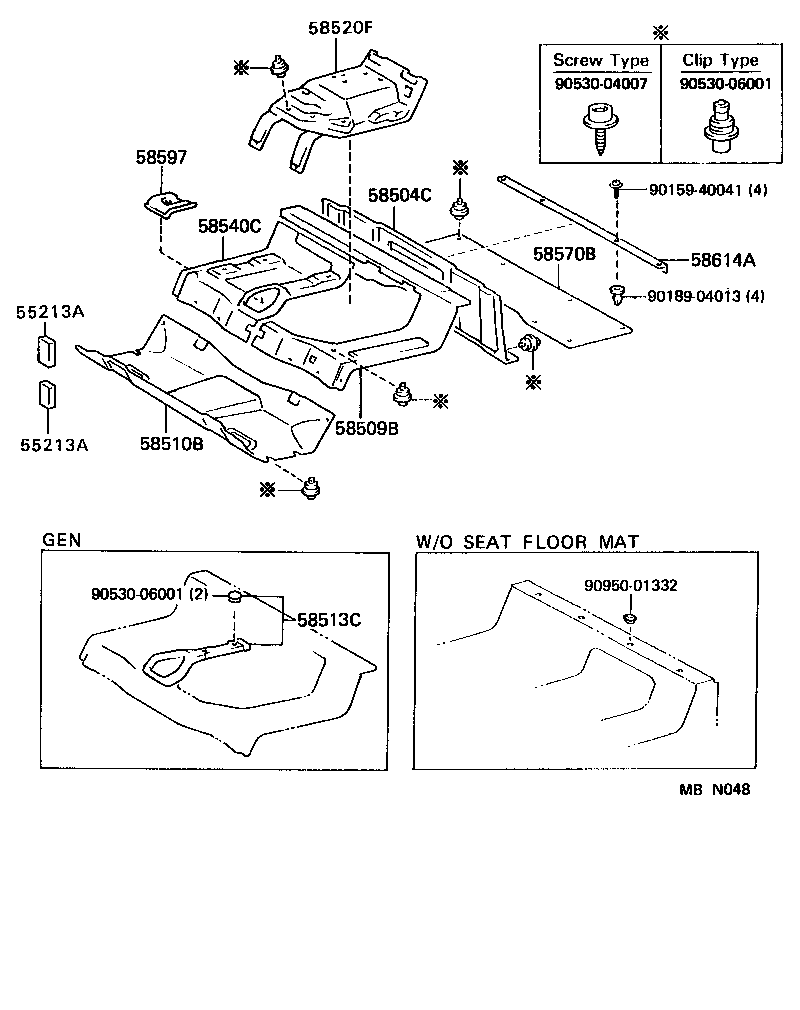

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55213A - PAD, DASH PANEL SILENCER | ||||
| 55213-95400 |
LY6#,YY52,61 UPR |
1 | ||
| 55213-95401 |
LY6#,YY52,61 LWR |
1 | ||
| 55213A - PAD, DASH PANEL SILENCER | ||||
| 55213-95400 |
LY6#,YY52,61 UPR |
1 | ||
| 55213-95401 |
LY6#,YY52,61 LWR |
1 | ||
| 58510B - MAT, FRONT FLOOR, FRONT | ||||
| 58510-9504506 |
LY6#,YY52,61..LHD BROWN,TRIM4# |
1 | ||
| 58510-95045B0 |
LY61,YY52,61..LHD GRAY,TRIM1# |
1 | ||
| 58513C - MAT, FLOOR, FRONT CENTER | ||||
| 58513-9501106 |
LY6#,YY52,61..LHD BROWN,TRIM4# |
1 | ||
| 58513-95011B0 |
LY61,YY52,61..LHD GRAY,TRIM1# |
1 | ||
| 58570B - MAT ASSY, REAR FLOOR | ||||
| 58581-9540606 |
LY6#,YY52,61..TW BROWN,TRIM4# |
1 | ||
| 58581-95406B0 |
LY61,YY52,61..TW GRAY,TRIM1# |
1 | ||
| 58597 - PLATE, SEAT TRACK SET | ||||
| 58597-95400 |
LY6#,YY52,61..GEN |
1 | ||
| 58614A - PLATE, MAT SET, NO.4 | ||||
| 58614-95A01B0 |
LY61,YY52,61..TW GRAY,TRIM1# |
1 | ||
| 58614-95A0106 |
LY6#,YY52,61..TW BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90159-40041 | ||||
| 90189-04013 | ||||
| 90530-04007 | ||||
| 90530-06001 | ||||
| 90950-01332 | ||||
