YY52L-MDP (1987)

Toyota Dyna150

Production Aug 1987 - May 1995
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

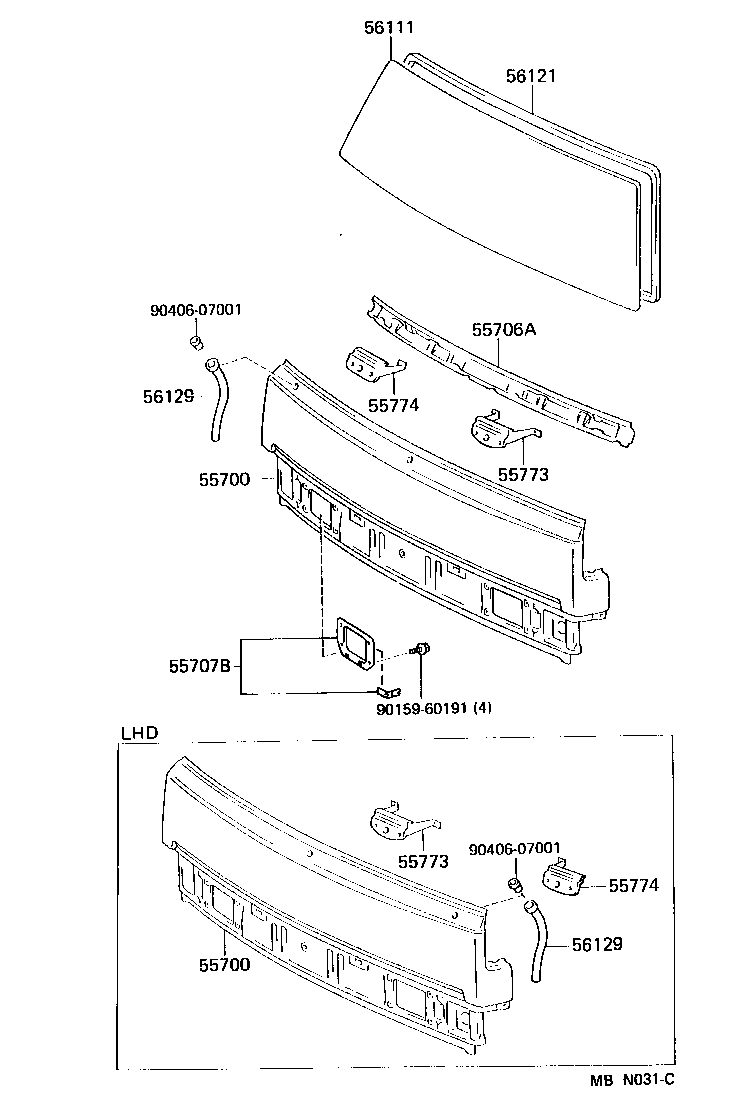

Click highlighted areas on diagram

diagram 55700 55700 55706A 55707B 55773 55773 55774 55774 56111 56121 56129 56129 9015960191 9040607001 9040607001
Part # Description Qty Price
55700 - PANEL ASSY, FRONT
55701-95445

LY61,YY52,61..LHD

 1
55701-95444

LY6#,YY52,61..LHD

 1
55700 - PANEL ASSY, FRONT
55701-95445

LY61,YY52,61..LHD

 1
55701-95444

LY6#,YY52,61..LHD

 1
55706A - REINFORCEMENT SUB-ASSY, FRONT PANEL, UPPER
55706-95406

LY6#,YY52,61..LHD

 1
55707B - SHUTTER SUB-ASSY, FRONT AIR
55707-95404

YY52,61;LY61..T2,T3;LY61..TW..ST

 1
55707-95404

LY60..ARL;LY61..CBU;LY60..LHD..IV;LY61..ARL..IV;LY60,YY52,61..GEN..CBU

 1
55707-95404

YY52,61;LY61..T2,T3;LY61..TW..ST

 1
55773 - RETAINER, WIPER SHAFT, CENTER
55773-95406

LY61..T2,T3;LY60,YY52,61;LY61..TW..ST

 1
55773-95406

LY61,YY52,61

 1
55773 - RETAINER, WIPER SHAFT, CENTER
55773-95406

LY61..T2,T3;LY60,YY52,61;LY61..TW..ST

 1
55773-95406

LY61,YY52,61

 1
55774 - RETAINER, WIPER SHAFT SIDE
55774-95403

LY6#,YY52,61..LHD

 1
55774 - RETAINER, WIPER SHAFT SIDE
55774-95403

LY6#,YY52,61..LHD

 1
56111 - GLASS, WINDSHIELD
56111-95417

LY6#,YY52,61..GEN

*LAM,T=5.3,W(TOP SHADE)

 1
56111-95416

LY6#,YY52,61..GEN

*LAM,T=5.3

 1
56111-37010

LY61,YY52,61

*TL,T=5.7

 1
56111-95415

LY6#,YY52,61..GEN

*ZT,T=5.0

 1
56111-37010

YY52,61;LY61..TW..ST..GEN;LY61..(T2,T3)..GEN

*TL,T=5.7

 1
56121 - WEATHERSTRIP, WINDSHIELD
56121-95A06

LY6#,YY52,61

 1
56129 - HOSE, WINDSHIELD DRAIN
56129-95400

LY6#,YY52,61

 2
56129 - HOSE, WINDSHIELD DRAIN
56129-95400

LY6#,YY52,61

 2
Common parts
90159-60191
90406-07001
