YY52L-MDP (1987)

Toyota Dyna150

Production Aug 1987 - May 1995
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

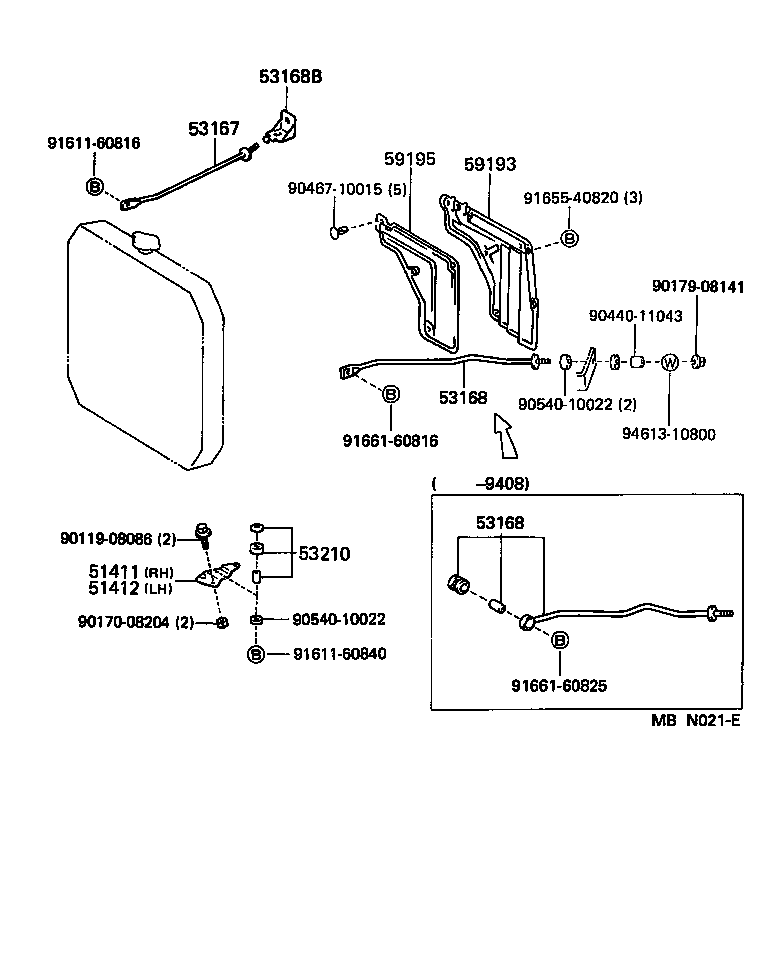

Click highlighted areas on diagram

diagram 51411 51412 53167 53168 53168B 53210 59193 59195 9011908086 9017008204 9017908141 9044011043 9046710015 9054010022 9054010022 9161160816 9161160840 9165540820 9166160816 9166160825 9461310800
Part # Description Qty Price
51411 - BRACKET, RADIATOR SUPPORT, RH
51411-25010

LY6#,YY52,61

 1
51412 - BRACKET, RADIATOR SUPPORT, LH
51412-25010

LY6#,YY52,61

 1
53167 - ROD, RADIATOR BRACE, RH
53167-25130

LY6#,YY52,61

 1
53168 - ROD, RADIATOR BRACE, LH
53018-25010

LY6#,YY52,61

 1
53018-25011

LY61,YY52,61

 1
53169-25122

LY61,YY52,61

 1
53168B - BRACKET, RADIATOR BRACE ROD
53168-25020

LY6#,YY52,61

 1
53210 - SUPPORT ASSY, RADIATOR
53210-26010

LY61,YY52,61

 2
Common parts
90119-08086
90170-08204
90179-08141
90440-11043
90467-10015
90540-10022
91611-60816
91611-60840
91655-40820
91661-60816
91661-60825
94613-10800
