YY52L-MDP (1987)

Toyota Dyna150

Production Aug 1987 - May 1995
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

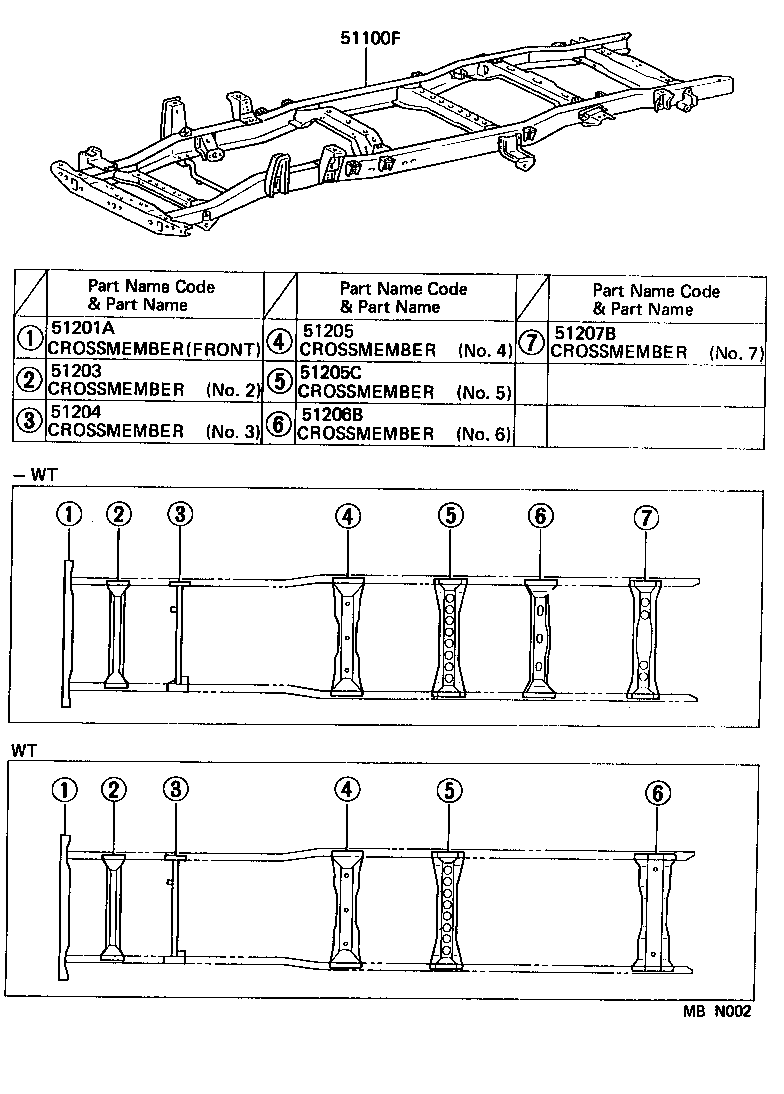

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 51100F 51201A 51203 51204 51205 51205C 51206B 51207B
Part # Description Qty Price
51100F - FRAME SUB-ASSY
51002-25671

YY52

 1
51002-25670

YY52

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51211-25090

LY6#,YY52,61

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-25130

LY6#,YY52,61

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-25110

LY60,YY52,61

 1
51203-25111

LY61,YY52,61

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51204-25060

LY6#,YY52,61

 1
51204-25061

LY61,YY52,61

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-25050

LY6#,YY52,61

 1
51205-25051

LY61,YY52,61

 1
51206B - CROSSMEMBER SUB-ASSY, FRAME, NO.6
51206-25101

LY61,YY52,61..ST

 1
51206-25100

LY6#,YY52,61..ST

 1
51207B - CROSSMEMBER SUB-ASSY, FRAME, NO.7
51207-25050

LY6#,YY52,61..ST

 1

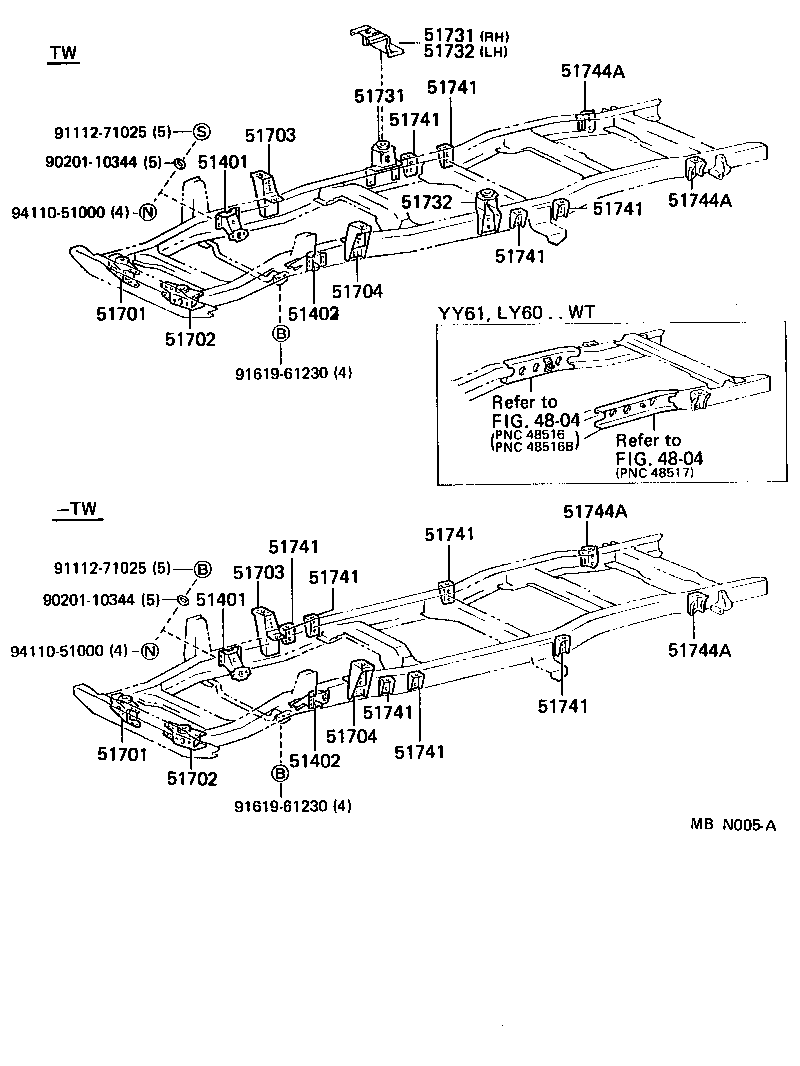

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 4804 4804 51401 51401 51402 51402 51701 51701 51702 51702 51703 51703 51704 51704 51731 51731 51732 51732 51741 51741 51741 51741 51741 51741 51741 51741 51741 51741 51744A 51744A 51744A 51744A 9020110344 9020110344 9111271025 9111271025 9161961230 9161961230 9411051000 9411051000
Part # Description Qty Price
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51401-25150

LY6#,YY52,61

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51401-25150

LY6#,YY52,61

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51401-25150

LY6#,YY52,61

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51401-25150

LY6#,YY52,61

 1
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-25050

LY6#,YY52,61

 1
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-25050

LY6#,YY52,61

 1
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51702-25010

LY6#,YY52,61

 1
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51702-25010

LY6#,YY52,61

 1
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51703-25100

LY6#,YY52,61..TW

 1
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51703-25100

LY6#,YY52,61..TW

 1
51731 - BRACKET, CAB REAR MOUNTING, RH
51705-95400

YY61..TW..ST;LY6#,YY52..TW

CAB SIDE

 1
51705-25040

YY52

FRAME SIDE

 1
51731 - BRACKET, CAB REAR MOUNTING, RH
51705-95400

YY61..TW..ST;LY6#,YY52..TW

CAB SIDE

 1
51705-25040

YY52

FRAME SIDE

 1
51732 - BRACKET, CAB REAR MOUNTING, LH
51706-95400

YY61..TW..ST;LY6#,YY52..TW

CAB SIDE

 1
51706-25020

LY6#,YY52,61..TW

FRAME SIDE

 1
51732 - BRACKET, CAB REAR MOUNTING, LH
51706-95400

YY61..TW..ST;LY6#,YY52..TW

CAB SIDE

 1
51706-25020

LY6#,YY52,61..TW

FRAME SIDE

 1
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-25040

LY6#,YY52,61..TW

 4
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-25040

LY6#,YY52,61..TW

 4
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-25040

LY6#,YY52,61..TW

 4
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-25040

LY6#,YY52,61..TW

 4
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-25040

LY6#,YY52,61..TW

 4
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-25040

LY6#,YY52,61..TW

 4
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-25040

LY6#,YY52,61..TW

 4
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-25040

LY6#,YY52,61..TW

 4
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-25040

LY6#,YY52,61..TW

 4
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-25040

LY6#,YY52,61..TW

 4
51744A - BRACKET, REAR BODY MOUNTING, NO.4
51744-25020

LY6#,YY52,61

 2
51744A - BRACKET, REAR BODY MOUNTING, NO.4
51744-25020

LY6#,YY52,61

 2
51744A - BRACKET, REAR BODY MOUNTING, NO.4
51744-25020

LY6#,YY52,61

 2
51744A - BRACKET, REAR BODY MOUNTING, NO.4
51744-25020

LY6#,YY52,61

 2
Common parts
90201-10344
91112-71025
91619-61230
94110-51000
Linked diagrams
4804
