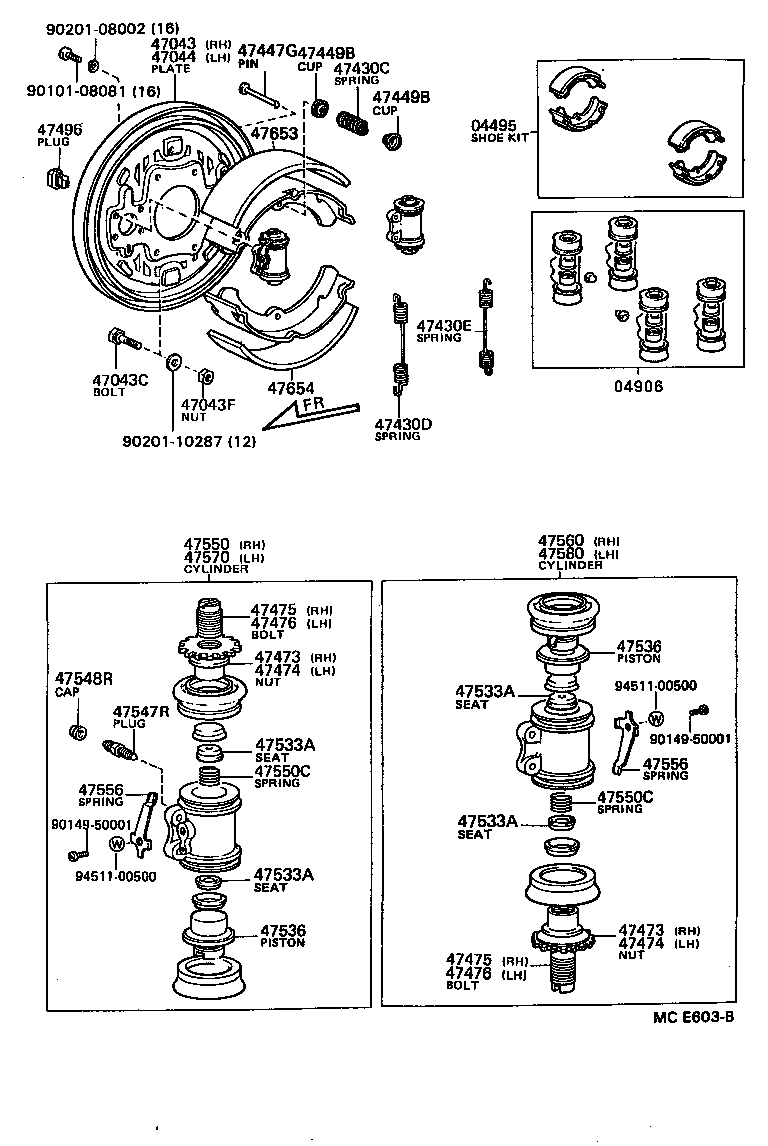

YY52L-MDP (1987)
Toyota Dyna150
(8708-9305)ST ; (9305- )ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04494-25020 |
LY6#,YY52,61..ST |
1 | ||
| 04494-25050 |
LY61,YY52,61..ST..GEN MARK NBK LN508,W(FR DISC BRAKE) |
1 | ||
| 04494-25020 |
LY61,YY52,61..ST..GEN |
1 | ||
| 04494-25050 |
YY52;LY61..ARL MARK NBK LN508 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-25070 |
LY6#,YY52,61..ST..GEN W(FR DISC BRAKE) |
1 | ||
| 04906-36040 |
LY6#,YY52,61..ST..GEN |
1 | ||
| 04906-25070 |
YY52 |
1 | ||
| 04906-36200 |
LY61,YY52,61..ST..GEN |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-25100 |
LY6#,YY52,61..ST |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 42184-35011 |
LY6#,YY52,61..ST *10-1.25PX23-13 |
12 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 94110-71000 |
LY6#,YY52,61..ST |
12 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-25070 |
LY6#,YY52,61..ST |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20756 |
LY6#,YY52,61..ST |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26009 |
LY6#,YY52,61..ST |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26009 |
LY6#,YY52,61..ST |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20010 |
LY6#,YY52,61 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
LY6#,YY52,61 |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
LY6#,YY52,61 |
8 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47551-25090 |
LY6#,YY52,61..ST..GEN W(FR DISC BRAKE) |
2 | ||
| 47551-36071 |
LY6#,YY52,61..ST..GEN |
2 | ||
| 47551-25090 |
LY61,YY52,61..ST |
2 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47551-25090 |
LY6#,YY52,61..ST..GEN W(FR DISC BRAKE) |
2 | ||
| 47551-36071 |
LY6#,YY52,61..ST..GEN |
2 | ||
| 47551-25090 |
LY61,YY52,61..ST |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47552-25090 |
LY61,YY52,61..ST |
2 | ||
| 47552-25090 |
LY6#,YY52,61..ST..GEN W(FR DISC BRAKE) |
2 | ||
| 47552-36071 |
LY6#,YY52,61..ST..GEN |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47552-25090 |
LY61,YY52,61..ST |
2 | ||
| 47552-25090 |
LY6#,YY52,61..ST..GEN W(FR DISC BRAKE) |
2 | ||
| 47552-36071 |
LY6#,YY52,61..ST..GEN |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36021 |
LY6#,YY52,61..ST |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36021 |
LY6#,YY52,61..ST |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36021 |
LY6#,YY52,61..ST |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36021 |
LY6#,YY52,61..ST |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
LY6#,YY52,61 |
4 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
LY6#,YY52,61..ST..GEN |
8 | ||
| 47533-60011 |
LY6#,YY52,61..ST..GEN W(FR DISC BRAKE) |
8 | ||
| 47533-60011 |
LY61,YY52,61..ST |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
LY6#,YY52,61..ST..GEN |
8 | ||
| 47533-60011 |
LY6#,YY52,61..ST..GEN W(FR DISC BRAKE) |
8 | ||
| 47533-60011 |
LY61,YY52,61..ST |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
LY6#,YY52,61..ST..GEN |
8 | ||
| 47533-60011 |
LY6#,YY52,61..ST..GEN W(FR DISC BRAKE) |
8 | ||
| 47533-60011 |
LY61,YY52,61..ST |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
LY6#,YY52,61..ST..GEN |
8 | ||
| 47533-60011 |
LY6#,YY52,61..ST..GEN W(FR DISC BRAKE) |
8 | ||
| 47533-60011 |
LY61,YY52,61..ST |
8 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-60030 |
LY61,YY52,61..ST |
4 | ||
| 47531-35090 |
LY6#,YY52,61..ST..GEN |
4 | ||
| 47531-60030 |
LY6#,YY52,61..ST..GEN W(FR DISC BRAKE) |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-60030 |
LY61,YY52,61..ST |
4 | ||
| 47531-35090 |
LY6#,YY52,61..ST..GEN |
4 | ||
| 47531-60030 |
LY6#,YY52,61..ST..GEN W(FR DISC BRAKE) |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
LY6#,YY52,61 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
LY6#,YY52,61 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-25011 |
LY6#,YY52,61..ST..GEN |
1 | ||
| 47550-25090 |
LY6#,YY52,61..ST..GEN W(FR DISC BRAKE) |
1 | ||
| 47550-25090 |
YY52;LY61..ARL |
1 | ||
| 47550-25012 |
LY61,YY52,61..ST..GEN |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
LY6#,YY52,61..ST..GEN |
4 | ||
| 90501-09735 |
LY6#,YY52,61..ST..GEN W(FR DISC BRAKE) |
4 | ||
| 90501-09735 |
LY61,YY52,61 |
4 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
LY6#,YY52,61..ST..GEN |
4 | ||
| 90501-09735 |
LY6#,YY52,61..ST..GEN W(FR DISC BRAKE) |
4 | ||
| 90501-09735 |
LY61,YY52,61 |
4 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47555-36020 |
LY6#,YY52,61..ST |
4 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47555-36020 |
LY6#,YY52,61..ST |
4 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-25012 |
LY61,YY52,61..ST..GEN |
1 | ||
| 47560-25011 |
LY6#,YY52,61..ST..GEN |
1 | ||
| 47560-25090 |
YY52;LY61..ARL |
1 | ||
| 47560-25090 |
LY6#,YY52,61..ST..GEN W(FR DISC BRAKE) |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-25011 |
LY6#,YY52,61..ST..GEN |
1 | ||
| 47570-25012 |
LY61,YY52,61..ST..GEN |
1 | ||
| 47570-25090 |
LY6#,YY52,61..ST..GEN W(FR DISC BRAKE) |
1 | ||
| 47570-25090 |
YY52;LY61..ARL |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-25012 |
LY61,YY52,61..ST..GEN |
1 | ||
| 47580-25011 |
LY6#,YY52,61..ST..GEN |
1 | ||
| 47580-25090 |
YY52;LY61..ARL |
1 | ||
| 47580-25090 |
LY6#,YY52,61..ST..GEN W(FR DISC BRAKE) |
1 | ||
| 47653 - LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER) | ||||
| 47651-25011 |
LY6#,YY52,61..ST |
2 | ||
| 47654 - LINING, REAR BRAKE SHOE(FOR REAR OR LOWER) | ||||
| 47651-25011 |
LY6#,YY52,61..ST |
2 | ||
| Common parts | ||||
| 90101-08081 | ||||
| 90149-50001 | ||||
| 90201-08002 | ||||
| 90201-10287 | ||||
| 94511-00500 | ||||
(9305- )ST..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-25040 |
LY61,YY52,61..ST..GEN LH |
2 | ||
| 04474-25030 |
LY61,YY52,61..ST..GEN RH |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04494-25020 |
LY6#,YY52,61..ST |
1 | ||
| 04494-25050 |
LY61,YY52,61..ST..GEN MARK NBK LN508,W(FR DISC BRAKE) |
1 | ||
| 04494-25020 |
LY61,YY52,61..ST..GEN |
1 | ||
| 04494-25050 |
YY52;LY61..ARL MARK NBK LN508 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-25070 |
LY6#,YY52,61..ST..GEN W(FR DISC BRAKE) |
1 | ||
| 04906-36040 |
LY6#,YY52,61..ST..GEN |
1 | ||
| 04906-25070 |
YY52 |
1 | ||
| 04906-36200 |
LY61,YY52,61..ST..GEN |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-25100 |
LY6#,YY52,61..ST |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 42184-35011 |
LY6#,YY52,61..ST *10-1.25PX23-13 |
12 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 94110-71000 |
LY6#,YY52,61..ST |
12 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-25070 |
LY6#,YY52,61..ST |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20756 |
LY6#,YY52,61..ST |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26009 |
LY6#,YY52,61..ST |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26009 |
LY6#,YY52,61..ST |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20010 |
LY6#,YY52,61 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
LY6#,YY52,61 |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
LY6#,YY52,61 |
8 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36021 |
LY6#,YY52,61..ST |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36021 |
LY6#,YY52,61..ST |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36021 |
LY6#,YY52,61..ST |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36021 |
LY6#,YY52,61..ST |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
LY6#,YY52,61 |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
LY6#,YY52,61 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
LY6#,YY52,61 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-25011 |
LY6#,YY52,61..ST..GEN |
1 | ||
| 47550-25090 |
LY6#,YY52,61..ST..GEN W(FR DISC BRAKE) |
1 | ||
| 47550-25090 |
YY52;LY61..ARL |
1 | ||
| 47550-25012 |
LY61,YY52,61..ST..GEN |
1 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47555-36020 |
LY6#,YY52,61..ST |
4 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47555-36020 |
LY6#,YY52,61..ST |
4 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-25012 |
LY61,YY52,61..ST..GEN |
1 | ||
| 47560-25011 |
LY6#,YY52,61..ST..GEN |
1 | ||
| 47560-25090 |
YY52;LY61..ARL |
1 | ||
| 47560-25090 |
LY6#,YY52,61..ST..GEN W(FR DISC BRAKE) |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-25011 |
LY6#,YY52,61..ST..GEN |
1 | ||
| 47570-25012 |
LY61,YY52,61..ST..GEN |
1 | ||
| 47570-25090 |
LY6#,YY52,61..ST..GEN W(FR DISC BRAKE) |
1 | ||
| 47570-25090 |
YY52;LY61..ARL |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-25012 |
LY61,YY52,61..ST..GEN |
1 | ||
| 47580-25011 |
LY6#,YY52,61..ST..GEN |
1 | ||
| 47580-25090 |
YY52;LY61..ARL |
1 | ||
| 47580-25090 |
LY6#,YY52,61..ST..GEN W(FR DISC BRAKE) |
1 | ||
| 47653 - LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER) | ||||
| 47651-25011 |
LY6#,YY52,61..ST |
2 | ||
| 47654 - LINING, REAR BRAKE SHOE(FOR REAR OR LOWER) | ||||
| 47651-25011 |
LY6#,YY52,61..ST |
2 | ||
| Common parts | ||||
| 90101-08081 | ||||
| 90159-50001 | ||||
| 90201-08002 | ||||
| 90201-10287 | ||||
| 94511-00500 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
