YY52L-MDP (1987)
Toyota Dyna150
(8708- )

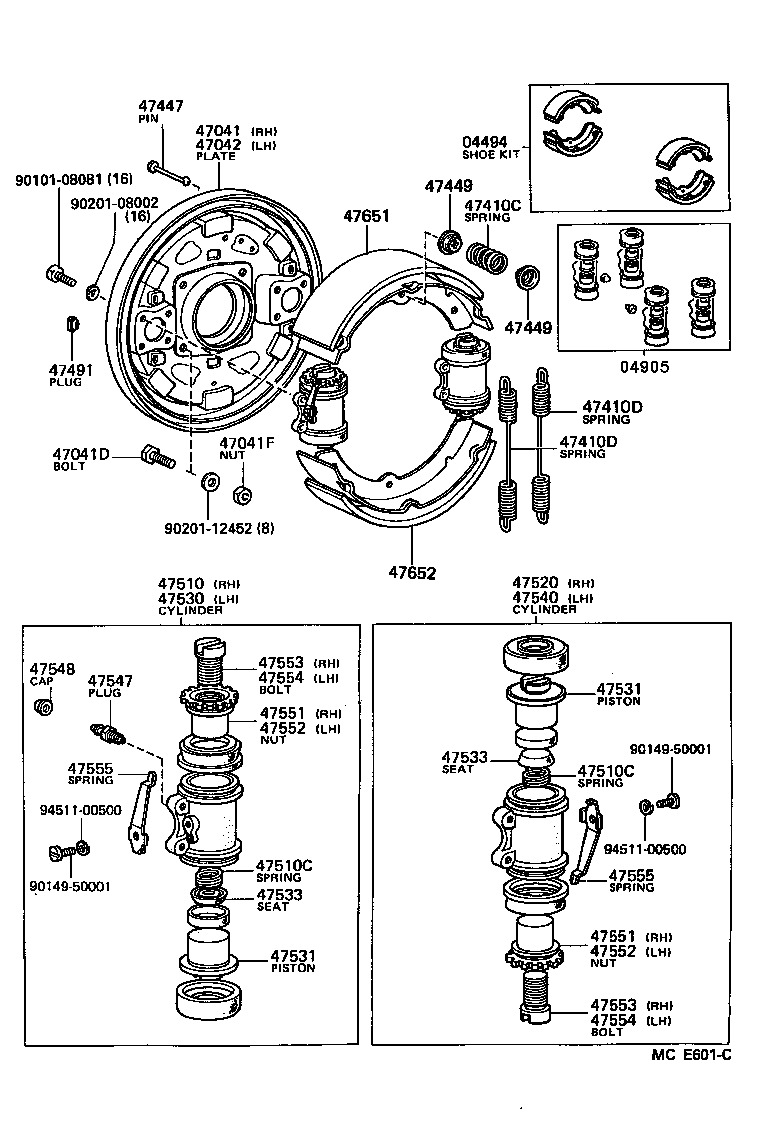

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04494 - SHOE KIT, FRONT BRAKE | ||||
| 04494-25020 |
LY6#,YY52,61..ST..GEN |
1 | ||
| 04905 - CUP KIT, FRONT WHEEL CYLINDER | ||||
| 04905-25020 |
LY6#,YY52,61..ST..GEN |
1 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-25050 |
LY6#,YY52,61..ST..GEN |
1 | ||
| 47041-25051 |
LY61,YY52,61..ST..GEN |
1 | ||
| 47041D - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 90119-12096 |
LY6#,YY52,61..ST..GEN |
8 | ||
| 47041F - NUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 94115-71200 |
LY6#,YY52,61..ST..GEN |
8 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-25040 |
LY6#,YY52,61..ST..GEN |
1 | ||
| 47042-25041 |
LY61,YY52,61..ST..GEN |
1 | ||
| 47410C - SPRING(FOR FRONT BRAKE SHOE HOLD DOWN) | ||||
| 90501-20756 |
LY6#,YY52,61..ST..GEN |
4 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-26009 |
LY61,YY52,61..ST..GEN |
4 | ||
| 90506-26009 |
LY6#,YY52,61..ST |
4 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-26009 |
LY61,YY52,61..ST..GEN |
4 | ||
| 90506-26009 |
LY6#,YY52,61..ST |
4 | ||
| 47447 - PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47447-20010 |
LY61,YY52,61..ST..GEN |
4 | ||
| 47447-20010 |
LY6#,YY52,61..ST |
4 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
LY6#,YY52,61..ST..GEN |
8 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
LY6#,YY52,61..ST..GEN |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-36010 |
LY6#,YY52,61..ST..GEN |
4 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-25040 |
LY6#,YY52,61..ST..GEN |
1 | ||
| 47510C - SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90501-10759 |
LY6#,YY52,61..ST..GEN |
4 | ||
| 47510C - SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90501-10759 |
LY6#,YY52,61..ST..GEN |
4 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-25030 |
LY6#,YY52,61..ST..GEN |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-25040 |
LY6#,YY52,61..ST..GEN |
1 | ||
| 47531 - PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE) | ||||
| 47531-60010 |
LY6#,YY52,61..ST..GEN |
4 | ||
| 47531 - PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE) | ||||
| 47531-60010 |
LY6#,YY52,61..ST..GEN |
4 | ||
| 47533 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE) | ||||
| 47533-25010 |
LY6#,YY52,61..ST..GEN |
4 | ||
| 47533 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE) | ||||
| 47533-25010 |
LY6#,YY52,61..ST..GEN |
4 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47540-25030 |
LY6#,YY52,61..ST..GEN |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-12010 |
LY6#,YY52,61..ST..GEN |
2 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
LY6#,YY52,61..ST..GEN |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-25050 |
LY6#,YY52,61..ST..GEN |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-25050 |
LY6#,YY52,61..ST..GEN |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-25050 |
LY6#,YY52,61..ST..GEN |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-25050 |
LY6#,YY52,61..ST..GEN |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36021 |
LY6#,YY52,61..ST..GEN |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36021 |
LY6#,YY52,61..ST..GEN |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36021 |
LY6#,YY52,61..ST..GEN |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36021 |
LY6#,YY52,61..ST..GEN |
2 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-25010 |
LY6#,YY52,61..ST..GEN |
4 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-25010 |
LY6#,YY52,61..ST..GEN |
4 | ||
| 47651 - LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER) | ||||
| 47651-25011 |
LY6#,YY52,61..ST..GEN |
2 | ||
| 47652 - LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER) | ||||
| 47651-25011 |
LY6#,YY52,61..ST..GEN |
2 | ||
| Common parts | ||||
| 90101-08081 | ||||
| 90149-50001 | ||||
| 90201-08002 | ||||
| 90201-12452 | ||||
| 94511-00500 | ||||
