YY52L-MDP (1987)

Toyota Dyna150

Production Aug 1987 - May 1995
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

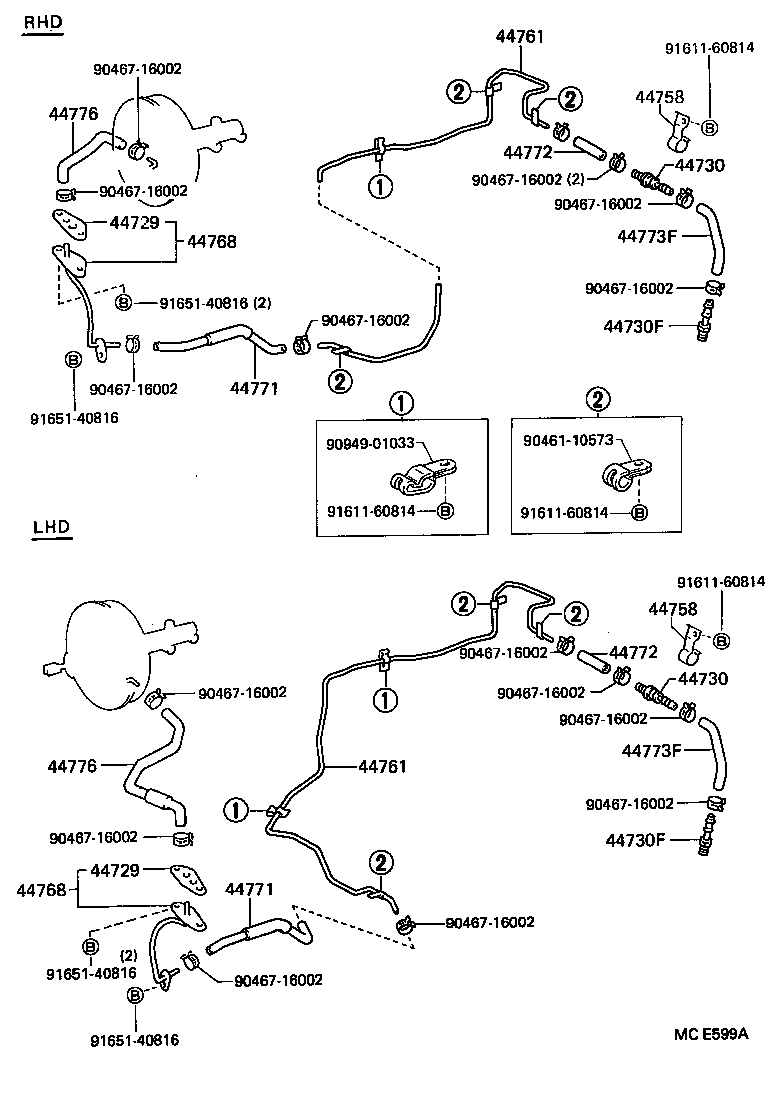

ILLUST NO. 2 OF 2(8708- )YY52,61

Click highlighted areas on diagram

diagram 44729 44729 44730 44730 44730F 44730F 44758 44758 44761 44761 44768 44768 44771 44771 44772 44772 44773F 44773F 44776 44776 9046110573 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9094901033 9161160814 9161160814 9161160814 9161160814 9165140816 9165140816 9165140816 9165140816
Part # Description Qty Price
44729 - GASKET, VACUUM TUBE
44729-36020

LY6#,YY52,61

 1
44729 - GASKET, VACUUM TUBE
44729-36020

LY6#,YY52,61

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-24020

YY52,61

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-24020

YY52,61

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

YY52,61

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

YY52,61

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-26030

YY52,61

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-26030

YY52,61

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-25090

YY52,61..LHD

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-25090

YY52,61..LHD

 1
44768 - TUBE, BOOSTER VACUUM
44768-36080

LY60,YY52,61..LHD

 1
44768-36030

LY6#,YY52,61..LHD

 1
44768 - TUBE, BOOSTER VACUUM
44768-36080

LY60,YY52,61..LHD

 1
44768-36030

LY6#,YY52,61..LHD

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-25030

YY52,61..LHD

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-25030

YY52,61..LHD

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
90445-17039

YY52,61

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
90445-17039

YY52,61

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-25010

YY52,61..LHD

 1
44773-25010

YY52,61

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-25010

YY52,61..LHD

 1
44773-25010

YY52,61

 1
44776 - HOSE, BRAKE BOOSTER
44776-36040

LY6#,YY52,61..LHD

 1
44776 - HOSE, BRAKE BOOSTER
44776-36040

LY6#,YY52,61..LHD

 1
Common parts
90461-10573
90467-16002
90949-01033
91611-60814
91651-40816

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 04443 44606E 44610 44621V 44629 44635B 44642 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-25130

YY52,61..ST

W(FR DISC BRAKE)

 1
04443-25160

YY52,61..ST

 1
44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON
44606-36240

LY6#,YY61..LHD..T3;LY6#,YY52,61..(T2,TW)..GEN

 1
44610 - BOOSTER ASSY, BRAKE
44610-25140

LY6#,YY52,61..LHD

 1
44610-25160

YY52

 1
44610-25160

LY6#,YY52,61..LHD

W(FR DISC BRAKE)

 1
44621V - SEAL, BOOSTER BODY
44621-28120

LY6#,YY61..LHD..T3;LY6#,YY52,61..(T2,TW)..GEN

 1
44629 - RING, CIRCULAR INTERNAL
44628-28120

LY6#,YY61..LHD..T3;LY6#,YY52,61..(T2,TW)..GEN

 1
44635B - KEY, VALVE STOPPER
44635-36240

LY6#,YY61..LHD..T3;LY6#,YY52,61..(T2,TW)..GEN

 1
44642 - PISTON, BRAKE BOOSTER
44642-36240

LY6#,YY52,61..LHD

 1
Common parts
90179-08038

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 04443 44605 44608 44610 44633 44637A 44645 44647A 44673A 9017908038 9017908146
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-25130

YY52,61..ST

W(FR DISC BRAKE)

 1
04443-25160

YY52,61..ST

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-36220

LY6#,YY52,61..ST

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-25150

LY6#,YY52,61..ST

 1
44610 - BOOSTER ASSY, BRAKE
44610-25140

LY6#,YY52,61..LHD

 1
44610-25160

YY52

 1
44610-25160

LY6#,YY52,61..LHD

W(FR DISC BRAKE)

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-28130

LY6#,YY52,61..ST

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-25150

LY6#,YY52,61..ST

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-36220

LY6#,YY52,61..ST

 1
44647A - ROD, BOOSTER PISTON
44647-25150

LY6#,YY52,61..ST

 1
44673A - BODY, BOOSTER VALVE
44673-25150

LY6#,YY52,61..ST

 1
Common parts
90179-08038
90179-08146
