YY52L-MDP (1987)

Toyota Dyna150

Production Aug 1987 - May 1995
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )3Y

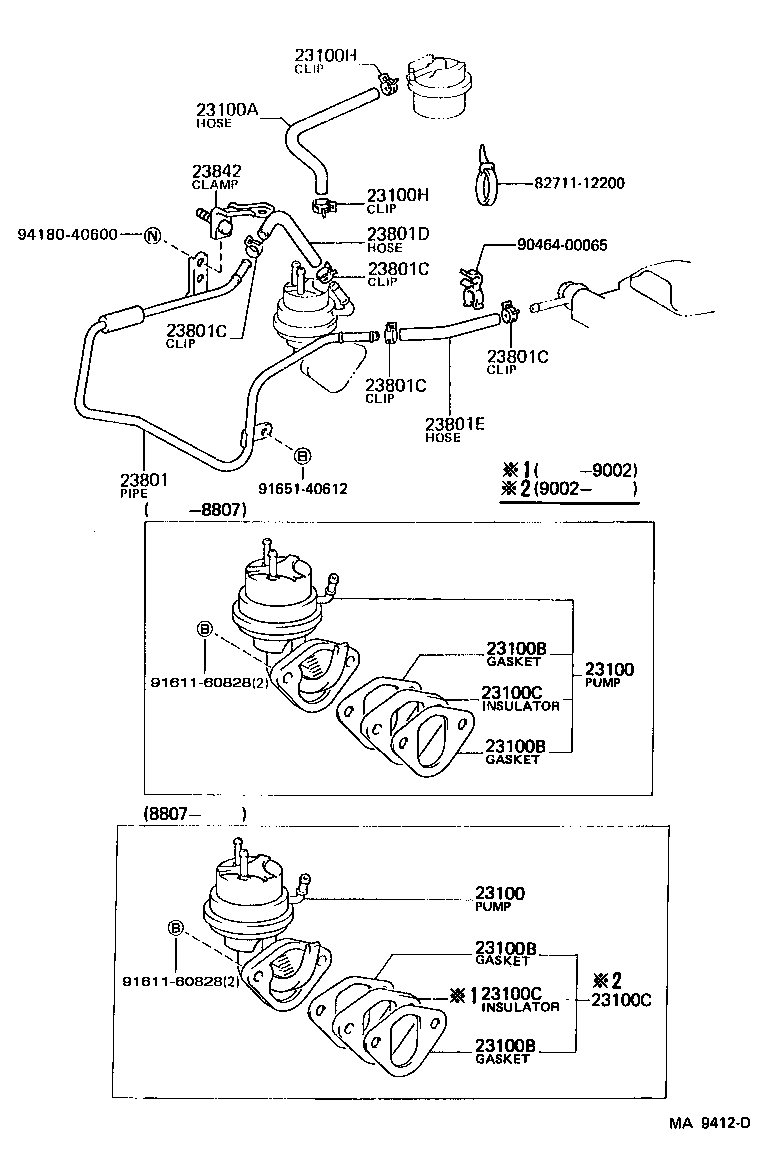

Click highlighted areas on diagram

diagram 23100 23100 23100A 23100B 23100B 23100B 23100B 23100C 23100C 23100C 23100H 23100H 23801 23801C 23801C 23801C 23801C 23801D 23801E 23842 8271112200 9046400065 9161160828 9161160828 9165140612 9418040600
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-79055

3Y..YY52,61

 1
23100-73031

3Y..YY52,61

 1
23100 - PUMP ASSY, FUEL
23100-79055

3Y..YY52,61

 1
23100-73031

3Y..YY52,61

 1
23100A - HOSE, FUEL
90447-12022

3Y..YY52,61

 1
23100B - GASKET, FUEL PUMP
90923-05016

3Y..YY52,61

 2
90923-05022

3Y..YY52,61

 2
23100B - GASKET, FUEL PUMP
90923-05016

3Y..YY52,61

 2
90923-05022

3Y..YY52,61

 2
23100B - GASKET, FUEL PUMP
90923-05016

3Y..YY52,61

 2
90923-05022

3Y..YY52,61

 2
23100B - GASKET, FUEL PUMP
90923-05016

3Y..YY52,61

 2
90923-05022

3Y..YY52,61

 2
23100C - INSULATOR, FUEL PUMP
90923-06014

3Y..YY52,61

 1
90923-06008

3Y..YY52,61

 1
23100C - INSULATOR, FUEL PUMP
90923-06014

3Y..YY52,61

 1
90923-06008

3Y..YY52,61

 1
23100C - INSULATOR, FUEL PUMP
90923-06014

3Y..YY52,61

 1
90923-06008

3Y..YY52,61

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

3Y..YY52,61

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

3Y..YY52,61

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23811-71011

3Y..YY52,61

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

3Y..YY52,61

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

3Y..YY52,61

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

3Y..YY52,61

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

3Y..YY52,61

 4
23801D - HOSE, FUEL PIPE, NO.1
95333-06010

3Y..YY52,61

*H,L=100

 1
23801E - HOSE, FUEL PIPE, NO.2
95333-06010

3Y..YY52,61

 1
23842 - CLAMP, FUEL PIPE(HOSE), NO.2
23841-71011

3Y..YY52,61

 1
23841-71012

3Y..YY52,61

 1
Common parts
82711-12200
90464-00065
91611-60828
91651-40612
94180-40600
