YY52L-MDP (1987)

Toyota Dyna150

Production Aug 1987 - May 1995
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708-8808)2L ; (8808- )3L

Click highlighted areas on diagram

12V 50A

diagram 27020 27036 27310 27310B 27312 27313A 27315A 27330 27333 27350 27351 27357 27370A 27371 27372 2737845020 2737854010 2738354010 2738745090 2738754010 2738754010 2738756070 27388 27410 27411 27412A 27441 27700A 2837854010 9009902208 9009902209 9009902209 9009904947 9009904948 9009905118 9009905118 9009905118 9009905118 9009905118 9009905118 9009905119 9009905185 9009907103 9009914055 9009952082 9010110231 9011908127 9017906158 9017910016 9020110283 9165640616 9331915008
Part # Description Qty Price

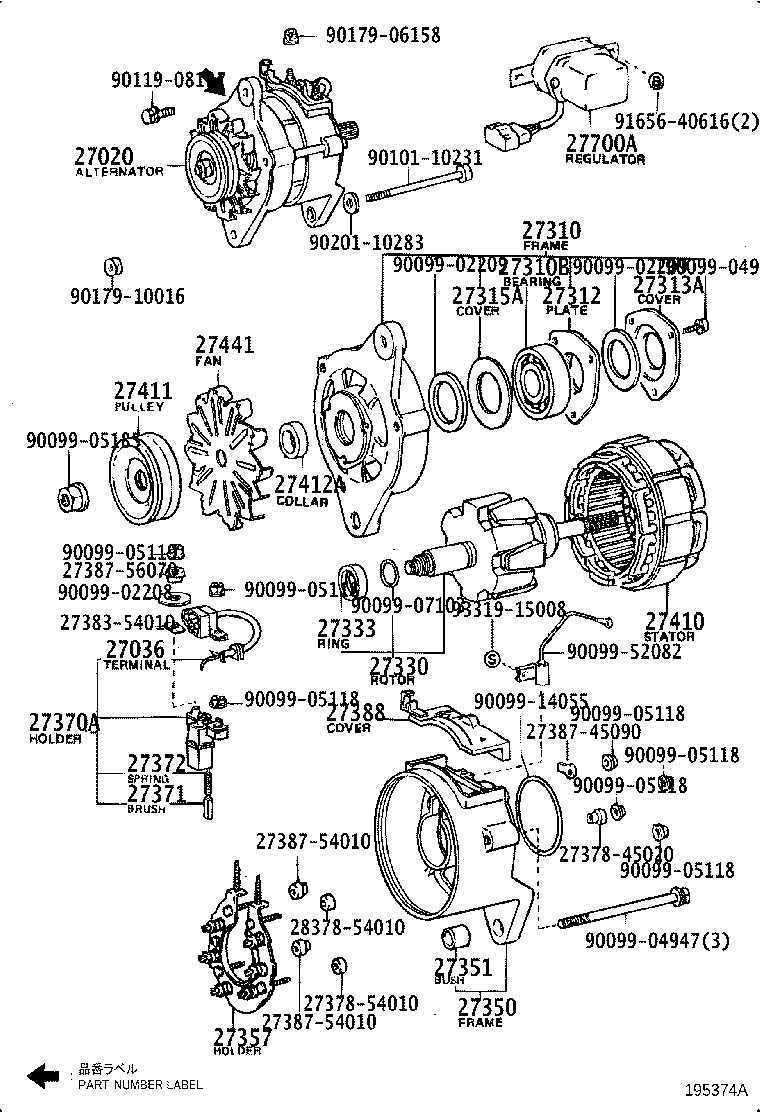

27020 - ALTERNATOR ASSY
27060-72380

3Y..YY52,61

12V 50A

 1
27060-72140

3Y..YY52,61

12V 50A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-72170

3Y..YY52,61

 1
27310-72171

3Y..YY52,61

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10198

3Y..YY52,61

 1
90099-10170

3Y..YY52,61

 1
27312 - PLATE, RETAINER
27312-72120

3Y..YY52,61

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-72150

3Y..YY52,61

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-72150

3Y..YY52,61

 1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-70300

3Y..YY52,61

 1
27370-63021

3Y..YY52,61

 1
27370-35060

3Y..YY52,61

 1
27371 - BRUSH, ALTERNATOR
27371-63020

3Y..YY52,61

 2
27371-70300

3Y..YY52,61

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

3Y..YY52,61

 2
27411 - PULLEY, ALTERNATOR
27411-72120

3Y..YY52,61

 1
27700A - REGULATOR ASSY, GENERATOR
27700-10080

3Y..YY52,61

 1
27700-10050

3Y..YY52,61

 1
27700-66030

3Y..YY52,61

 1
Common parts
27378-45020
27378-54010
27383-54010
27387-45090
27387-54010
27387-56070
28378-54010
90099-02208
90099-02209
90099-04947
90099-04948
90099-05118
90099-05119
90099-05185
90099-07103
90099-14055
90099-52082
90101-10231
90119-08127
90179-06158
90179-10016
90201-10283
91656-40616
93319-15008

(8708- )3Y

Click highlighted areas on diagram

12V 50A

diagram 27020 27039 27310 27310B 27312 27330 27330A 27357 27359 27370A 27371 27372 2738710080 27411 27443 27700A 9009900159 9009900160 9009900160 9009900161 9009904329 9009904330 9009904333 9009905119 9009905171 9009905172 9010110156 9011908023 9017906158 9017910088 9020110005 9161160840 9331914025
Part # Description Qty Price

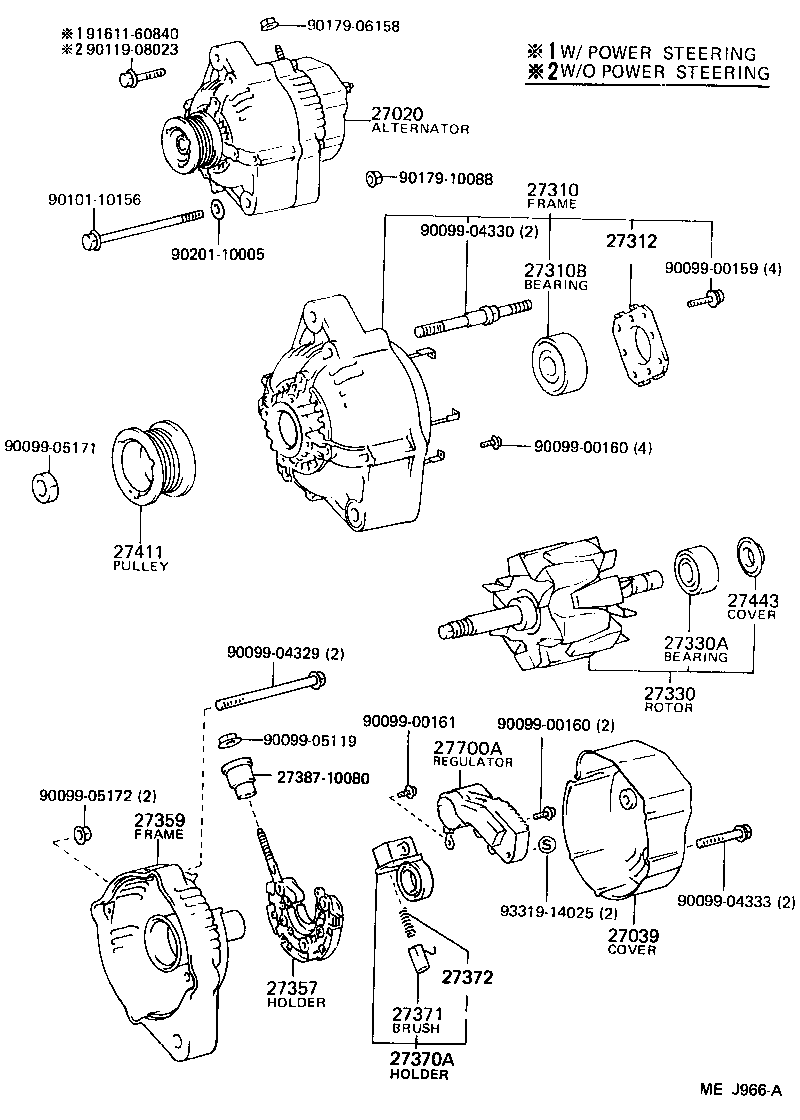

27020 - ALTERNATOR ASSY
27060-72380

3Y..YY52,61

12V 50A

 1
27060-72140

3Y..YY52,61

12V 50A

 1
27039 - COVER, ALTERNATOR REAR END
27039-11190

3Y..YY52,61

 1
27039-72150

3Y..YY52,61

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-72170

3Y..YY52,61

 1
27310-72171

3Y..YY52,61

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10198

3Y..YY52,61

 1
90099-10170

3Y..YY52,61

 1
27312 - PLATE, RETAINER
27312-72120

3Y..YY52,61

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-72150

3Y..YY52,61

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10154

3Y..YY52,61

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-72150

3Y..YY52,61

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-72150

3Y..YY52,61

 1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-70300

3Y..YY52,61

 1
27370-63021

3Y..YY52,61

 1
27370-35060

3Y..YY52,61

 1
27371 - BRUSH, ALTERNATOR
27371-63020

3Y..YY52,61

 2
27371-70300

3Y..YY52,61

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

3Y..YY52,61

 2
27411 - PULLEY, ALTERNATOR
27411-72120

3Y..YY52,61

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

3Y..YY52,61

 1
27700A - REGULATOR ASSY, GENERATOR
27700-10080

3Y..YY52,61

 1
27700-10050

3Y..YY52,61

 1
27700-66030

3Y..YY52,61

 1
Common parts
27387-10080
90099-00159
90099-00160
90099-00161
90099-04329
90099-04330
90099-04333
90099-05119
90099-05171
90099-05172
90101-10156
90119-08023
90179-06158
90179-10088
90201-10005
91611-60840
93319-14025
