YY52L-MDP (1987)

Toyota Dyna150

Production Aug 1987 - May 1995
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

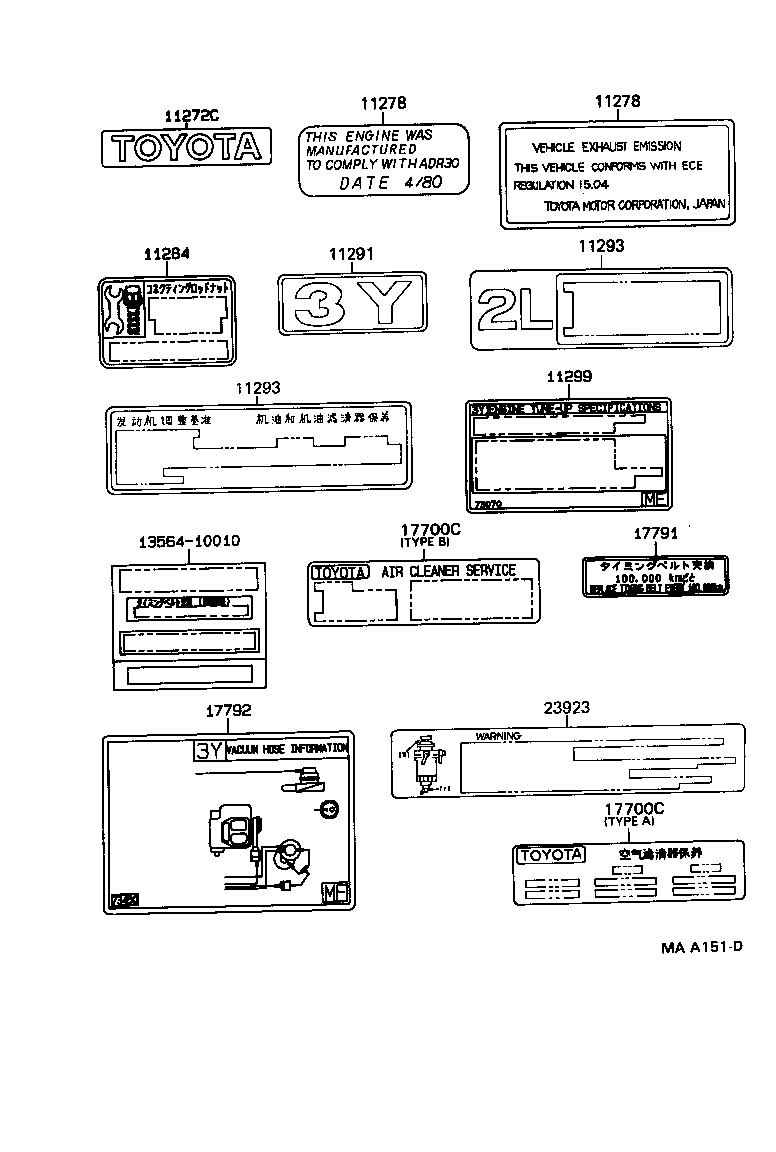

Click highlighted areas on diagram

diagram 11272C 11278 11278 11284 11291 11293 11293 11299 1356410010 17700C 17700C 17791 17792 23923
Part # Description Qty Price
11291 - PLATE, ENGINE NAME
11291-73010

3Y..YY52,61

 1
11293 - PLATE, ENGINE CAUTION & ENGINE NAME
11296-72060

3Y..YY52

 1
11293-72040

3Y..YY52

 1
11296-72061

3Y..YY52

 1
11293 - PLATE, ENGINE CAUTION & ENGINE NAME
11296-72060

3Y..YY52

 1
11293-72040

3Y..YY52

 1
11296-72061

3Y..YY52

 1
17700C - PLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)
17791-64020

3Y..YY61..LHD;2L,3Y..LY60,YY52

 1
17791-73010

3Y..YY52

TYPE A

 1
17791-64020

3Y..YY52,61

TYPE B

 1
17791-73010

3Y..YY52

TYPE A

 1
17700C - PLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)
17791-64020

3Y..YY61..LHD;2L,3Y..LY60,YY52

 1
17791-73010

3Y..YY52

TYPE A

 1
17791-64020

3Y..YY52,61

TYPE B

 1
17791-73010

3Y..YY52

TYPE A

 1
Common parts
13564-10010
