YY52L-MDP (1987)
Toyota Dyna150

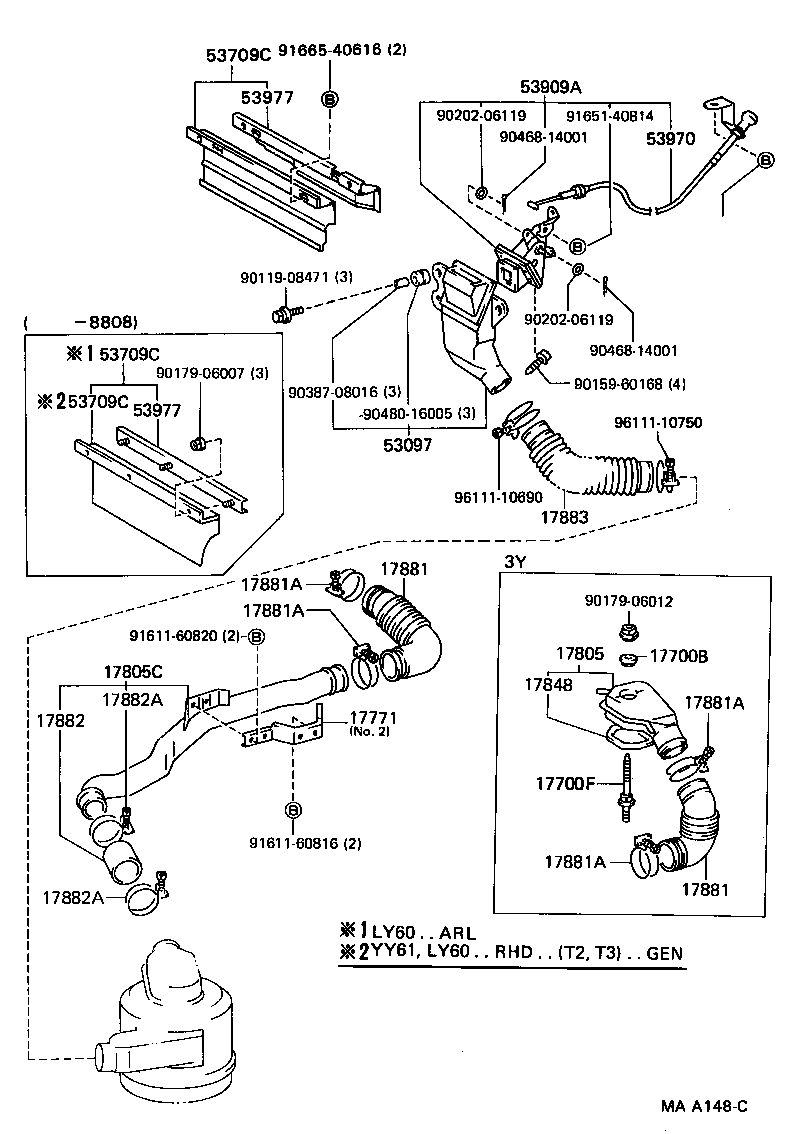

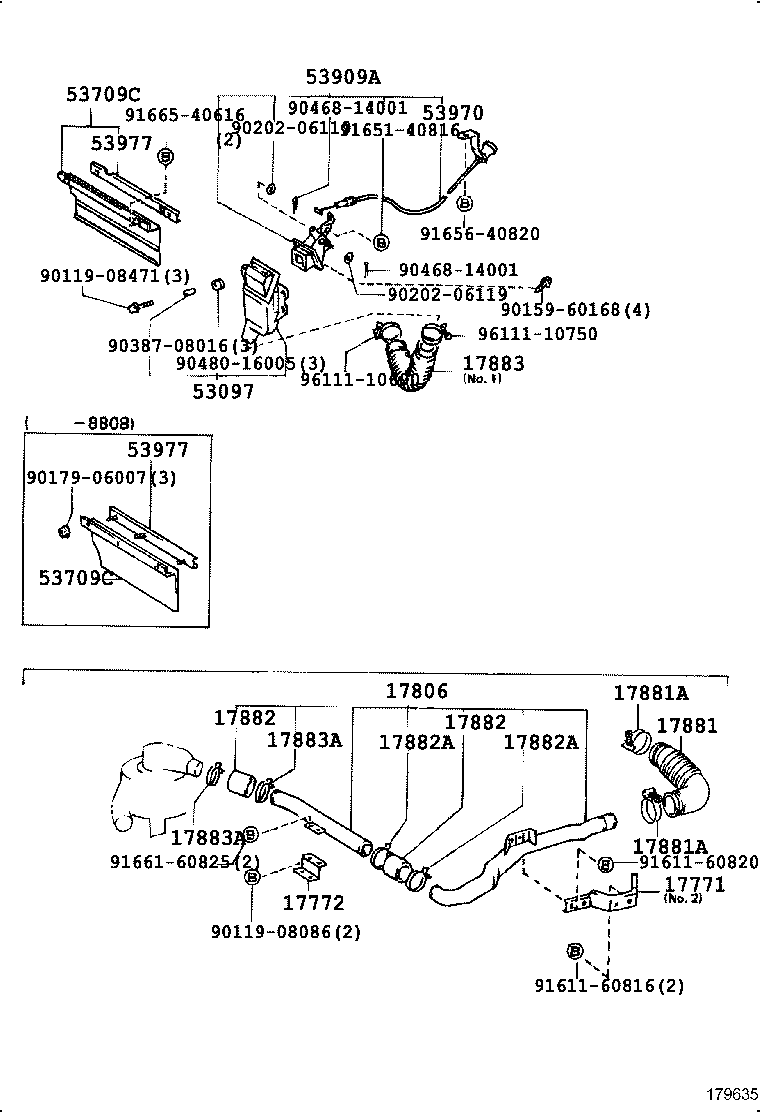

ILLUST NO. 2 OF 3(8708-8808)2L..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17771 - BRACKET, AIR CLEANER INLET DUCT | ||||
| 17771-71010 |
3Y..YY52,61 NO.1 |
1 | ||
| 17771-54010 |
3Y..YY52,61 NO.2 |
1 | ||
| 17771-54010 |
3Y..YY52,61..ST NO.2 |
1 | ||
| 17771-71010 |
3Y..YY61..LHD..T3;3Y..YY52,61..T2,TW NO.1 |
1 | ||
| 17772 - BRACKET, INTAKE AIR CONNECTOR, NO.2 | ||||
| 17772-54010 |
3Y..YY52,61..LHD |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17806-54040 |
3Y..YY52,61..LHD |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-71070 |
3Y..YY52,61 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
3Y..YY52,61 CARBURETOR SIDE |
1 | ||
| 96111-10690 |
3Y..YY52,61 CONNECTOR SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
3Y..YY52,61 CARBURETOR SIDE |
1 | ||
| 96111-10690 |
3Y..YY52,61 CONNECTOR SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-54220 |
3Y..YY52,61 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-54220 |
3Y..YY52,61 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
3Y..YY52,61 |
2 | ||
| 96111-10750 |
3Y..YY52,61..ST |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
3Y..YY52,61 |
2 | ||
| 96111-10750 |
3Y..YY52,61..ST |
2 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-95015 |
3Y..YY52,61..LHD W(SCHNORKEL),NO.1 |
1 | ||
| 17883-95015 |
3Y..YY52,61..LHD |
1 | ||
| 17882-54220 |
3Y..YY52,61..LHD NO.1 |
1 | ||
| 17883-95018 |
3Y..YY52,61..LHD W(SCHNORKEL) |
1 | ||
| 17883-95016 |
3Y..YY52,61..LHD W(SCHNORKEL),NO.2 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
3Y..YY52,61..LHD |
2 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
3Y..YY52,61..LHD |
2 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-95413 |
YY52,61..LHD W(SCHNORKEL) |
1 | ||
| 53097-95017 |
YY52,61..LHD |
1 | ||
| 53097-25030 |
YY52,61..LHD |
1 | ||
| 53097-95015 |
YY52,61..LHD W(SCHNORKEL) |
1 | ||
| 53097-95415 |
YY52,61..LHD |
1 | ||
| 53709C - COVER SUB-ASSY, AIR CLEANER INLET | ||||
| 53767-95401 |
YY52,61..LHD |
1 | ||
| 53709-95016 |
YY52,61..LHD |
1 | ||
| 53709C - COVER SUB-ASSY, AIR CLEANER INLET | ||||
| 53767-95401 |
YY52,61..LHD |
1 | ||
| 53709-95016 |
YY52,61..LHD |
1 | ||
| 53909A - BRACKET SUB-ASSY, AIR CLEANER SHUTTER, NO.1 | ||||
| 53909-95405 |
YY52,61..LHD |
1 | ||
| 53909-37020 |
YY52,61..LHD |
1 | ||
| 53970 - CABLE ASSY, AIR CLEANER INLET SHUTTER CONTROL | ||||
| 53970-95401 |
YY52,61..LHD |
1 | ||
| 53977 - PLATE, AIR CLEANER INLET COVER | ||||
| 53977-95012 |
YY52,61..LHD |
1 | ||
| 53977-95400 |
YY52,61 |
1 | ||
| 53977 - PLATE, AIR CLEANER INLET COVER | ||||
| 53977-95012 |
YY52,61..LHD |
1 | ||
| 53977-95400 |
YY52,61 |
1 | ||
| Common parts | ||||
| 90119-08086 | ||||
| 90119-08471 | ||||
| 90159-60168 | ||||
| 90179-06007 | ||||
| 90202-06119 | ||||
| 90387-08016 | ||||
| 90468-14001 | ||||
| 90480-16005 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91651-40816 | ||||
| 91656-40820 | ||||
| 91661-60825 | ||||
| 91665-40616 | ||||
| 96111-10690 | ||||
| 96111-10750 | ||||
ILLUST NO. 1 OF 3(8708-8808)2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-54360 |
3Y..YY52,61..LHD |
1 | ||
| 17700-54360 |
3Y..YY52,61..LHD |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
3Y..YY52,61 |
1 | ||
| 90175-08008 |
3Y..YY52,61 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17701-54200 |
3Y..YY52,61 |
1 | ||
| 17701-54200 |
3Y..YY52,61 |
1 | ||
| 17736 - NUT, AIR CLEANER CASE | ||||
| 90175-06003 |
3Y..YY52,61 |
1 | ||
| 90175-06003 |
3Y..YY52,61 |
1 | ||
| 17771 - BRACKET, AIR CLEANER INLET DUCT | ||||
| 17771-71010 |
3Y..YY52,61 NO.1 |
1 | ||
| 17771-71010 |
3Y..YY52,61 NO.1 |
1 | ||
| 17771-54010 |
3Y..YY52,61 NO.2 |
1 | ||
| 17771-54010 |
3Y..YY52,61 NO.2 |
1 | ||
| 17771-54010 |
3Y..YY52,61..ST NO.2 |
1 | ||
| 17771-54010 |
3Y..YY52,61..ST NO.2 |
1 | ||
| 17771-71010 |
3Y..YY61..LHD..T3;3Y..YY52,61..T2,TW NO.1 |
1 | ||
| 17771-71010 |
3Y..YY61..LHD..T3;3Y..YY52,61..T2,TW NO.1 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-54070 |
3Y..YY52,61 |
1 | ||
| 17801-54070 |
3Y..YY52,61 |
1 | ||
| 17801-54070 |
3Y..YY52,61..ST |
1 | ||
| 17801-54070 |
3Y..YY52,61..ST |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-54010 |
3Y..YY52,61 |
1 | ||
| 17807-54010 |
3Y..YY52,61 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-54010 |
3Y..YY52,61 |
2 | ||
| 17841-54010 |
3Y..YY52,61 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-54010 |
3Y..YY52,61 |
2 | ||
| 17841-54010 |
3Y..YY52,61 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-54010 |
3Y..YY52,61 |
1 | ||
| 17845-54010 |
3Y..YY52,61 |
1 | ||
| Common parts | ||||
| 90179-08104 | ||||
| 91661-60825 | ||||
| 93385-15020 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 3(8708-8808)3Y ; (8808- )3Y
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-54360 |
3Y..YY52,61..LHD |
1 | ||
| 17700-54360 |
3Y..YY52,61..LHD |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
3Y..YY52,61 |
1 | ||
| 90175-08008 |
3Y..YY52,61 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17701-54200 |
3Y..YY52,61 |
1 | ||
| 17701-54200 |
3Y..YY52,61 |
1 | ||
| 17736 - NUT, AIR CLEANER CASE | ||||
| 90175-06003 |
3Y..YY52,61 |
1 | ||
| 90175-06003 |
3Y..YY52,61 |
1 | ||
| 17771 - BRACKET, AIR CLEANER INLET DUCT | ||||
| 17771-71010 |
3Y..YY52,61 NO.1 |
1 | ||
| 17771-71010 |
3Y..YY52,61 NO.1 |
1 | ||
| 17771-54010 |
3Y..YY52,61 NO.2 |
1 | ||
| 17771-54010 |
3Y..YY52,61 NO.2 |
1 | ||
| 17771-54010 |
3Y..YY52,61..ST NO.2 |
1 | ||
| 17771-54010 |
3Y..YY52,61..ST NO.2 |
1 | ||
| 17771-71010 |
3Y..YY61..LHD..T3;3Y..YY52,61..T2,TW NO.1 |
1 | ||
| 17771-71010 |
3Y..YY61..LHD..T3;3Y..YY52,61..T2,TW NO.1 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-54070 |
3Y..YY52,61 |
1 | ||
| 17801-54070 |
3Y..YY52,61 |
1 | ||
| 17801-54070 |
3Y..YY52,61..ST |
1 | ||
| 17801-54070 |
3Y..YY52,61..ST |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-54010 |
3Y..YY52,61 |
1 | ||
| 17807-54010 |
3Y..YY52,61 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-54010 |
3Y..YY52,61 |
2 | ||
| 17841-54010 |
3Y..YY52,61 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-54010 |
3Y..YY52,61 |
2 | ||
| 17841-54010 |
3Y..YY52,61 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-54010 |
3Y..YY52,61 |
1 | ||
| 17845-54010 |
3Y..YY52,61 |
1 | ||
| Common parts | ||||
| 90179-08104 | ||||
| 91661-60825 | ||||
| 93385-15020 | ||||
| Linked diagrams | ||||
| 8401 | ||||

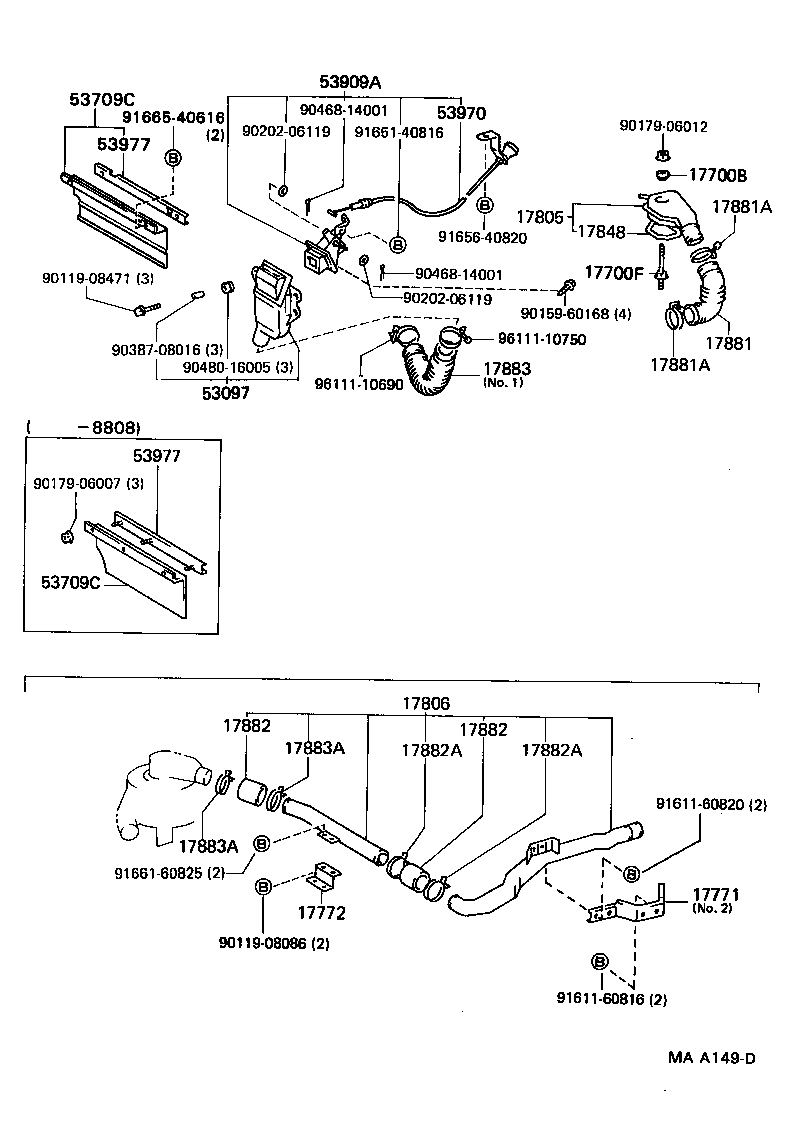

ILLUST NO. 2 OF 3(8708-8808)3Y..YY61..RHD ; (8808-9208)3Y..YY61..RHD ; (9208- )3Y..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-09026 |
3Y..YY52,61 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06143 |
3Y..YY52,61 |
1 | ||
| 17771 - BRACKET, AIR CLEANER INLET DUCT | ||||
| 17771-71010 |
3Y..YY52,61 NO.1 |
1 | ||
| 17771-54010 |
3Y..YY52,61 NO.2 |
1 | ||
| 17771-54010 |
3Y..YY52,61..ST NO.2 |
1 | ||
| 17771-71010 |
3Y..YY61..LHD..T3;3Y..YY52,61..T2,TW NO.1 |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-71020 |
3Y..YY52,61 |
1 | ||
| 17805-71020 |
3Y..YY52,61..ST |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-35010 |
3Y..YY52,61 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-71070 |
3Y..YY52,61 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-71070 |
3Y..YY52,61 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
3Y..YY52,61 CARBURETOR SIDE |
1 | ||
| 96111-10690 |
3Y..YY52,61 CONNECTOR SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
3Y..YY52,61 CARBURETOR SIDE |
1 | ||
| 96111-10690 |
3Y..YY52,61 CONNECTOR SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
3Y..YY52,61 CARBURETOR SIDE |
1 | ||
| 96111-10690 |
3Y..YY52,61 CONNECTOR SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
3Y..YY52,61 CARBURETOR SIDE |
1 | ||
| 96111-10690 |
3Y..YY52,61 CONNECTOR SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-54220 |
3Y..YY52,61 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
3Y..YY52,61 |
2 | ||
| 96111-10750 |
3Y..YY52,61..ST |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
3Y..YY52,61 |
2 | ||
| 96111-10750 |
3Y..YY52,61..ST |
2 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-95015 |
3Y..YY52,61..LHD W(SCHNORKEL),NO.1 |
1 | ||
| 17883-95015 |
3Y..YY52,61..LHD |
1 | ||
| 17882-54220 |
3Y..YY52,61..LHD NO.1 |
1 | ||
| 17883-95018 |
3Y..YY52,61..LHD W(SCHNORKEL) |
1 | ||
| 17883-95016 |
3Y..YY52,61..LHD W(SCHNORKEL),NO.2 |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-95413 |
YY52,61..LHD W(SCHNORKEL) |
1 | ||
| 53097-95017 |
YY52,61..LHD |
1 | ||
| 53097-25030 |
YY52,61..LHD |
1 | ||
| 53097-95015 |
YY52,61..LHD W(SCHNORKEL) |
1 | ||
| 53097-95415 |
YY52,61..LHD |
1 | ||
| 53709C - COVER SUB-ASSY, AIR CLEANER INLET | ||||
| 53767-95401 |
YY52,61..LHD |
1 | ||
| 53709-95016 |
YY52,61..LHD |
1 | ||
| 53709C - COVER SUB-ASSY, AIR CLEANER INLET | ||||
| 53767-95401 |
YY52,61..LHD |
1 | ||
| 53709-95016 |
YY52,61..LHD |
1 | ||
| 53709C - COVER SUB-ASSY, AIR CLEANER INLET | ||||
| 53767-95401 |
YY52,61..LHD |
1 | ||
| 53709-95016 |
YY52,61..LHD |
1 | ||
| 53909A - BRACKET SUB-ASSY, AIR CLEANER SHUTTER, NO.1 | ||||
| 53909-95405 |
YY52,61..LHD |
1 | ||
| 53909-37020 |
YY52,61..LHD |
1 | ||
| 53970 - CABLE ASSY, AIR CLEANER INLET SHUTTER CONTROL | ||||
| 53970-95401 |
YY52,61..LHD |
1 | ||
| 53977 - PLATE, AIR CLEANER INLET COVER | ||||
| 53977-95012 |
YY52,61..LHD |
1 | ||
| 53977-95400 |
YY52,61 |
1 | ||
| 53977 - PLATE, AIR CLEANER INLET COVER | ||||
| 53977-95012 |
YY52,61..LHD |
1 | ||
| 53977-95400 |
YY52,61 |
1 | ||
| Common parts | ||||
| 90119-08471 | ||||
| 90159-60168 | ||||
| 90179-06007 | ||||
| 90179-06012 | ||||
| 90202-06119 | ||||
| 90387-08016 | ||||
| 90468-14001 | ||||
| 90480-16005 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91651-40814 | ||||
| 91665-40616 | ||||
| 96111-10690 | ||||
| 96111-10750 | ||||

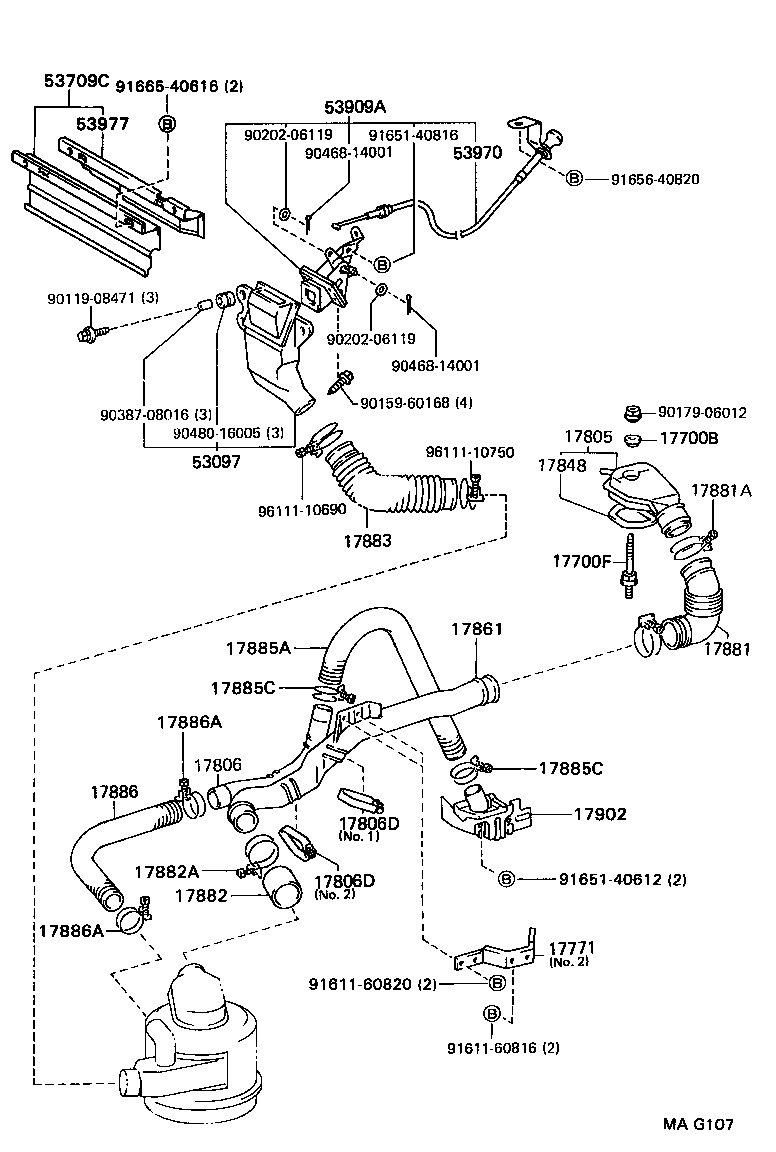

ILLUST NO. 2 OF 3(8708-8808)3Y..LHD ; (8808- )3Y..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-09026 |
3Y..YY52,61 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06143 |
3Y..YY52,61 |
1 | ||
| 17771 - BRACKET, AIR CLEANER INLET DUCT | ||||
| 17771-71010 |
3Y..YY52,61 NO.1 |
1 | ||
| 17771-54010 |
3Y..YY52,61 NO.2 |
1 | ||
| 17771-54010 |
3Y..YY52,61..ST NO.2 |
1 | ||
| 17771-71010 |
3Y..YY61..LHD..T3;3Y..YY52,61..T2,TW NO.1 |
1 | ||
| 17772 - BRACKET, INTAKE AIR CONNECTOR, NO.2 | ||||
| 17772-54010 |
3Y..YY52,61..LHD |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-71020 |
3Y..YY52,61 |
1 | ||
| 17805-71020 |
3Y..YY52,61..ST |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17806-54040 |
3Y..YY52,61..LHD |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-35010 |
3Y..YY52,61 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-71070 |
3Y..YY52,61 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
3Y..YY52,61 CARBURETOR SIDE |
1 | ||
| 96111-10690 |
3Y..YY52,61 CONNECTOR SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
3Y..YY52,61 CARBURETOR SIDE |
1 | ||
| 96111-10690 |
3Y..YY52,61 CONNECTOR SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-54220 |
3Y..YY52,61 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-54220 |
3Y..YY52,61 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
3Y..YY52,61 |
2 | ||
| 96111-10750 |
3Y..YY52,61..ST |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
3Y..YY52,61 |
2 | ||
| 96111-10750 |
3Y..YY52,61..ST |
2 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-95015 |
3Y..YY52,61..LHD W(SCHNORKEL),NO.1 |
1 | ||
| 17883-95015 |
3Y..YY52,61..LHD |
1 | ||
| 17882-54220 |
3Y..YY52,61..LHD NO.1 |
1 | ||
| 17883-95018 |
3Y..YY52,61..LHD W(SCHNORKEL) |
1 | ||
| 17883-95016 |
3Y..YY52,61..LHD W(SCHNORKEL),NO.2 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
3Y..YY52,61..LHD |
2 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
3Y..YY52,61..LHD |
2 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-95413 |
YY52,61..LHD W(SCHNORKEL) |
1 | ||
| 53097-95017 |
YY52,61..LHD |
1 | ||
| 53097-25030 |
YY52,61..LHD |
1 | ||
| 53097-95015 |
YY52,61..LHD W(SCHNORKEL) |
1 | ||
| 53097-95415 |
YY52,61..LHD |
1 | ||
| 53709C - COVER SUB-ASSY, AIR CLEANER INLET | ||||
| 53767-95401 |
YY52,61..LHD |
1 | ||
| 53709-95016 |
YY52,61..LHD |
1 | ||
| 53709C - COVER SUB-ASSY, AIR CLEANER INLET | ||||
| 53767-95401 |
YY52,61..LHD |
1 | ||
| 53709-95016 |
YY52,61..LHD |
1 | ||
| 53909A - BRACKET SUB-ASSY, AIR CLEANER SHUTTER, NO.1 | ||||
| 53909-95405 |
YY52,61..LHD |
1 | ||
| 53909-37020 |
YY52,61..LHD |
1 | ||
| 53970 - CABLE ASSY, AIR CLEANER INLET SHUTTER CONTROL | ||||
| 53970-95401 |
YY52,61..LHD |
1 | ||
| 53977 - PLATE, AIR CLEANER INLET COVER | ||||
| 53977-95012 |
YY52,61..LHD |
1 | ||
| 53977-95400 |
YY52,61 |
1 | ||
| 53977 - PLATE, AIR CLEANER INLET COVER | ||||
| 53977-95012 |
YY52,61..LHD |
1 | ||
| 53977-95400 |
YY52,61 |
1 | ||
| Common parts | ||||
| 90119-08086 | ||||
| 90119-08471 | ||||
| 90159-60168 | ||||
| 90179-06007 | ||||
| 90179-06012 | ||||
| 90202-06119 | ||||
| 90387-08016 | ||||
| 90468-14001 | ||||
| 90480-16005 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91651-40816 | ||||
| 91656-40820 | ||||
| 91661-60825 | ||||
| 91665-40616 | ||||
| 96111-10690 | ||||
| 96111-10750 | ||||

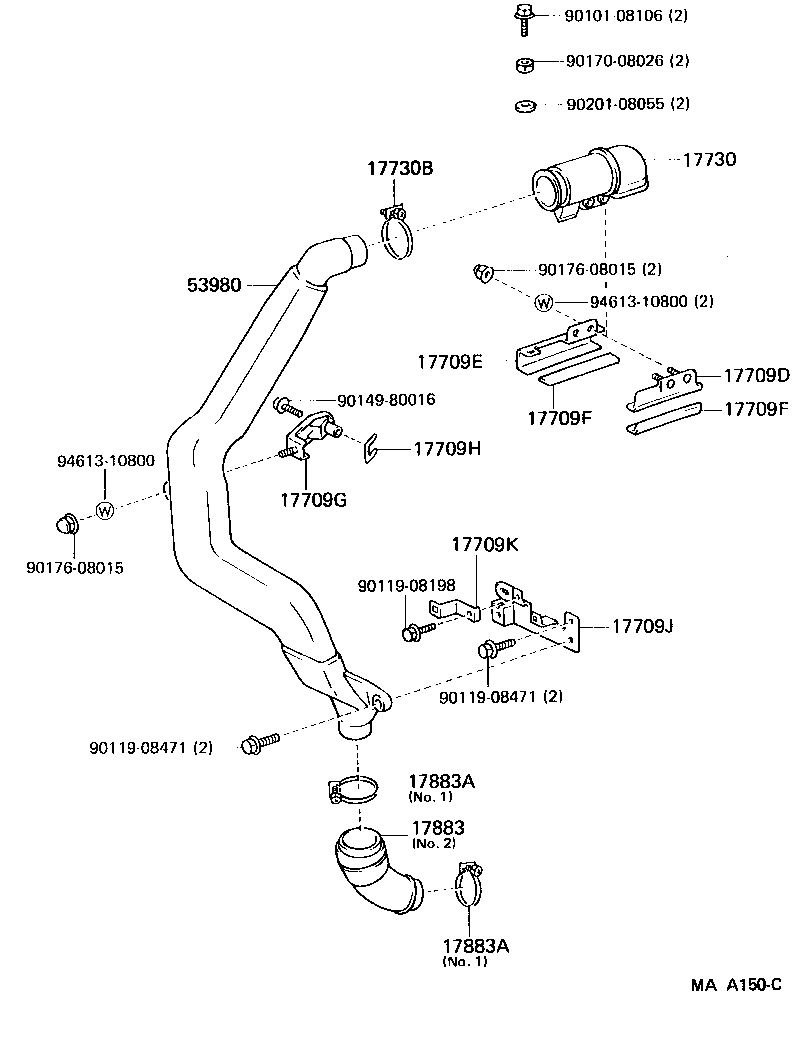

ILLUST NO. 3 OF 3(8708- )2L,3L..LHD
W(FRONT SCHNORKEL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17709D - BRACKET, AIR CLEANER INLET, NO.1 | ||||
| 53772-95401 |
3Y..YY52,61..LHD |
1 | ||
| 53772-95401 |
3Y..YY52,61..LHD |
1 | ||
| 17709E - BRACKET, AIR CLEANER INLET, NO.2 | ||||
| 53773-95402 |
3Y..YY52,61..LHD |
1 | ||
| 53773-95402 |
3Y..YY52,61..LHD |
1 | ||
| 17709F - PAD, AIR CLEANER INLET, NO.2 | ||||
| 53967-95402 |
3Y..YY52,61..LHD |
2 | ||
| 53967-95402 |
3Y..YY52,61..LHD |
2 | ||
| 17709F - PAD, AIR CLEANER INLET, NO.2 | ||||
| 53967-95402 |
3Y..YY52,61..LHD |
2 | ||
| 53967-95402 |
3Y..YY52,61..LHD |
2 | ||
| 17709G - BRACKET SUB-ASSY, AIR CLEANER INLET PIPE | ||||
| 53907-95402 |
3Y..YY52,61..LHD |
1 | ||
| 53907-95402 |
3Y..YY52,61..LHD |
1 | ||
| 17709H - PAD, AIR CLEANER INLET, NO.1 | ||||
| 53966-95402 |
3Y..YY52,61..LHD |
1 | ||
| 53966-95402 |
3Y..YY52,61..LHD |
1 | ||
| 17709J - BRACKET, AIR CLEANER INLET, NO.3 | ||||
| 53764-95405 |
3Y..YY52,61..LHD |
1 | ||
| 53764-95405 |
3Y..YY52,61..LHD |
1 | ||
| 53764-95407 |
3Y..YY52,61..LHD |
1 | ||
| 53764-95407 |
3Y..YY52,61..LHD |
1 | ||
| 17709K - BRACKET, AIR CLEANER INLET, NO.4 | ||||
| 53765-95404 |
3Y..YY52,61..LHD |
1 | ||
| 53765-95404 |
3Y..YY52,61..LHD |
1 | ||
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17730-56020 |
3Y..YY52,61..LHD |
1 | ||
| 17730-56020 |
3Y..YY52,61..LHD |
1 | ||
| 17730B - CLAMP, HOSE(FOR PRECLEANER HOSE) | ||||
| 96111-10880 |
3Y..YY52,61..LHD |
1 | ||
| 96111-10880 |
3Y..YY52,61..LHD |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-95015 |
3Y..YY52,61..LHD W(SCHNORKEL),NO.1 |
1 | ||
| 17883-95015 |
3Y..YY52,61..LHD W(SCHNORKEL),NO.1 |
1 | ||
| 17883-95015 |
3Y..YY52,61..LHD |
1 | ||
| 17883-95015 |
3Y..YY52,61..LHD |
1 | ||
| 17882-54220 |
3Y..YY52,61..LHD NO.1 |
1 | ||
| 17882-54220 |
3Y..YY52,61..LHD NO.1 |
1 | ||
| 17883-95018 |
3Y..YY52,61..LHD W(SCHNORKEL) |
1 | ||
| 17883-95018 |
3Y..YY52,61..LHD W(SCHNORKEL) |
1 | ||
| 17883-95016 |
3Y..YY52,61..LHD W(SCHNORKEL),NO.2 |
1 | ||
| 17883-95016 |
3Y..YY52,61..LHD W(SCHNORKEL),NO.2 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
3Y..YY52,61..LHD |
2 | ||
| 96111-10750 |
3Y..YY52,61..LHD |
2 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
3Y..YY52,61..LHD |
2 | ||
| 96111-10750 |
3Y..YY52,61..LHD |
2 | ||
| 53980 - INLET ASSY, AIR CLEANER PIPE | ||||
| 53980-95401 |
YY52,61..LHD |
1 | ||
| 53980-95401 |
YY52,61..LHD |
1 | ||
| 53980-95400 |
YY52,61..LHD |
1 | ||
| 53980-95400 |
YY52,61..LHD |
1 | ||
| Common parts | ||||
| 90101-08106 | ||||
| 90119-08198 | ||||
| 90119-08471 | ||||
| 90149-80016 | ||||
| 90170-08026 | ||||
| 90176-08015 | ||||
| 90201-08055 | ||||
| 94613-10800 | ||||
ILLUST NO. 3 OF 3(8708- )3Y..LHD
W(FRONT SCHNORKEL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17709D - BRACKET, AIR CLEANER INLET, NO.1 | ||||
| 53772-95401 |
3Y..YY52,61..LHD |
1 | ||
| 53772-95401 |
3Y..YY52,61..LHD |
1 | ||
| 17709E - BRACKET, AIR CLEANER INLET, NO.2 | ||||
| 53773-95402 |
3Y..YY52,61..LHD |
1 | ||
| 53773-95402 |
3Y..YY52,61..LHD |
1 | ||
| 17709F - PAD, AIR CLEANER INLET, NO.2 | ||||
| 53967-95402 |
3Y..YY52,61..LHD |
2 | ||
| 53967-95402 |
3Y..YY52,61..LHD |
2 | ||
| 17709F - PAD, AIR CLEANER INLET, NO.2 | ||||
| 53967-95402 |
3Y..YY52,61..LHD |
2 | ||
| 53967-95402 |
3Y..YY52,61..LHD |
2 | ||
| 17709G - BRACKET SUB-ASSY, AIR CLEANER INLET PIPE | ||||
| 53907-95402 |
3Y..YY52,61..LHD |
1 | ||
| 53907-95402 |
3Y..YY52,61..LHD |
1 | ||
| 17709H - PAD, AIR CLEANER INLET, NO.1 | ||||
| 53966-95402 |
3Y..YY52,61..LHD |
1 | ||
| 53966-95402 |
3Y..YY52,61..LHD |
1 | ||
| 17709J - BRACKET, AIR CLEANER INLET, NO.3 | ||||
| 53764-95405 |
3Y..YY52,61..LHD |
1 | ||
| 53764-95405 |
3Y..YY52,61..LHD |
1 | ||
| 53764-95407 |
3Y..YY52,61..LHD |
1 | ||
| 53764-95407 |
3Y..YY52,61..LHD |
1 | ||
| 17709K - BRACKET, AIR CLEANER INLET, NO.4 | ||||
| 53765-95404 |
3Y..YY52,61..LHD |
1 | ||
| 53765-95404 |
3Y..YY52,61..LHD |
1 | ||
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17730-56020 |
3Y..YY52,61..LHD |
1 | ||
| 17730-56020 |
3Y..YY52,61..LHD |
1 | ||
| 17730B - CLAMP, HOSE(FOR PRECLEANER HOSE) | ||||
| 96111-10880 |
3Y..YY52,61..LHD |
1 | ||
| 96111-10880 |
3Y..YY52,61..LHD |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-95015 |
3Y..YY52,61..LHD W(SCHNORKEL),NO.1 |
1 | ||
| 17883-95015 |
3Y..YY52,61..LHD W(SCHNORKEL),NO.1 |
1 | ||
| 17883-95015 |
3Y..YY52,61..LHD |
1 | ||
| 17883-95015 |
3Y..YY52,61..LHD |
1 | ||
| 17882-54220 |
3Y..YY52,61..LHD NO.1 |
1 | ||
| 17882-54220 |
3Y..YY52,61..LHD NO.1 |
1 | ||
| 17883-95018 |
3Y..YY52,61..LHD W(SCHNORKEL) |
1 | ||
| 17883-95018 |
3Y..YY52,61..LHD W(SCHNORKEL) |
1 | ||
| 17883-95016 |
3Y..YY52,61..LHD W(SCHNORKEL),NO.2 |
1 | ||
| 17883-95016 |
3Y..YY52,61..LHD W(SCHNORKEL),NO.2 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
3Y..YY52,61..LHD |
2 | ||
| 96111-10750 |
3Y..YY52,61..LHD |
2 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
3Y..YY52,61..LHD |
2 | ||
| 96111-10750 |
3Y..YY52,61..LHD |
2 | ||
| 53980 - INLET ASSY, AIR CLEANER PIPE | ||||
| 53980-95401 |
YY52,61..LHD |
1 | ||
| 53980-95401 |
YY52,61..LHD |
1 | ||
| 53980-95400 |
YY52,61..LHD |
1 | ||
| 53980-95400 |
YY52,61..LHD |
1 | ||
| Common parts | ||||
| 90101-08106 | ||||
| 90119-08198 | ||||
| 90119-08471 | ||||
| 90149-80016 | ||||
| 90170-08026 | ||||
| 90176-08015 | ||||
| 90201-08055 | ||||
| 94613-10800 | ||||
(9208- )3Y
SINGAPORE SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-09026 |
3Y..YY52,61 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06143 |
3Y..YY52,61 |
1 | ||
| 17771 - BRACKET, AIR CLEANER INLET DUCT | ||||
| 17771-71010 |
3Y..YY52,61 NO.1 |
1 | ||
| 17771-54010 |
3Y..YY52,61 NO.2 |
1 | ||
| 17771-54010 |
3Y..YY52,61..ST NO.2 |
1 | ||
| 17771-71010 |
3Y..YY61..LHD..T3;3Y..YY52,61..T2,TW NO.1 |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-71020 |
3Y..YY52,61 |
1 | ||
| 17805-71020 |
3Y..YY52,61..ST |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17806-54040 |
3Y..YY52,61..LHD |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-35010 |
3Y..YY52,61 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-71070 |
3Y..YY52,61 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
3Y..YY52,61 CARBURETOR SIDE |
1 | ||
| 96111-10690 |
3Y..YY52,61 CONNECTOR SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-54220 |
3Y..YY52,61 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
3Y..YY52,61 |
2 | ||
| 96111-10750 |
3Y..YY52,61..ST |
2 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-95015 |
3Y..YY52,61..LHD W(SCHNORKEL),NO.1 |
1 | ||
| 17883-95015 |
3Y..YY52,61..LHD |
1 | ||
| 17882-54220 |
3Y..YY52,61..LHD NO.1 |
1 | ||
| 17883-95018 |
3Y..YY52,61..LHD W(SCHNORKEL) |
1 | ||
| 17883-95016 |
3Y..YY52,61..LHD W(SCHNORKEL),NO.2 |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-95413 |
YY52,61..LHD W(SCHNORKEL) |
1 | ||
| 53097-95017 |
YY52,61..LHD |
1 | ||
| 53097-25030 |
YY52,61..LHD |
1 | ||
| 53097-95015 |
YY52,61..LHD W(SCHNORKEL) |
1 | ||
| 53097-95415 |
YY52,61..LHD |
1 | ||
| 53709C - COVER SUB-ASSY, AIR CLEANER INLET | ||||
| 53767-95401 |
YY52,61..LHD |
1 | ||
| 53709-95016 |
YY52,61..LHD |
1 | ||
| 53909A - BRACKET SUB-ASSY, AIR CLEANER SHUTTER, NO.1 | ||||
| 53909-95405 |
YY52,61..LHD |
1 | ||
| 53909-37020 |
YY52,61..LHD |
1 | ||
| 53970 - CABLE ASSY, AIR CLEANER INLET SHUTTER CONTROL | ||||
| 53970-95401 |
YY52,61..LHD |
1 | ||
| 53977 - PLATE, AIR CLEANER INLET COVER | ||||
| 53977-95012 |
YY52,61..LHD |
1 | ||
| 53977-95400 |
YY52,61 |
1 | ||
| Common parts | ||||
| 90119-08471 | ||||
| 90159-60168 | ||||
| 90179-06012 | ||||
| 90202-06119 | ||||
| 90387-08016 | ||||
| 90468-14001 | ||||
| 90480-16005 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91651-40612 | ||||
| 91651-40816 | ||||
| 91656-40820 | ||||
| 91665-40616 | ||||
| 96111-10690 | ||||
| 96111-10750 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
