YY52L-MDP (1987)

Toyota Dyna150

Production Aug 1987 - May 1995
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708-8808)2L

Click highlighted areas on diagram

diagram 1703 1703 17111 17141 17152 17159 17159 17167 17168 17173 17177 9011908713 9011908714 9011910237 9017010199 9017908150 9020110283
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-71020

3Y..YY52,61

 1
17111-71020

3Y..YY52,61..ST

 1
17141 - MANIFOLD, EXHAUST
17141-71020

3Y..YY52,61

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10146

3Y..YY52,61

 3
90116-10148

3Y..YY52,61

 3
90116-10058

3Y..YY52,61

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10063

3Y..YY52,61

 8
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10063

3Y..YY52,61

 8
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-71020

3Y..YY52,61

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
12521-72010

3Y..YY52,61..ST

 1
12521-72010

3Y..YY52,61

 1
Common parts
90119-08713
90119-08714
90119-10237
90170-10199
90179-08150
90201-10283
Linked diagrams
1703

(8708- )3Y

Click highlighted areas on diagram

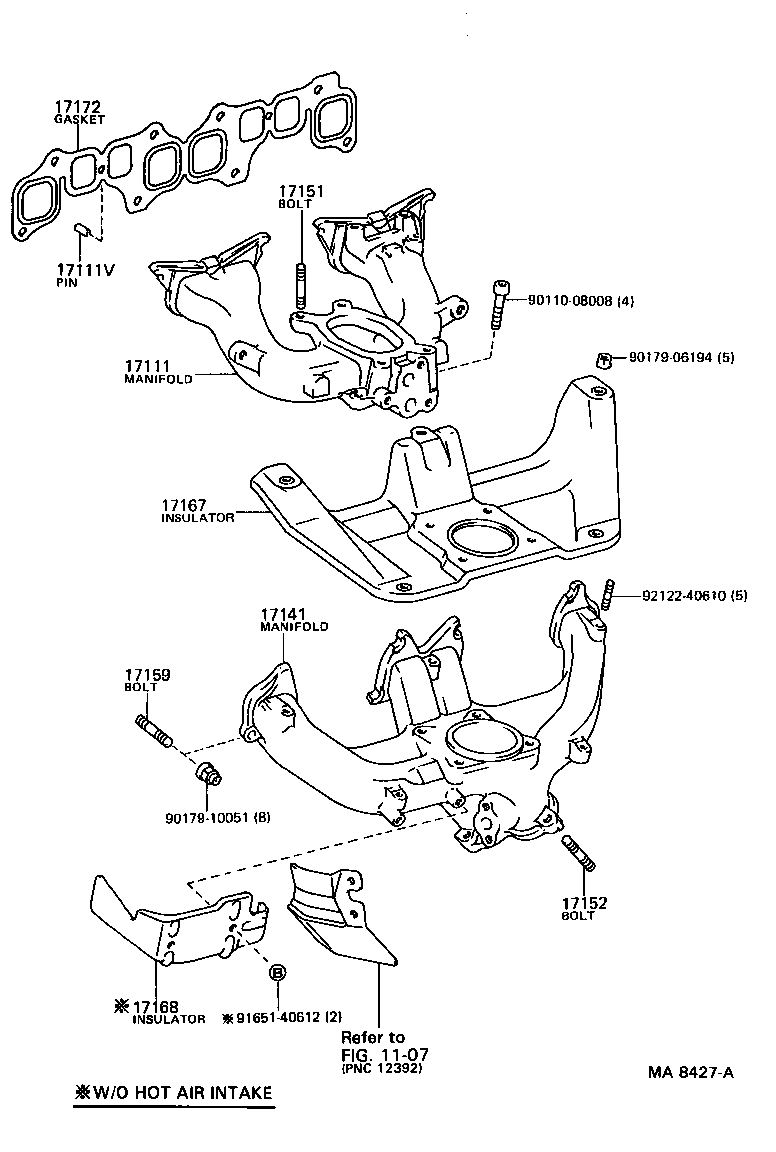

diagram 1107 17111 17111V 17141 17151 17152 17159 17167 17168 17172 9011008008 9017906194 9017910051 9165140612 9212240610
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-71020

3Y..YY52,61

 1
17111-71020

3Y..YY52,61..ST

 1
17111V - PIN, STRAIGHT(FOR INTAKE MANIFOLD SETTING)
90250-08120

3Y..YY52,61

 2
17141 - MANIFOLD, EXHAUST
17141-71020

3Y..YY52,61

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
92122-40835

3Y..YY52,61

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10146

3Y..YY52,61

 3
90116-10148

3Y..YY52,61

 3
90116-10058

3Y..YY52,61

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10063

3Y..YY52,61

 8
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-71020

3Y..YY52,61

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
12521-72010

3Y..YY52,61..ST

 1
12521-72010

3Y..YY52,61

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-73010

3Y..YY52,61

 1
Common parts
90110-08008
90179-06194
90179-10051
91651-40612
92122-40610
Linked diagrams
1107
