YY52L-MDP (1987)
Toyota Dyna150

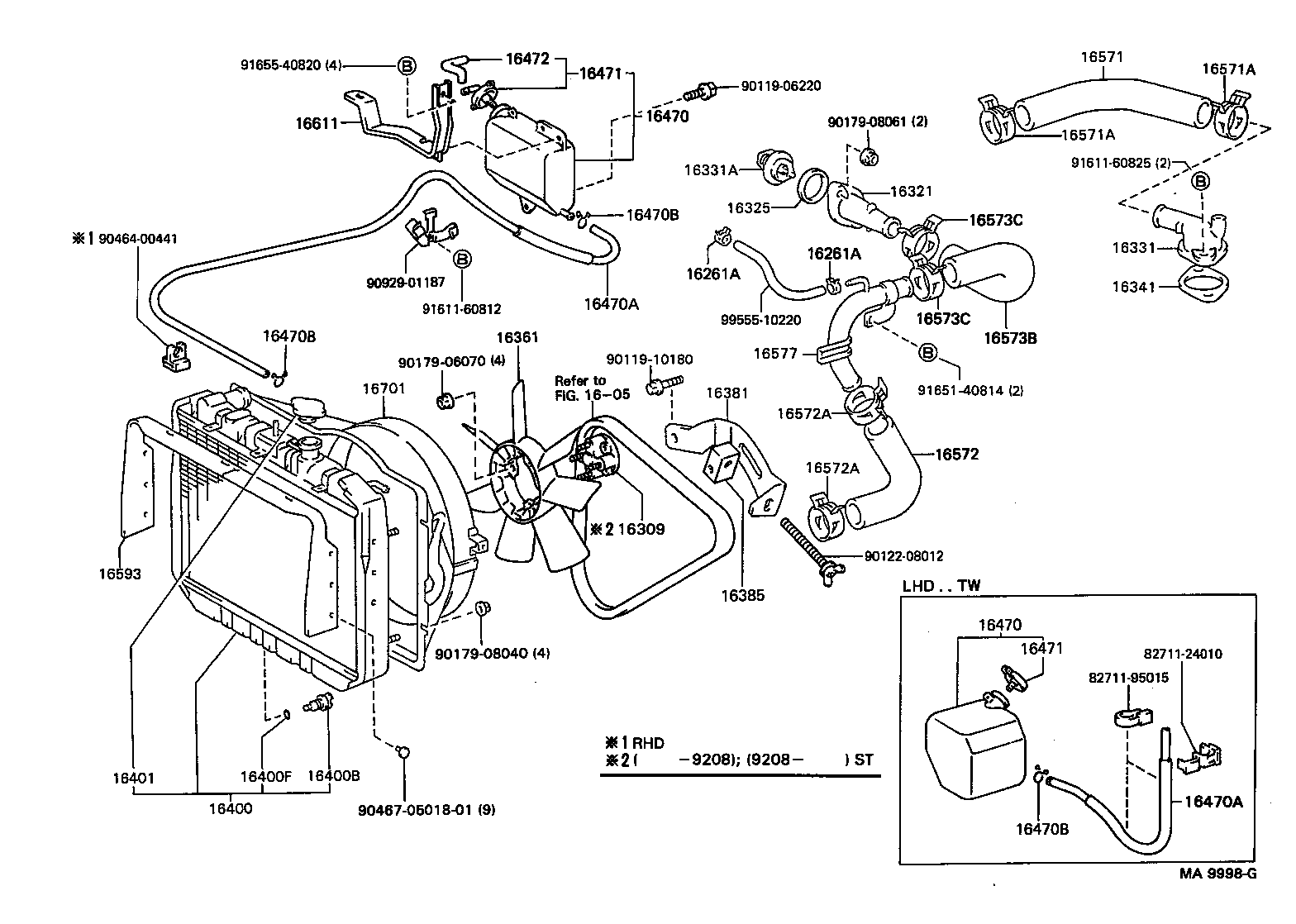

(8708- )3Y
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13001 |
3Y..YY52,61 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13001 |
3Y..YY52,61 |
2 | ||
| 16309 - SHAFT SUB-ASSY, FAN DRIVE | ||||
| 16309-71010 |
3Y..YY52,61..ST |
1 | ||
| 16309-71010 |
3Y..YY52,61 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-71010 |
3Y..YY52,61 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63011 |
3Y..YY52,61 |
1 | ||
| 16325-63010 |
3Y..YY52,61 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-71010 |
3Y..YY52,61 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03069 |
3Y..YY52,61 *WAX 82-95 |
1 | ||
| 90916-03046 |
3Y..YY52,61 *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-71010 |
3Y..YY52,61 |
1 | ||
| 16341-71011 |
3Y..YY52,61 |
1 | ||
| 16361 - FAN | ||||
| 16361-44032 |
3Y..YY52,61 |
1 | ||
| 16361-44032 |
3Y..YY52,61..ST |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-73011 |
3Y..YY52,61 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-71010 |
3Y..YY52,61 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-73140 |
3Y..YY52,61..LHD |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-58090 |
3Y..YY52,61 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24051 |
3Y..YY52,61 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
3Y..YY52,61 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54150 |
3Y..YY52,61..TW |
1 | ||
| 16470-54150 |
3Y..YY52,61..TW..ST |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54150 |
3Y..YY52,61..TW |
1 | ||
| 16470-54150 |
3Y..YY52,61..TW..ST |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-54060 |
3Y..YY52,61..TW..ST |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-54060 |
3Y..YY52,61..TW..ST |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3Y..YY52,61 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3Y..YY52,61 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3Y..YY52,61 |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-54120 |
3Y..YY52,61..TW..ST |
1 | ||
| 16405-54120 |
3Y..YY52,61..TW |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-54120 |
3Y..YY52,61..TW..ST |
1 | ||
| 16405-54120 |
3Y..YY52,61..TW |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-71050 |
3Y..YY52,61 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
3Y..YY52,61 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
3Y..YY52,61 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-71040 |
3Y..YY52,61 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
3Y..YY52,61 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
3Y..YY52,61 |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-71020 |
3Y..YY52,61 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-37002 |
3Y..YY52,61 |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-37002 |
3Y..YY52,61 |
2 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-73011 |
3Y..YY52,61 |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-56030 |
3Y..YY52,61 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-71010 |
3Y..YY52,61 |
1 | ||
| Common parts | ||||
| 82711-24010 | ||||
| 82711-95015 | ||||
| 90119-06220 | ||||
| 90119-10180 | ||||
| 90122-08012 | ||||
| 90179-06070 | ||||
| 90179-08040 | ||||
| 90179-08061 | ||||
| 90464-00441 | ||||
| 90467-0501801 | ||||
| 90929-01187 | ||||
| 91611-60812 | ||||
| 91611-60825 | ||||
| 91651-40814 | ||||
| 91655-40820 | ||||
| 99555-10220 | ||||
| Linked diagrams | ||||
| 1605 | ||||

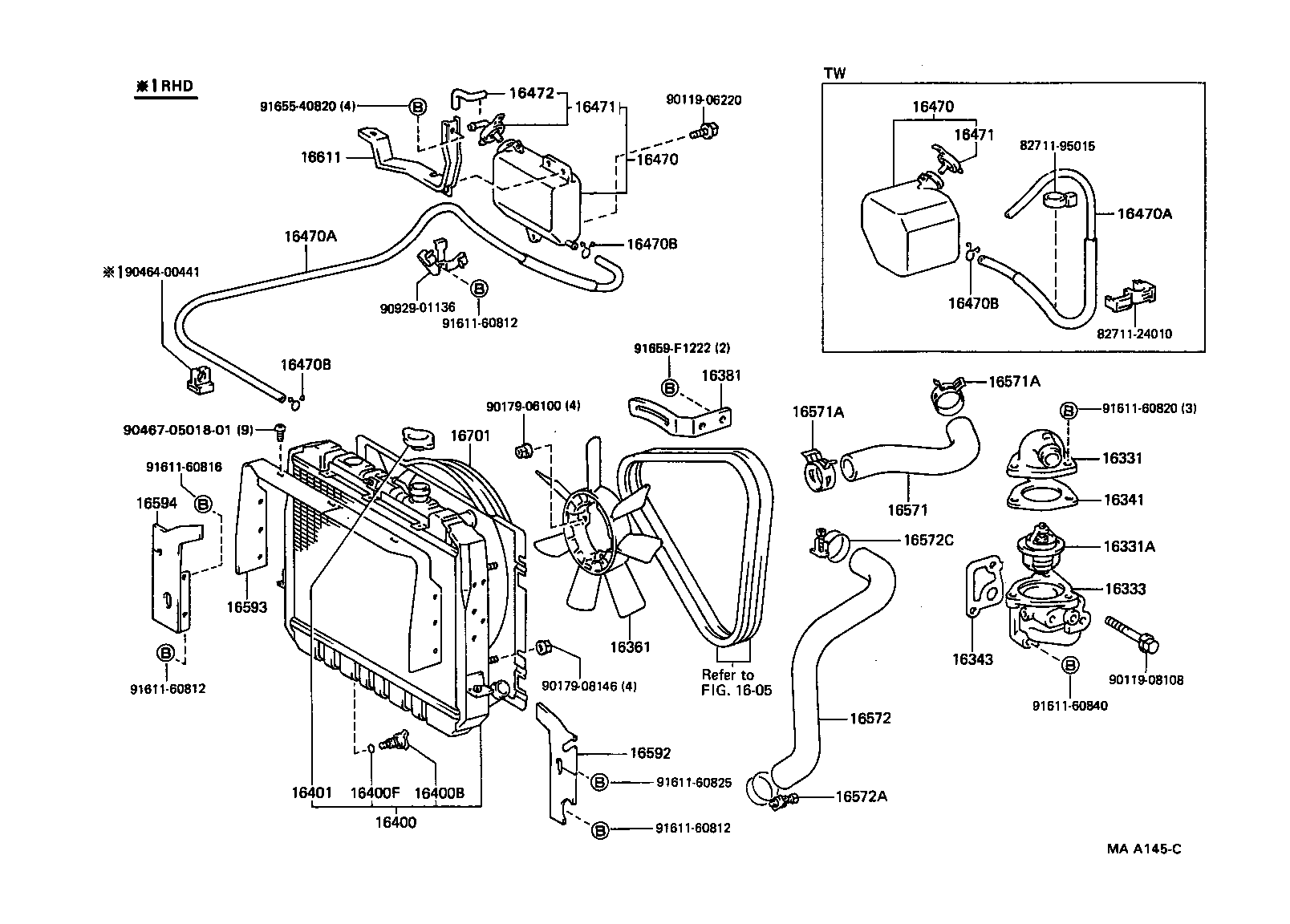

(8708-8808)2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-71010 |
3Y..YY52,61 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03069 |
3Y..YY52,61 *WAX 82-95 |
1 | ||
| 90916-03046 |
3Y..YY52,61 *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-71010 |
3Y..YY52,61 |
1 | ||
| 16341-71011 |
3Y..YY52,61 |
1 | ||
| 16361 - FAN | ||||
| 16361-44032 |
3Y..YY52,61 |
1 | ||
| 16361-44032 |
3Y..YY52,61..ST |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-73011 |
3Y..YY52,61 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-73140 |
3Y..YY52,61..LHD |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-58090 |
3Y..YY52,61 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24051 |
3Y..YY52,61 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
3Y..YY52,61 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54150 |
3Y..YY52,61..TW |
1 | ||
| 16470-54150 |
3Y..YY52,61..TW..ST |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54150 |
3Y..YY52,61..TW |
1 | ||
| 16470-54150 |
3Y..YY52,61..TW..ST |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-54060 |
3Y..YY52,61..TW..ST |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-54060 |
3Y..YY52,61..TW..ST |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3Y..YY52,61 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3Y..YY52,61 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3Y..YY52,61 |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-54120 |
3Y..YY52,61..TW..ST |
1 | ||
| 16405-54120 |
3Y..YY52,61..TW |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-54120 |
3Y..YY52,61..TW..ST |
1 | ||
| 16405-54120 |
3Y..YY52,61..TW |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-71050 |
3Y..YY52,61 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
3Y..YY52,61 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
3Y..YY52,61 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-71040 |
3Y..YY52,61 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
3Y..YY52,61 |
2 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-56030 |
3Y..YY52,61 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-71010 |
3Y..YY52,61 |
1 | ||
| Common parts | ||||
| 82711-24010 | ||||
| 82711-95015 | ||||
| 90119-06220 | ||||
| 90119-08108 | ||||
| 90179-06100 | ||||
| 90179-08146 | ||||
| 90464-00441 | ||||
| 90467-0501801 | ||||
| 90929-01136 | ||||
| 91611-60812 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 91611-60840 | ||||
| 91655-40820 | ||||
| 91659-F1222 | ||||
| Linked diagrams | ||||
| 1605 | ||||
